Phenolic Wheel Series
Tread & Tyre Hardness ○ ○ ○ ● ○ 90° ± 5° Shore A
Temperature Resistance ○ ● ● ○ ○ -20℃ to +150℃
Rolling Resistance ● ● ● ● ● Excellent
Operating Noise ● ● ○ ○ ○ Basic
Floor Surface Preservation ● ● ○ ○ ○ Basic
Tread

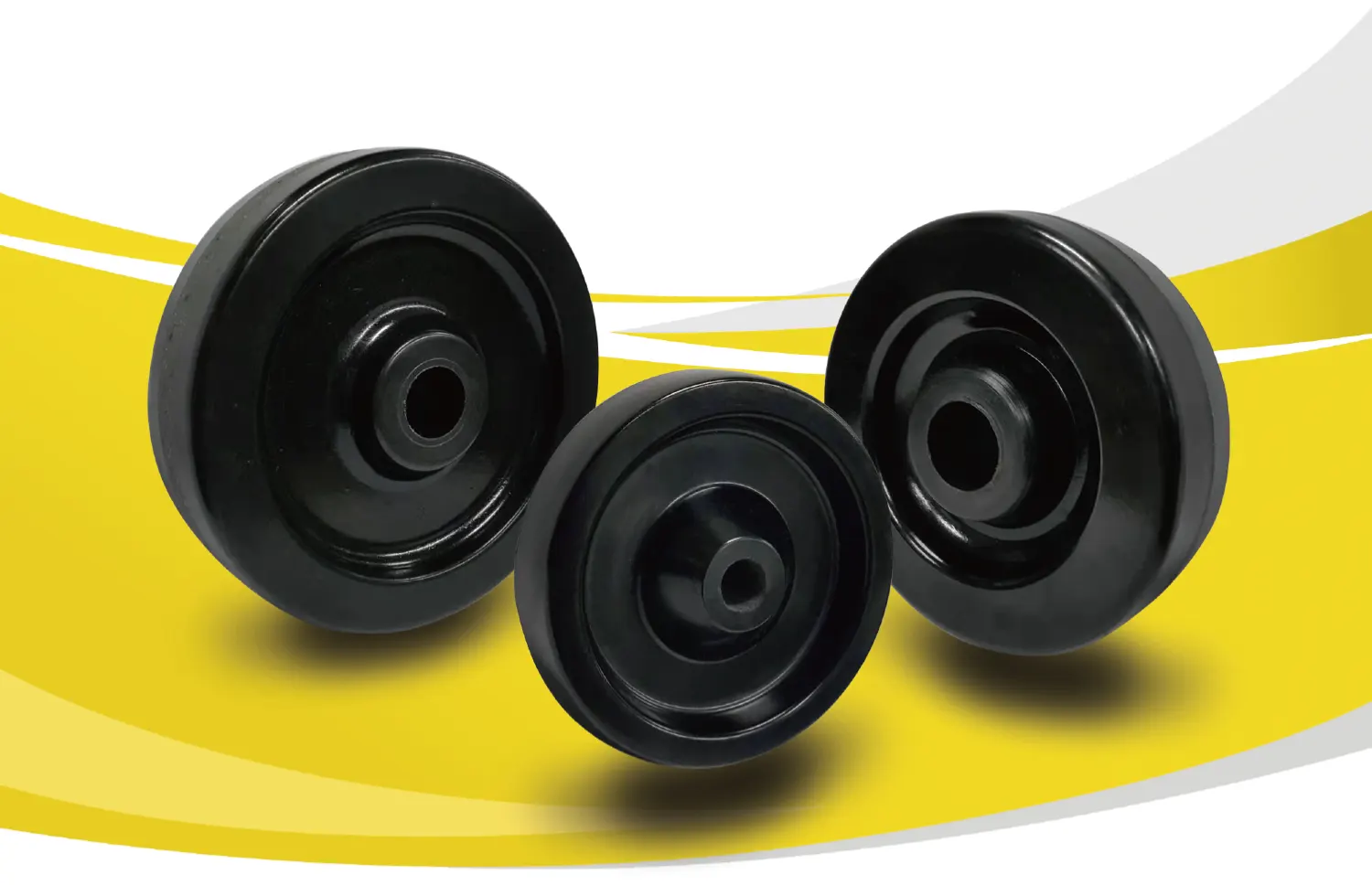

Phenolic wheels are made by compression molded phenolic resin filled with macerated fabric. This hard tread wheel provides floor protectiom. The phenolic wheels roll easier and more quietly than steel or aluminum wheel. Color black.
Other features
· Good resistant to hard impacts, most chemicals and oils.
· Working temperature:-20°C to +150°C.
· Maintenance-free under normal conditions.
Specification

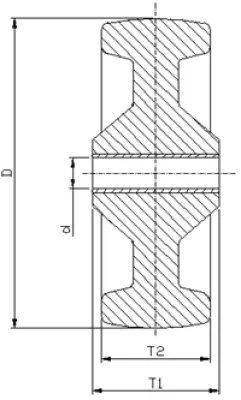

| Item No. | Wheel Diameter (D)【mm】 |
Wheel Width (T2)【mm】 |
Load Capacity 【kg(lbs)】 |
Axle Bore Ø(d)【mm】 |
Hub Length (T1)【mm】 |
Bearing Type |
| 1224030001 | 75 | 38 | 225kg (496lbs) | 10 | 41 | Roller bearing |
| 1224030014 | 75 | 45 | 225kg (496lbs) | 13 | 49 | Plain bearing |
| 1224040007 | 100 | 34 | 135kg (297lbs) | 10 | 39.7 | Plain bearing |
| 1224040001 | 100 | 50 | 360kg (793lbs) | 13 | 56 | Roller bearing |
| 1224050003 | 127 | 36 | 150kg (330lbs) | 13 | 40.5 | Plain bearing |
| 1224050001 | 127 | 50 | 400kg (881lbs) | 13 | 56 | Roller bearing |
| 1224060001 | 150 | 47 | 420kg (925lbs) | 13 | 56 | Roller bearing |
| 1224080001 | 200 | 50 | 450kg (992lbs) | 13 | 56 | Roller bearing |
