1300 Series — Hand Truck
A Plastic Platform Hand Truck
Injection-molded plastic platform construction is corrosion resistant and easy for cleaning. Chrome-plated handles are foldable for compact storage.
B Platform Hand Truck
Quiet rolling and maneuver easily.
Underside of solid steel platform is stamped form with ribs for extra strength to help absorb impact and hold loads.
Ergonomically designed, epoxy coated handles are foldable for compact storage.
With deck bumpers to protect doorways and walls.
Features
Steel Tube Reinforcement (Optional)
Corner Bumper
(For DS-5 only)
Antislip Strip
(For DS-5 only)
Side Bar
(For DS-5 only)

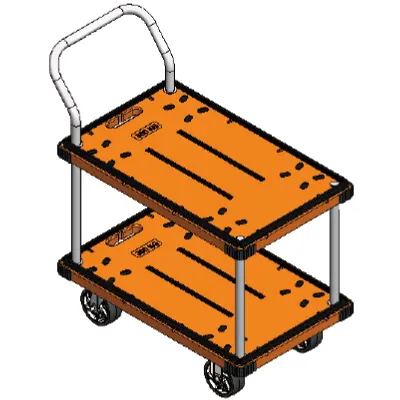

Module combination
(For DS-5 only)
Features
Steel Tube Reinforcement (Optional)
Corner Bumper (For DS-5 only)
Antislip Strip (For DS-5 only)
Side Bar (For DS-5 only)
Module combination(For DS-5 only)
Specification(A Plastic Platform Hand Truck)
| Truck Plate Dimension (L × W) |
Specs of Casters Assembled | Load | Item No. | ||||
| Wheel Diameter | Wheel Width | (with Steel Tube) (V) |
Material | Bearing | |||
| 380mm × 600mm | 75mm (3") | 32mm (1-1/4") | W Resolute Wheel | Ball Bearing | 160kgs (352 lbs) | 130432000304 | |
| 100mm (4") | 32mm (1-1/4") | 180kgs (396 lbs) | 130432000408 | ||||
| Truck Plate Dimension (L × W) |
Specs of Casters Assembled | Load | Item No. | ||||
| Wheel Diameter | Wheel Width | (with Steel Tube) (V) |
Material | Bearing | |||
| 500mm × 810mm | 100mm (4") | 32mm (1-1/4") | W Resolute Wheel | Ball Bearing | 200kgs (440 lbs) | 130432000408 | |
| V | 250kgs (550 lbs) | 130432000410 | |||||
| 125mm (5") | 32mm (1-1/4") | 220kgs (480 lbs) | 130432000502 | ||||
| V | 300kgs (660 lbs) | 130432000514 | |||||
| 600mm × 900mm | 100mm (4") | 32mm (1-1/4") | W Resolute Wheel | Ball Bearing | 300kgs (660 lbs) | 130432000408 | |
| V | 420kgs (924 lbs) | 130432000406 | |||||
| 125mm (5") | 32mm (1-1/4") | 320kgs (704 lbs) | 130432000531 | ||||
| V | 450kgs (990 lbs) | 130432000514 | |||||
| 470mm × 720mm DS-4 |
100mm (4") | 32mm (1-1/4") | W Resolute Wheel | Ball Bearing | 200kgs (440 lbs) | 130431000418 | |
| V | 250kgs (550 lbs) | 130431000419 | |||||
| 125mm (5") | 32mm (1-1/4") | 220kgs (480 lbs) | 130431000515 | ||||
| V | 300kgs (660 lbs) | 130431000526 | |||||
| 470mm × 760mm DS-5 |
100mm (4") | 32mm (1-1/4") | V | W Resolute Wheel | Ball Bearing | 280kgs (616 lbs) | 130433010402 |
| 125mm (5") | 32mm (1-1/4") | V | 300kgs (660 lbs) | 130433010502 | |||
Specification(B Platform Hand Truck)
| Truck Plate Dimension (L × W × H) |
Specs of Casters Assembled | Load | Item No. | |||
| Wheel Diameter | Wheel Width | Material | Bearing | |||
| 740mm × 480mm × 860mm | 100mm (4") | 32mm (1-1/4") | Black Rubber on Steel/Plastic Core | Roller Bearing | 150kgs (330 lbs) | 1304-B01-04-01 |
| 920mm × 620mm × 880mm | 125mm (5") | 32mm (1-1/4") | Black Rubber on Steel/Plastic Core | Roller Bearing | 300kgs (660 lbs) | 1304-B02-04-01 |
