1168系列 — 68系列支撑升降轮

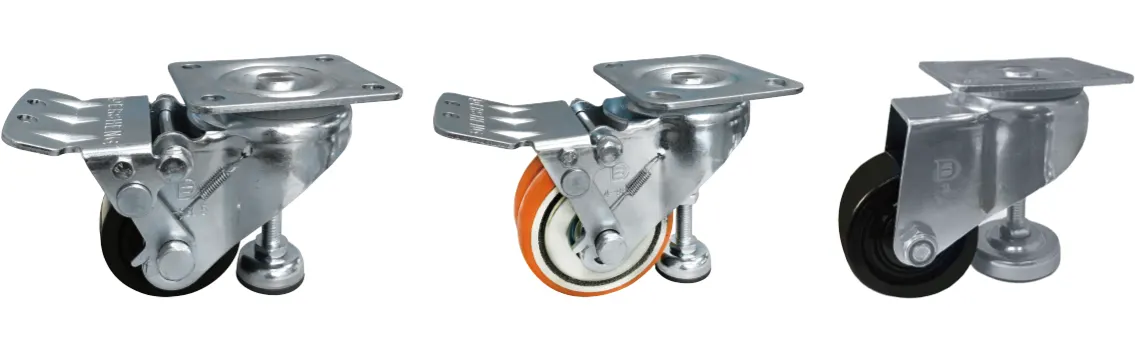

68系列是一款便捷支撑平衡调节架脚轮，踩踏脚架踏板便可使轮子上下移动。在固定设备时， 脚轮收起，脚杯着地时，可精密调整水平，平稳支撑；在移动设备时，脚轮下降，脚杯离地， 可随意移动设备。另有无升降功能之支撑脚轮可供选择。
特色区

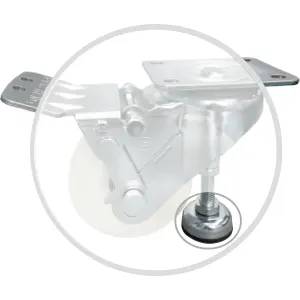

导电橡胶垫
特色区
导电橡胶垫
轮子选择
-
尼龙轮（45宽）
-
金钢轮
-
尼龙轮
-

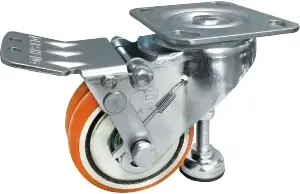

ZQPU轮
-
QPU轮
-
铝芯AQPU
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| * 1 | 85 x 105 mm (3-5/16" x 4-1/8") | 60 x 80 mm (欧规底板) 2-3/8"x3-1/8"(European Plate) |
8 mm (5/16") |
| 2 | 100 x 115 mm (24" x 4-1/2") | 70 x 85 mm (D型底板) (2-5/8"~3"x3"~3-5/8") |
10 mm (3/8") |
* 2.5"无支撑脚轮只搭配欧规底板。 * 2.5" caster only fit with European Plate.
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| * 1 | 85 x 105 mm (3-5/16" x 4-1/8") | 60 x 80 mm (欧规底板) 2-3/8"x3-1/8"(European Plate) |
8 mm (5/16") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| * 1 | 85 x 105 mm (3-5/16" x 4-1/8") | 60 x 80 mm (欧规底板) 2-3/8"x3-1/8"(European Plate) |
8 mm (5/16") |
| 2 | 100 x 115 mm (24" x 4-1/2") | 70 x 85 mm (D型底板) (2-5/8"~3"x3"~3-5/8") |
10 mm (3/8") |
* 2.5"无支撑脚轮只搭配欧规底板。 * 2.5" caster only fit with European Plate.
轮子详细资讯
 |

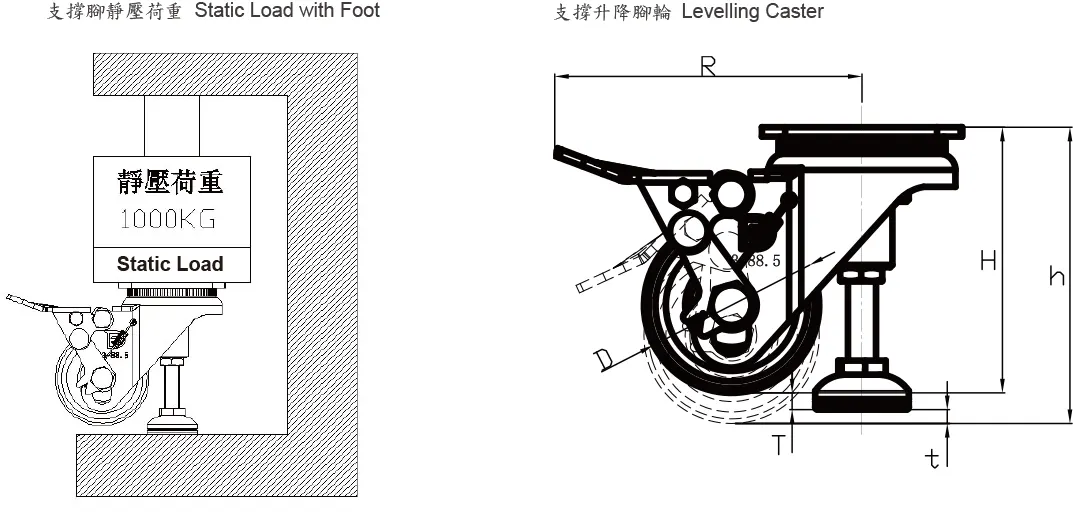

支撑升降脚轮规格 Caster With Foot & Brake Level |
| 轮子尺寸 | 材质 | 轮径 | 轮宽 | 载重 | 支撑脚 | 轴承 | 总高 | 最大 总高 |
上升距离 | 最大离地间距 | 偏心距 | 迴旋半径 | 型号 |
| 2.5" | 尼龙轮 Nylon |
64 | 45 | 200kgs (440 lbs) |
1000kgs (2200 lbs) |
滚珠 Ball Bearing |
96 | 108 | 6 | 6 | 56 | 短踏板 135mm 长踏板 147mm Short pedal 135mm Long pedal 147mm |
1168-25-07-10 |
| 金钢轮 King Kong Wheel |
62.5 | 45 | 200kgs (440 lbs) |
95 | 107 | 7 | 5 | 56 | 1168-25-100-10 | ||||
| QPU轮 QPU |
62.5 | 45 | 200kgs (440 lbs) |
1168-25-80-10 | |||||||||
| ZQPU轮 ZQPU(Dual Wheels) |
62.5 | 20x2 | 200kgs (440 lbs) |
1168-25-101-10 | |||||||||
| 3" | 尼龙轮 Nylon |
75 | 45 | 260kgs (570 lbs) |
1000kgs (2200 lbs) |
滚珠 Ball Bearing |
114 | 126 | 6 | 6 | 56 | 短踏板 135mm 长踏板 147mm Short pedal 135mm Long pedal 147mm |
1168-03-07-10 |
| 金钢轮 King Kong Wheel |
75 | 45 | 260kgs (570 lbs) |
1168-03-100-10 | |||||||||
| QPU轮 QPU |
75 | 45 | 260kgs (570 lbs) |
1168-03-80-10 | |||||||||
| ZQPU轮 ZQPU(Dual Wheels) |
75 | 20x2 | 260kgs (570 lbs) |
1168-03-101-10 | |||||||||
| 4" | 尼龙轮 Nylon |
100 | 32 | 320kgs (700 lbs) |
1000kgs (2200 lbs) |
滚珠 Ball Bearing |
136.5 | 148.5 | 6 | 6 | 65 | 短踏板 142mm 长踏板 157mm Short pedal 142mm Long pedal 157mm |
1168-04-07-10 |
| 尼龙轮 Nylon |
100 | 36 | 250kgs (550 lbs) |
1168-04-07-10 | |||||||||
| AQPU轮 QPU on AL Core |
100 | 40 | 320kgs (700 lbs) |
1168-04-87-10 | |||||||||
| ZQPU轮 ZQPU(Dual Wheels) |
100 | 22x2 | 320kgs (700 lbs) |
1168-04-101-10 |
 |
 |

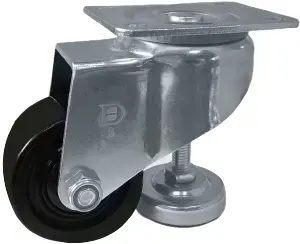

支撑升降脚轮规格 Caster With Foot & Brake Level |
| 轮子尺寸 | 材质 | 轮径 | 轮宽 | 载重 | 支撑脚 静压荷重 |
型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | |
| 活动支撑 | |||||||||||
| *2.5" | 尼龙轮 Nylon |
75 | 45 | 200kgs (440 lbs) |
1000kgs (2200 lbs) |
1168-25-07-2(1) | 滚珠轴承 Ball Bearing |
102mm | 64mm | 97mm | |
| 金钢轮 King Kong Wheel |
75 | 45 | 200kgs (440 lbs) |
1168-25-100-2(1) | |||||||
| QPU轮 QPU |
75 | 45 | 200kgs (440 lbs) |
1168-25-80-2(1) | |||||||
| ZQPU轮 ZQPU(Dual Wheels) |
75 | 20x2 | 200kgs (440 lbs) |
1168-25-101-2(1) | |||||||
| 3" | 尼龙轮 Nylon |
75 | 45 | 220kgs (485 lbs) |
1000kgs (2200 lbs) |
1168-03-07-2(1) | 滚珠轴承 Ball Bearing |
120mm | 69mm | 107mm | |
| 金钢轮 King Kong Wheel |
75 | 45 | 220kgs (485 lbs) |
1168-03-100-2(1) | |||||||
| QPU轮 QPU |
75 | 45 | 220kgs (485 lbs) |
1168-03-80-2(1) | |||||||
| ZQPU轮 ZQPU(Dual Wheels) |
75 | 20x2 | 220kgs (485 lbs) |
1168-03-101-2(1) | |||||||
| 4" | 尼龙轮 Nylon |
100 | 32 | 250kgs (550 lbs) |
1000kgs (2200 lbs) |
1168-04-07-2(1) | 滚珠轴承 Ball Bearing |
142.5mm | 77mm | 127mm | |
| 尼龙轮 Nylon |
100 | 36 | 250kgs (550 lbs) |
1168-04-07-2(1) | |||||||
| AQPU轮 QPU on AL Core |
100 | 40 | 250kgs (550 lbs) |
1168-04-87-2(1) | |||||||
| ZQPU轮 ZQPU(Dual Wheels) |
100 | 22x2 | 250kgs (550 lbs) |
1168-04-101-2(1) | |||||||
 |

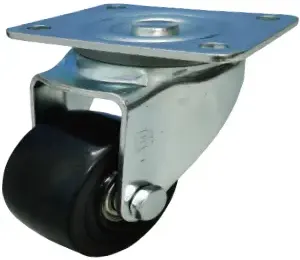

无支撑脚轮规格 Swivel Caster Without Foot |
| 轮子尺寸 | 材质 | 轮径 | 轮宽 | 载重 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | |
| 活动 | 固定 | |||||||||
| *2.5" | 尼龙轮 Nylon |
75 | 45 | 260kgs (570 lbs) |
1168-25-07-1 | 1168-25-07-2 | 滚珠轴承 Ball Bearing |
102mm | 31mm | 68.5mm |
| 金钢轮 King Kong Wheel |
75 | 45 | 260kgs (570 lbs) |
1168-25-100-1 | 1168-25-100-2 | |||||
| QPU轮 QPU |
75 | 45 | 260kgs (570 lbs) |
1168-25-80-1 | 1168-25-80-2 | |||||
| ZQPU轮 ZQPU(Dual Wheels) |
75 | 20x2 | 260kgs (570 lbs) |
1168-25-101-1 | 1168-25-101-2 | |||||
| 3" | 尼龙轮 Nylon |
75 | 45 | 260kgs (570 lbs) |
1168-03-07-1 | 1168-03-07-2 | 滚珠轴承 Ball Bearing |
120mm | 40mm | 77.5mm |
| 金钢轮 King Kong Wheel |
75 | 45 | 260kgs (570 lbs) |
1168-03-100-1 | 1168-03-100-2 | |||||
| QPU轮 QPU |
75 | 45 | 260kgs (570 lbs) |
1168-03-80-1 | 1168-03-80-2 | |||||
| ZQPU轮 ZQPU(Dual Wheels) |
75 | 20x2 | 260kgs (570 lbs) |
1168-03-101-1 | 1168-03-101-2 | |||||
| 4" | 尼龙轮 Nylon |
100 | 32 | 320kgs (700 lbs) |
1168-04-07-1 | 1168-04-07-2 | 滚珠轴承 Ball Bearing |
142.5mm | 40mm | 90mm |
| 尼龙轮 Nylon |
100 | 36 | 250kgs (550 lbs) |
1168-04-07-1 | 1168-04-07-2 | |||||
| AQPU轮 QPU on AL Core |
100 | 40 | 320kgs (700 lbs) |
1168-04-87-1 | 1168-04-87-2 | |||||
| ZQPU轮 ZQPU(Dual Wheels) |
100 | 22x2 | 320kgs (700 lbs) |
1168-04-101-1 | 1168-04-101-2 | |||||
* 2.5"无支撑脚轮只搭配欧规底板。 2.5" caster only fit with European Plate.
