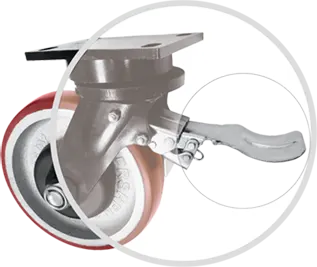

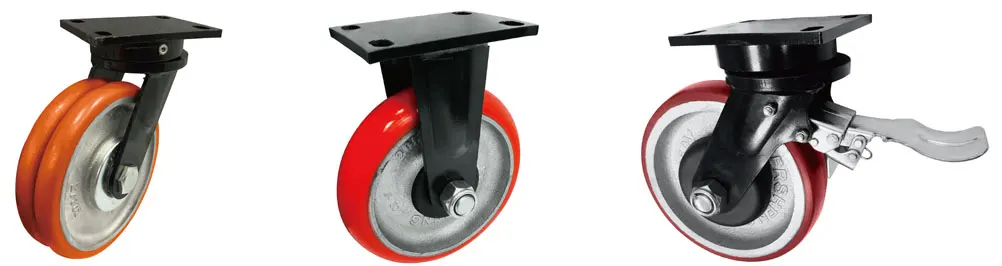

1163系列 — 曲轴平衡脚轮系列
得貹曲轴平衡脚轮是一款高性能脚轮，能够减少推车或拉车时所需的推力，并大幅降低转向脚轮锁死发生的机会。 得貹曲轴平衡脚架转向结构提供了二处定位点，更有效的减低台车在移动时的启动力。所以在有效降低被锁死的问题 和减低启动力下，得貹曲轴平衡脚轮更适用于 AMR/AGV 行业或是其它需要高荷重但也需求轻松推动的手推车与设备上面。
特色区
.webp)
轮子可附金属防尘盖
(供选择)
.webp)
轮子可附塑胶防尘盖
(供选择)
.webp)
BCD剎(中剎)
.webp)
PU轮面可以变化硬度
特色区
轮子可附金属防尘盖(供选择)
轮子可附塑胶防尘盖(供选择)
BCD剎(中剎)
PU轮面可以变化硬度
轮子选择
-
铁芯聚氨酯
-
铁芯NBR橡胶轮
-
尼龙轮
-
WMRC轮
-
QPU轮
-
APU轮
-
环保NBR橡胶轮
-
EQPU轮
-
铁芯聚氨酯
(2050A/2050B) -
ZQPU轮(双轮)
-
VPU轮
-
EPU轮
-
VQPU轮
-
铁芯VXPU
-
铝芯QQ橡胶轮
-
环保牵引NBR
-
铝芯AQPU
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" | 90x120 mm (3-17/32" x 4-23/32") |
60 x 90 mm (2-3/8" x 3-17/32") |
11 mm (7/16") |
| 5,6,8" | 110 x 140 mm (4-11/32" x 5-1/2") |
75 x 110 mm(常规标准底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" | 90x120 mm (3-17/32" x 4-23/32") |
60 x 90 mm (2-3/8" x 3-17/32") |
11 mm (7/16") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" | 90x120 mm (3-17/32" x 4-23/32") |
60 x 90 mm (2-3/8" x 3-17/32") |
11 mm (7/16") |
| 5,6,8" | 110 x 140 mm (4-11/32" x 5-1/2") |
75 x 110 mm(常规标准底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 32mm (4"x1-1/4") |
250 kgs (550 lbs) | 尼龙轮 Nylon |
1163-04-07-1 | 1163-04-07-2 | 1163-04-07-4 | 滚珠轴承 Ball Bearing |
147mm (5-25/32") |
活动 116mm BCD剎 116mm Swivel 116mm Swivel W/Center Lock Brake 116mm |
| 100mm x 34mm (4"x1-3/8") |
335 kgs (735 lbs) | QPU轮(圆弧) QPU (Round) |
1163-04-80-1 | 1163-04-80-2 | 1163-04-80-4 | |||
| 385 kgs (845 lbs) | QPU轮(平面) QPU (Flat) |
1163-04-80-1 | 1163-04-80-2 | 1163-04-80-4 | ||||
| 100mm x 36mm (4"x1-7/16") |
250 kgs (550 lbs) | 铁芯聚氨脂 PU on Cast |
1163-04-33-1 | 1163-04-33-2 | 1163-04-33-4 | |||
| 250 kgs (550 lbs) | APU轮(圆弧) PU on AL Core (Round) |
1163-04-108-1 | 1163-04-108-2 | 1163-04-108-4 | ||||
| 300 kgs (660 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1163-04-87-1 | 1163-04-87-2 | 1163-04-87-4 | ||||
| 100mm x 38mm (4"x1-1/2") |
200 kgs (440 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1163-04-04-1 | 1163-04-04-2 | 1163-04-04-4 | |||
| 200 kgs (440 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1163-04-11-1 | 1163-04-11-2 | 1163-04-11-4 | ||||
| 200 kgs (440 lbs) | 环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1163-04-90-1 | 1163-04-90-2 | 1163-04-90-4 | ||||
| 100mm x 40mm (4"x1-9/16") |
275 kgs (600 lbs) | APU轮(圆弧) PU on AL Core (Round) |
1163-04-108-1 | 1163-04-108-2 | 1163-04-108-4 | |||
| 200 kgs (440 lbs) | 铝芯QQ橡胶轮 Recilent rubber on AL Core |
1163-04-89-1 | 1163-04-89-2 | 1163-04-89-4 | ||||
| 325 kgs (715 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1163-04-87-1 | 1163-04-87-2 | 1163-04-87-4 | ||||
| 100mm x 46.5mm (4"x1-13/16") |
335 kgs (735 lbs) | ZQPU轮(双轮) ZQPU (Dual Wheels) |
1163-04-101-1 | 1163-04-101-2 | 1163-04-101-4 | |||
| 125mm x 40mm (5"x1-9/16") |
340 kgs (750 lbs) | 铁芯聚氨脂 PU on Cast |
1163-05-33-1 | 1163-05-33-2 | 1163-05-33-4 | 滚珠轴承 Ball Bearing |
170mm (6-11/16") |
活动 128.5mm BCD剎 128.5mm Swivel 128.5mm Swivel W/Center Lock Brake 128.5mm |
| 300 kgs (660 lbs) | 尼龙轮 Nylon |
1163-05-07-1 | 1163-05-07-2 | 1163-05-07-4 | ||||
| 300 kgs (660 lbs) | APU轮(圆弧) PU on AL Core (Round) |
1163-05-108-1 | 1163-05-108-2 | 1163-05-108-4 | ||||
| 350 kgs (770 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1163-05-87-1 | 1163-05-87-2 | 1163-05-87-4 | ||||
| 250 kgs (550 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1163-05-04-1 | 1163-05-04-2 | 1163-05-04-4 | ||||
| 250 kgs (550 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1163-05-11-1 | 1163-05-11-2 | 1163-05-11-4 | ||||
| 250 kgs (550 lbs) | 环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1163-05-90-1 | 1163-05-90-2 | 1163-05-90-4 | ||||
| 450 kgs (990 lbs) | QPU轮(圆弧) QPU (Round) |
1163-05-80-1 | 1163-05-80-2 | 1163-05-80-4 | ||||
| 500 kgs (1100 lbs) | QPU轮(平面) QPU (Flat) |
1163-05-80-1 | 1163-05-80-2 | 1163-05-80-4 | ||||
| 340 kgs (750 lbs) | EPU轮(圆弧) EPU (Round Shape) |
1163-05-78-1 | 1163-05-78-2 | 1163-05-78-4 | ||||
| 390 kgs (860 lbs) | EPU轮(平面) EPU (Flat Shape) |
1163-05-78-1 | 1163-05-78-2 | 1163-05-78-4 | ||||
| 450 kgs (990 lbs) | EQPU轮(圆弧) EQPU (Round Shape) |
1163-05-81-1 | 1163-05-81-2 | 1163-05-81-4 | ||||
| 500 kgs (1100 lbs) | EQPU轮(平面) EQPU (Flat Shape) |
1163-05-81-1 | 1163-05-81-2 | 1163-05-81-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 125mm x 50mm (5" x 2") |
400 kgs (880 lbs) | APU轮(平面) PU on AL Core (Flat) |
1163-05-108-1 | 1163-05-108-2 | 1163-05-108-4 | 滚珠轴承 Ball Bearing |
170mm (6-11/16") |
活动 128.5mm BCD剎 128.5mm Swivel 128.5mm Swivel W/Center Lock Brake 128.5mm |
| 450 kgs (990 lbs) | 铝芯AQPU轮(平面) QPU on AL Core (Flat) |
1163-05-87-1 | 1163-05-87-2 | 1163-05-87-4 | ||||
| 125mm x 51mm (5" x 2") |
450 kgs (990 lbs) | ZQPU轮(双轮) ZQPU (Dual Wheels) |
1163-05-101-1 | 1163-05-101-2 | 1163-05-101-4 | |||
| 150mm x 40mm (6"x1-9/16") |
400 kgs (880 lbs) | 尼龙轮 Nylon |
1163-06-07-1 | 1163-06-07-2 | 1163-06-07-4 | 滚珠轴承 Ball Bearing |
197mm (7-3/4") |
活动 153.5mm BCD剎 153.5mm Swivel 153.5mm Swivel W/Center Lock Brake 153.5mm |
| 350 kgs (770 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1163-06-04-1 | 1163-06-04-2 | 1163-06-04-4 | ||||
| 300 kgs (660 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1163-06-11-1 | 1163-06-11-2 | 1163-06-11-4 | ||||
| 300 kgs (660 lbs) | 环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1163-06-90-1 | 1163-06-90-2 | 1163-06-90-4 | ||||
| 400 kgs (880 lbs) | WMRC轮 WMRC |
1163-06-45-1 | 1163-06-45-2 | 1163-06-45-4 | ||||
| 150mm x 42mm (6"x1-5/8") |
410 kgs (900 lbs) | 铁芯聚氨脂 PU on Cast |
1163-06-33-1 | 1163-06-33-2 | 1163-06-33-4 | |||
| 400 kgs (880 lbs) | APU轮(圆弧) PU on AL Core (Round) |
1163-06-108-1 | 1163-06-108-2 | 1163-06-108-4 | ||||
| 450 kgs (990 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1163-06-87-1 | 1163-06-87-2 | 1163-06-87-4 | ||||
| 550 kgs (1200 lbs) | QPU轮(圆弧) QPU (Round) |
1163-06-80-1 | 1163-06-80-2 | 1163-06-80-4 | ||||
| 600 kgs (1320 lbs) | QPU轮(平面) QPU(Flat) |
1163-06-80-1 | 1163-06-80-2 | 1163-06-80-4 | ||||
| 500 kgs (1100 lbs) | VPU轮(圆弧) VPU (Round) |
1163-06-82-1 | 1163-06-82-2 | 1163-06-82-4 | ||||
| 670 kgs (1475 lbs) | VQPU轮(圆弧) VQPU (Round Shape) |
1163-06-83-1 | 1163-06-83-2 | 1163-06-83-4 | ||||
| 800 kgs (1760 lbs) | 铁芯VXPU轮(圆弧) XPU on Iron Core (Round) |
1163-06-91-1 | 1163-06-91-2 | 1163-06-91-4 | ||||
| 410 kgs (900 lbs) | EPU轮(圆弧) EPU (Round) |
1163-06-78-1 | 1163-06-78-2 | 1163-06-78-4 | ||||
| 460 kgs (1010 lbs) | EPU轮(平面) EPU (Flat) |
1163-06-78-1 | 1163-06-78-2 | 1163-06-78-4 | ||||
| 550 kgs (1200 lbs) | EQPU轮(圆弧) EQPU (Round) |
1163-06-81-1 | 1163-06-81-2 | 1163-06-81-4 | ||||
| 600 kgs (1320 lbs) | EQPU轮(平面) EQPU (Flat) |
1163-06-81-1 | 1163-06-81-2 | 1163-06-81-4 | ||||
| 150mm x 50mm (6" x 2") |
450 kgs (990 lbs) | APU轮(平面) PU on AL Core (Flat) |
1163-06(50)-108-1 | 1163-06(50)-108-2 | 1163-06(50)-108-4 | |||
| 500 kgs (1100 lbs) | 铝芯AQPU轮(平面) QPU on AL Core (Flat) |
1163-06(50)-87-1 | 1163-06(50)-87-2 | 1163-06(50)-87-4 | ||||
| 150mm x 51mm (6" x 2") |
550 kgs (1210 lbs) | ZQPU轮(双轮) ZQPU (Dual Wheels) |
1163-06-101-1 | 1163-06-101-2 | 1163-06-101-4 | |||
| 180mm x 44mm (7" x 1-3/4") |
450 kgs (990 lbs) | APU轮(圆弧) PU on AL Core (Round) |
1163-07-108-1 | 1163-07-108-2 | 1163-07-108-4 | 滚珠轴承 Ball Bearing |
238mm (9-3/8") |
活动 181.5mm BCD剎 181.5mm Swivel 181.5mm Swivel W/Center Lock Brake 181.5mm |
| 600 kgs (1320 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1163-07-87-1 | 1163-07-87-2 | 1163-07-87-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 180mm x 50mm (7" x 2") |
450 kgs (990 lbs) | 铁芯聚氨脂 PU on Cast |
1163-07-33-1 | 1163-07-33-2 | 1163-07-33-4 | 滚珠轴承 Ball Bearing |
238mm (9-3/8") |
活动 181.5mm BCD剎 181.5mm Swivel 181.5mm Swivel W/Center Lock Brake 181.5mm |
| 600 kgs (1320 lbs) | QPU轮(圆弧) QPU(Round) |
1163-07-80-1 | 1163-07-80-2 | 1163-07-80-4 | ||||
| 650 kgs (1430 lbs) | VPU轮(圆弧) VPU (Round) |
1163-07-82-1 | 1163-07-82-2 | 1163-07-82-4 | ||||
| 650 kgs (1430 lbs) | 铁芯VXPU轮(圆弧) XPU on Iron Core (Round) |
1163-07-91-1 | 1163-07-91-2 | 1163-07-91-4 | ||||
| 650 kgs (1430 lbs) | VQPU轮(圆弧) VQPU (Round Shape) |
1163-07-83-1 | 1163-07-83-2 | 1163-07-83-4 | ||||
| 200mm x 44mm (8"x1-3/4") |
350 kgs (770 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1163-08-04-1 | 1163-08-04-2 | 1163-08-04-4 | 滚珠轴承 Ball Bearing |
248mm (9-3/4") |
活动 191.5mm BCD剎 191.5mm Swivel 191.5mm Swivel W/Center Lock Brake 191.5mm |
| 350 kgs (770 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1163-08-11-1 | 1163-08-11-2 | 1163-08-11-4 | ||||
| 350 kgs (770 lbs) | 环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1163-08-90-1 | 1163-08-90-2 | 1163-08-90-4 | ||||
| 400 kgs (880 lbs) | 铝芯QQ橡胶轮 Recilent rubber on AL Core |
1163-08-89-1 | 1163-08-89-2 | 1163-08-89-4 | ||||
| 200mm x 50mm (8" x 2") |
450 kgs (990 lbs) | 铁芯聚氨脂 PU on Cast |
1163-08-33-1 | 1163-08-33-2 | 1163-08-33-4 | 滚珠轴承 Ball Bearing |
248mm (9-3/4") |
活动 191.5mm BCD剎 191.5mm Swivel 191.5mm Swivel W/Center Lock Brake 191.5mm |
| 450 kgs (990 lbs) | 尼龙轮 Nylon |
1163-08-07-1 | 1163-08-07-2 | 1163-08-07-4 | ||||
| 750 kgs (1650 lbs) | 铁芯聚氨脂(2050A/2050B) PU on Cast (2050A/2050B) |
1163-08-62-1 | 1163-08-62-2 | 1163-08-62-4 | ||||
| 450 kgs (990 lbs) | WMRC轮 WMRC |
1163-08-45-1 | 1163-08-45-2 | 1163-08-45-4 | ||||
| 500 kgs (1100 lbs) | APU轮(圆弧) PU on AL Core (Round) |
1163-08-108-1 | 1163-08-108-2 | 1163-08-108-4 | ||||
| 550 kgs (1200 lbs) | APU轮(平面) PU on AL Core (Flat) |
1163-08-108-1 | 1163-08-108-2 | 1163-08-108-4 | ||||
| 650 kgs (1430 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1163-08-87-1 | 1163-08-87-2 | 1163-08-87-4 | ||||
| 700 kgs (1540 lbs) | 铝芯AQPU轮(平面) QPU on AL Core (Flat) |
1163-08-87-1 | 1163-08-87-2 | 1163-08-87-4 | ||||
| 670 kgs (1475 lbs) | QPU轮(圆弧) QPU (Round) |
1163-08-80-1 | 1163-08-80-2 | 1163-08-80-4 | ||||
| 720 kgs (1580 lbs) | QPU轮(平面) QPU (Flat) |
1163-08-80-1 | 1163-08-80-2 | 1163-08-80-4 | ||||
| 670 kgs (1475 lbs) | VPU轮(圆弧) VPU (Round) |
1163-08-82-1 | 1163-08-82-2 | 1163-08-82-4 | ||||
| 800 kgs (1760 lbs) | VQPU轮(圆弧) VQPU (Round) |
1163-08-83-1 | 1163-08-83-2 | 1163-08-83-4 | ||||
| 1100 kgs (2420 lbs) | 铁芯VXPU轮(圆弧) XPU on Iron Core (Round) |
1163-08-91-1 | 1163-08-91-2 | 1163-08-91-4 | ||||
| 650 kgs (1430 lbs) | EPU轮(圆弧) EPU (Round Shape) |
1163-08-78-1 | 1163-08-78-2 | 1163-08-78-4 | ||||
| 700 kgs (1540 lbs) | EPU轮(平面) EPU (Flat Shape) |
1163-08-78-1 | 1163-08-78-2 | 1163-08-78-4 | ||||
| 750 kgs (1650 lbs) | EQPU轮(圆弧) EQPU (Round Shape) |
1163-08-81-1 | 1163-08-81-2 | 1163-08-81-4 | ||||
| 800 kgs (1760 lbs) | EQPU轮(平面) EQPU (Flat Shape) |
1163-08-81-1 | 1163-08-81-2 | 1163-08-81-4 | ||||
| 200mm x 51mm (8" x 2") |
650 kgs (1430 lbs) | ZQPU轮(双轮) ZQPU (Dual Wheels) |
1163-08-101-1 | 1163-08-101-2 | 1163-08-101-4 | |||
