1109-HD系列 — 美国机械轮系列

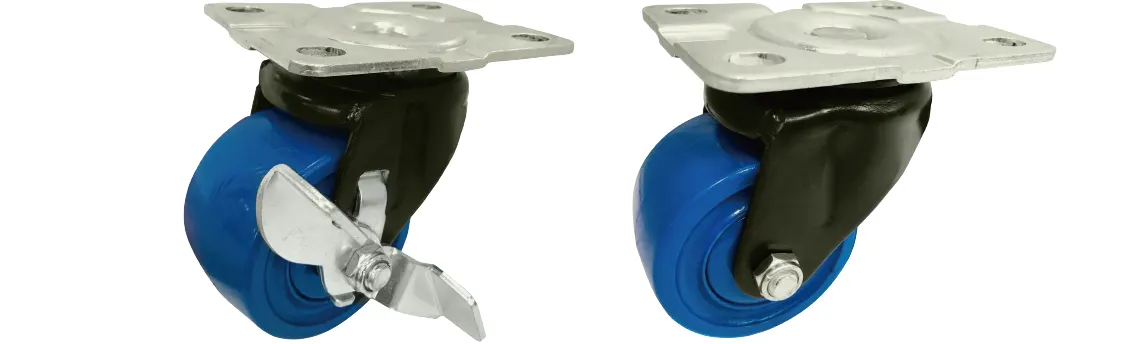

脚架採用高钢性板材，配合热处理珠道来达到极高的荷重与长时间的使用寿命， 同一时间又能够确保低重心的要求，适用于商业机械设备与电脑伺服器物料架与AGV (无人车)使用。 其中的大底板附支撑脚的设计，可增大荷重，其支撑脚可调整高度并可随意稳固地停放台车且脚片表面电着处理更提供高级外观与更好的防鏽能力。
特色区

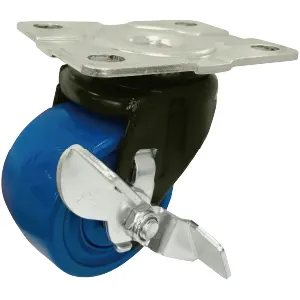

侧剎
特色区
侧剎
轮子选择
-
尼龙轮
-
ZQPU轮
-
QPU轮
-
金钢轮
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2-1/2" x 1-15/16" 美国轮 2-1/2" x 1-15/16" |
65 x 95 mm (2-3/4" x 3-3/4") | 45 x 75 mm(1-3/4" x 3") | 8 mm (5/16") |
| 3" 美国轮 3" x 1-15/16" |
86 x 110 mm (3-3/8" x 4-5/16") | 60 x 83 mm(2-3/8" x 3-1/4") | 10 mm (3/8") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2-1/2" x 1-15/16" 美国轮 2-1/2" x 1-15/16" |
65 x 95 mm (2-3/4" x 3-3/4") | 45 x 75 mm(1-3/4" x 3") | 8 mm (5/16") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2-1/2" x 1-15/16" 美国轮 2-1/2" x 1-15/16" |
65 x 95 mm (2-3/4" x 3-3/4") | 45 x 75 mm(1-3/4" x 3") | 8 mm (5/16") |
| 3" 美国轮 3" x 1-15/16" |
86 x 110 mm (3-3/8" x 4-5/16") | 60 x 83 mm(2-3/8" x 3-1/4") | 10 mm (3/8") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 50 x 45mm (2" x 1-3/4") |
350 kgs (770 lbs) | QPU轮 QPU |
1109-02-80-1(H) | 1109-02-80-2(H) | — | 滚珠 Ball Bearing |
75mm (3") | 活动 50mm Swivel 50mm |
| 350 kgs (770 lbs) | ZQPU轮 ZQPU (Dual Wheels) |
1109-02-101-1(H) | 1109-02-101-2(H) | — | 滚珠 Ball Bearing |
|||
| 250 kgs (550 lbs) | 金钢轮 King Kong Wheel |
1109-02-100-1(H) | 1109-02-100-2(H) | — | 滚珠 Ball Bearing 中管 Plain Bearing |
|||
| 200 kgs (440 lbs) | 尼龙轮 Nylon |
1109-02-07-1(H) | 1109-02-07-2(H) | — | ||||
| 62.5 x 45mm (2-1/2" x 1-3/4") |
400 kgs (880 lbs) | QPU轮 QPU |
1109-25-80-1(H) | 1109-25-80-2(H) | 1109-25-80-4(H) | 滚珠 Ball Bearing |
90.5mm (3-9/16") |
活动 59.5mm 侧剎 77mm Swivel 59.5mm Swivel W/Side Brake 77mm |
| 400 kgs (880 lbs) | ZQPU轮 ZQPU (Dual Wheels) |
1109-25-101-1(H) | 1109-25-101-2(H) | 1109-25-101-4(H) | 滚珠 Ball Bearing |
|||
| 450 kgs (990 lbs) | 金钢轮 King Kong Wheel |
1109-25-100-1(H) | 1109-25-100-2(H) | 1109-25-100-4(H) | 滚珠 Ball Bearing 中管 Plain Bearing |
|||
| 250 kgs (550 lbs) | 尼龙轮 Nylon |
1109-25-07-1(H) | 1109-25-07-2(H) | 1109-25-07-4(H) | 滚珠 Ball Bearing |
|||
| 75 x 45mm (3" x 1-3/4") |
450 kgs (990 lbs) | QPU轮 QPU |
1109-03-80-1(H) | 1109-03-80-2(H) | 1109-03-80-4(H) | 滚珠 Ball Bearing |
105.5mm (4-1/8") |
活动 70mm 侧剎 85.5mm Swivel 70mm Swivel W/Side Brake 85.5mm |
| 450 kgs (990 lbs) | ZQPU轮 ZQPU (Dual Wheels) |
1109-03-101-1(H) | 1109-03-101-2(H) | 1109-03-101-4(H) | 滚珠 Ball Bearing |
|||
| 500 kgs (1100 lbs) | 金钢轮 King Kong Wheel |
1109-03-100-1(H) | 1109-03-100-2(H) | 1109-03-100-4(H) | 滚珠 Ball Bearing 中管 Plain Bearing |
|||
| 300 kgs (660 lbs) | 尼龙轮 Nylon |
1109-03-07-1(H) | 1109-03-07-2(H) | 1109-03-07-4(H) | ||||
