1145系列 — 抗衝擊彈簧系列
屬得貹專利產品，避震，超重負載且高抗衝擊，在搬運過程可避免腳架形扭曲，多款供選擇。採用超厚板材及高級彈簧，品質、工藝明顯優於市場上同類產品。
特色區
.webp)
無鉚釘設計
.webp)

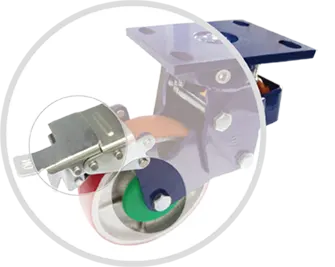

AK煞&輪子可附塑膠防塵蓋(供選擇)
.webp)
PU輪面可以變化硬度
特色區
無鉚釘設計
AK煞&輪子可附塑膠防塵蓋(供選擇)
PU輪面可以變化硬度
輪子選擇
-
鐵芯聚氨酯
-
鐵芯NBR橡膠輪
-
尼龍輪
-
WMRC輪
-
QPU輪
-
EQPU輪
-
VPU輪
-
EPU輪
-
VQPU輪
-
環保牽引NBR
-
鋁芯AQPU
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 110 x 140mm (4-11/32" x 5-1/2") |
75 x 110mm(常規標準底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 110 x 140mm (4-11/32" x 5-1/2") |
80 x 105mm(歐規孔距) (3-5/32" x 4-1/8") |
12 mm (1/2") |
|
| 130 x 165mm (5-1/8" x 6-1/2") |
100 x 130mm (3-15/16" x 5-1/8") |
12 mm (1/2") |
|
| 114 x 159mm (4-1/2" x 6-1/4") |
73.8 x 129.4mm (2-29/32" x 5-3/32") |
12 mm (1/2") |
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 110 x 140mm (4-11/32" x 5-1/2") |
75 x 110mm(常規標準底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 110 x 140mm (4-11/32" x 5-1/2") |
75 x 110mm(常規標準底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 110 x 140mm (4-11/32" x 5-1/2") |
80 x 105mm(歐規孔距) (3-5/32" x 4-1/8") |
12 mm (1/2") |
|
| 130 x 165mm (5-1/8" x 6-1/2") |
100 x 130mm (3-15/16" x 5-1/8") |
12 mm (1/2") |
|
| 114 x 159mm (4-1/2" x 6-1/4") |
73.8 x 129.4mm (2-29/32" x 5-3/32") |
12 mm (1/2") |
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 125mm x 40mm (5" x 1-9/16") |
200 kgs (440 lbs) | 尼龍輪 Nylon |
1145-05-07-1 | 1145-05-07-2 | 1145-05-07-4 | 滾珠 Ball Bearing |
210mm (8-9/32") |
活動 132mm AK煞 194mm Swivel 132mm Swivel W/AK lock brake 194mm |
| 200 kgs (440 lbs) | 環保牽引NBR輪 Non-marking NBR Rubber on Cast |
1145-05-90-1 | 1145-05-90-2 | 1145-05-90-4 | ||||
| 250 kgs (550 lbs) | 鋁芯AQPU QPU on AL Core |
1145-05-87-1 | 1145-05-87-2 | 1145-05-87-4 | ||||
| 200 kgs (440 lbs) | 鐵芯聚氨脂 PU on Cast |
1145-05-33-1 | 1145-05-33-2 | 1145-05-33-4 | ||||
| 200 kgs (440 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1145-05-04-1 | 1145-05-04-2 | 1145-05-04-4 | ||||
| 250 kgs (550 lbs) | QPU輪 QPU |
1145-05-80-1 | 1145-05-80-2 | 1145-05-80-4 | ||||
| 250 kgs (550 lbs) | EPU輪 EPU |
1145-05-78-1 | 1145-05-78-2 | 1145-05-78-4 | ||||
| 350 kgs (770 lbs) | EQPU輪 EQPU |
1145-05-81-1 | 1145-05-81-2 | 1145-05-81-4 | ||||
| 150mm x 40mm (6" x 1-9/16") |
250 kgs (550 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1145-06-04-1 | 1145-06-04-2 | 1145-06-04-4 | 滾珠 Ball Bearing |
225mm (8-27/32") |
活動 146mm AK煞 200mm Swivel 146mm Swivel W/AK lock brake 200mm |
| 250 kgs (550 lbs) | 尼龍輪 Nylon |
1145-06-07-1 | 1145-06-07-2 | 1145-06-07-4 | ||||
| 250 kgs (550 lbs) | 環保牽引NBR輪 Non-marking NBR Rubber on Cast |
1145-06-90-1 | 1145-06-90-2 | 1145-06-90-4 | ||||
| 250 kgs (550 lbs) | WMRC輪 WMRC |
1145-06-45-1 | 1145-06-45-2 | 1145-06-45-4 | ||||
| 150mm x 42mm (6" x 1-5/8") |
250 kgs (550 lbs) | 鐵芯聚氨脂 PU on Cast |
1145-06-33-1 | 1145-06-33-2 | 1145-06-33-4 | |||
| 300 kgs (660 lbs) | 鋁芯AQPU QPU on AL Core |
1145-06-87-1 | 1145-06-87-2 | 1145-06-87-4 | ||||
| 300 kgs (660 lbs) | QPU輪 QPU |
1145-06-80-1 | 1145-06-80-2 | 1145-06-80-4 | ||||
| 300 kgs (660 lbs) | EPU輪 EPU |
1145-06-78-1 | 1145-06-78-2 | 1145-06-78-4 | ||||
| 400 kgs (880 lbs) | EQPU輪 EQPU |
1145-06-81-1 | 1145-06-81-2 | 1145-06-81-4 | ||||
| 400 kgs (880 lbs) | VPU輪 VPU |
1145-06-82-1 | 1145-06-82-2 | 1145-06-82-4 | ||||
| 500 kgs (1100 lbs) | VQPU輪 VQPU |
1145-06-83-1 | 1145-06-83-2 | 1145-06-83-4 | ||||
| 150mm x 46mm (6" x 1-13/16") |
300 kgs (660 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1145-06-04-1 | 1145-06-04-2 | 1145-06-04-4 | |||
| 200mm x 44mm (8" x 1-3/4") |
300 kgs (660 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1145-08-04-1 | 1145-08-04-2 | 1145-08-04-4 | 滾珠 Ball Bearing |
280mm (11-1/32") |
活動 182mm AK煞 254mm Swivel 182mm Swivel W/AK lock brake 254mm |
| 300 kgs (660 lbs) | 環保牽引NBR輪 Non-marking NBR Rubber on Cast |
1145-08-90-1 | 1145-08-90-2 | 1145-08-90-4 | ||||
| 200mm x 50mm (8" x 2") |
300 kgs (660 lbs) | 鐵芯聚氨脂 PU on Cast |
1145-08-33-1 | 1145-08-33-2 | 1145-08-33-4 | |||
| 350 kgs (770 lbs) | QPU輪 QPU |
1145-08-80-1 | 1145-08-80-2 | 1145-08-80-4 | ||||
| 350 kgs (770 lbs) | EPU輪 EPU |
1145-08-78-1 | 1145-08-78-2 | 1145-08-78-4 | ||||
| 450 kgs (990 lbs) | EQPU輪 EQPU |
1145-08-81-1 | 1145-08-81-2 | 1145-08-81-4 | ||||
| 450 kgs (990 lbs) | VPU輪 VPU |
1145-08-82-1 | 1145-08-82-2 | 1145-08-82-4 | ||||
| 550 kgs (1210 lbs) | VQPU輪 VQPU |
1145-08-83-1 | 1145-08-83-2 | 1145-08-83-4 | ||||
| 300 kgs (660 lbs) | 尼龍輪 Nylon |
1145-08-07-1 | 1145-08-07-2 | 1145-08-07-4 | ||||
| 300 kgs (660 lbs) | WMRC輪 WMRC |
1145-08-45-1 | 1145-08-45-2 | 1145-08-45-4 | ||||
| 350 kgs (770 lbs) | 鋁芯AQPU QPU on AL Core |
1145-08-87-1 | 1145-08-87-2 | 1145-08-87-4 | ||||
