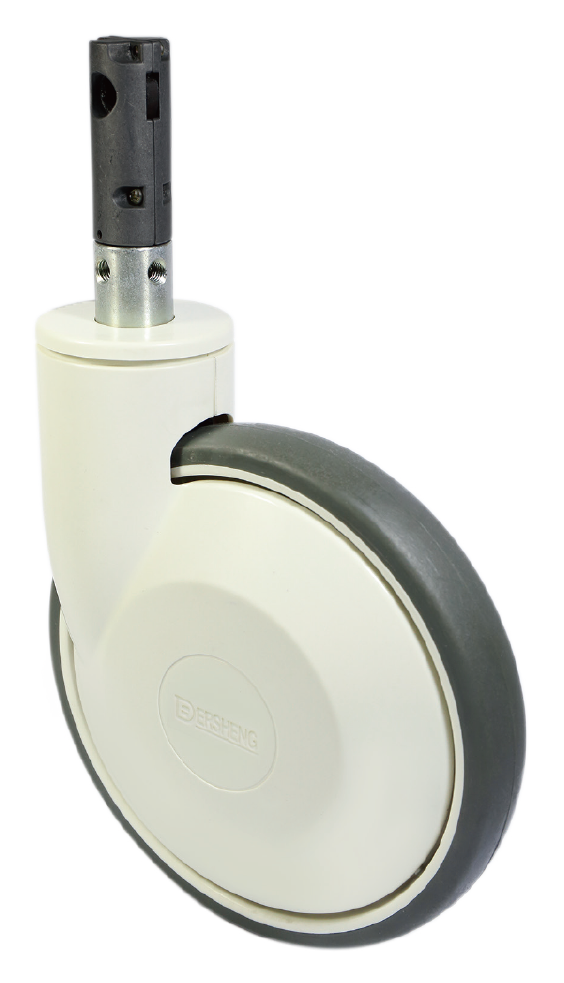

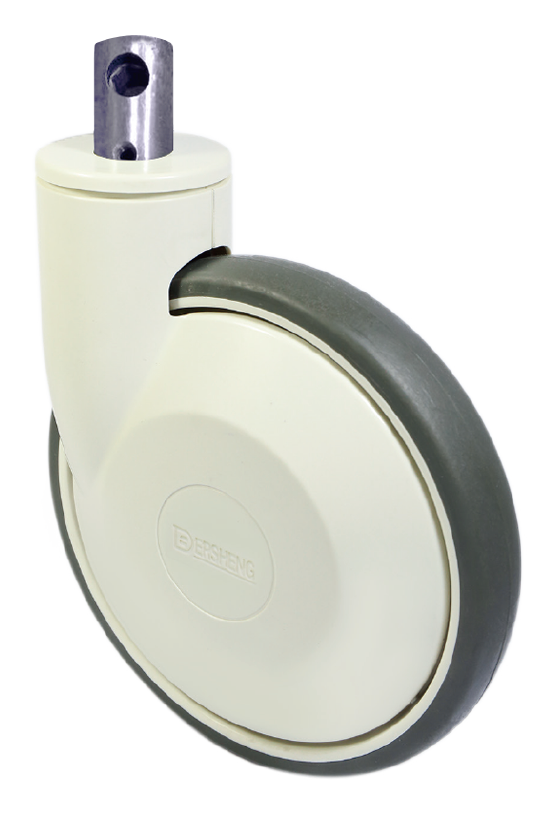

56中控系列 |
|
56 Series Central Locking Caster |
|
腳架採用沖壓鐵支架。輪子與腳架旋轉部分均採用精密軸承,提供優越的旋轉與轉動能力。
輪子為高彈力全效輪,在提供高荷重的前提下依然有靜音與平穩的行程。
專業設計的腳架裝飾蓋提供腳輪優越的外觀。 |
|
Housing made of pressed steel. Precision ball bearings in both swivel head
and wheel. Resolute wheel offers cushion ride, silient drive and debris rejection
functions. Housing cover made of synthetic material. |
< |
|
|
Brake type |
Wheel
diameter
(mm) |
Width of
Tread
(mm) |
Stem
diameter
(mm) |
Stem
length
(mm) |
Offset
(mm) |
Overall
height
(mm) |
Load
capacity
(kg) |
Swivel
radius
(mm) |
Hole
height
(mm) |
Hole
diameter
(mm) |

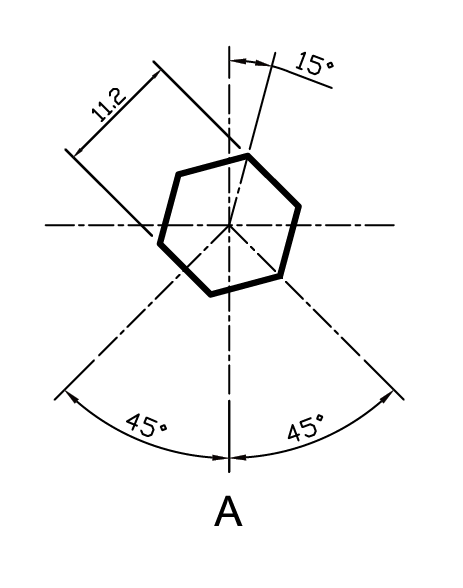

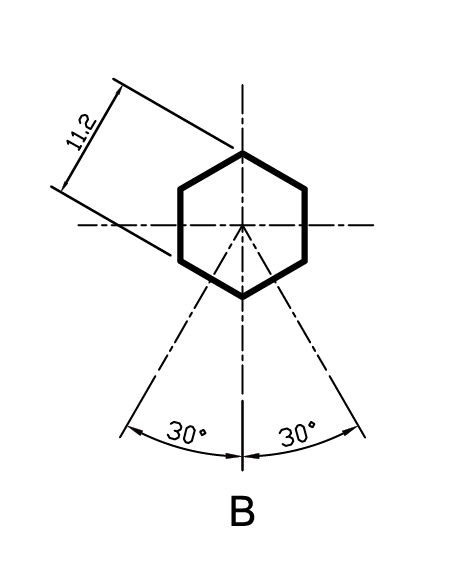

Angle |
Wheel Tread
Material |
ITEM NO. |
剎車型式 |
輪徑
|
輪寬
|
插桿
直徑
|
插桿
長度
|
偏心距
|
總高
|
載重
|
旋轉
半徑
|
插桿
六角孔
中心高
|
插桿
六角孔
對邊
|
六角
轉件
角度
|
輪面材質 |
品號 |
Swivel caster
with total lock
二段
|
150 |
31 |
28 |
96 |
40 |
183 |
150 |
115 |
78.5 |
11.2 |
A |
Resolute
Rubber
全效輪 |
11560600458233 |
150 |
31 |
28 |
96 |
40 |
183 |
150 |
115 |
78.5 |
11.2 |
B |
11560600458033 |
150 |
31 |
32 |
50 |
40 |
183 |
150 |
115 |
34 |
11.2 |
A |
11560600458333 |
150 |
31 |
32 |
50 |
40 |
183 |
150 |
115 |
34 |
11.2 |
B |
11560600458133 |
Swivel caster
with total lock and directional lock
三段 |
150 |
31 |
28 |
96 |
40 |
183 |
150 |
115 |
78.5 |
11.2 |
A |
Resolute
Rubber
全效輪 |
11560600458233 |
150 |
31 |
28 |
96 |
40 |
183 |
150 |
115 |
78.5 |
11.2 |
B |
11560600458023 |
150 |
31 |
32 |
50 |
40 |
183 |
150 |
115 |
34 |
11.2 |
A |
11560600458323 |
150 |
31 |
32 |
50 |
40 |
183 |
150 |
115 |
34 |
11.2 |
B |
11560600458123 |
Swivel caster
with total lock
二段
|
200 |
31 |
28 |
96 |
60 |
229 |
150 |
160 |
78.5 |
11.2 |
A |
Resolute
Rubber
全效輪 |
11560800458233 |
200 |
31 |
28 |
96 |
60 |
229 |
150 |
160 |
78.5 |
11.2 |
B |
11560800458033 |
200 |
31 |
32 |
50 |
60 |
229 |
150 |
160 |
34 |
11.2 |
A |
11560800458333 |
200 |
31 |
32 |
50 |
60 |
229 |
150 |
160 |
34 |
11.2 |
B |
11560800458133 |
Swivel caster
with total lock and directional lock
三段 |
200 |
31 |
28 |
96 |
60 |
229 |
150 |
160 |
78.5 |
11.2 |
A |
Resolute
Rubber
全效輪 |
11560800458223 |
200 |
31 |
28 |
96 |
60 |
229 |
150 |
160 |
78.5 |
11.2 |
B |
11560800458023 |
200 |
31 |
32 |
50 |
60 |
229 |
150 |
160 |
34 |
11.2 |
A |
11560800458333 |
200 |
31 |
32 |
50 |
60 |
229 |
150 |
160 |
34 |
11.2 |
B |
11560800458123 |
|
|
|
|
|
|
|
|
