全塑-1系列
STAT Series Caster (All Plastic)
  *無汙染 *超靜音 *防生銹 *彈性佳 *低阻力 *轉動靈活 *耐衝材質 *專利產品
*產品輕量化且堅固耐用。
*可另選購有抗菌效果之全效輪或TPR輪。
*適用於醫療器材設備、傢俱置物架、食品工廠、學校、辦公室等場所。
*另有不銹鋼材質的五金件可供選擇。
*可提供無磁腳輪。
High grade synthetic housing.
Smooth and easy rolling, these casters noticeably reduce the effort to operate equipment.
Highly effective Thread guards prevent failure from strings and other debris.
Specifically designed for healthcare and institutional applications where silence is essential.
Corrosion resistant with non-marking wheels.
Ball bearing swivel head.
Directional lock also available.
Stainless steel components are also available.
Magnetic Free Caster also avaiable.
  得貹醫療腳輪 得貹醫療腳輪 得貹醫療腳輪 得貹醫療腳輪
得貹醫療腳輪 得貹醫療腳輪 得貹醫療腳輪 得貹醫療腳輪 得貹醫療腳輪
雙煞
Total Lock Brake
定向煞
Directional
Lock Brake
長踏板
Long Pedal
超長踏板
Extra Long Pedal
無磁腳輪
Magnetic Free Caster
導電輪 E-Conductive
搭配導電輪時,腳架上的車心防塵蓋會做黃色,以做區分
E-conductive wheel,
Precision bll bearing,
Non-marking
  得貹橡膠輪 得貹橡膠輪   得貹橡膠輪
  得貹PU輪
全效輪
Resolute
超級人造膠
TPR on PP Core
導電輪
E-Conductive
鋁芯AQPU
QPU on AL Core

超級人造膠(大圓弧)
TPR on PP Core (Dount)
全效輪(大圓弧)
Resolute (Dount)






規格
Size
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
3" 42 x 42 mm 32 x 32 mm * M4/M5
3" 60 x 60 mm 42.5 x 42.5 mm * M6
4" 5" 69 x 96 mm 45 x 75 mm (高級底板) * M8
4" 5" 69 x 96 mm 49 x 74.5 mm (斜孔底板) * M8

      *有固定架和定向活動架可供選擇 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)


規格
Size
插桿直徑 x 長度
Diameter x Length
孔位高度
Hole Height
孔尺寸
Bore Size
3" 11 x 22 mm C型環 (Grip Ring)
3" 11 x 38 mm C型銅扣環 (Grip Ring)
4" 5" 21.6 x 56 mm C型環 (Grip Ring)
4" 5" 21.5 x 44.5 mm 25.4 mm * #10 X 24UNC+C型環(Grip Ring)
4" 5" 28 x 30 mm 19 mm * M8
4" 5" 28 x 40 mm 19 mm * M8

        *有固定架和定向活動架可供選擇 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)

規格
Size
絲扣牙徑 x 長度
Threaded Size
規格
Size
絲扣牙徑 x 長度
Threaded Size
3" 3/8-16UNC x 25 mm 3" M10 x 17 mm
3" M12 x 25 mm 4" 5" 3/8-16UNC x 32 mm
4" 5" M12 x 25 mm 4" 5" M12X25mm (不鏽鋼SS)
4" 5" 1/2-12UNC x 25 mm 4" 5" 1/2-20UNC x 25mm (不鏽鋼SS)
4" 5" M16 x 30 mm




規格
Size
孔徑
Centre Hole
規格
Size
孔徑
Centre Hole
3" 4" 5" 10.5 mm 4" 5" 12.5 mm






規格

Specification
固定
Fixed
活動
Swivel
雙煞
Total Lock Brake
定向煞
Directional Lock
75mm x 25mm
(3" x 1")

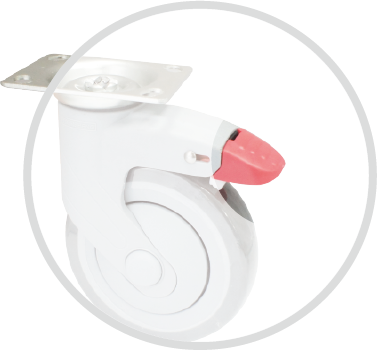

四角底板
Plate
75kgs (165lbs) 全效輪
Resolute

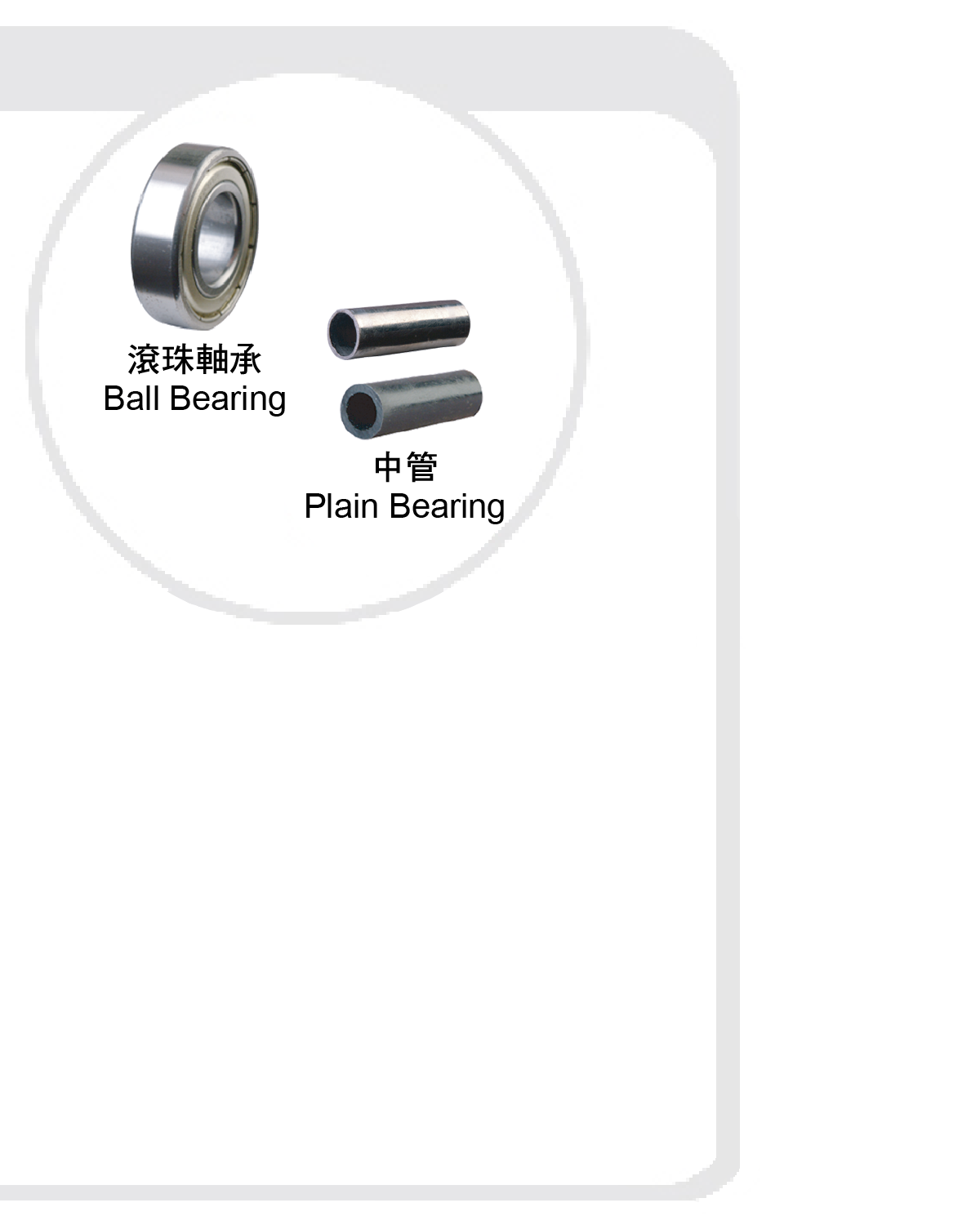

1155-03-68-1 1155-03-68-2 1155-03-68-4 滾珠軸承
Ball Bearing
113mm 27mm

活動 64.5mm

煞車(短踏板)
75mm

煞車(長踏板)
88mm


Swivel 64.5mm

Swivel W/Brake
(Short pedal) 75mm

W/Brake
(Long pedal) 88mm

65kgs (143lbs) 導電輪
E-conductive
1155-03-17-1 1155-03-17-2 1155-03-17-4 滾珠軸承
Ball Bearing
75kgs (165lbs) 超級人造膠
TPR on PP Core
1155-03-75-1 1155-03-75-2 1155-03-75-4 滾珠軸承
Ball Bearing

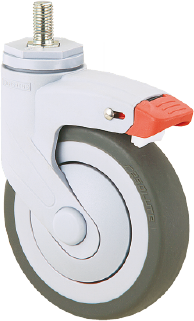

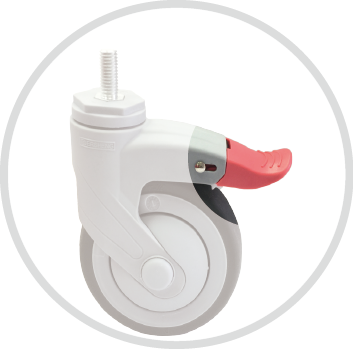

絲扣
Threaded
Stem
75kgs (165lbs) 全效輪
Resolute
1155-03-68-2 1155-03-68-4 滾珠軸承
Ball Bearing
107mm
65kgs (143lbs) 導電輪
E-conductive
1155-03-17-2 1155-03-17-4 滾珠軸承
Ball Bearing
75kgs (165lbs) 超級人造膠
TPR on PP Core
1155-03-75-2 1155-03-75-4 滾珠軸承
Ball Bearing
空鉚
SingleBolt Hole
75kgs (165lbs) 全效輪
Resolute
1155-03-68-2 1155-03-68-4 滾珠軸承
Ball Bearing
104mm
65kgs (143lbs) 導電輪
E-conductive
1155-03-17-2 1155-03-17-4 滾珠軸承
Ball Bearing
75kgs (165lbs) 超級人造膠
TPR on PP Core
1155-03-75-2 1155-03-75-4 滾珠軸承
Ball Bearing
插桿
Cylindrical
Stem
75kgs (165lbs) 全效輪
Resolute
1155-03-68-1 1155-03-68-2 1155-03-68-4 滾珠軸承
Ball Bearing
104mm
65kgs (143lbs) 導電輪
E-conductive
1155-03-17-1 1155-03-17-2 1155-03-17-4 滾珠軸承
Ball Bearing
75kgs (165lbs) 超級人造膠
TPR on PP Core
1155-03-75-1 1155-03-75-2 1155-03-75-4 滾珠軸承
Ball Bearing
100mm x 31mm
(4" x 1-1/4")
四角底板
Plate
90kgs (198lbs) 全效輪
Resolute
1155-04-68-1 1155-04-68-2 1155-04-68-4 1155-04-68-9 滾珠軸承
Ball Bearing
141mm 36mm

活動 86mm

煞車(短踏板)
102mm

煞車(長踏板)
113mm

煞車(超長踏板)
126mm


Swivel 86mm

Swivel W/Brake
(Short pedal) 102mm

Swivel W/Brake
(Long pedal) 113mm

Swivel W/Brake
(Extra long pedal) 126mm

90kgs (198lbs) 導電輪
E-conductive
1155-04-17-1 1155-04-17-2 1155-04-17-4 1155-04-17-9 滾珠軸承
Ball Bearing
90kgs (198lbs) 超級人造膠
TPR on PP Core
1155-04-75-1 1155-04-75-2 1155-04-75-4 1155-04-75-9 滾珠軸承
Ball Bearing
中管
Plain Bearing
90kgs (198lbs) 鋁芯AQPU
QPU on AL Core
1155-04-87-1 1155-04-87-2 1155-04-87-4 1155-04-87-9 滾珠軸承
Ball Bearing
80kgs
(176lbs)
超級人造膠
(大圓弧)

TPR on PP Core(Dount)
1155-04-110-1 1155-04-110-2 1155-04-110-4 1155-04-110-9 滾珠軸承
Ball Bearing
90kgs (198lbs) 全效輪(大圓弧)
Resolute(Dount)
1155-04-111-1 1155-04-111-2 1155-04-111-4 1155-04-111-9 滾珠軸承
Ball Bearing
絲扣
Threaded
Stem
90kgs (198lbs) 全效輪
Resolute
1155-04-68-2 1155-04-68-4 滾珠軸承
Ball Bearing
139mm
90kgs (198lbs) 導電輪
E-conductive
1155-04-17-2 1155-04-17-4 滾珠軸承
Ball Bearing
90kgs (198lbs) 超級人造膠
TPR on PP Core
1155-04-75-2 1155-04-75-4 滾珠軸承
Ball Bearing
中管
Plain Bearing
90kgs (198lbs) 鋁芯AQPU
QPU on AL Core
1155-04-87-2 1155-04-87-2 滾珠軸承
Ball Bearing
80kgs
(176lbs)
超級人造膠
(大圓弧)

TPR on PP Core(Dount)
1155-04-110-2 1155-04-110-4 滾珠軸承
Ball Bearing
90kgs (198lbs) 全效輪(大圓弧)
Resolute(Dount)
1155-04-111-2 1155-04-111-4 滾珠軸承
Ball Bearing
空鉚
SingleBolt Hole
90kgs (198lbs) 全效輪
Resolute
1155-04-68-2 1155-04-68-4 滾珠軸承
Ball Bearing
138mm
90kgs (198lbs) 導電輪
E-conductive
1155-04-17-2 1155-04-17-4 滾珠軸承
Ball Bearing
90kgs (198lbs) 超級人造膠
TPR on PP Core
1155-04-75-2 1155-04-75-4 滾珠軸承
Ball Bearing
中管
Plain Bearing
90kgs (198lbs) 鋁芯AQPU
QPU on AL Core
1155-04-87-2 1155-04-87-2 滾珠軸承
Ball Bearing
80kgs
(176lbs)
超級人造膠
(大圓弧)

TPR on PP Core(Dount)
1155-04-110-2 1155-04-110-4 滾珠軸承
Ball Bearing
90kgs (198lbs) 全效輪(大圓弧)
Resolute(Dount)
1155-04-111-2 1155-04-111-4 滾珠軸承
Ball Bearing
插桿
Cylindrical
Stem
90kgs (198lbs) 全效輪
Resolute
1155-04-68-1 1155-04-68-2 1155-04-68-4 1155-04-68-9 滾珠軸承
Ball Bearing
138mm
90kgs (198lbs) 導電輪
E-conductive
1155-04-17-1 1155-04-17-2 1155-04-17-4 1155-04-17-9 滾珠軸承
Ball Bearing
90kgs (198lbs) 超級人造膠
TPR on PP Core
1155-04-75-1 1155-04-75-2 1155-04-75-4 1155-04-75-9 滾珠軸承
Ball Bearing
中管
Plain Bearing
90kgs (198lbs) 鋁芯AQPU
QPU on AL Core
1155-04-87-1 1155-04-87-2 1155-04-87-4 1155-04-87-9 滾珠軸承
Ball Bearing
80kgs
(176lbs)
超級人造膠
(大圓弧)

TPR on PP Core(Dount)
1155-04-110-1 1155-04-110-2 1155-04-110-4 1155-04-110-9 滾珠軸承
Ball Bearing
90kgs (198lbs) 全效輪(大圓弧)
Resolute(Dount)
1155-04-111-1 1155-04-111-2 1155-04-111-4 1155-04-111-9 滾珠軸承
Ball Bearing




規格

Specification
固定
Fixed
活動
Swivel
雙煞
Total Lock Brake
定向煞
Directional Lock
125mm x 31mm
(5" x 1-1/4")
四角底板
Plate
100kgs (220lbs) 全效輪
Resolute
1155-05-68-1 1155-05-68-2 1155-05-68-4 1155-05-68-9 滾珠軸承
Ball Bearing
166mm 38mm

活動 100.5mm

煞車(短踏板)
102mm

煞車(長踏板)
113mm

煞車(超長踏板)
126mm


Swivel 100.5mm

Swivel W/Brake
(Short pedal) 102mm

Swivel W/Brake
(Long pedal) 113mm

Swivel W/Brake
(Extra long pedal) 126mm

100kgs (220lbs) 導電輪
E-conductive
1155-05-17-1 1155-05-17-2 1155-05-17-4 1155-05-17-9 滾珠軸承
Ball Bearing
100kgs (220lbs) 超級人造膠
TPR on PP Core
1155-05-75-1 1155-05-75-2 1155-05-75-4 1155-05-75-9 滾珠軸承
Ball Bearing
中管
Plain Bearing
100kgs (220lbs) 鋁芯AQPU
QPU on AL Core
1155-05-87-1 1155-05-87-2 1155-05-87-4 1155-05-87-9 滾珠軸承
Ball Bearing
90kgs
(198lbs)
超級人造膠
(大圓弧)

TPR on PP Core(Dount)
1155-05-110-1 1155-05-110-2 1155-05-110-4 1155-05-110-9 滾珠軸承
Ball Bearing
100kgs (220lbs) 全效輪(大圓弧)
Resolute(Dount)
1155-05-111-1 1155-05-111-2 1155-05-111-4 1155-05-111-9 滾珠軸承
Ball Bearing
絲扣
Threaded
Stem
100kgs (220lbs) 全效輪
Resolute
1155-05-68-2 1155-05-68-4 滾珠軸承
Ball Bearing
164mm
100kgs (220lbs) 導電輪
E-conductive
1155-05-17-2 1155-05-17-4 滾珠軸承
Ball Bearing
100kgs (220lbs) 超級人造膠
TPR on PP Core
1155-05-75-2 1155-05-75-4 滾珠軸承
Ball Bearing
中管
Plain Bearing
100kgs (220lbs) 鋁芯AQPU
QPU on AL Core
1155-05-87-2 1155-05-87-2 滾珠軸承
Ball Bearing
90kgs
(198lbs)
超級人造膠
(大圓弧)

TPR on PP Core(Dount)
1155-05-110-2 1155-05-110-4 滾珠軸承
Ball Bearing
100kgs (220lbs) 全效輪(大圓弧)
Resolute(Dount)
1155-05-111-2 1155-05-111-4 滾珠軸承
Ball Bearing
空鉚
SingleBolt Hole
100kgs (220lbs) 全效輪
Resolute
1155-05-68-2 1155-05-68-4 滾珠軸承
Ball Bearing
163mm
100kgs (220lbs) 導電輪
E-conductive
1155-05-17-2 1155-05-17-4 滾珠軸承
Ball Bearing
100kgs (220lbs) 超級人造膠
TPR on PP Core
1155-05-75-2 1155-05-75-4 滾珠軸承
Ball Bearing
中管
Plain Bearing
100kgs (220lbs) 鋁芯AQPU
QPU on AL Core
1155-05-87-2 1155-05-87-2 滾珠軸承
Ball Bearing
90kgs
(198lbs)
超級人造膠
(大圓弧)

TPR on PP Core(Dount)
1155-05-110-2 1155-05-110-4 滾珠軸承
Ball Bearing
100kgs (220lbs) 全效輪(大圓弧)
Resolute(Dount)
1155-05-111-2 1155-05-111-4 滾珠軸承
Ball Bearing
插桿
Cylindrical
Stem
100kgs (220lbs) 全效輪
Resolute
1155-05-68-1 1155-05-68-2 1155-05-68-4 1155-05-68-9 滾珠軸承
Ball Bearing
163mm
100kgs (220lbs) 導電輪
E-conductive
1155-05-17-1 1155-05-17-2 1155-05-17-4 1155-05-17-9 滾珠軸承
Ball Bearing
100kgs (220lbs) 超級人造膠
TPR on PP Core
1155-05-75-1 1155-05-75-2 1155-05-75-4 1155-05-75-9 滾珠軸承
Ball Bearing
中管
Plain Bearing
100kgs (220lbs) 鋁芯AQPU
QPU on AL Core
1155-05-87-1 1155-05-87-2 1155-05-87-4 1155-05-87-9 滾珠軸承
Ball Bearing
90kgs
(198lbs)
超級人造膠
(大圓弧)

TPR on PP Core(Dount)
1155-05-110-1 1155-05-110-2 1155-05-110-4 1155-05-110-9 滾珠軸承
Ball Bearing
100kgs (220lbs) 全效輪(大圓弧)
Resolute(Dount)
1155-05-111-1 1155-05-111-2 1155-05-111-4 1155-05-111-9 滾珠軸承
Ball Bearing
