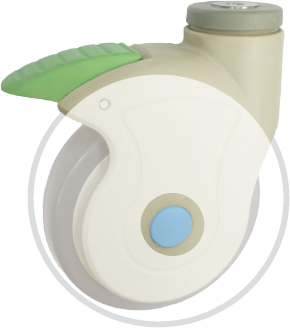

全塑系列
Med-Glide Series Caster (All Plastic)
  *無汙染 *超靜音 *防生銹 *彈性佳 *低阻力 *轉動靈活 *耐衝材質 *專利產品
*產品輕量化且堅固耐用。
*可另選購有抗菌效果之全效輪或TPR輪。
*適用於醫療器材設備、傢俱置物架、食品工廠、學校、辦公室等場所。
*另有不銹鋼材質的五金件可供選擇。
*可提供無磁腳輪。

High grade synthetic housing.
Smooth and easy rolling, these casters noticeably reduce the effort to operate equipment.
Highly effective Thread guards prevent failure from strings and other debris.
Specifically designed for healthcare and i nstitutional applications where silence is essential.
Corrosion resistant with non-marking wheels.
Ball bearing swivel head.
Directional lock also available.
Stainless steel components are also available.
Magnetic Free Caster also avaiable.
得貹醫療腳輪 得貹醫療腳輪 得貹醫療腳輪
得貹醫療腳輪 雙煞
Total Lock Brake
  得貹醫療腳輪 定向煞
Directional
Lock Brake
  得貹醫療腳輪 無磁腳輪
Magnetic
Free Caster
得貹橡膠輪   得貹橡膠輪   得貹PU輪
全效輪
Resolute
超級人造膠
TPR on PP Core
鋁芯AQPU
QPU on AL Core

規格
Size
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
4" 5" 69 x 96 mm 45 x 75 mm(高級底板) * M8
4" 5" 69 x 96 mm 49 x 74.5 mm(斜孔底板) * M8



*有固定架可供選擇
(Fixed Caster is available. Please consult the factory.)



規格
Size
插桿直徑 x 長度
Diameter x Length
孔位高度
Hole Height
孔尺寸
Bore Size
4" 5" 21.6 x 56 mm C型環 (Grip Ring)
4" 5" 21.5 x 44.5 mm 25.4 mm * #10 X 24UNC+C型環(Grip Ring)
4" 5" 28 x 30 mm 19 mm * M8
4" 5" 28 x 40 mm 19 mm * M8


*有固定架可供選擇 (Fixed Caster is available. Please consult the factory.)




規格
Size
絲扣牙徑 x 長度
Threaded Size
規格
Size
絲扣牙徑 x 長度
Threaded Size
4" 5" 3/8-16UNC x 32 mm 4" 5" M12 x 25 mm
4" 5" M12X25mm (不鏽鋼SS) 4" 5" 1/2-12UNC x 25 mm
4" 5" 1/2-20UNC x 25mm (不鏽鋼SS) 4" 5" M16 x 30 mm

規格
Size
孔徑
Centre Hole
規格
Size
孔徑
Centre Hole
4" 5" 10.5 mm 4" 5" 12.5 mm



規格

Specification
固定
Fixed
活動
Swivel
雙煞
Total Lock Brake
定向煞
Directional Lock
100mm x 31mm
(4" x 1-1/4")
四角底板
Plate
90kgs
(198lbs)
全效輪
Resolute

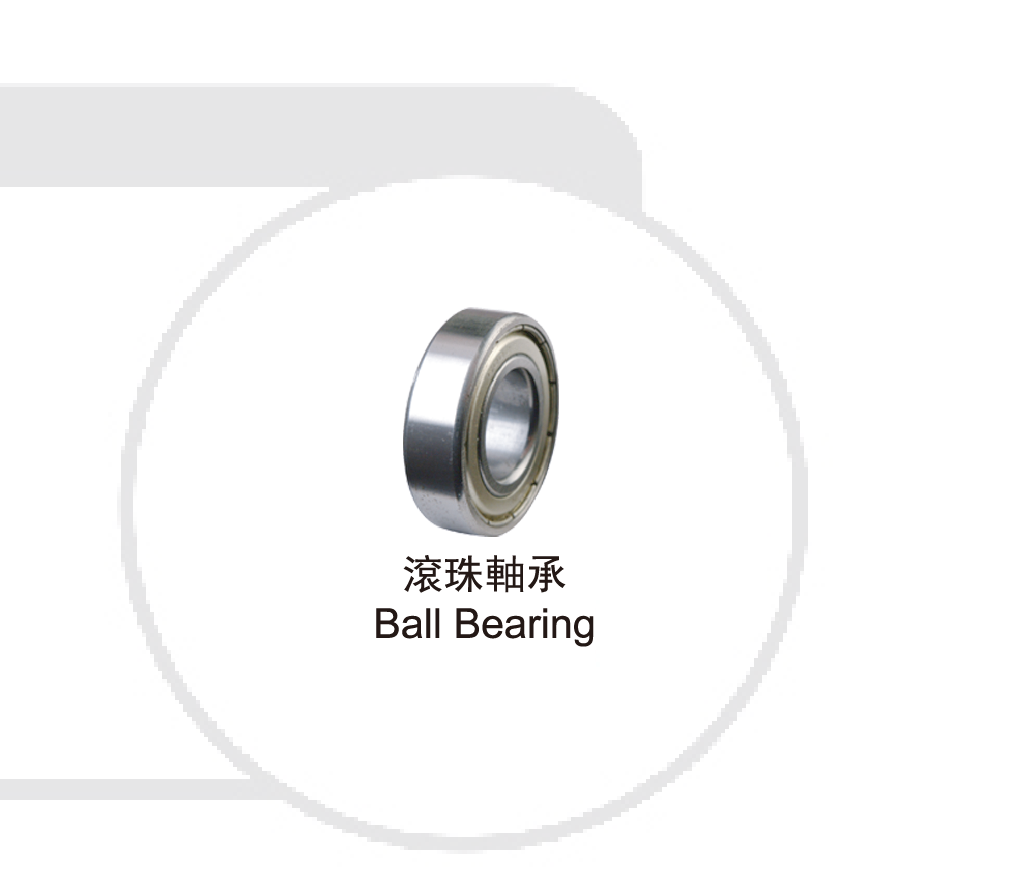

11350400451013 11350400452013 11350400454013 11350400454213 滾珠
軸承

Ball Bearing
146mm
(5"-3/4")
34mm
(1"-11/32")

活動
84mm

活煞
105.5mm



Swivel
84mm

Swivel W/Total Lock Brake 105.5mm

90kgs
(198lbs)
超級
人造膠

TPR on PP Core
11350400261013 11350400262013 1350400264013 11350400264213
絲扣
Threaded
Stem
90kgs
(198lbs)
全效輪
Resolute
11350400455013 11350400456013 145mm
(5"-45/65")
90kgs
(198lbs)
超級
人造膠

TPR on PP Core
11350400265013 11350400266013
空鉚
SingleBolt Hole
90kgs
(198lbs)
全效輪
Resolute
11350400459213 11350400459413 144mm
(5"-43/64")
90kgs
(198lbs)
超級
人造膠

TPR on PP Core
11350400269213 11350400269413
插桿
Cylindrical
Stem
90kgs
(198lbs)
全效輪
Resolute
11350400457313 11350400457013 11350400458013 11350400458213 144mm
(5"-43/64")
90kgs
(198lbs)
超級
人造膠

TPR on PP Core
11350400267313 11350400267013 11350400268013 11350400268213
125mm x 31mm
(5" x 1-1/4")
四角底板
Plate
100kgs
(220lbs)
全效輪
Resolute
11350500451013 11350500452013 11350500454013 11350500454213 滾珠
軸承

Ball Bearing
175mm
(6"-57/64")
44.5mm
(1"-3/4")

活動
107mm

活煞
124.5mm



Swivel
107mm

Swivel W/Total Lock Brake 124.5mm

100kgs
(220lbs)
超級
人造膠

TPR on PP Core
11350500261013 11350500262013 11350500264013 11350500264213
100kgs
(220lbs)
鋁芯AQPU

QPU on AL Core
1135-05-87-1 1135-05-87-2 1135-05-87-4 1135-05-87-9
絲扣
Threaded
Stem
100kgs
(220lbs)
全效輪
Resolute
11350500455013 11350500456013 174mm
(6"-27/32")
100kgs
(220lbs)
超級
人造膠

TPR on PP Core
11350500265013 11350500266013
100kgs
(220lbs)
鋁芯AQPU

QPU on AL Core
1135-05-87-2 1135-05-87-4
空鉚
SingleBolt Hole
100kgs
(220lbs)
全效輪
Resolute
11350500459213 11350500459413 173mm
(6"-13/16")
100kgs
(220lbs)
超級
人造膠

TPR on PP Core
11350500269213 11350500269413
100kgs
(220lbs)
鋁芯AQPU

QPU on AL Core
1135-05-87-2 1135-05-87-4
插桿
Cylindrical
Stem
100kgs
(220lbs)
全效輪
Resolute
11350500457313 11350500457013 11350500458013 11350500458213 173mm
(6"-13/16")
100kgs
(220lbs)
超級
人造膠

TPR on PP Core
11350500267313 11350500267013 11350500268013 11350500268213
100kgs
(220lbs)
鋁芯AQPU

QPU on AL Core
1135-05-87-1 1135-05-87-2 1135-05-87-4 1135-05-87-9
