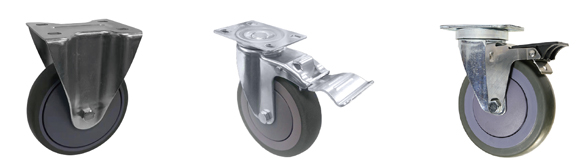

30系列(台灣)美規腳架系列
Medium Duty General Purposes Caster (American Style)

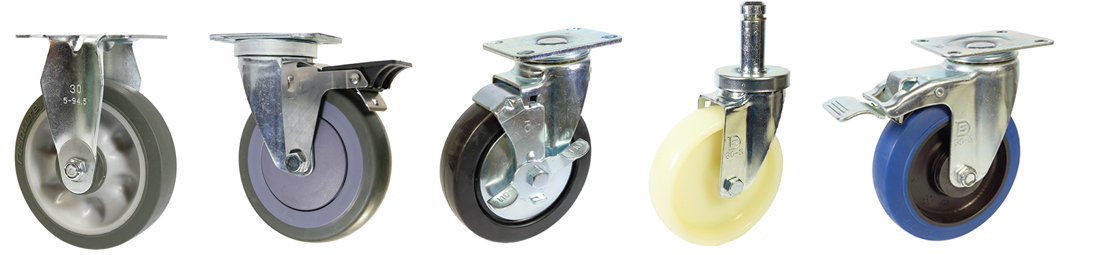

腳架採用特別結構設計，荷重高、轉動靈活，有側煞制動及雙煞制動可供選擇
Pressed steel caster horn/housing design to swivel easily under load. Good performance side brake and total lock brake for options.
30新式固定架(諮詢工廠)

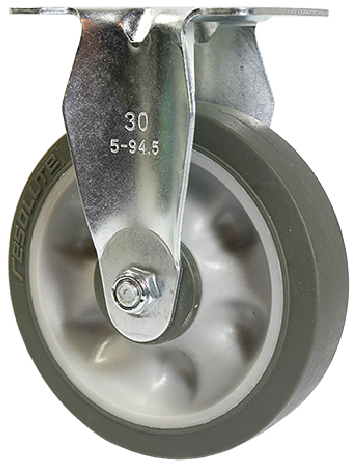

Reinforced Rigid Fork
(consult factory)		 鐵雙煞(超大踏板)
Total Lock Brake
with Extra Big Pedal		 波西煞
Posi Lock Brake		 波盤防塵蓋

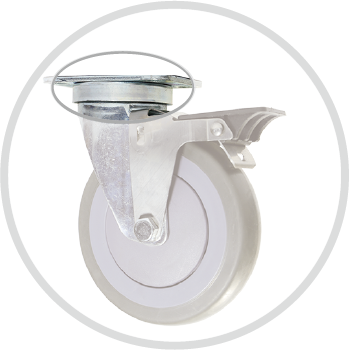

Swivel Dust Cover
鐵雙煞(長踏)(常規)
Total Lock Brake
with Long Pedal (standard)		 鐵雙煞(短踏)
Total Lock Brake
with Short Pedal		 側煞
Side Lock Brake
角鐵底板
Angle Bar Plate
高科技耐磨聚氨酯
PU on PP Core		 超級人造膠 (514)
TPR on PP Core		 尼龍輪
Nylon		 WMRC輪
WMRC		 WPP輪
WPP		 W超級人造膠
WPPR		 NPPR輪
NPPR		 鋁芯橡膠輪
Rubber on
Aluminum Core		 超級人造膠 (515)
TPR on PP Core		 鋁芯AQPU
QPU on
AL Core
橡膠輪
Rubber		 塑料輪
PP		 導電輪
E-Conductive		 耐高溫輪
Hi-temp		 W全效輪
W Resolute Wheel		 全效輪 (514)
Resolute Wheel		 WHDR輪
WHDR		 CPD輪
CPD		 藍色彈力輪
Blue Resilient Rubber Wheel		 全效輪(515)
Resolute

三星輪
Rubber on Steel Core		 超級人造膠(大圓弧)
TPR on PP Core
(Donut)		 全效輪(大圓弧)
Resolute (Donut)


編號
Suffix		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安裝尼帽尺寸
Attaching Bolt Size
1 61 x 93 mm (2-3/8" x 3-5/8") 45 x 75 mm (高級架底板)
1-3/4" x 3"		 6.35mm (1/4")
2 72 x 91 mm (2-13/16" x 3-19/32") 53 x 72 mm (醫療/儀器架底板)
2-1/8" x 2-7/8"
 6.35mm (1/4")
3 93 x 110 mm (3-5/8" x 4-3/8") 70 x 85 mm (大底板)(Big Plate)
2-5/8"~3"x3"~3-5/8"		 9.5 mm (3/8")




規格
Size		 插桿直徑 x 長度
Diameter x Length		 規格
Size		 插桿直徑 x 長度
Diameter x Length
1 11X38mm (7/16"diameter X 1-1/2") 2 21.6 x 56mm (0.845" diameter x 2-3/16")
3 22X56mm (0.865"diameter X 2-3/16")





編號
Suffix		 絲扣牙徑 x 長度
Threaded Size		 編號
Suffix		 絲扣牙徑 x 長度
Threaded Size		 編號
Suffix		 絲扣牙徑 x 長度
Threaded Size
1 3/8-16UNCx19 ** 2 3/8-16UNCx25 ** 3 3/8-16UNCx32 *
4 3/8-16UNCx38 ** 5 1/2-12UNCx19 ** 6 1/2-12UNCx25 **
7 1/2-12UNCx32 * 8 1/2-12UNCx38 ** 9 1/2-13UNCx19 **
10 1/2-13UNCx25 ** 11 1/2-13UNCx32 ** 12 1/2-13UNCx38 **
13 1/2-13UNCx70 ** 14 5/8-11UNCx25 ** 15 5/8-11UNCx32 *
16 M16-2.0x20 *

  　　　　　* 絲扣底部六角台階 (Hexagon Head)　　　　　　** 絲扣底部圓頭台階 (Round Head)



APP號碼
Adapter Number		 方/圓管內徑
ID of Round or Square Tube		 通用管子內徑範圍
Tube Size Range		 APP零件 Adapter Kit Parts
橡膠圈
Rubber Bushing		 滾花螺母
Top Knurled Nut		 塑膠墊片
Plastic Bushing		 金屬華司
Base Washer
9 3/4 0.720-0.851 1644-00 1421-02 1429-02 1709-02
11* 7/8 0.852-0.927 1645-00 1435-02 1432-02 1709-02
13 1 0.928-1.029 1646-00 1435-02 1432-02 1709-02
15 1-1/8 1.030-1.140 1647-00 1436-02 1431-02 1709-02
17B 1-3/16 1.178-1.303 1651-00 1441-02 1430-02 1709-02
19C* 1-3/8 1.360-1.425 1648-00 1438-02 1433-02 1709-02
19A 1-1/2 1.426-1.589 1649-00 1437-02 1434-02 1709-02
21 1-7/8 1.790-1.850 1650-00 1422-02 1440-02 1473-02





2孔規格 Two Holes Specification 3孔規格 Three Holes Specification

固定
Fixed		 活動
Swivel		 煞車
Brake
75mm x 24mm
(3" x 1")		 40 kgs
(88 lbs)		 超級人造膠
TPR on PP Core		 1130-R-03-75-1 1130-R-03-75-2 1130-R-03-75-4 滾珠
Ball Bearing		 底板類總高:
Plate Version OAH:
有鐵防塵蓋
with dust cover
106mm(4-3/16")

無鐵防塵蓋
without dust cover
105mm(4-1/8")

絲扣/插桿類總高
Stem Version OAH:
有鐵防塵蓋
with dust cover
102mm(4-1/16")

無鐵防塵蓋
without dust cover
101mm(4")

兩孔角鐵底板總高
Two holes angle
bar plate OAH:
106mm(4-3/16")

三孔角鐵底板總高
Three holes angle
bar plate OAH:
125mm(4-59/64")		 活動 73 mm
側煞 73 mm
煞車(短踏板)
111 mm
煞車(長踏板)
121 mm
煞車(超大踏板)
140 mm
波西煞 105 mm

Swivel 73 mm
Swivel W/Side
Brake 73 mm
Swivel W/Brake
(Shorter pedal)
111 mm
Swivel W/Brake
(Long pedal)
121 mm
Swivel W/Brake
(Extra Big Pedal)
140 mm
Posi Lock Brake
105 mm
50 kgs
(110 lbs)		 全效輪
Resolute		 1130-R-03-68-1 1130-R-03-68-2 1130-R-03-68-4
75mm x 32mm
(3" x 1-1/4")		 90 kgs
(198 lbs)		 超級人造膠
TPR on PP Core		 1130-03-75-1 1130-03-75-2 1130-03-75-4 滾珠
Ball Bearing
90 kgs
(198 lbs)		 全效輪
Resolute		 1130-03-68-1 1130-03-68-2 1130-03-68-4
80 kgs
(175 lbs)		 導電輪
E-conductive		 1130-03-17-1 1130-03-17-2 1130-03-17-4
160 kgs
(352 lbs)		 WMRC輪
WMRC		 1130-03-45-1 1130-03-45-2 1130-03-45-4
100 kgs
(220 lbs)		 WPP輪
WPP		 1130-03-46-1 1130-03-46-2 1130-03-46-4
90 kgs
(198 lbs)		 W超級人造膠
WPPR		 1130-03-47-1 1130-03-47-2 1130-03-47-4
110 kgs
(250 lbs)		 W全效輪
W Resolute		 1130-03-48-1 1130-03-48-2 1130-03-48-4
140 kgs
(310 lbs)		 WHDR輪
WHDR		 1130-03-66-1 1130-03-66-2 1130-03-66-4
160 kgs
(352 lbs)		 鋁芯AQPU
QPU on AL Core		 1130-03-87-1 1130-03-87-2 1130-03-87-4
100 kgs
(220 lbs)		 尼龍輪
Nylon		 1130-03-07-1 1130-03-07-2 1130-03-07-4 中管
Plain Bearing
70 kgs
(155 lbs)		 橡膠輪
Rubber 		1130-03-06-1 1130-03-06-2 1130-03-06-4
90 kgs
(198 lbs)		 塑料輪
PP		 1130-03-29-1 1130-03-29-2 1130-03-29-4





固定
Fixed		 活動
Swivel		 煞車
Brake
88mm x 32mm
(3.5" x 1-1/4 ")		 95 kgs
(209 lbs)		 W超級人造膠
WPPR		 1130-35-47-1 1130-35-47-2 1130-35-47-4 滾珠
Ball Bearing

底板類總高
Plate Version OAH
有鐵防塵蓋
with dust cover
117mm(4-5/8")

無鐵防塵蓋
without dust cover
116mm(4-9/16")

絲扣/插桿類總高
Stem Version OAH
有鐵防塵蓋
with dust cover
113mm(4-7/16")
無鐵防塵蓋
without dust cover
112mm(4-3/8")

兩孔角鐵底板總高
Two holes angle
bar plate OAH:
117mm(4-39/64")

活動 80 mm
側煞 80 mm
煞車(短踏板)
111 mm
煞車(長踏板)
121 mm
煞車(超大踏板)
140 mm
波西煞 114 mm

Swivel 80 mm
Swivel W/Side
Brake 80 mm
Swivel W/Brake
(Shorter pedal)
111 mm
Swivel W/Brake
(Long pedal)
121 mm
Swivel W/Brake
(Extra Big Pedal)
140 mm
Posi Lock Brake
114 mm
120 kgs
(264 lbs)		 W全效輪
W Resolute		 1130-35-48-1 1130-35-48-2 1130-35-48-4
160 kgs
(350 lbs)		 WHDR輪
WHDR		 1130-35-66-1 1130-35-66-2 1130-35-66-4
100mm x 24mm
(4" x 1")		 50 kgs
(110 lbs)		 超級人造膠
TPR on PP Core		 1130-R-04-75-1 1130-R-04-75-2 1130-R-04-75-4 滾珠
Ball Bearing		 底板類總高
Plate Version OAH
有鐵防塵蓋
with dust cover
130mm(5-1/8")

無鐵防塵蓋
without dust cover
129mm(5-1/16")

絲扣/插桿類總高
Stem Version OAH
有鐵防塵蓋
with dust cover
126mm(5")

無鐵防塵蓋
with out dust cover
125mm(4-15/16")

兩孔角鐵底板總高
Two holes angle
bar plate OAH:
129mm(5-1/16")

三孔角鐵底板總高
Three holes angle
bar plate OAH:
148mm(5-53/64")		 活動 85 mm
側煞 85 mm
煞車(短踏板)
111 mm
煞車(長踏板)
121 mm
煞車(超大踏板)
140 mm
波西煞 115 mm

Swivel 85 mm
Swivel W/Side
Brake 85 mm
Swivel W/Brake
(Shorter pedal)
111 mm
Swivel W/Brake
(Long pedal)
121 mm
Swivel W/Brake
(Extra Big Pedal)
140 mm
Posi Lock Brake
115 mm
55 kgs
(121 lbs)		 全效輪
Resolute		 1130-R-04-68-1 1130-R-04-68-2 1130-R-04-68-4
100mm x 32mm
(4" x 1-1/4")		 120 kgs
(265 lbs)		 高科技耐磨聚氨酯
PU on PP Core		 1130-04-31-1 1130-04-31-2 1130-04-31-4 滾珠
Ball Bearing
中管
Plain Bearing
100 kgs
(220 lbs)		 超級人造膠
TPR on PP Core		 1130-04-75-1 1130-04-75-2 1130-04-75-4
80 kgs
(175 lbs)		 超級人造膠(大圓弧)
TPR on PP Core (Donut)		 1130-04-110-1 1130-04-110-2 1130-04-110-4
90 kgs
(198 lbs)		 全效輪(大圓弧)
Resolute (Donut)		 1130-04-111-1 1130-04-111-2 1130-04-111-4
125 kgs
(275 lbs)		 全效輪
Resolute		 1130-04-68-1 1130-04-68-2 1130-04-68-4 滾珠
Ball Bearing
80 kgs
(176 lbs)		 導電輪
E-conductive		 1130-04-17-1 1130-04-17-2 1130-04-17-4
180 kgs
(396 lbs)		 WMRC輪
WMRC		 1130-04-45-1 1130-04-45-2 1130-04-45-4
130 kgs
(285 lbs)		 WPP輪
WPP		 1130-04-46-1 1130-04-46-2 1130-04-46-4
100 kgs
(220 lbs)		 W超級人造膠
WPPR		 1130-04-47-1 1130-04-47-2 1130-04-47-4
135 kgs
(300 lbs)		 W全效輪
W Resolute		 1130-04-48-1 1130-04-48-2 1130-04-48-4
180 kgs
(400 lbs)		 WHDR輪
WHDR		 1130-04-66-1 1130-04-66-2 1130-04-66-4
135 kgs
(300 lbs)

鋁芯橡膠輪
Rubber on Aluminum Core

 1130-04-22-1 1130-04-22-2 1130-04-22-4
230 kgs
(506 lbs)		 鋁芯AQPU
QPU on AL Core		 1130-04-87-1 1130-04-87-2 1130-04-87-4
70 kgs
(154 lbs)		 NPPR輪
NPPR		 1130-04-67-1 1130-04-67-2 1130-04-67-4 中管
Plain Bearing
120 kgs
(265 lbs)		 尼龍輪
Nylon		 1130-04-07-1 1130-04-07-2 1130-04-07-4
80 kgs
(176 lbs)		 橡膠輪
Rubber 		1130-04-06-1 1130-04-06-2 1130-04-06-4
90 kgs
(198 lbs)		 塑料輪
PP		 1130-04-29-1 1130-04-29-2 1130-04-29-4
135 kgs
(300 lbs)		 耐高溫輪
Hi-temp		 1130-04-25-1 1130-04-25-2 1130-04-25-4




固定
Fixed		 活動
Swivel		 煞車
Brake
100mm x 36mm
(4" x 1-1/2")		 120kgs (265 lbs) 三星輪
Rubber on Steel Core		 1130-04-03-1 1130-04-03-2 1130-04-03-4 滾珠
Ball Bearing

底板類總高
Plate Version OAH:
有鐵防塵蓋
with dust cover
130mm(5-1/8")
無鐵防塵蓋
without dust cover
129mm(5-1/16")

絲扣/插桿類總高
Stem Version OAH:
有鐵防塵蓋
with dust cover
126mm(5")
無鐵防塵蓋
without dust cover
125mm(4-15/16")

兩孔角鐵底板總高
Two holes angle
bar plate OAH:
129mm(5-1/16")

三孔角鐵底板總高
Three holes angle
bar plate OAH:
148mm(5-53/64")

活動 85 mm
側煞 85 mm
煞車(短踏板)
111 mm
煞車(長踏板)
121 mm
煞車(超大踏板)
140 mm
波西煞 115 mm

Swivel 85 mm
Swivel W/Side
Brake 85 mm
Swivel W/Brake
(Shorter pedal)
111 mm
Swivel W/Brake
(Long pedal)
121 mm
Swivel W/Brake
(Extra Big Pedal)
140 mm
Posi Lock Brake
115 mm
160 kgs
(352 lbs)		 CPD輪
CPD		 1130-04-71-1 1130-04-71-2 1130-04-71-4
160 kgs
(352 lbs)		 藍色彈力輪
Blue Resilient Rubber Wheel		 1130-04-50-1 1130-04-50-2 1130-04-50-4
140 kgs
(308 lbs)		 超級人造膠
TPR on PP Core		 1130-04-77-1 1130-04-77-2 1130-04-77-4
160 kgs
(352 lbs)		 全效輪
Resolute		 1130-04-76-1 1130-04-76-2 1130-04-76-4
250 kgs
(550 lbs)		 鋁芯AQPU
QPU on AL Core		 1130-04-87-1 1130-04-87-2 1130-04-87-4
125mm x 24.5mm
(5" x 1")		 70 kgs
(155 lbs)		 超級人造膠
TPR on PP Core		 1130-R-05-75-1 1130-R-05-75-2 1130-R-05-75-4 滾珠
Ball Bearing
 底板類總高
Plate Version OAH:
有鐵防塵蓋
with dust cover
158mm(6-1/4")

無鐵防塵蓋
without dust cover
157mm(6-3/16")

絲扣/插桿類總高
Stem Version OAH:
有鐵防塵蓋
with dust cover
154mm(6-1/16")

無鐵防塵蓋
without dust cover
153mm(6")

兩孔角鐵底板總高
Two holes angle
bar plate OAH:
157mm(6-3/16")

三孔角鐵底板總高
Three holes angle
bar plate OAH:
176mm(6-59/64")		 活動 97 mm
側煞 97 mm
煞車(短踏板)
111 mm
煞車(長踏板)
121 mm
煞車(超大踏板)
140 mm
波西煞 112 mm

Swivel 97 mm
Swivel W/Side
Brake 97 mm
Swivel W/Brake
(Shorter pedal)
111 mm
Swivel W/Brake
(Long pedal)
121 mm
Swivel W/Brake
(Extra Big Pedal)
140 mm
Posi Lock Brake
112 mm
80 kgs
(175 lbs)		 全效輪
Resolute		 1130-R-05-68-1 1130-R-05-68-2 1130-R-05-68-4
125mm x 32mm
(5" x 1-1/4")		 130 kgs
(285 lbs)		 高科技耐磨聚氨酯
PU on PP Core		 1130-05-31-1 1130-05-31-2 1130-05-31-4 滾珠
Ball Bearing
中管
Plain Bearing
110 kgs
(240 lbs)		 超級人造膠
TPR on PP Core		 1130-05-75-1 1130-05-75-2 1130-05-75-4
100 kgs
(220 lbs)		 超級人造膠(大圓弧)
TPR on PP Core (Donut)		 1130-05-110-1 1130-05-110-2 1130-05-110-4
120 kgs
(265 lbs)		 全效輪(大圓弧)
Resolute (Donut)		 1130-05-111-1 1130-05-111-2 1130-05-111-4
147 kgs
(325 lbs)		 全效輪
Resolute		 1130-05-68-1 1130-05-68-2 1130-05-68-4 滾珠
Ball Bearing
90 kgs
(198 lbs)		 導電輪
E-conductive		 1130-05-17-1 1130-05-17-2 1130-05-17-4
200 kgs
(440 lbs)		 WMRC輪
WMRC		 1130-05-45-1 1130-05-45-2 1130-05-45-4
150 kgs
(330 lbs)		 WPP輪
WPP		 1130-05-46-1 1130-05-46-2 1130-05-46-4
110 kgs
(240 lbs)		 W超級人造膠
WPPR		 1130-05-47-1 1130-05-47-2 1130-05-47-4
147 kgs
(325 lbs)		 W全效輪
W Resolute		 1130-05-48-1 1130-05-48-2 1130-05-48-4
200 kgs
(440 lbs)		 WHDR輪
WHDR		 1130-05-66-1 1130-05-66-2 1130-05-66-4
250 kgs
(550 lbs)		 鋁芯AQPU
QPU on AL Core		 1130-05-87-1 1130-05-87-2 1130-05-87-4
140 kgs
(305 lbs)		 尼龍輪
Nylon		 1130-05-07-1 1130-05-07-2 1130-05-07-4 中管
Plain Bearing
90 kgs
(198 lbs)		 橡膠輪
Rubber 		1130-05-06-1 1130-05-06-2 1130-05-06-4
100 kgs
(220 lbs)		 塑料輪
PP		 1130-05-29-1 1130-05-29-2 1130-05-29-4




固定
Fixed		 活動
Swivel		 煞車
Brake
125mm x 36mm
(5" x 1-1/2")		 140 kgs
(308 lbs)		 三星輪
Rubber on Steel Core		 1130-05-03-1 1130-05-03-2 1130-05-03-4 滾珠
Ball Bearing

底板類總高
Plate Version OAH:
有鐵防塵蓋
with dust cover
158mm(6-1/4")

無鐵防塵蓋
without dust cover
157mm(6-3/16")

絲扣/插桿類總高
Stem Version OAH:
有鐵防塵蓋
with dust cover
154mm(6-1/16")

無鐵防塵蓋
without dust cover
153mm(6")

兩孔角鐵底板總高
Two holes angle
bar plate OAH:
157mm(6-3/16")

三孔角鐵底板總高
Three holes angle
bar plate OAH:
176mm(6-59/64")

活動 97 mm
側煞 97 mm
煞車(短踏板)
111 mm
煞車(長踏板)
121 mm
煞車(超大踏板)
140 mm
波西煞 112 mm

Swivel 97 mm
Swivel W/Side
Brake 97 mm
Swivel W/Brake
(Shorter pedal)
111 mm
Swivel W/Brake
(Long pedal)
121 mm
Swivel W/Brake
(Extra Big Pedal)
140 mm
Posi Lock Brake
112 mm
200 kgs
(440 lbs)		 CPD輪
CPD		 1130-05-71-1 1130-05-71-2 1130-05-71-4
250 kgs
(550 lbs)		 藍色彈力輪
Blue Resilient Rubber Wheel		 1130-05-50-1 1130-05-50-2 1130-05-50-4
160 kgs
(352 lbs)		 超級人造膠
TPR on PP Core		 1130-05-77-1 1130-05-77-2 1130-05-77-4
180 kgs
(400 lbs)		 全效輪
Resolute		 1130-05-76-1 1130-05-76-2 1130-05-76-4




© 台灣總廠
台灣省彰化縣員林鎮萬年里大饒路342號 510 電話: +886-4-8365911
得貹上好輪 | 腳輪 | AGV輪 |醫療輪 | 物流台車
