空心胎/實心胎科草機輪
Semi-Pneumatic & Solid Rubber Wheel
適用於割草機,木工機械,高壓清洗機,發電機,搬運車與養汽車等
有多樣的胎紋供選擇,請聯絡工廠
輪框材質有鐵框(可做烤漆或電鍍處理)及塑框可供選擇
各種OEM尺寸及設計可以依據產品設計需求生產。
Good for Iawn mowers, wooden machinery, generators, two-wheeled carts, etc.
Various Tread patterns available, please consult the factory.
Rims can be plastic or steel (painted or zinc-plated)
OEM requests and tailored-made wheels in all sizes are welcome.

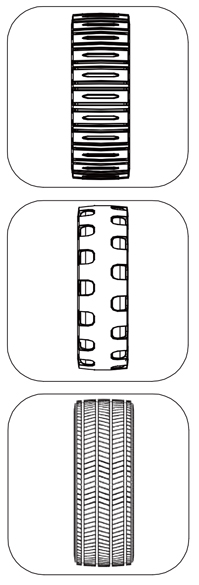

1) 鑽紋
Diamond Tread Profile

2) X紋
X Tread Profile
3) 直紋
Rib Tread Profile
4) 齒紋
Gear Tread Profile
5) 光面
Smooth Tread Profile
6) V紋
V Tread Profile



7) G-2紋
G-2 Tread Profile

8) 方塊紋
Stud Tread Profile
9) G-3紋
G-3 Tread Profile
10) L紋
L Tread Profile
11) 橫紋
Lateral Tread Profile
實心胎橡膠輪 (鐵框-正心) Solid Rubber Wheel with Steel Rim (Centered Hub)
輪徑
Wheel
diamete
輪寬
Width
中寬
(含軸承)
Hub
Length
(with bearing)
軸承 Ball Bearing 胎紋
Tread Profile
厚膠/薄膠
Tread Thickness
鐵框顏色
Hub Color
荷重
Load
精密滾珠軸承
Precision
ball bearing
A珠
Flanged
ball bearing
6" 1-1/2"
(37 mm)
1-17/32"
(39 mm)
1/2"(12.7 mm) 直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
60kg
(130 lbs)
6" 1-1/2"
(37 mm)
1-27/32"
(47 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
60kg
(130 lbs)
7" 1-1/2"
(35 mm)
2"
(51 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
70kg
(155 lbs)
8" 1-3/4"
(42 mm)
2"
(51 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
70kg
(155 lbs)
8" 1-3/4"
(42 mm)
2-1/4"
(57 mm)
1/2"(12.7 mm) 直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
70kg
(155 lbs)
8" 2-1/2"
(62 mm)
2-11/64"
(55.2 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
紅 Red /
鍍鋅 Zinc Plated
70kg
(155 lbs)
10" 1-3/4"
(41 mm)
2-3/16"
(55.5 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red /
銀灰Silver
70kg
(155 lbs)
10" 2-1/2"
(57 mm)
2-3/4"
(70 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
紅 Red 110kg
(240 lbs)
10" 2-3/4"
(65 mm)
2-3/4"
(70 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
銀灰Silver /
鍍鋅 Zinc Plated
115kg
(255 lbs)
12" 1-3/4"
(43 mm)
2-21/64"
(59 mm)
1/2"(12.7 mm) 直紋
Rib
厚膠
Thick Tread
紅 Red 70kg
(155 lbs)


實心胎橡膠輪 (鐵框-偏心) Solid Rubber Wheel with Steel Rim (Offset Hub)
輪徑
Wheel
diamete
輪寬
Width
中寬
(含軸承)
Hub
Length
(with bearing)
軸承 Ball Bearing 胎紋
Tread Profile
厚膠/薄膠
Tread Thickness
鐵框顏色
Hub Color
荷重
Load
精密滾珠軸承
Precision
ball bearing
A珠
Flanged
ball bearing
6" 1-1/2"
(36 mm)
1-29/64"
(37mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
60kg
(130 lbs)
7" 1-1/2"
(36 mm)
1-31/64"
(37.5 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
70kg
(155 lbs)
8" 1-3/4"
(42 mm)
1-1/2"
(38 mm)
6002
(15 mm)
直紋
Rib
厚膠
Thick Tread
白 White 70kg
(155 lbs)
8" 1-3/4"
(42 mm)
1-31/64"
(37.5 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
70kg
(155 lbs)
10" 1-3/4"
(41 mm)
1-39/64"
(41 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
70kg
(155 lbs)
10" 2-1/2"
(57 mm)
2-9/64"
(54 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
紅 Red 110kg
(240 lbs)
10" 2-3/4"
(65 mm)
2-9/64"
(54 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
銀灰 Silver /
鍍鋅 Zinc Plated
115kg
(255 lbs)
實心胎橡膠輪 (塑框-正心) Solid Rubber Wheel with Plastic Rim (Centered Hub)
輪徑
Wheel
diamete
輪寬
Width
中寬
(含軸承)
Hub
Length
(with bearing)
軸承 Ball Bearing 胎紋
Tread Profile
厚膠/薄膠
Tread Thickness
塑框顏色
Hub Color
塑框形狀
Hub Shape
荷重
Load
中管
Plain
Bearing
雙軸承
Double
Ball Bearing
6" 1-1/2"
(35 mm)
1-17/32"
(39 mm)
13 mm 直紋
Rib
厚膠
Thick Tread
黑 blacke /
白 White
五風 55kg
(120 lbs)
7" 1-1/2"
(35 mm)
1-31/64"
(37.5 mm)
12.7 mm 直紋
Rib
薄膠
Regular Tread
黑 blacke 五風 55kg
(120 lbs)
7" 1-1/2"
(35 mm)
1-31/64"
(37.5 mm)
12.7 mm 直紋
Rib
厚膠
Thick Tread
黑 blacke 五風 55kg
(120 lbs)
8" 1-3/4"
(42.5 mm)
1-31/64"
(37.5 mm)
12.7 mm 齒紋
Gear
厚膠
Thick Tread
黑 blacke /
白 White
五風 55kg
(120 lbs)
8" 1-3/4"
(42.5 mm)
1-15/64"
(56 mm)
16 mm 直紋
Rib
厚膠
Thick Tread
白 White 五風 55kg
(120 lbs)
10" 1-3/4"
(41 mm)
2"
(50 mm)
12.7 mm 直紋
Rib
厚膠
Thick Tread
白 White 五風 65kg
(140 lbs)
實心胎橡膠輪 (塑框-偏心) Solid Rubber Wheel with Plastic Rim (Offset Hub)
輪徑
Wheel
diamete
輪寬
Width
中寬
(含軸承)
Hub
Length
(with bearing)
軸承 胎紋
Tread Profile
厚膠/薄膠
Tread Thickness
塑框顏色
Hub Color
塑框形狀
Hub Shape
荷重
Load
中管
Plain
Bearing
雙軸承
Double
Ball Bearing
6" 1-1/2"
(35 mm)
1-9/32"
(32 mm)
13 mm 直紋
Rib
厚膠
Thick Tread
灰 Gray 五風 55kg
(120 lbs)
6" 1-1/2"
(35 mm)
1-3/8"
(34.5 mm)
12.8 mm 直紋
Rib
厚膠
Thick Tread
白 White 五風 55kg
(120 lbs)
7" 1-1/2"
(35 mm)
1-41/64"
(41 mm)
12.8 mm 直紋
Rib
薄膠
Regular Tread
黑 Black 五風 55kg
(120 lbs)
7" 1-1/2"
(35 mm)
1-41/64"
(41 mm)
12.8 mm 直紋
Rib
薄膠
Regular Tread
黑 Black 五風 55kg
(120 lbs)
8" 1-3/4"
(42 mm)
1-23/64"
(34 mm)
12.7 mm 直紋
Rib
厚膠
Thick Tread
深灰 Dark Gray 五風 55kg
(120 lbs)
8" 1-3/4"
(42 mm)
1-33/64"
(38 mm)
12.5 mm 直紋
Rib
厚膠
Thick Tread
綠 Green 三叉 55kg
(120 lbs)
8" 1-3/4"
(42 mm)
1-41/64"
(39 mm)
12.85 mm 直紋
Rib
厚膠
Thick Tread
黑 Black 五風 55kg
(120 lbs)
8" 1-3/4"
(42 mm)
1-41/64"
(39 mm)
12.8 mm /
12.85 mm
直紋
Rib
厚膠
Thick Tread
灰 Gray /
黑 Black /
紅 Red
三叉 55kg
(120 lbs)
8" 1-3/4"
(42 mm)
1-41/64"
(41 mm)
12.8 mm 直紋
Rib
厚膠
Thick Tread
白 White 五風 55kg
(120 lbs)
8" 1-3/4"
(42 mm)
1-41/64"
(41 mm)
14.5 mm 直紋
Rib
厚膠
Thick Tread
黑 Black 五風 55kg
(120 lbs)
8" 2" (46 mm) 2-9/64"
(53.5 mm)
直紋
Rib
厚膠
Thick Tread
灰 Gray 五風 55kg
(120 lbs)
10" 1-3/4"
(41 mm)
1-17/32"
(38.4 mm)
12.8 mm 直紋
Rib
厚膠
Thick Tread
白 White 五風 65kg
(145 lbs)
10" 1-3/4"
(41 mm)
1-37/64"
(39.6 mm)
12.8 mm 齒紋
Gear
厚膠
Thick Tread
黑 Black 五風 65kg
(145 lbs)
12" 1-3/4"
(43 mm)
1-37/64"
(39.6 mm)
14.8 mm 直紋
Rib
厚膠
Thick Tread
灰 Gray /
黑 Black
五風 80kg
(175 lbs)


空心胎橡膠輪 (鐵框-正心) Semi-Pneumatic Rubber Wheel with Steel Rim (Centered Hub)
輪徑
Wheel
diamete
輪寬
Width
中寬
(含軸承)
Hub
Length
(with bearing)
軸承 Ball Bearing 胎紋
Tread Profile
厚膠/薄膠
Tread Thickness
鐵框顏色
Hub Color
荷重
Load
精密滾珠軸承
Precision
ball bearing
A珠
Flanged
ball bearing
6" 1-1/2"
(37 mm)
1-17/32"
(39 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
25kg
(55 lbs)
6" 1-1/2"
(37 mm)
1-17/32"
(39 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
25kg
(55 lbs)
6" 1-1/2"
(37 mm)
1-27/32"
(47 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
25kg
(55 lbs)
6" 1-1/2"
(37 mm)
1-27/32"
(47 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
25kg
(55 lbs)
6" 1-4/5"
(45 mm)
2-13/64"
(56 mm)
1/2" (12.7 mm) 鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
7" 1-1/2"
(36 mm)
1-31/64"
(37.5 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
7" 1-1/2"
(36 mm)
1-31/64"
(37.5 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
7" 1-1/2"
(36 mm)
2"
(51 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
7" 1-1/2"
(36 mm)
2"
(51 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
7" 1-3/4"
(44.5 mm)
1-31/64"
(37.5 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
7" 1-3/4"
(44.5 mm)
2"
(51 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
8" 1-3/4"
(42 mm)
1-31/64"
(37.5 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
35kg
(80 lbs)
8" 1-3/4"
(42 mm)
2"
(51 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-31/64"
(37.5 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
35kg
(80 lbs)
8" 1-3/4"
(43 mm)
2"
(51 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
35kg
(80 lbs)
10" 1-3/4"
(41 mm)
1-39/64"
(41 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
45kg
(100 lbs)
10" 1-3/4"
(41 mm)
1-39/64"
(41 mm)
1/2"(12.7 mm) /
5/8"(15.88 mm) /
3/4"(19.05 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
45kg
(100 lbs)
10" 2-1/2"
(57 mm)
1-55/64"
(47.3 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
紅 Red 70kg
(155 lbs)
10" 2-3/4"
(62 mm)
2-9/64"
(54 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
直紋
Rib
厚膠
Thick Tread
銀灰 Silver /
鍍鋅 Zinc Plated
70kg
(155 lbs)
10" 3-25/64"
(85 mm)
2-19/32"
(65mm)
6203 (17 mm) /
6904 (20 mm)
5/8"(15.88 mm) /
3/4"(19.05 mm)
橫紋
Latera
厚膠
Thick Tread
紅 Red /
銀灰 Silver /
鍍鋅 Zinc Plated /
黃 Yellow
90kg
(200 lbs)
12" 1-3/4"
(43 mm)
1-39/64"
(56 mm)
1/2" (12.7 mm) 直紋
Rib
厚膠
Thick Tread
紅 Red 35kg
(80 lbs)


空心胎橡膠輪 (鐵框-偏心) Semi-Pneumatic Rubber Wheel with Steel Rim (Offset Hub)
輪徑
Wheel
diamete
輪寬
Width
中寬
(含軸承)
Hub
Length
(with bearing)
軸承 Ball Bearing 胎紋
Tread Profile
厚膠/薄膠
Tread Thickness
鐵框顏色
Hub Color
荷重
Load
精密滾珠軸承
Precision
ball bearing
A珠
Flanged
ball bearing
6" 1-1/2"
(37mm)
1-29/64"
(37mm)
1/2"(12.7mm) /
5/8"(15.88mm) /
3/4"(19.05mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
25kg
(55 lbs)
6" 1-1/2"
(37mm)
1-29/64"
(37mm)
1/2"(12.7mm) /
5/8"(15.88mm) /
3/4"(19.05mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
25kg
(55 lbs)
7" 1-1/2"
(36mm)
1-31/64"
(37.5mm)
1/2"(12.7mm) /
5/8"(15.88mm) /
3/4"(19.05mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
7" 1-1/2"
(36mm)
1-31/64"
(37.5mm)
1/2"(12.7mm) /
5/8"(15.88mm) /
3/4"(19.05mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
7" 1-3/4"
(44.5mm)
1-31/64"
(37.5mm)
1/2"(12.7mm) /
5/8"(15.88mm) /
3/4"(19.05mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
30kg
(65 lbs)
8" 1-3/4"
(42mm)
1-31/64"
(37.5mm)
1/2"(12.7mm) /
5/8"(15.88mm) /
3/4"(19.05mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White /
紅 Red
35kg
(80 lbs)
8" 1-3/4"
(42mm)
1-1/2"
(38mm)
6002
(15 mm)
鑽紋
Diamond
厚膠
Thick Tread
白 White 35kg
(80 lbs)
8" 1-3/4"
(43mm)
1-31/64"
(37.5mm)
1/2"(12.7mm) /
5/8"(15.88mm) /
3/4"(19.05mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
35kg
(80 lbs)
8" 1-3/4"
(43mm)
1-1/2"
(38mm)
6002
(15 mm)
直紋
Rib
厚膠
Thick Tread
白 White 35kg
(80 lbs)
10" 1-3/4"
(41mm)
1-39/64"
(41mm)
1/2"(12.7mm) /
5/8"(15.88mm) /
3/4"(19.05mm)
直紋
Rib
厚膠
Thick Tread
白 White /
紅 Red
45kg
(100 lbs)
10" 2-1/2"
(57mm)
1-55/64"
(47.3mm)
5/8"(15.88mm) /
3/4"(19.05mm)
直紋
Rib
厚膠
Thick Tread
紅 Red 70kg
(155 lbs)
10" 3-25/64"
(85mm)
2-19/32"
(65mm)
6203 (17 mm) /
6904 (20 mm)
橫紋
Lateral
厚膠
Thick Tread
紅 Red /
銀灰 Silver /
鍍鋅 Zinc Plated /
黃 Yellow
80kg
(175 lbs)
空心胎橡膠輪 (塑框-正心) Semi-Pneumatic Rubber Wheel with Plastic Rim (Centered Hub)
輪徑
Wheel
diamete
輪寬
Width
中寬
(含軸承)
Hub
Length
(with bearing)
軸承 Ball Bearing 胎紋
Tread Profile
厚膠/薄膠
Tread Thickness
塑框顏色
Hub Color
塑框形狀
Hub Shape
荷重
Load
中管
Plain
Bearing
雙軸承
Double
Ball Bearing
6" 1-1/2"
(34.5 mm)
1-31/64"
(37.5mm)
12.7 mm 鑽紋
Diamond
薄膠
Regular
Tread
灰 Gray /
黃 Yellow /
黑 Black
五風 25kg
(55 lbs)
6" 1-1/2"
(34.5 mm)
1-31/64"
(37.5mm)
13 mm 直紋
Rib
厚膠
Thick
Tread
白 White 五風 25kg
(55 lbs)
6" 1-1/2"
(34.5 mm)
1-31/64"
(37.5mm)
13 mm 鑽紋
Diamond
厚膠
Thick
Tread
白 White 五風 25kg
(55 lbs)
7" 1-1/2"
(35 mm)
1-31/64"
(37.5mm)
12.7 mm 直紋
Rib
薄膠
Regular
Tread
白 White 五風 30kg
(65 lbs)
7" 1-1/2"
(35 mm)
1-15/64"
(56mm)
16 mm 直紋
Rib
薄膠
Regular
Tread
白 White 五風 30kg
(65 lbs)
7" 1-1/2"
(37 mm)
1-31/64"
(37.5mm)
12.7 mm 鑽紋
Diamond
薄膠
Regular
Tread
白 White 五風 30kg
(65 lbs)
8" 1-3/4"
(43 mm)
1-31/64"
(37.5mm)
12.7 mm 鑽紋
Diamond
厚膠
Thick
Tread
黑 Black /
白 White
五風 35kg
(80 lbs)
8" 1-3/4"
(44.5 mm)
1-31/64"
(37.5mm)
12.7 mm 直紋
Rib
厚膠
Thick
Tread
黑 Black /
白 White
五風 35kg
(80 lbs)
8" 1-3/4"
(44.5 mm)
1-31/64"
(37.5mm)
12.7 mm 粗齒紋
Gear
厚膠
Thick
Tread
黑 Black /
白 White
五風 35kg
(80 lbs)
8" 2-1/2"
(53.5 mm)
2"
(51mm)
6202
(15.88 mm)
直紋
Rib
厚膠
Thick
Tread
灰 Gray 其他 35kg
(80 lbs)
10" 1-3/4"
(41 mm)
2"
(51mm)
12.7 mm 直紋
Rib
厚膠
Thick
Tread
白 White 五風 45kg
(100 lbs)


空心胎橡膠輪 (塑框-偏心) Semi-Pneumatic Rubber Wheel with Plastic Rim (Offset Hub)
輪徑
Wheel
diamete
輪寬
Width
中寬
(含軸承)
Hub
Length
(with bearing)
軸承 Ball Bearing 胎紋
Tread Profile
厚膠/薄膠
Tread Thickness
塑框顏色
Hub Color
塑框形狀
Hub Shape
荷重
Load
中管
Plain
Bearing
雙軸承
Double
Ball Bearing
6" 1-1/2"
(33 mm)
1-13/64"
(30.25 mm)
12.9 mm 方塊紋
Stud
厚膠
Thick
Tread
深灰 Dark Gray /
淺灰 Light Gray
三爪 25kg
(55 lbs)
6" 1-1/2"
(37 mm)
1-3/8"
(34.5 mm)
12.8 mm 鑽紋
Diamond
厚膠
Thick
Tread
白 White 五叉 25kg
(55 lbs)
6" 1-1/2"
(37.5 mm)
1-39/64"
(40.5 mm)
13 mm G-2紋
G-2
厚膠
Thick
Tread
灰 Gray 五風 25kg
(55 lbs)
6" 1-1/2"
(38 mm)
1-3/8"
(34.5 mm)
12.8 mm 光面
Smooth
厚膠
Thick
Tread
白 White 五風 25kg
(55 lbs)
6" 1-1/2"
(37.3mm)
1-7/8"
(47.2mm)
10.5 mm 齒紋
Gear
薄膠
Regular
Tread
灰 Gray 五叉 25kg
(55 lbs)
7" 1-1/2"
(38 mm)
1-19/64"
(32.5 mm)
6201
(12.75 mm)
鑽紋
Diamond
薄膠
Regular
Tread
黑 Black 三叉 30kg
(65 lbs)
7" 1-1/2"
(38 mm)
1-25/64"
(34.9 mm)
12.8 mm 鑽紋
Diamond
薄膠
Regular
Tread
深灰 Dark Gray 三叉 30kg
(65 lbs)
7" 1-1/2"
(38 mm)
1-25/64"
(34.9 mm)
12.8 mm 光面
Smooth
薄膠
Regular
Tread
黃 Yellow 三叉 30kg
(65 lbs)
7" 1-1/2"
(38
mm)
1-7/16"
(36
mm)
6201
(12.75mm)
鑽紋
Diamond
薄膠
Regular
Tread
冷灰 Cool Gray /
黑 Black
十二叉 30kg
(65 lbs)
7" 1-1/2"
(38 mm)
1-7/16"
(36 mm)
12.7 mm X紋
X Profile
薄膠
Regular
Tread
灰 Gray /
白 White
其他 30kg
(65 lbs)
7" 1-1/2"
(38 mm)
1-41/64"
(39 mm)
13 mm 鑽紋
Diamond
薄膠
Regular
Tread
灰 Gray 三叉 30kg
(65 lbs)
7" 1-1/2"
(38 mm)
1-41/64"
(41 mm)
14.5 mm 鑽紋
Diamond
薄膠
Regular
Tread
白 White 五風 30kg
(65 lbs)
8" 1-3/4"
(41.5 mm)
1-25/64"
(34.9 mm)
12.8 mm 鑽紋
Diamond
厚膠
Thick
Tread
白 White 三叉 35kg
(80 lbs)
8" 1-3/4"
(41.5 mm)
1-41/64"
(39 mm)
13 mm 粗齒紋
Gear
厚膠
Thick
Tread
白 White 三叉 35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-41/64"
(39 mm)
13 mm 直紋
Rib
厚膠
Thick
Tread
白 White 三叉 35kg
(80 lbs)
8" 1-3/4"
(43
mm)
1-3/32"
(27
mm)
12.9 mm 方塊紋
Stud
厚膠
Thick
Tread
深灰 Dark Gray /
灰 Gray
三爪 35kg
(80 lbs)
8" 1-3/4"
(43
mm)
-5/16"
(33
mm)
6201
(12.75mm)
鑽紋
Diamond
厚膠
Thick
Tread
冷灰 Cool Gray /
黑 Black
十二叉 35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-25/64"
(34.9 mm)
12.7 mm 鑽紋
Diamond
厚膠
Thick
Tread
白 White 三叉 35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-25/64"
(34.9 mm)
12.7 mm 齒紋
Gear
厚膠
Thick
Tread
白 White 三叉 35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-27/64"
(36 mm)
6201
(12.75mm)
直紋
Rib
厚膠
Thick
Tread
冷灰 Cool Gray /
黑 Black
三叉 35kg
(80 lbs)
8" 1-3/4"
(43
mm)
1-15/32"
(37
mm)
6201
(12.75mm)
鑽紋
Diamond
厚膠
Thick
Tread
灰 Gray 五風 35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-33/64"
(38 mm)
12.7 mm 鑽紋
Diamond
厚膠
Thick
Tread
灰 Gray /
綠 Green
五叉 35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-33/64"
(38 mm)
12.7 mm 鑽紋
Diamond
厚膠
Thick
Tread
黑 Black /
綠 Green
三叉 35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-41/64"
(39 mm)
6201
(12.75mm)
鑽紋
Diamond
厚膠
Thick
Tread
灰 Gray 三叉 35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-41/64"
(39 mm)
13 mm 鑽紋
Diamond
厚膠
Thick
Tread
灰 Gray /
黑 Black /
白 White /
紅 Red
三叉 35kg
(80 lbs)
8" 1-3/4"
(43 mm)
1-41/64"
(40.9 mm)
12.7 mm 鑽紋
Diamond
厚膠
Thick
Tread
白 White 三叉 35kg
(80 lbs)
8" 1-3/4"
(44 mm)
1-25/64"
(34.9 mm)
12.7 mm 光面
Smooth
厚膠
Thick
Tread
白 White 三叉 35kg
(80 lbs)
8" 1-3/4"
(44 mm)
1-27/64"
(36 mm)
6201
(12.75mm)
鑽紋
Diamond
薄膠
Regular
Tread
灰 Gray /
黑 Black
十二叉 35kg
(80 lbs)


空心胎橡膠輪 (塑框-偏心) Semi-Pneumatic Rubber Wheel with Plastic Rim (Offset Hub)
輪徑
Wheel
diamete
輪寬
Width
中寬
(含軸承)
Hub
Length
(with bearing)
軸承 Ball Bearing 胎紋
Tread Profile
厚膠/薄膠
Tread Thickness
塑框顏色
Hub Color
塑框形狀
Hub Shape
荷重
Load
中管
Plain
Bearing
雙軸承
Double
Ball Bearing
8" 1-3/4"
(44.5 mm)
1-5/16"
(33mm)
6201
(12.75 mm)
V紋
V Profile
厚膠
Thick
Tread
灰 Gray 五爪 35kg
(80 lbs)
8" 2"
(52 mm)
1-23/64"
(34.5 mm)
13 mm G-2紋
G-2
厚膠
Thick
Tread
灰 Gray 五風 / 六風 35kg
(80 lbs)
8" 2"
(52 mm)
1-23/64"
(34.5 mm)
13 mm G-2紋
G-2
厚膠
Thick
Tread
紅 Red 其他 35kg
(80 lbs)
8" 2"
(52 mm)
1-9/32"
(32.5 mm)
12.85 mm G-3紋
G-3
厚膠
Thick
Tread
黃 Yellow 五風 35kg
(80 lbs)
8" 2"
(52 mm)
1-33/64"
(38 mm)
15.1 mm /
17.5 mm
方塊紋
Stud
厚膠
Thick
Tread
黃 Yellow 其他 35kg
(80 lbs)
8" 2.5"
(56.6 mm)
2-1/8"
(54 mm)
6202
(20 mm)
直紋
Rib
厚膠
Thick
Tread
灰 Gray 十叉 35kg
(80 lbs)
8" 2.5"
(56.6 mm)
1-61/64"
(49.6 mm)
10.2 mm L紋
L Profile
厚膠
Thick
Tread
灰 Gray 三叉 / 六風 35kg
(80 lbs)
10" 1.5"
(38.5 mm)
1-9/16"
(39.6 mm)
13 mm 鑽紋
Diamond
厚膠
Thick
Tread
灰 Gray 三爪 45kg
(100
lbs)
10" 1-3/4"
(41 mm)
1-1/2"
(38 mm)
14.5 mm 鑽紋
Diamond
厚膠
Thick
Tread
灰 Gray /
黑 Black
三叉 45kg
(100
lbs)
10" 1-3/4"
(41 mm)
1-1/2"
(38 mm)
13 mm 鑽紋
Diamond
厚膠
Thick
Tread
白 White 三叉 45kg
(100
lbs)
10" 1-3/4"
(44.5 mm)
1-7/16"
(36 mm)
12.7 mm X紋
X Profile
厚膠
Thick
Tread
冷灰 Cool Gray /
灰 Gray
五爪 45kg
(100
lbs)
10" 2"
(50.8 mm)
1-9/16"
(39.6 mm)
13 mm 鑽紋
Diamond
厚膠
Thick
Tread
灰 Gray 五叉 50kg
(110
lbs)
11" 1-3/4"
(45 mm)
1-13/64"
(30 mm)
16.2 mm 直紋
Rib
厚膠
Thick
Tread
黑 Black 其他 45kg
(100
lbs)
12" 1-3/4"
(44.5 mm)
1-17/64"
(32 mm)
12.8 mm /
14.8 mm
G-2紋
G-2
厚膠
Thick
Tread
灰 Gray 五風 45kg
(100
lbs)
© 台灣總廠
台灣省彰化縣員林鎮萬年里大饒路342號 510 電話: +886-4-8365911

得貹上好輪 | 腳輪 | AGV輪 |醫療輪 | 物流台車


法律提示:  產品責任  Product Liability
