左右平衡輪系列
Self-balancing Caster
左右平衡輪擁有最新開發的左右平衡結構,輪子以輪軸為中心,能依地面平坦度自由傾斜,同時腳架依然保持平衡狀態, 有效減少轉向時車台的搖晃頻率。兩個輪子同時受力以延長輪子及配件壽命,腳架內部設有彈性功能和有明顯降噪功能。 得貹左右平衡輪腳架採用高鋼性板材,熱處理珠道配合推力球軸承來達到極高的荷重和靈活度及長時間的使用壽命。 結構優化及大的降低安裝高度,確保低重心要求,適用於AGV行業。
Der Sheng’s Self-balancing Caster has the newly developed tilting structure which can tilt freely according to the flatness of the ground while at the same time, it also maintains stability and effectively reduces the wobble of the caster when rotating. Two wheels are under force at the same time minimize wear and tear, thus extending service life. The caster design features elastic and noise reduction functions. Dersheng’s Self-balancing Caster fork is made of high tensile steel with harden raceway to provide long lasting service life and extreme high load capacity while maintaining low profile and overall height. It is suitable for application like AGV and robotic industry products.
腳輪在±5°內能自由傾斜,輕鬆越過凹凸不平的地面與小型障礙物,並能保持平穩,增加對負載物品的保護。
The caster can tilt freely in the range of ±5° from its central axis, it can easily cross uneven ground and small obstacles, also can maintain stability and protect the loaded products.
輪子間距大,在旋轉尋找方位時,輪子一正一反旋轉, 到了定點方向後,才開始同一方向前進,此結構能有效 避免AGV脫離行駛軌道。
左右平衡輪減少腳輪旋轉時的偏心距離,AGV原路返回
The split wheel rotates in different directions when AGV rotates, after reaching the position, they start to rotate in the same direction.This structure can effictively reduce caster offset and prevent the AGV from leaving the track.
Self-balancing caster reduces caster offset when rotating, the AGV returns and keeps moving on the designed track.
一般腳輪旋轉偏心距離大,AGV容易脫離軌道
雙輪設計有效減少旋轉時的偏心距離,
避免AGV脫離軌道
During rotation, the offset of standard caster is large, thus the AGV is easy to off track.
The dual wheels structure effectively reduce caster offset when rotating, and prevent the AGV from leaving the track


EQPU輪
EQPU
鐵心XPU
XPU on Iron Core
ZQPU輪
ZQPU
規格
Size
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
2" 62 x 90 mm (2-1/2" x 3-1/2") 44.5 x 73 mm
(1-3/4" x 2-1/8")
6.35 mm (1/4")
2" 2.5" 3" 64 x 96 mm (2-1/2" x 3-25/32") 45 x 75 mm (高級架底板)
(1-3/4" x 3")
6.35 mm (1/4")
2" 2.5" 3" 3.2" 4" 5" 6" 85 x 110 mm (3-5/16" x 4-11/32") 60 x 80 mm (歐規底板)
2-3/8" x 3-7/8"(European Plate)
8 mm (5/16")
3.2" 4" 5" 6" 110 x 140 mm (4-11/32" x 5-1/2") 75 x 110 mm (B型底板)
(2-15/16" x 4-11/32")
12 mm (1/2")


活動
Swivel
輕型
Light Duty
50mm x 20mm
(2"x 0.79")
70kgs
(154 lbs)
ZQPU輪
ZQPU

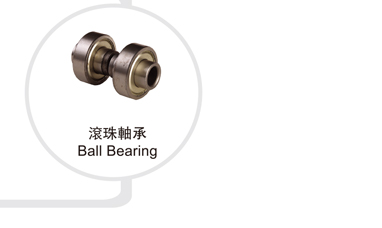

1163(1)-02-115-2 滾珠軸承
Ball Bearing
79 mm 20.5 mm 55 mm
62.5mm x 20mm
(2.5"x 0.79")
150kgs
(330 lbs)
ZQPU輪
ZQPU
1163(1)-25-115-2 94 mm 24 mm 65 mm
75mm x 20mm
(3"x 0.79")
180kgs
(396 lbs)
ZQPU輪
ZQPU
1163(1)-03-115-2 105 mm 22 mm 69 mm
中型
Medium Duty
75mm x 30mm
(3"x 1.18")
300kgs
(660 lbs)
QPU輪
QPU
1163(1)-03-81-2 滾珠軸承
Ball Bearing
105 mm 22 mm 72 mm
100mm x 22mm
(4"x 0.87")
280kgs
(616 lbs)
ZQPU輪
ZQPU
1163(1)-04-115-2 130 mm 30 mm 91 mm
125mm x 24mm
(5"x 1")
330kgs
(726 lbs)
ZQPU輪
ZQPU
1163(1)-05-115-2 155 mm 33 mm 104 mm
150mm x 24mm
(6"x 1")
380kgs
(836 lbs)
ZQPU輪
ZQPU
1163(1)-06-115-2 180 mm 35 mm 118 mm
重型
Heavy Duty
80mm x 35mm
(3.2"x 1.38")
400kgs
(880 lbs)
XPU輪
XPU
163(1)-03-96-2 滾珠軸承
Ball Bearing
110 mm 30 mm 90 mm
100mm x 32mm
(4"x 1.26")
400kgs
(880 lbs)
QPU輪(弧)
QPU(Round)
1163(1)-04-81-2 130 mm 30 mm 99 mm
超重型
Extra Heavy
Duty
80mm x 42mm
(3.2"x 1.65")
550kgs
(1210 lbs)
XPU輪
XPU
1163(1)-03-96-2(1) 滾珠軸承
Ball Bearing
110 mm 30 mm 93 mm
125mm x 40mm
(5"x 1.57")
600kgs
(1320 lbs)
EQPU輪(弧)
EQPU(Round)
1163(1)-05-81-2 155 mm 33 mm 113 mm
150mm x 42mm
(6"x 1.65")
700kgs
(1540 lbs)
EQPU輪(弧)
EQPU(Round)
1163(1)-06-81-2 180 mm 35 mm 127 mm
