56中控系列

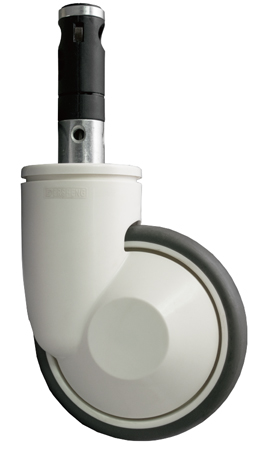

56 Series Central Locking Caster
腳架採用沖壓鐵支架。輪子與腳架旋轉部分均採用精密軸承,提供優越的旋轉與轉動能力。
輪子為高彈力全效輪,在提供高荷重的前提下依然有靜音與平穩的行程。
專業設計的腳架裝飾蓋提供腳輪優越的外觀。
Housing made of pressed steel. Precision ball bearings in both swivel head
and wheel. Resolute wheel offers cushion ride, silient drive and debris rejectionfunctions.
Housing cover made of synthetic material
Brake type Wheel
diameter
(mm)
Width of
Tread
(mm)
Stem
diameter
(mm)
Stem
length
(mm)
Offset
(mm)
Overall
height
(mm)
Load
capacity
(kg)
Swivel
radius
(mm)
Hole
height
(mm)
Hole
diameter
(mm)
Angle Wheel Tread
Material
ITEM NO.
剎車型式 輪徑

輪寬

插桿
直徑

插桿
長度

偏心距

總高

載重

旋轉
半徑

插桿六角孔中心高

插桿六角孔對邊

六角轉件角度

輪面材質 品號
Swivel caster with total lock
二段
125 31 28 96 35 158.5 120 98 78.5 11.2 A Resolute Rubber
全效輪
11560500458033
125 31 28 96 35 158.5 120 98 78.5 11.2 B 11560500458233
125 31 28 50 35 158.5 120 98 34 11.2 A 11560500458133
125 31 28 50 35 158.5 120 98 34 11.2 B 11560500458333
Swivel caster with total and directional lock
三段
125 31 28 96 35 158.5 120 98 78.5 11.2 A Resolute Rubber
全效輪
11560500458023
125 31 28 96 35 158.5 120 98 78.5 11.2 B 11560500458223
125 31 28 50 35 158.5 120 98 34 11.2 A 11560500458123
125 31 28 50 35 158.5 120 98 34 11.2 B 11560500458323
Swivel caster with total lock
二段
150 31 28 96 40 183 150 115 78.5 11.2 A Resolute Rubber
全效輪
11560500458033
150 31 28 96 40 183 150 115 78.5 11.2 B 11560500458233
150 31 32 50 40 183 150 115 34 11.2 A 11560500458133
150 31 32 50 40 183 150 115 34 11.2 B 11560500458333
Swivel caster with total and directional lock
三段
150 31 28 96 40 183 150 115 78.5 11.2 A Resolute Rubber
全效輪
11560500458023
150 31 28 96 40 183 150 115 78.5 11.2 B 11560500458223
150 31 32 50 40 183 150 115 34 11.2 A 11560500458123
150 31 32 50 40 183 150 115 34 11.2 B 11560500458323
Swivel caster with total lock
二段
200 31 28 96 60 229 150 160 78.5 11.2 A Resolute Rubber
全效輪
11560500458033
200 31 28 96 60 229 150 160 78.5 11.2 B 11560500458233
200 31 32 50 60 229 150 160 34 11.2 A 11560500458133
200 31 32 50 60 229 150 160 34 11.2 B 11560500458333
Swivel caster with total and directional lock
三段
200 31 28 96 60 229 150 160 78.5 11.2 A Resolute Rubber
全效輪
11560500458023
200 31 28 96 60 229 150 160 78.5 11.2 B 11560500458223
200 31 32 50 60 229 150 160 34 11.2 A 11560500458123
200 31 32 50 60 229 150 160 34 11.2 B 11560500458323
