50系列(歐規腳架系列)
Medium Duty General Purposes Caster (European Style)

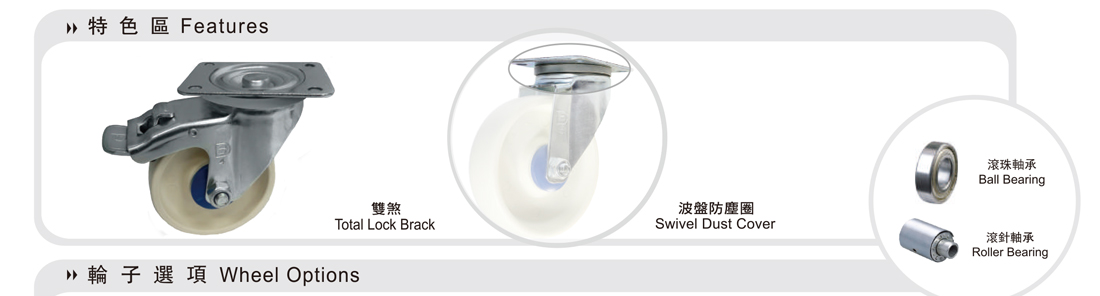

歐規底板，腳架採特別結構設計，荷重高、轉動靈活，雙煞制動，適用於中、輕型台車。
Pressed steel caster horn/ housing design for European market.Swivel easily with high performance total lock brake, suitable for medium and light duty logistic equipment.

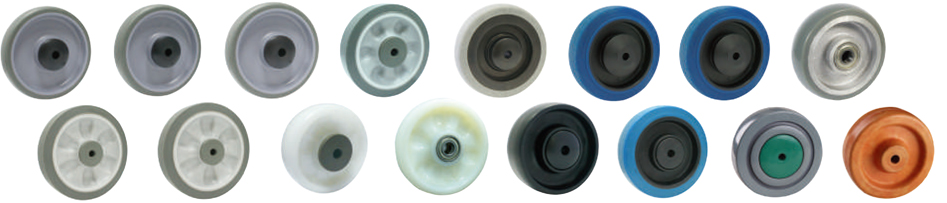

高科技耐磨聚氨酯
PU on PP Core		 超級人造膠(514)
TPR on PP Core		 全效輪(514)
Rseoulute		 WHDR輪
WHDR		 導電輪
E-Conductive		 超級人造膠(515)
TPR on PP Core		 全效輪(515)
Rseoulute		 鋁芯AQPU
QPU on AL Core
W 全效輪
W Rseoulute		 W超級人造膠
WPPR		 WPP輪
WPP		 WMRC輪
WMRC		 CPD輪
CPD		 藍色彈力輪
Blue Resilient
Resolute Rubber		 三明治輪
Sandwich Wheel		 耐高溫輪
Hi-temp
編號
Suffix		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安裝尼帽尺寸
Attaching Bolt Size
1 80 x 105 mm (3-1/2" x 4-1/8") 60 x 80 mm (歐規孔距)
2-3/8" x 3-1/8"(European Plate)		 8 mm (5/16")
編號
Suffix		 孔徑
Centre Hole		 編號
Suffix		 孔徑
Centre Hole
1 10.5mm 2 12.5mm


固定
Fixed		 活動
Swivel		 煞車
Brake
100mm x 32mm
(4" x 1-1/4")		 120kgs (265lbs) 高科技耐磨聚氨酯
PU on PP Core		 1150-04-31-1 1150-04-31-2 1150-04-31-4 滾珠
Ball Bearing		 128mm
(5-1/16")		 活動 90mm
煞車 115mm

Swivel 90mm
Swivel W/Brake 115mm
100kgs (220lbs) 超級人造膠
TPR on PP Core		 1150-04-75-1 1150-04-75-2 1150-04-75-4
125kgs (275lbs) 全效輪
Rseoulute		 1150-04-68-1 1150-04-68-2 1150-04-68-4
80kgs (175lbs) 導電輪
E-Conductive		 1150-04-17-1 1150-04-17-2 1150-04-17-4
180kgs (396lbs) WHDR輪
WHDR		 1150-04-66-1 1150-04-66-2 1150-04-66-4
135kgs (300lbs) W全效輪
W Rseoulute		 1150-04-48-1 1150-04-48-2 1150-04-48-4
100kgs (220lbs) W超級人造膠
WPPR		 1150-04-47-1 1150-04-47-2 1150-04-47-4
130kgs (285lbs) WPP輪
WPP		 1150-04-46-1 1150-04-46-2 1150-04-46-4
180kgs (396lbs) WMRC輪
WMRC		 1150-04-45-1 1150-04-45-2 1150-04-45-4
230kgs (506lbs) 鋁芯AQPU
QPU on AL Core		 1150-04-87-1 1150-04-87-2 1150-04-87-4
135kgs (300lbs) 耐高溫輪
Hi-temp		 1150-04-25-1 1150-04-25-2 1150-04-25-4
100mm x 36mm
(4" x 1-1/2")		 160kgs (352lbs) CPD輪
CPD		 1150-04-71-1 1150-04-71-2 1150-04-71-4 滾珠
Ball Bearing		 128mm
(5-1/16")		 活動 90mm
煞車 115mm

Swivel 90mm
Swivel W/Brake 115mm
160kgs (352lbs) 藍色彈力輪
Blue Resilient
Resolute Rubber		 1150-04-50-1 1150-04-50-2 1150-04-50-4
140kgs (308lbs) 超級人造膠
TPR on PP Core		 1150-04-77-1 1150-04-77-2 1150-04-77-4
160kgs (352lbs) 全效輪
Rseoulute		 1150-04-76-1 1150-04-76-2 1150-04-76-4
250kgs (550lbs) 鋁芯AQPU
QPU on AL Core		 1150-04-87-1 1150-04-87-2 1150-04-87-4
200kgs (440lbs) 三明治輪
Sandwich Wheel		 1150-04-40-1 1150-04-40-2 1150-04-40-4 滾珠
Ball Bearing
滾針
Roller Bearing
100mm x 40mm
(4" x 1-3/5")		 250kgs (550lbs) 鋁芯AQPU
QPU on AL Core		 1150-04-87-1 1150-04-87-2 1150-04-87-4 滾珠
Ball Bearing		 128mm
(5-1/16")		 活動 90mm
煞車 115mm

Swivel 90mm
Swivel W/Brake 115mm
125mm x 32mm
(5" x 1-1/4")		 130kgs (285lbs) 高科技耐磨聚氨酯
PU on PP Core		 1150-05-31-1 1150-05-31-2 1150-05-31-4 滾珠
Ball Bearing		 155mm
(6-1/8")		 活動 102.5mm
煞車 115mm

Swivel 102.5mm
Swivel W/Brake 115mm
110kgs (240lbs) 超級人造膠
TPR on PP Core		 1150-05-75-1 1150-05-75-2 1150-05-75-4
147kgs (325lbs) 全效輪
Rseoulute		 1150-05-68-1 1150-05-68-2 1150-05-68-4
90kgs (198lbs) 導電輪
E-Conductive		 1150-05-17-1 1150-05-17-2 1150-05-17-4
200kgs (440lbs) WHDR輪
WHDR		 1150-05-66-1 1150-05-66-2 1150-05-66-4
147kgs (325lbs) W全效輪
W Rseoulute		 1150-05-48-1 1150-05-48-2 1150-05-48-4
110kgs (240lbs) W超級人造膠
WPPR		 1150-05-47-1 1150-05-47-2 1150-05-47-4
150kgs (330lbs) WPP輪
WPP		 1150-05-46-1 1150-05-46-2 1150-05-46-4
200kgs (440lbs) WMRC輪
WMRC		 1150-05-45-1 1150-05-45-2 1150-05-45-4
250kgs (550lbs) 鋁芯AQPU
QPU on AL Core		 1150-05-87-1 1150-05-87-2 1150-05-87-4
125mm x 36mm
(4" x 1-1/2")		 200kgs (440lbs) CPD輪
CPD		 1150-05-71-1 1150-05-71-2 1150-05-71-4 滾珠
Ball Bearing		 155mm
(6-1/8")		 活動 102.5mm
煞車 115mm

Swivel 102.5mm
Swivel W/Brake 115mm
250kgs (550lbs) 藍色彈力輪
Blue Resilient
Resolute Rubber		 1150-05-50-1 1150-05-50-2 1150-05-50-4
160kgs (352lbs) 超級人造膠
TPR on PP Core		 1150-05-77-1 1150-05-77-2 1150-05-77-4
180kgs (396lbs) 全效輪
Rseoulute		 1150-05-76-1 1150-05-76-2 1150-05-76-4
250kgs (550lbs) 三明治輪
Sandwich Wheel		 1150-05-40-1 1150-05-40-2 1150-05-40-4 滾珠
Ball Bearing
滾針
Roller Bearing
125mm x 40mm
(4" x 1-3/5")		 250kgs (550lbs) 鋁芯AQPU
QPU on AL Core		 1150-05-87-1 1150-05-87-2 1150-05-87-4 滾珠
Ball Bearing		 155mm
(6-1/8")		 活動 102.5mm
煞車 115mm

Swivel 102.5mm
Swivel W/Brake 115mm
