B型抗衝擊系列
Kingpinless Caster (B Type)
高負載且高抗衝擊，在搬運過程可避免腳架變形扭曲，適用於汽車廠、汽車裝配廠、玻璃廠、紡織廠等負載重的車間，可另附防纏絲及防塵蓋，屬得貹專利產品，可以有效防止腳輪因灰塵或纏絲而無法轉動，提高腳輪使用壽命。
Heavy Duty Kingpinless casters with hardened raceways for greater impact resistance to avoid distortions under heavy load, ideal for towing application in automobile, glass, textile, tyre industries, etc. Patented thread guards and dust covers prevent swivel failure caused by build-up of strings between the wheel and fork legs, as well as the dust in the wheel bearing. Suitable for application with shock loads, towing and uneven floor surface.
抗衝擊,推車輪子,重型,工業腳輪
輪子可附金屬防塵蓋(供選擇)
Metal Thread Guard(optional)		 輪子可附塑膠防塵蓋(供選擇)
Plastic Thread Guard(optional)		 AK煞
Swivel W/Center lock(AK type)
PU輪面可以變化硬度
Different PU
tread handness available		 輪子可附防纏絲蓋(供選擇)
Thread guard specially
for textile industry(optional)		 無鉚釘設計
Kingpinless

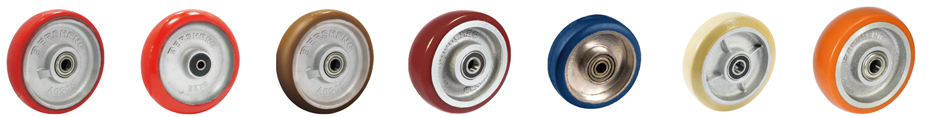

鐵芯聚氨酯
PU on Cast		 三星輪
Rubber On Cast		 鐵芯NBR橡膠輪
NBR Rubber on Cast		 尼龍輪
Nylon		 WMRC輪
WMRC		 QPU輪
QPU
APU輪
PU on AL Core		 CPD輪
CPD		 銑輪
Cast Iron		 環保NBR橡膠輪
Non-markingRubber
on Cast		 EQPU輪
EQPU		 鐵芯聚氨酯(2050A/2050B)
PU on Cast(2050A/2050B)		 ZQPU輪(雙輪)
ZQPU
(Dual Wheels)
VPU輪
VPU		 EPU輪
EPU		 VQPU輪
VQPU		 鐵芯VXPU
XPU on Iron Core		 鋁芯QQ橡膠輪
Recilent rubber
on AL Core		 環保牽引NBR
Non - marking NBR
Rubber on Cast		 鋁芯AQPU
QPU on AL Core
腳輪尺寸
Caster Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安裝尼帽尺寸
Attaching Bolt Size
4" 90 x 120 mm (3-17/32" x 4-23/32") 60 x 90 mm (2-3/8" x 3-17/32") 11 mm (7/16")
5" 6" 8" 110 x 140 mm (4-11/32" x 5-1/2") 75 x 110 mm(常規標準底板)
(2-15/16" x 4-11/32")		 12 mm (1/2")
110 x 140 mm (4-11/32" x 5-1/2") 80 x 105 mm(歐洲底板)
(3-5/32" x 4-1/8")		 12 mm (1/2")
130 x 130 mm (5-1/8" x 5-1/8") 105 x 105 mm (4-1/8" x 4-1/8") 9 mm (3/8")
130 x 130 mm (5-1/8" x 5-1/8") 105 x 105 mm (4-1/8" x 4-1/8") 12 mm (1/2")
130 x 165 mm (5-1/8" x 6-1/2") 100 x 130 mm (3-15/16" x 5-1/8") 12 mm (1/2")
114 x 159 mm (4-1/2" x 6-1/4") 73.8 x 129.4 mm (2-29/32" x 5-3/32") 12 mm (1/2")

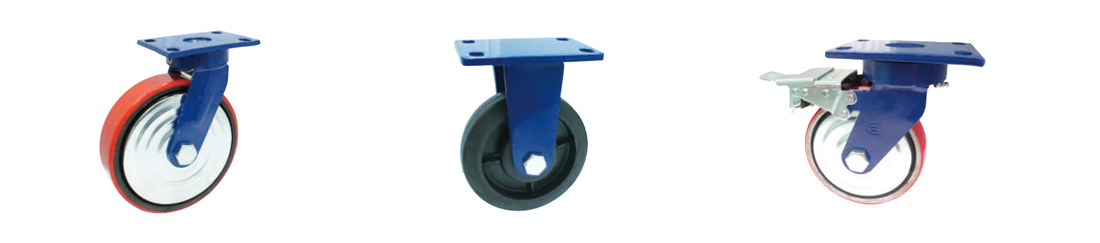

固定
Fixed		 活動
Swivel		 煞車
Brake
93mm x 28mm
(3-21/32"x1-3/32")		 400 kgs (880 lbs) 銑輪
Cast Iron		 1142-04-14-1 1142-04-14-2 — 滾珠軸承
Ball Bearing		 143.5mm
(5-21/32")		 活動 87mm
Swivel 87mm
100mm x 32mm
(4"x1-1/4")		 250 kgs (550 lbs) 尼龍輪
Nylon		 1142-04-07-1 1142-04-07-2 1142-04-07-4 滾珠軸承
Ball Bearing		 147mm
(5-25/32")		 活動 92 mm
Swivel 92mm

AK煞 148 mm
Swivel W/AK Lock
Brake 148mm
200 kgs (440 lbs) CPD輪
CPD		 1142-04-49-1 1142-04-49-2 1142-04-49-4
100mm x 34mm
(4"x1-3/8")		 335 kgs (735 lbs) QPU輪(圓弧)
QPU (Round)		 1142-04-80-1 1142-04-80-2 1142-04-80-4
385 kgs (845 lbs) QPU輪(平面)
QPU (Flat)		 1142-04-80-1 1142-04-80-2 1142-04-80-4
100mm x 36mm
(4"x1-7/16")		 250 kgs (550 lbs) 鐵芯聚氨脂
PU on Cast		 1142-04-33-1 1142-04-33-2 1142-04-33-4
200 kgs (440 lbs) 三星輪
Rubber on Cast		 1142-04-03-1 1142-04-03-2 1142-04-03-4
250 kgs (550 lbs) APU輪(圓弧)
PU on AL Core (Round)		 1142-04-108-1 1142-04-108-2 1142-04-108-4
300 kgs (660 lbs) 鋁芯AQPU輪(圓弧)
QPU on AL Core (Round)		 1142-04-87-1 1142-04-87-2 1142-04-87-4
100mm x 38mm
(4"x1-1/2")		 200 kgs (440 lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast		 1142-04-04-1 1142-04-04-2 1142-04-04-4
200 kgs (440 lbs) 環保NBR橡膠輪
Non-marking Rubber on Cast		 1142-04-11-1 1142-04-11-2 1142-04-11-4
200 kgs (440 lbs) 環保牽引NBR輪
Non-marking NBR Rubber on Cast		 1142-04-90-1 1142-04-90-2 1142-04-90-4
100mm x 40mm
(4"x1-9/16")		 275 kgs (600 lbs) APU輪(圓弧)
PU on AL Core (Round)		 1142-04-108-1 1142-04-108-2 1142-04-108-4
200 kgs (440 lbs) 鋁芯QQ橡膠輪
Recilent rubber on AL Core		 1142-04-89-1 1142-04-89-2 1142-04-89-4
325 kgs (715 lbs) 鋁芯AQPU輪(圓弧)
QPU on AL Core (Round)		 1142-04-87-1 1142-04-87-2 1142-04-87-4
100mm x 46.5mm
(4"x1-13/16")		 335 kgs (735 lbs) ZQPU輪(雙輪)
ZQPU (Dual Wheels)		 1142-04-101-1 1142-04-101-2 1142-04-101-4
122mm x 36.5mm
(4-13/16"x1-7/16")		 600 kgs (1320 lbs) 銑輪
Cast Iron		 1142-05-14-1 1142-05-14-2 1142-05-14-4 滾珠軸承
Ball Bearing		 168.5mm
(6-5/8")		 活動 103 mm
Swivel 103mm
125mm x 40mm
(5"x1-9/16")		 340 kgs (750 lbs) 鐵芯聚氨脂
PU on Cast		 1142-05-33-1 1142-05-33-2 1142-05-33-4 滾珠軸承
Ball Bearing		 170mm
(6-11/16")		 活動 107 mm
Swivel 107mm

AK煞 158 mm
Swivel W/AK Lock
Brake 158mm
220 kgs (485 lbs) 三星輪
Rubber on Cast		 1142-05-03-1 1142-05-03-2 1142-05-03-4
300 kgs (660 lbs) 尼龍輪
Nylon		 1142-05-07-1 1142-05-07-2 1142-05-07-4
300 kgs (660 lbs) APU輪(圓弧)
PU on AL Core (Round)		 1142-05-108-1 1142-05-108-2 1142-05-108-4
350 kgs (770 lbs) 鋁芯AQPU輪(圓弧)
QPU on AL Core (Round)		 1142-05-87-1 1142-05-87-2 1142-05-87-4
250 kgs (550 lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast		 1142-05-04-1 1142-05-04-2 1142-05-04-4
250 kgs (550 lbs) CPD輪
CPD		 1142-05-49-1 1142-05-49-2 1142-05-49-4
250 kgs (550 lbs) 環保NBR橡膠輪
Non-marking Rubber on Cast		 1142-05-11-1 1142-05-11-2 1142-05-11-4
250 kgs (550 lbs) 環保牽引NBR輪
Non-marking NBR Rubber on Cast		 1142-05-90-1 1142-05-90-2 1142-05-90-4
450 kgs (990 lbs) QPU輪(圓弧)
QPU (Round)		 1142-05-80-1 1142-05-80-2 1142-05-80-4
500 kgs (1100 lbs) QPU輪(平面)
QPU (Flat)		 1142-05-80-1 1142-05-80-2 1142-05-80-4
340 kgs (750 lbs) EPU輪(圓弧)
EPU (Round Shape)		 1142-05-78-1 1142-05-78-2 1142-05-78-4
390 kgs (860 lbs) EPU輪(平面)
EPU (Flat Shape)		 1142-05-78-1 1142-05-78-2 1142-05-78-4
450 kgs (990 lbs) EQPU輪(圓弧)
EQPU (Round Shape)		 1142-05-81-1 1142-05-81-2 1142-05-81-4
500 kgs (1100 lbs) EQPU輪(平面)
EQPU (Flat Shape)		 1142-05-81-1 1142-05-81-2 1142-05-81-4


固定
Fixed		 活動
Swivel		 煞車
Brake
125mm x 50mm
(5" x 2")		 400 kgs (880 lbs) APU輪(平面)
PU on AL Core (Flat)		 1142-05-108-1 1142-05-108-2 1142-05-108-4 滾珠軸承
Ball Bearing		 170mm
(6-11/16")		 活動 107 mm
Swivel 107mm

AK煞 158 mm
Swivel W/AK Lock
Brake 158mm
450 kgs (990 lbs) 鋁芯AQPU輪(平面)
QPU on AL Core (Flat)		 1142-05-87-1 1142-05-87-2 1142-05-87-4
420 kgs (920 lbs) QPU輪(平面)
QPU (Flat)		 1142-05-80-1 1142-05-80-2 1142-05-80-4
500 kgs (1100 lbs) EQPU輪(圓弧)
EQPU (Round)		 1142-05-81-1 1142-05-81-2 1142-05-81-4
500 kgs (1100 lbs) EPU輪(圓弧)
EPU (Round)		 1142-05-78-1 1142-05-78-2 1142-05-78-4
125mm x 51mm
(5" x 2")		 450 kgs (990 lbs) ZQPU輪(雙輪)
ZQPU (Dual Wheels)		 1142-05-101-1 1142-05-101-2 1142-05-101-4
138mm x 36.5mm
(5-7/16"x1-7/16")		 700 kgs (1540 lbs) 銑輪
Cast Iron		 1142-06-14-1 1142-06-14-2 — 滾珠軸承
Ball Bearing		 191mm
(7-17/32")		 活動 111 mm
Swivel 111mm
150mm x 40mm
(6"x1-9/16")		 400 kgs (880 lbs) 尼龍輪
Nylon		 1142-06-07-1 1142-06-07-2 1142-06-07-4 滾珠軸承
Ball Bearing		 197mm
(7-3/4")		 活動 119 mm
Swivel 119mm

AK煞 160 mm
Swivel W/AK Lock
Brake 160mm
350 kgs (770 lbs) CPD輪
CPD		 1142-06-49-1 1142-06-49-2 1142-06-49-4
350 kgs (770 lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast		 1142-06-04-1 1142-06-04-2 1142-06-04-4
300 kgs (660 lbs) 環保NBR橡膠輪
Non-marking Rubber on Cast		 1142-06-11-1 1142-06-11-2 1142-06-11-4
300 kgs (660 lbs) 環保牽引NBR輪
Non-marking NBR Rubber on Cast		 1142-06-90-1 1142-06-90-2 1142-06-90-4
400 kgs (880 lbs) WMRC輪
WMRC		 1142-06-45-1 1142-06-45-2 1142-06-45-4
150mm x 42mm
(6"x1-5/8")		 410 kgs (900 lbs) 鐵芯聚氨脂
PU on Cast		 1142-06-33-1 1142-06-33-2 1142-06-33-4
400 kgs (880 lbs) APU輪(圓弧)
PU on AL Core (Round)		 1142-06-108-1 1142-06-108-2 1142-06-108-4
450 kgs (990 lbs) 鋁芯AQPU輪(圓弧)
QPU on AL Core (Round)		 1142-06-87-1 1142-06-87-2 1142-06-87-4
550 kgs (1200 lbs) QPU輪(圓弧)
QPU (Round) 		1142-06-80-1 1142-06-80-2 1142-06-80-4
600 kgs (1320 lbs) QPU輪(平面)
QPU(Flat)		 1142-06-80-1 1142-06-80-2 1142-06-80-4
500 kgs (1100 lbs) VPU輪(圓弧)
VPU (Round)		 1142-06-82-1 1142-06-82-2 1142-06-82-4
670 kgs (1475 lbs) VQPU輪(圓弧)
VQPU (Round Shape)		 1142-06-83-1 1142-06-83-2 1142-06-83-4
800 kgs (1760 lbs) 鐵芯VXPU輪(圓弧)
XPU on Iron Core (Round)		 1142-06-91-1 1142-06-91-2 1142-06-91-4
410 kgs (900 lbs) EPU輪(圓弧)
EPU (Round)		 1142-06-78-1 1142-06-78-2 1142-06-78-4
460 kgs (1010 lbs) EPU輪(平面)
EPU (Flat)		 1142-06-78-1 1142-06-78-2 1142-06-78-4
550 kgs (1200 lbs) EQPU輪(圓弧)
EQPU (Round)		 1142-06-81-1 1142-06-81-2 1142-06-81-4
600 kgs (1320 lbs) EQPU輪(平面)
EQPU (Flat)		 1142-06-81-1 1142-06-81-2 1142-06-81-4
150mm x 45.5mm
(6"x1-13/16")		 260 kgs (570 lbs) 三星輪
Rubber on Cast		 1142-06-03-1 1142-06-03-2 1142-06-03-4
150mm x 50mm
(6" x 2")		 450 kgs (990 lbs) APU輪(平面)
PU on AL Core (Flat)		 1142-06(50)-108-1 1142-06(50)-108-2 1142-06(50)-108-4
500 kgs (1100 lbs) 鋁芯AQPU輪(平面)
QPU on AL Core (Flat)		 1142-06(50)-87-1 1142-06(50)-87-2 1142-06(50)-87-4
525 kgs (1155 lbs) QPU輪(平面)
QPU(Flat)		 1142-06(50)-80-1 1142-06(50)-80-2 1142-06(50)-80-4
600 kgs (1320 lbs) EPU輪(圓弧)
EPU (Round)		 1142-06(50)-78-1 1142-06(50)-78-2 1142-06(50)-78-4
600 kgs (1320 lbs) EQPU輪(圓弧)
EQPU (Round)		 1142-06(50)-81-1 1142-06(50)-81-2 1142-06(50)-81-4
150mm x 51mm
(6" x 2")		 550 kgs (1210 lbs) ZQPU輪(雙輪)
ZQPU (Dual Wheels)		 1142-06-101-1 1142-06-101-2 1142-06-101-4
180mm x 44mm
(7" x 1-3/4")		 450 kgs (990 lbs) APU輪(圓弧)
PU on AL Core (Round)		 1142-07-108-1 1142-07-108-2 1142-07-108-4 滾珠軸承
Ball Bearing		 238mm
(9-3/8")		 活動 140 mm
Swivel 140mm

AK煞 166 mm
Swivel W/AK Lock
Brake 166mm
600 kgs (1320 lbs) 鋁芯AQPU輪(圓弧)
QPU on AL Core (Round)		 1142-07-87-1 1142-07-87-2 1142-07-87-4


固定
Fixed		 活動
Swivel		 煞車
Brake
180mm x 50mm
(7" x 2")		 450 kgs (990 lbs) 鐵芯聚氨脂
PU on Cast		 1142-07-33-1 1142-07-33-2 1142-07-33-4 滾珠軸承
Ball Bearing		 238mm
(9-3/8")		 活動 140 mm
Swivel 140 mm

AK煞 166 mm
Swivel W/AK Lock
Brake 166 mm
600 kgs (1320 lbs) QPU輪(圓弧)
QPU(Round)		 1142-07-80-1 1142-07-80-2 1142-07-80-4
650 kgs (1430 lbs) VPU輪(圓弧)
VPU (Round)		 1142-07-82-1 1142-07-82-2 1142-07-82-4
650 kgs (1430 lbs) 鐵芯VXPU輪(圓弧)
XPU on Iron Core (Round)		 1142-07-91-1 1142-07-91-2 1142-07-91-4
650 kgs (1430 lbs) VQPU輪(圓弧)
VQPU (Round Shape) 		1142-07-83-1 1142-07-83-2 1142-07-83-4
193mm x 46mm
(7-3/5"x1-13/16")		 300 kgs (660 lbs) 三星輪
Rubber on Cast		 1142-08-03-1 1142-08-03-2 — 滾珠軸承
Ball Bearing		 244.5mm
(9-5/8")		 活動 146 mm
Swivel 146mm
200mm x 44mm
(8"x1-3/4")		 350 kgs (770 lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast		 1142-08-04-1 1142-08-04-2 1142-08-04-4 滾珠軸承
Ball Bearing		 248mm
(9-3/4")		 活動 150 mm
Swivel 150mm
AK煞 171 mm
Swivel W/AK Lock
Brake 171mm
350 kgs (770 lbs) 環保NBR橡膠輪
Non-marking Rubber on Cast		 1142-08-11-1 1142-08-11-2 1142-08-11-4
350 kgs (770 lbs) 環保牽引NBR輪
Non-marking NBR Rubber on Cast		 1142-08-90-1 1142-08-90-2 1142-08-90-4
400 kgs (880 lbs) 鋁芯QQ橡膠輪
Recilent rubber on AL Core		 1142-08-89-1 1142-08-89-2 1142-08-89-4
200mm x 45.5mm
(8"x1-13/16")		 550 kgs (1200 lbs) 銑輪
Cast Iron		 1142-08-14-1 1142-08-14-2 1142-08-14-4
200mm x 50mm
(8" x 2")		 450 kgs (990 lbs) 鐵芯聚氨脂
PU on Cast		 1142-08-33-1 1142-08-33-2 1142-08-33-4 滾珠軸承
Ball Bearing		 248mm
(9-3/4")		 活動 150 mm
Swivel 150mm
AK煞 171 mm
Swivel W/AK Lock
Brake 171mm
450 kgs (990 lbs) 尼龍輪
Nylon		 1142-08-07-1 1142-08-07-2 1142-08-07-4
750 kgs (1650 lbs) 鐵芯聚氨脂(2050A/2050B)
PU on Cast (2050A/2050B)		 1142-08-62-1 1142-08-62-2 1142-08-62-4
400 kgs (880 lbs) CPD輪
CPD		 1142-08-49-1 1142-08-49-2 1142-08-49-4
450 kgs (990 lbs) WMRC輪
WMRC		 1142-08-45-1 1142-08-45-2 1142-08-45-4
500 kgs (1100 lbs) APU輪(圓弧)
PU on AL Core (Round)		 1142-08-108-1 1142-08-108-2 1142-08-108-4
550 kgs (1200 lbs) APU輪(平面)
PU on AL Core (Flat)		 1142-08-108-1 1142-08-108-2 1142-08-108-4
650 kgs (1430 lbs) 鋁芯AQPU輪(圓弧)
QPU on AL Core (Round)		 1142-08-87-1 1142-08-87-2 1142-08-87-4
700 kgs (1540 lbs) 鋁芯AQPU輪(平面)
QPU on AL Core (Flat)		 1142-08-87-1 1142-08-87-2 1142-08-87-4
670 kgs (1475 lbs) QPU輪(圓弧)
QPU (Round)		 1142-08-80-1 1142-08-80-2 1142-08-80-4
720 kgs (1580 lbs) QPU輪(平面)
QPU (Flat)		 1142-08-80-1 1142-08-80-2 1142-08-80-4
670 kgs (1475 lbs) VPU輪(圓弧)
VPU (Round)		 1142-08-82-1 1142-08-82-2 1142-08-82-4
800 kgs (1760 lbs) VQPU輪(圓弧)
VQPU (Round)		 1142-08-83-1 1142-08-83-2 1142-08-83-4
1100 kgs (2420 lbs) 鐵芯VXPU輪(圓弧)
XPU on Iron Core (Round)		 1142-08-91-1 1142-08-91-2 1142-08-91-4
650 kgs (1430 lbs) EPU輪(圓弧)
EPU (Round Shape)		 1142-08-78-1 1142-08-78-2 1142-08-78-4
700 kgs (1540 lbs) EPU輪(平面)
EPU (Flat Shape)		 1142-08-78-1 1142-08-78-2 1142-08-78-4
750 kgs (1650 lbs) EQPU輪(圓弧)
EQPU (Round Shape)		 1142-08-81-1 1142-08-81-2 1142-08-81-4
800 kgs (1760 lbs) EQPU輪(平面)
EQPU (Flat Shape)		 1142-08-81-1 1142-08-81-2 1142-08-81-4
200mm x 51mm
(8" x 2")		 650 kgs (1430 lbs) ZQPU輪(雙輪)
ZQPU (Dual Wheels)		 1142-08-101-1 1142-08-101-2 1142-08-101-4
© 台灣總廠
台灣省彰化縣員林鎮萬年里大饒路342號 510 電話: +886-4-8365911
得貹上好輪 | 腳輪 | AMR/AGV輪 |醫療輪 | 物流台車

法律提示：  產品責任  Product Liability
