長珠抗衝擊系列
Kingpinless Caster (American Style)
高負載且高抗衝擊,在搬運過程可避免腳架變形扭曲,普遍適用於一般工廠搬運,可另附防塵蓋,屬得貹專利產品,可以有效防止腳輪因灰塵或纏絲而無法轉動,提高腳輪使用壽命。
Heavy Duty Kingpinless casters with hardened raceways for greater impact resistance to avoid distortions.Ideal for towing application in automobile, glass, textile, tyre industry, etc...Patented thread guards and dust covers prevent swivel failure caused by build-up of strings between the wheel and fork legs, as well as the dust in the wheel bearing. Suitable for application with shock loads, towing and unven floor surface.

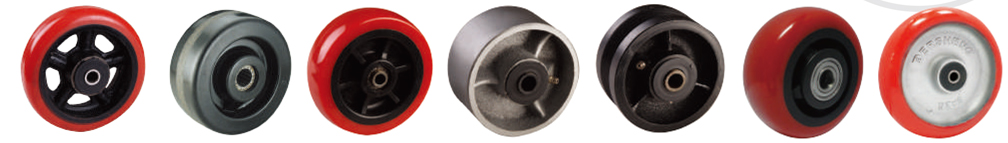

高科技耐磨聚氨酯(圓弧形)
PU on PP Core
(Round Shape)
鐵芯NBR橡膠輪
NBR Rubber
on Cast
鐵芯聚氨酯
PU on Cast
超級人造膠(圓弧形)
TPR on PP Core
(Round Shpae)
超級人造膠(平面)
TPR on PP Core
(Flate Shape)
鐵芯聚氨酯(圓弧形)
PU on Cast
(Round Shape)
電木輪
Phenolic
高科技耐磨聚氨酯
PU on PP core
SS鐵輪
Cast Iron
VG輪
V Groove
SPU輪
CPU on PP core
EPU輪
EPU
HDR輪(圓弧形)
HD Resolute Wheel
(Round Shape)
WHDR輪
WHDR
全效輪(圓弧形)
Resolute
(Round Shape)
全效輪(平面)
Resolute
(Flate Shape)
W全效輪(平面)
W Resolute
(Flate Shape)
W超級人造膠(平面)
WPPR(Flate Shape)
EQPU輪
EQPU


編號
Suffix
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
1 100 × 115(4" × 4-1/2") 70 × 85mm(2-5/8"~3" × 3"~3-5/8") 9.5mm(3/8")
2 115 × 159(4-1/2" × 6-1/4") 75 × 130mm(2-7/16"~3-3/8" × 4-15/16"~5-1/4") 12.7mm(1/2")
固定
Fixed
活動
Swivel
煞車
Brake
100×50mm
(4"×2")
270kgs(600lbs) 高科技耐磨聚氨酯(圓弧形)
PU on PP
1141-04-43-1 1141-04-43-2 1141-04-43-4 滾珠
Ball Bearing
142mm
(5-5/8")
單槽:
活動 80mm
側煞 102mm
AK煞 143mm

雙槽:
活動 90mm
側煞 112mm
AK煞 153mm

Single groove:
Swivel 80mm
Swivel W/Side
Brake 102mm
AK Brake 143mm

Double groove:
Swivel 90mm
Swivel W/Side
Brake 112mm
AK Brake 153mm
200kgs(440lbs) 韓款鐵芯聚氨酯(圓弧形)
PU on Cast(Round Shpae)
1141-04-42-1 1141-04-42-2 1141-04-42-4
150kgs(325lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast
1141-04-04-1 1141-04-04-2 1141-04-04-4 滾針
Roller Bearing
320kgs(700lbs) 鐵芯聚氨酯
PU on Cast
1141-04-33-1 1141-04-33-2 1141-04-33-4
360kgs(800lbs) 電木輪
Phenolic
1141-04-25-1 1141-04-25-2 1141-04-25-4
270kgs(600lbs) 高科技耐磨聚氨酯
PU on PP core
1141-04-31-1 1141-04-31-2 1141-04-31-4
360kgs(800lbs) SS鐵輪
Cast Iron
1141-04-21-1 1141-04-21-2 1141-04-21-4
360kgs(800lbs) VG輪
V Groove
1141-04-28-1 1141-04-28-2 1141-04-28-4
120kgs(265lbs) 超級人造膠(圓弧形)
TPR on PP
1141-04-26-1 1141-04-26-2 1141-04-26-4 滾針
Roller Bearing

精密長珠承軸
Annular ball bearing
150kgs(330lbs) 超級人造膠(平面)
TPR on PP Core(Flate Shape)
1141-04-52-1 1141-04-52-2 1141-04-52-4
150kgs(330lbs) W超級人造膠
WPPR
1141-04-47-1 1141-04-47-2 1141-04-47-4
181kgs(400lbs) W全效輪(平面)
W Resolute(Flate Shape)
1141-04-48-1 1141-04-48-2 1141-04-48-4
181kgs(400lbs) 全效輪(平面)
Resolute(Flate Shape)
1141-04-51-1 1141-04-51-2 1141-04-51-4
136kgs(300lbs) 全效輪(圓弧形)
Resolute(Round Shape)
1141-04-44-1 1141-04-44-2 1141-04-44-4
228kgs(500lbs) HDR輪(圓弧形)
HD Resolute Wheel(Round Shape)
1141-04-54-1 1141-04-54-2 1141-04-54-4
270kgs(600lbs) WHDR輪
WHDR
1141-04-55-1 1141-04-55-2 1141-04-55-4
125×50mm
(5"×2")
340kgs(750lbs) 高科技耐磨聚氨酯(圓弧形)
PU on PP Core(Round Shape)
1141-05-43-1 1141-05-43-2 1141-05-43-4 滾珠
Ball Bearing
167mm
(6-1/2")
單槽:
活動 95.5mm
側煞 102mm
AK煞 154mm

雙槽:
活動 105.5mm
側煞 122mm
AK煞 164mm

Single groove:
Swivel 95.5mm
Swivel W/Side
Brake 102mm
AK Brake 154mm

Double groove:
Swivel 105.5mm
Swivel W/Side
Brake 122mm
AK Brake 164mm
230kgs(500lbs) 韓款鐵芯聚氨酯(圓弧形)
PU on Cast(Round Shape)
1141-05-42-1 1141-05-42-2 1141-05-42-4
340kgs(750lbs) SPU輪
CPU on PP core
1141-05-63-1 1141-05-63-2 1141-05-63-4
400kgs(880lbs) EPU輪
EPU
1141-05-78-1 1141-05-78-2 1141-05-78-4
500kgs(1100lbs) EQPU輪
EQPU
1141-05-81-1 1141-05-81-2 1141-05-81-4
200kgs(440lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast
1141-05-04-1 1141-05-04-2 1141-05-04-4 滾針
Roller Bearing
360kgs(790lbs) 鐵芯聚氨酯
PU on Cast
1141-05-33-1 1141-05-33-2 1141-05-33-4
400kgs(880lbs) 電木輪
Phenolic
1141-05-25-1 1141-05-25-2 1141-05-25-4
340kgs(750lbs) 高科技耐磨聚氨酯
PU on PP core
1141-05-31-1 1141-05-31-2 1141-05-31-4
400kgs(880lbs) SS鐵輪
Cast Iron
1141-05-21-1 1141-05-21-2 1141-05-21-4
400kgs(880lbs) VG輪
V Groove
1141-05-28-1 1141-05-28-2 1141-05-28-4
140kgs(300lbs) 超級人造膠(圓弧形)
TPR on PP Core
(Round Shpae)
1141-05-26-1 1141-05-26-2 1141-05-26-4 滾針
Roller Bearing

精密長珠承軸
Annular ball bearing
180kgs(396lbs) 超級人造膠(平面)
TPR on PP Core(Flate Shape)
1141-05-52-1 1141-05-52-2 1141-05-52-4
180kgs(396lbs) W超級人造膠
WPPR
1141-05-47-1 1141-05-47-2 1141-05-47-4
227kgs(500lbs) W全效輪(平面)
W Resolute(Flate Shape)
1141-05-48-1 1141-05-48-2 1141-05-48-4
227kgs(500lbs) 全效輪(平面)
Resolute(Flate Shape)
1141-05-51-1 1141-05-51-2 1141-05-51-4
170kgs(375lbs) 全效輪(圓弧形)
Resolute(Round Shape)
1141-05-44-1 1141-05-44-2 1141-05-44-4
261kgs(575lbs) HDR輪(圓弧形)
HD Resolute Wheel
(Round Shape)
1141-05-54-1 1141-05-54-2 1141-05-54-4
340kgs(750lbs) WHDR輪
WHDR
1141-05-55-1 1141-05-55-2 1141-05-55-4


固定
Fixed
活動
Swivel
煞車
Brake
150×50mm
(6"×2")
410kgs(900lbs) 高科技耐磨聚氨酯(圓弧形)
PU on PP Core(Round Shape)
1141-06-43-1 1141-06-43-2 1141-06-43-4 滾珠
Ball Bearing
190mm
(7-1/2")
單槽:
活動 111mm
側煞 123mm
AK煞 158mm

雙槽:
活動 123mm
側煞 135mm
AK煞 170mm

Single groove:
Swivel 111mm
Swivel W/Side
Brake 123mm
AK Brake 158mm

Double groove:
Swivel 123mm
Swivel W/Side
Brake 135mm
AK Brake 170mm
260kgs(570lbs) 韓款鐵芯聚氨酯(圓弧形)
PU on Cast(Round Shape)
1141-06-42-1 1141-06-42-2 1141-06-42-4
410kgs(900lbs) SPU輪
CPU on PP core
1141-06-63-1 1141-06-63-2 1141-06-63-4
500kgs(1100lbs) EPU輪
EPU
1141-06-78-1 1141-06-78-2 1141-06-78-4
600kgs(1320lbs) EQPU輪
EQPU
1141-06-81-1 1141-06-81-2 1141-06-81-4
250kgs(550lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast
1141-06-04-1 1141-06-04-2 1141-06-04-4 滾針
Roller Bearing
410kgs(900lbs) 鐵芯聚氨酯
PU on Cast
1141-06-33-1 1141-06-33-2 1141-06-33-4
420kgs(925lbs) 電木輪
Phenolic
1141-06-25-1 1141-06-25-2 1141-06-25-4
410kgs(900lbs) 高科技耐磨聚氨酯
PU on PP core
1141-06-31-1 1141-06-31-2 1141-06-31-4
420kgs(925lbs) SS鐵輪
Cast Iron
1141-06-21-1 1141-06-21-2 1141-06-21-4
420kgs(925lbs) VG輪
V Groove
1141-06-28-1 1141-06-28-2 1141-06-28-4
160kgs(350lbs) 超級人造膠(圓弧形)
TPR on PP Core
(Round Shpae)
1141-06-26-1 1141-06-26-2 1141-06-26-4 滾針
Roller Bearing

精密長珠承軸
Annular ball bearing
210kgs(462lbs) 超級人造膠(平面)
TPR on PP Core(Flate Shape)
1141-06-52-1 1141-06-52-2 1141-06-52-4
210kgs(462lbs) W超級人造膠
WPPR
1141-06-47-1 1141-06-47-2 1141-06-47-4
272kgs(600lbs) W全效輪(平面)
W Resolute(Flate Shape)
1141-06-48-1 1141-06-48-2 1141-06-48-4
272kgs(600lbs) 全效輪(平面)
Resolute(Flate Shape)
1141-06-51-1 1141-06-51-2 1141-06-51-4
204kgs(450lbs) 全效輪(圓弧形)
Resolute(Round Shape)
1141-06-44-1 1141-06-44-2 1141-06-44-4
295kgs(650lbs) HDR輪(圓弧形)
HD Resolute Wheel
(Round Shape)
1141-06-54-1 1141-06-54-2 1141-06-54-4
408kgs(900lbs) WHDR輪
WHDR
1141-06-55-1 1141-06-55-2 1141-06-55-4
200×50mm
(8"×2")
420kgs(925lbs) 高科技耐磨聚氨酯(圓弧形)
PU on PP Core(Round Shape)
1141-08-43-1 1141-08-43-2 1141-08-43-4 滾珠
Ball Bearing
240mm
(9-1/2")
單槽:
活動 145mm
側煞 145mm
AK煞 169mm

雙槽:
活動 157mm
側煞 157mm
AK煞 181mm

Single groove:
Swivel 145mm
Swivel W/Side
Brake 145mm
AK Brake 169mm

Double groove:
Swivel 157mm
Swivel W/Side
Brake 157mm
AK Brake 181mm
300kgs(660lbs) 韓款鐵芯聚氨酯(圓弧形)
PU on Cast(Round Shape)
1141-08-42-1 1141-08-42-2 1141-08-42-4
420kgs(925lbs) SPU輪
CPU on PP core
1141-08-63-1 1141-08-63-2 1141-08-63-4
600kgs(1320lbs) EPU輪
EPU
1141-08-78-1 1141-08-78-2 1141-08-78-4
750kgs(1650lbs) EQPU輪
EQPU
1141-08-81-1 1141-08-81-2 1141-08-81-4
300kgs(660lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast
1141-08-04-1 1141-08-04-2 1141-08-04-4 滾針
Roller Bearing
450kgs(990lbs) 鐵芯聚氨酯
PU on Cast
1141-08-33-1 1141-08-33-2 1141-08-33-4
450kgs(990lbs) 電木輪
Phenolic
1141-08-25-1 1141-08-25-2 1141-08-25-4
420kgs(925lbs) 高科技耐磨聚氨酯
PU on PP core
1141-08-31-1 1141-08-31-2 1141-08-31-4
450kgs(990lbs) SS鐵輪
Cast Iron
1141-08-21-1 1141-08-21-2 1141-08-21-4
450kgs(990lbs) VG輪
V Groove
1141-08-28-1 1141-08-28-2 1141-08-28-4
185kgs(400lbs) 超級人造膠(圓弧形)
TPR on PP Core
(Round Shpae)
1141-08-26-1 1141-08-26-2 1141-08-26-4 滾針
Roller Bearing

精密長珠承軸
Annular ball bearing
230kgs(506lbs) 超級人造膠(平面)
TPR on PP Core(Flate Shape)
1141-08-52-1 1141-08-52-2 1141-08-52-4
230kgs(506lbs) W超級人造膠
WPPR
1141-08-47-1 1141-08-47-2 1141-08-47-4
306kgs(675lbs) W全效輪(平面)
W Resolute(Flate Shape)
1141-08-48-1 1141-08-48-2 1141-08-48-4
306kgs(675lbs) 全效輪(平面)
Resolute(Flate Shape)
1141-08-51-1 1141-08-51-2 1141-08-51-4
272kgs(600lbs) 全效輪(圓弧形)
Resolute(Round Shape)
1141-08-44-1 1141-08-44-2 1141-08-44-4
318kgs(700lbs) HDR輪(圓弧形)
HD Resolute Wheel
(Round Shape)
1141-08-54-1 1141-08-54-2 1141-08-54-4
430kgs(950lbs) WHDR輪
WHDR
1141-08-55-1 1141-08-55-2 1141-08-55-4
