30-TC系列
30 Series 2" Wide Caster (American Style Tool Cart Caster)
專門為工具箱用的高荷重輪，外型設計美觀、耐用。
Appealing exterior design with great load capacity to compliment tool carts both functionally and aesthetically.
反珠碗
Extra Clerance Between
Top Plate and Body		 側煞
Side Lock Brake		 鐵雙煞(超大踏板)
Total Lock Brake
with Extra Big Pedal		 鐵雙煞(長踏)
Total Lock Brake
with Long Pedal

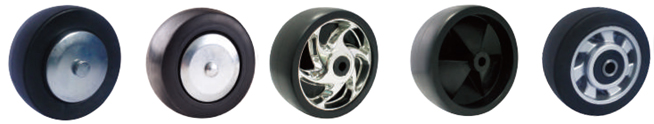

塑料輪
PP		 超級人造膠
TPR on PP Core		 風火輪
Designed PP Wheel		 塑料輪(三風型)
PP		 HDR輪
HDR
編號
Suffix		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安裝尼帽尺寸
Attaching Bolt Size
1 69 x 96 mm (2-23/32" x 3-25/32") 45 x 75 mm (高級架底板)(Plate)
(1-3/4" x 3")		 6.35 mm (1/4")
2 93 x 110 mm (3-5/8" x 4-3/8") 70 x 85 mm (大底板)(Big Plate)
(2-5/8"~3" x 3"~3-5/8")		 9.5 mm (3/8")


固定
Fixed		 活動
Swivel		 煞車
Brake
125mm x 49mm
(5" x 1-15/16")		 100kgs (220 lbs) 塑料輪
PP		 1130-TC-05-29-1 1130-TC-05-29-2 1130-TC-05-29-4 中管
Plain Bearing		 高級架底板類總高
Plate OAH: 158mm (6-1/4")

高級架底板+反珠碗類總高
Plate with extra clerance
OAH: 176.5mm (6-15/16")

高級架底板+反珠碗+無墊圈類總高
Plate with extra clearance
(w/o washer)
OAH: 170.5mm (6-15/16")

大底板類總高
Big Plate OAH:
159mm (6-1/4")		 活動 93.5mm
側煞 93.5mm
鐵雙煞(超大踏板) 140.5mm
鐵雙煞(長踏板) 119mm

Swivel 93.5mm
Swivel W/Side Brake 93.5mm
Swivel W/Total lock brake
(Extra Big Pedal) 140.5mm
Swivel W/Total lock brake
(Long pedal) 119mm
100kgs (220 lbs) 風火輪
Designed PP Wheel		 1130-TC-05-65-1 1130-TC-05-65-2 1130-TC-05-65-4 中管
Plain Bearing
100kgs (220 lbs) 塑料輪(三風型)
PP		 1130-TC-05-73-1 1130-TC-05-73-2 1130-TC-05-73-4 中管
Plain Bearing
125mm x 50mm
(5" x 2")		 90kgs (198 lbs) 超級人造膠
TPR on PP Core		 1130-TC-05-26-1 1130-TC-05-26-2 1130-TC-05-26-4 中管
Plain Bearing
130kgs (286 lbs) HDR輪
HDR		 1130-TC-05-74-1 1130-TC-05-74-2 1130-TC-05-74-4 滾珠
Ball Bearing
A珠軸承
Flanged Ball
Bearing
