25系列
Double Raceway, Light Duty Caster (Japanese Style)
輕型腳架,製成經濟,適用於輕型置物架等。
Light-duty, economical choice,for display racks, etc.


側煞
Axle Lock Brake

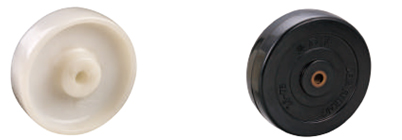

尼龍輪
Nylon
橡膠輪
Rubber


鐵雙煞
(For 4" 5" only)
Total Lock
塑料輪
PP
超級人造膠(風火輪)
TPR on PP Core
腳輪尺寸
Caster Size
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
1-1/2" 31 x 51mm (1-7/32" x 2") 20 x 40mm (13/16" x 1-9/16") 5mm (3/16")
2" 42 x 70mm (1-5/8" x 2-3/4") 28 x 56mm (1-1/8" x 2-3/16") 6mm (7/32")
2-1/2" 42 x 70mm (1-5/8" x 2-3/4") 28 x 56mm (1-1/8" x 2-3/16") 6mm (7/32")
3" 42 x 70mm (1-5/8" x 2-3/4") 28 x 56mm (1-1/8" x 2-3/16") 6mm (7/32")
4" 58 x 100mm (2-9/32" x 3-15/16" ) 40 x 82mm (1-9/16" x 3-7/32") 8mm (5/16")
5" 58 x 100mm (2-9/32" x 3-15/16" ) 40 x 82mm (1-9/16" x 3-7/32") 8mm (5/16")


編號
Suffix
絲扣牙徑 × 長度
Diameter × Length
編號
Suffix
絲扣牙徑 × 長度
Diameter × Length
編號
Suffix
絲扣牙徑 × 長度
Diameter × Length
1-1/2"~3" casters M8 x 15mm 1-1/2"~3" casters 3/8-16UNC x 19mm 1-1/2"~3" casters M10 x 15mm
1-1/2"~3" casters M10 x 25mm 4"~5" M12 x 29mm
編號
Suffix
插桿直徑 × 長度
Diameter × Length
孔位高度
Hole Height
孔尺寸
Bore Size
1-1/2" 26 x 46mm (1" x 1-13/16") C型環 (Grip Ring)

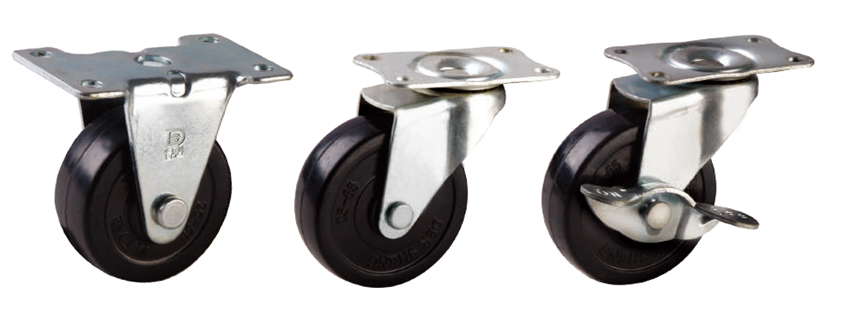

固定
Fixed
活動
Swivel
煞車
Brake
38mm x 22mm
(1-1/2" x 7/8")
30kgs
(66 lbs)
尼龍輪
Nylon

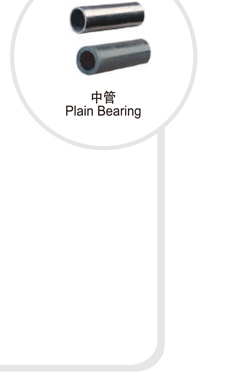

1121-15-07-1 1121-15-07-2 1121-15-07-4 中管
Plain Bearing
58mm
(2-5/16")
活動 39mm
側剎 45mm

Swivel 39mm
Swivel W/Side
Brake 45mm
25kgs
(55 lbs)
橡膠輪
Rubber
1121-15-06-1 1121-15-06-2 1121-15-06-4
25kgs
(55 lbs)
塑料輪
PP
1121-15-29-1 1121-15-29-2 1121-15-29-4
50mm x 20mm
(2" x 13/16")
35kgs
(77 lbs)

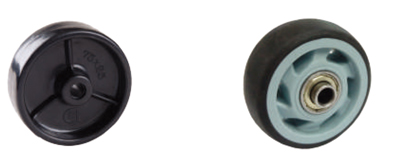

超級人造膠(風火輪)
TPR on PP Core
1121-02-94-1 1121-02-94-2 1121-02-94-4 滾珠
Ball Bearing
65mm
(2-9/16")
活動 50mm
側剎 51mm

Swivel 50mm
Swivel W/Side
Brake 51mm
50mm x 22mm
(2" x 7/8")
40kgs
(88 lbs)
尼龍輪
Nylon
1121-02-07-1 1121-02-07-2 1121-02-07-4 中管
Plain Bearing
65mm
(2-9/16")
活動 50mm
側剎 51mm

Swivel 50mm
Swivel W/Side
Brake 51mm
35kgs
(77 lbs)
橡膠輪
Rubber
1121-02-06-1 1121-02-06-2 1121-02-06-4
35kgs
(77 lbs)
塑料輪
PP
1121-02-29-1 1121-02-29-2 1121-02-29-4
35kgs
(77 lbs)
全效輪
Resolute Wheel
1121-02-68-1 1121-02-68-2 1121-02-68-4
63mm x 22mm
(2-1/2" x 7/8")
40kgs
(88 lbs)
橡膠輪
Rubber
1121-25-06-1 1121-25-06-2 1121-25-06-4 中管
Plain Bearing
82mm
(3-7/32")
活動 64mm
側剎 64mm

Swivel 64mm
Swivel W/Side
Brake 64mm
75mm x 22mm
(3" x 7/8")
50kgs
(110 lbs)
橡膠輪
Rubber
1121-03-06-1 1121-03-06-2 1121-03-06-4 中管
Plain Bearing
93.5mm
(3-5/8")
活動 72mm
側剎 72mm

Swivel 72mm
Swivel W/Side
Brake 72mm
100mm x 25mm
(4" x 1")
70kgs
(154 lbs)
橡膠輪
Rubber
1121-04-06-1 1121-04-06-2 1121-04-06-4 中管
Plain Bearing
126mm
(5")
活動 83mm
側剎 83mm
鐵雙剎106mm

Swivel 83mm
Swivel W/Side
Brake 83mm
Total lock 106mm
125mm x 25mm
(5" x 1")
90kgs
(198 lbs)
橡膠輪
Rubber
1121-05-06-1 1121-05-06-2 1121-05-06-4 中管
Plain Bearing
149mm
(5-7/8")
活動 101mm
側剎 101mm
鐵雙剎106mm

Swivel 101mm
Swivel W/Side
Brake 101mm
Total lock 106mm
