B型風輪系列
B Type Pneumatic Caster
超高負載且旋轉靈活，適用於負載重的車間，更能
遊刃有餘於凹凸不平的路面環境。
Swivel easily under heavy load;ideal for heavy-duty workshop trucks in automobile, glass, textile industries, etc. 工業腳輪，藍架風輪.台車車輪
中煞

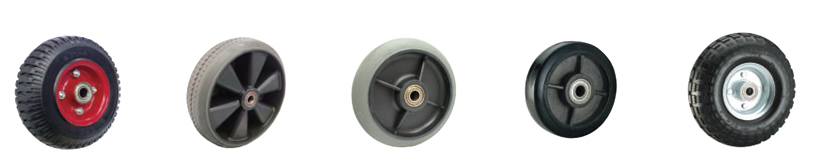

Center Lock Brake		 風輪(烤漆鐵框)
Pneumatic with
painted steel rim		 風輪(塑框)
Pneumatic with
plastic rim		 風輪(鍍鋅鐵框)
Pneumatic with
plated steel rim		 風硬輪(烤漆鐵框)
Solid Rubber wheel
with painted steel rim
防爆輪
Flate Freee Tire		 風硬W全效輪
W Resolute Rubber		 風硬全效輪
Resolute Rubber		 鐵芯NBR橡膠輪
NBR Rubber on Cast		 風硬輪(鍍鋅鐵框)
Solid Rubber wheel with
painted steel rim
腳輪尺寸
Caster Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安裝尼帽尺寸
Attaching Bolt Size
8" B風架
8" caster		 110 x 140mm (4-1/3" x 5-1/2") 75~80 x 110mm (3-1/8" x 4-5/16") 12.7mm (1/2")
10" B風架,12" B風架
10" caster,12" caster		 130 x 172mm (5-1/8" x 6-3/4") 100 x 140mm (3-15/16" x 5-1/2") 12.7mm (1/2")


輪子樣式
固定
Fixed		 活動
Swivel		 煞車
Brake
200mm x 53mm
(8" x 2-1/8")		 120 kgs (265 lbs) 風硬輪
Solid Rubber		 1102-P-08-02-1 1102-P-08-02-2 1102-P-08-02-4 滾珠
Ball Bearing		 248mm
(9-3/4")		 活動 160.5mm
中煞 160.5mm

Swivel 160.5mm
Swivel W/Brake
160.5mm
202mm x 51mm
(8" x 2")		 180 kgs (400 lbs) 風硬全效輪
Resolute Rubber		 1102-P-08-53-1 1102-P-08-53-2 1102-P-08-53-4 滾珠
Ball Bearing		 249mm
(9-13/16")		 活動 161.5mm
中煞 161.5mm

Swivel 161.5mm
Swivel W/Brake
161.5mm
208mm x 55mm
(8-3/16" x 2-9/16")		 100 kgs (220 lbs) 防爆輪
Flat Free Tire		 1102-P-08-05-1 1102-P-08-05-2 1102-P-08-05-4 滾珠
Ball Bearing		 252mm
(9-15/16")		 活動 164.5mm
中煞 164.5mm

Swivel 164.5mm
Swivel W/Brake
164.5mm
216mm x 65mm
(8-1/2" x 2-9/16")		 150 kgs (330 lbs) 風輪
Pneumatic		 1102-P-08-01-1 1102-P-08-01-2 1102-P-08-01-4 滾珠
Ball Bearing		 256mm
(10-1/16")		 活動 168.5mm
中煞 168.5mm

Swivel 168.5mm
Swivel W/Brake
168.5mm
246mm x 74mm
(10" x 2-15/16")		 230 kgs (505 lbs) 風硬W全效輪
W Resolute Rubber		 1102-P-10-95-1 1102-P-10-95-2 1102-P-10-95-4 滾珠
Ball Bearing		 314mm
(12-3/8")		 活動 195.5mm
中煞 195.5mm

Swivel 195.5mm
Swivel W/Brake
195.5mm
250mm x 74mm
(10" x 2-15/16")		 180 kgs (395 lbs) 風硬輪
Solid Rubber		 1102-P-10-02-1 1102-P-10-02-2 1102-P-10-02-4 滾珠
Ball Bearing		 316mm
(12-7/16")		 活動 197.5mm
中煞 197.5mm

Swivel 197.5mm
Swivel W/Brake
197.5mm
252mm x 71mm
(10" x 2-13/16")		 300 kgs (660 lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast		 1102-P-10-04-1 1102-P-10-04-2 1102-P-10-04-4 滾珠
Ball Bearing		 317mm
(12-1/2")		 活動 198.5mm
中煞 198.5mm

Swivel 198.5mm
Swivel W/Brake
198.5mm
260mm x 85mm
(10-1/4" x 3-3/8")		 150 kgs (330 lbs) 防爆輪
Flat Free Tire		 1102-P-10-05-1 1102-P-10-05-2 1102-P-10-05-4 滾珠
Ball Bearing		 321mm
(12-5/8")		 活動 202.5mm
中煞 202.5mm

Swivel 202.5mm
Swivel W/Brake
202.5mm
270mm x 86mm
(10-5/8" x 3-3/8")		 200 kgs (440 lbs) 風輪
Pneumatic		 1102-P-10-01-1 1102-P-10-01-2 1102-P-10-01-4 滾珠
Ball Bearing		 326mm
(12-7/8")		 活動 207.5mm
中煞 207.5mm

Swivel 207.5mm
Swivel W/Brake
207.5mm
307mm x 85mm
(12-1/8" x 3-3/8")		 250 kgs (550 lbs) 風輪
Pneumatic		 1102-P-12-01-1 1102-P-12-01-2 1102-P-12-01-4 滾珠
Ball Bearing		 363.5mm
(14-5/6")		 活動 224.5mm
中煞 224.5mm

Swivel 224.5mm
Swivel W/Brake
224.5mm
308mm x 76mm
(12-1/8" x 3")		 350 kgs (770 lbs) 鐵芯NBR橡膠輪
NBR Rubber on Cast		 1102-P-12-04-1 1102-P-12-04-2 1102-P-12-04-4 滾珠
Ball Bearing		 363.5mm
(14-5/6")		 活動 224.5mm
中煞 224.5mm

Swivel 224.5mm
Swivel W/Brake
224.5mm
