VoulkoTough Series

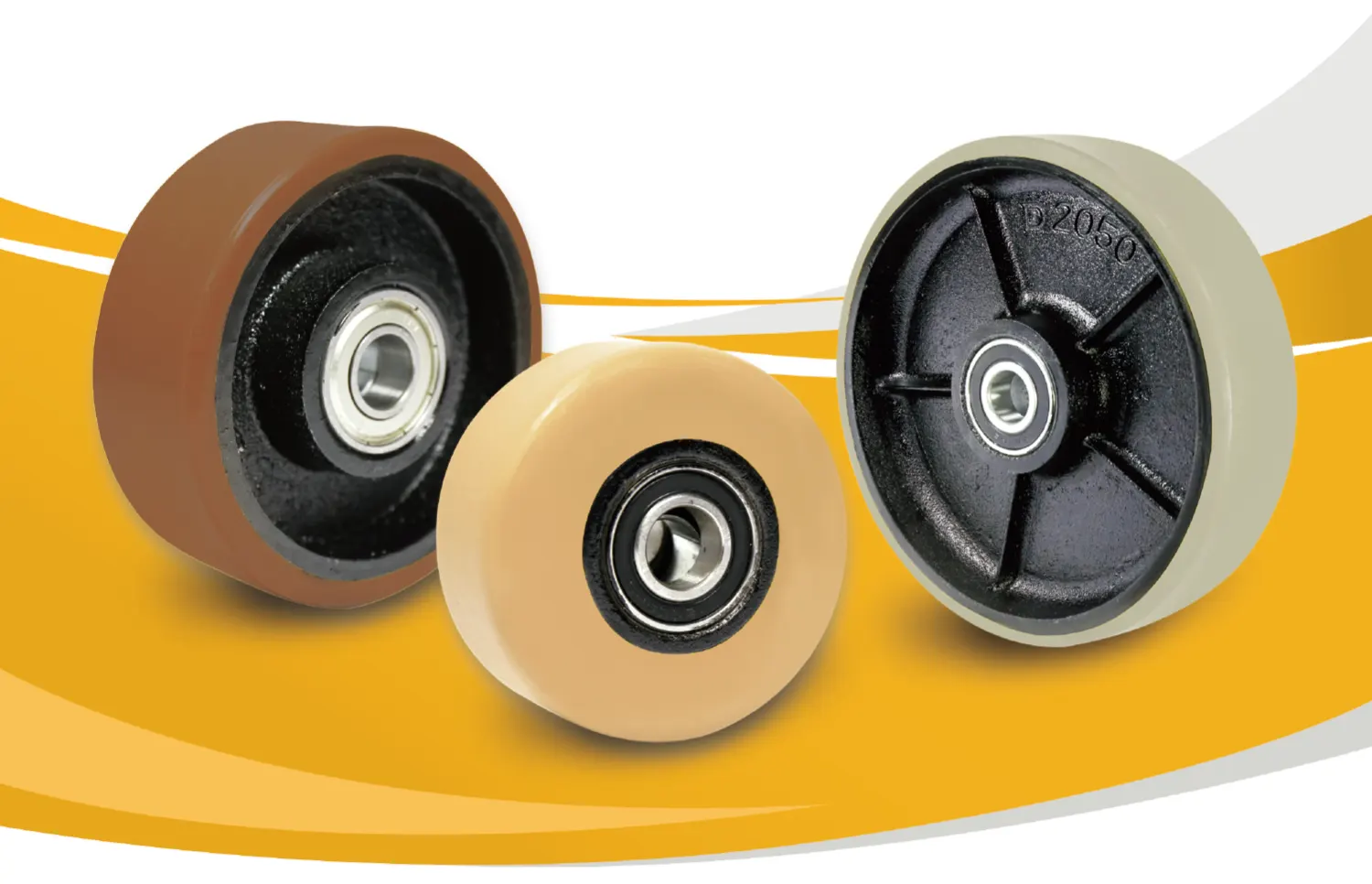

HEAVY DUTY WHEEL
with VulkoTough tread,
with steel/cast iron core
Tread & Tyre Hardness ○ ○ ○ ● ○ 94° Shore A
Temperature Resistance ○ ● ● ○ ○ -40℃ to + 80℃
Rolling Resistance ● ● ● ● ● Excellent
Operating Noise ● ● ● ● ○ Very Good
Floor Surface Preservation ● ● ● ● ○ Very Good
Tread
Dersheng’s Vulko wheel is based on world renowned Covestro’s Desmodur Polyurethane technology. It features outstanding performance for dynamic load, and excellent recovery from long periods of heavy loading, which makes it the first choice for industrial wheels/ rollers for heavy duty applications. In addition, it has great thermal stability even at high temperatures
Wheel centre / rim
Made of rugged casting with iron / steel.
Other features
· Good resistant to chemical, solvent and many other aggressive substances.
· Great abrasion resistance.
· Good resistance to micro-organisms.
· Working temperature:-40°C to +80°C.
· Maintenance-free under normal conditions.
Specification
| Item No. | Wheel Diameter (D)【mm】 |
Wheel Width (T2)【mm】 |
Load Capacity 【kg(lbs)】 |
Axle Bore Ø(d)【mm】 |
Hub Length (T1)【mm】 |
Tread Profile | Bearing Type |
| 12033004136171 | 100 | 34 | 320kg (705lbs) | 15 | 34 | Round | Ball bearing |
| 12033004136271 | 100 | 34 | 320kg (705lbs) | 17 | 34 | ||
| 12033004186171 | 100 | 45 | 400kg (881lbs) | 13 | 62 | ||
| 12033005156171 | 125 | 40 | 500kg (1102lbs) | 15 | 40 | ||
| 12033005156271 | 125 | 40 | 500kg (1102lbs) | 17 | 42 | ||
| 12033005186171 | 125 | 45 | 500kg (1102lbs) | 13 | 62 | ||
| 12033006186171 | 150 | 42 | 600kg (1323lbs) | 17 | 42 | ||
| 12033006186271 | 150 | 45 | 600kg (1323lbs) | 13 | 62 | ||
| 12033007206171 | 180 | 50 | 800kg (1764lbs) | 20 | 50 | ||
| 12033007206271 | 180 | 50 | 800kg (1764lbs) | 25 | 50 | ||
| 12033008186171 | 200 | 45 | 800kg (1764lbs) | 13 | 62 | ||
| 12033008206171 | 200 | 45 | 900kg (1984lbs) | 20 | 50 | ||
| 12033008206271 | 200 | 50 | 900kg (1984lbs) | 25 | 50 | ||
| 12033010256171 | 250 | 62 | 1500kg (3307lbs) | 20 | 61 | ||
| 12033010256271 | 250 | 62 | 1500kg (3307lbs) | 25 | 61 | ||
| 12033010256371 | 250 | 62 | 1500kg (3307lbs) | 30 | 61 | ||
| 12033003136171 | 75 | 32 | 180kg (396lbs) | 12 | 32 | Flat | |
| 12033003136271 | 75 | 32 | 180kg (396lbs) | 15 | 32 | ||
| 12033004136371 | 100 | 34 | 320kg (705lbs) | 15 | 34 | ||
| 12033004136471 | 100 | 34 | 320kg (705lbs) | 17 | 34 | ||
| 12033004206171 | 100 | 50 | 450kg (992lbs) | 17 | 38 | ||
| 12033054156171 | 114 | 38 | 450kg (992lbs) | 17 | 38 | ||
| 12033005156371 | 125 | 40 | 500kg (1102lbs) | 15 | 40 | ||
| 12033005156471 | 125 | 40 | 500kg (1102lbs) | 17 | 42 | ||
| 1203300520617171 | 125 | 50 | 600kg (1323lbs) | 17 | 55 | ||
| 12033057186171 | 183 | 44 | 800kg (1764lbs) | 17 | 50 | ||
| 12033057186271 | 183 | 44 | 800kg (1764lbs) | 20 | 50 | ||
| 12033057186371 | 183 | 44 | 800kg (1764lbs) | 25 | 50 | ||
| 12033008206371 | 200 | 50 | 900kg (1984lbs) | 20 | 50 | ||
| 12033008206471 | 200 | 50 | 900kg (1984lbs) | 25 | 20 | ||
| 12033009206171 | 231 | 52 | 1200kg (2646lbs) | 17 | 53 | ||
| 12033010256471 | 250 | 62 | 1500kg (3307lbs) | 20 | 61 | ||
| 12033010256571 | 250 | 62 | 1500kg (3307lbs) | 25 | 61 | ||
| 12033010256671 | 250 | 62 | 1500kg (3307lbs) | 30 | 61 | ||
| 12033010286171 | 305 | 70 | 1800kg (3968lbs) | 25 | 70 | ||
| 12033012286271 | 305 | 70 | 1800kg (3968lbs) | 30 | 70 | ||
| 12033012286371 | 305 | 70 | 1800kg (3968lbs) | 35 | 70 | ||
| 12033012386171 | 305 | 95 | 2400kg (5291lbs) | 25 | 95 | ||
| 12033012386271 | 305 | 95 | 2400kg (5291lbs) | 30 | 95 | ||
| 12033012386371 | 305 | 95 | 2400kg (5291lbs) | 35 | 95 |
