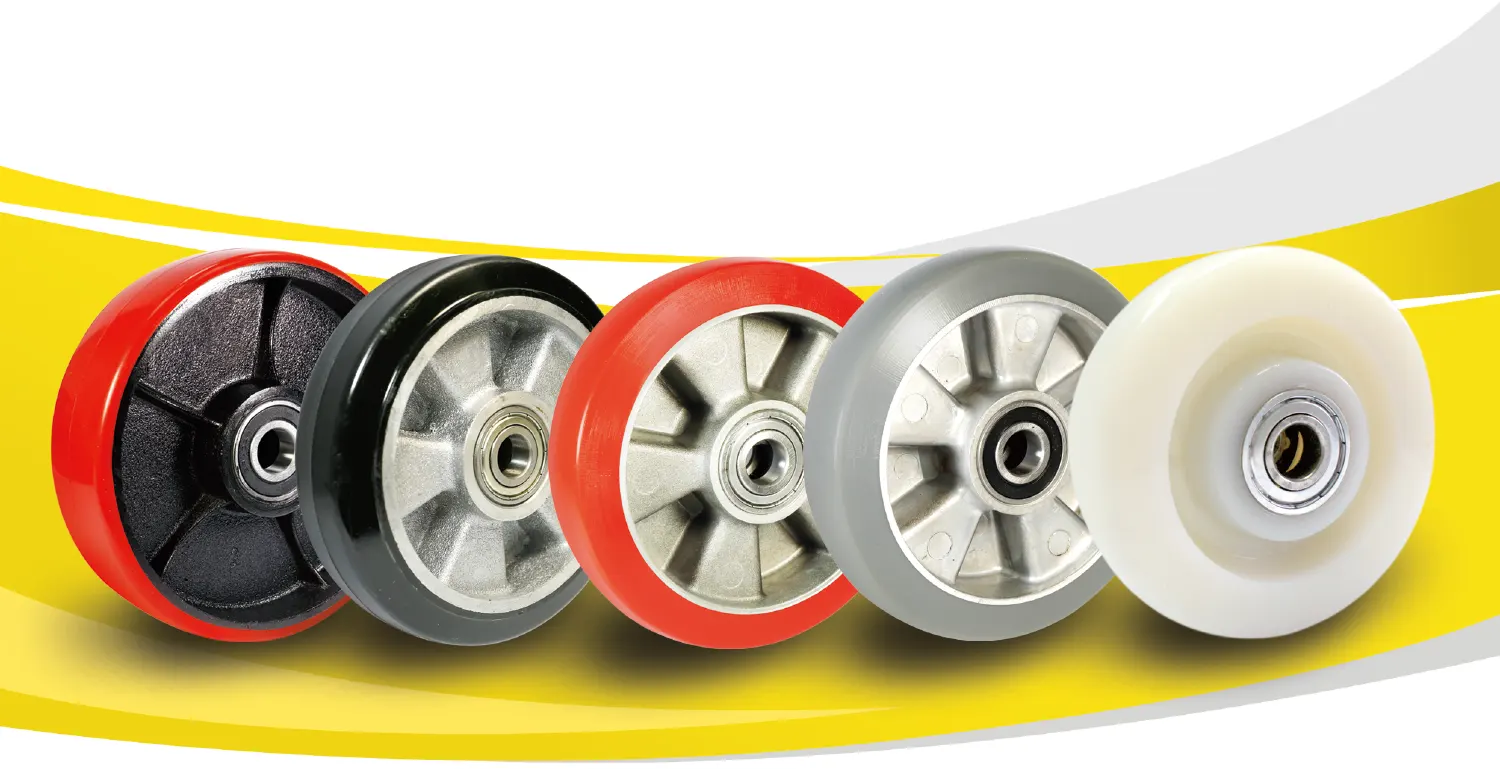

Steer Wheels for pallet trucks
Series：PU, RA, MRC, APU, AQPU
PU Wheel Series
Tread：
Made of high quality polyurethane. Dersheng's 92° shore A polyurethane wheels offer good floor preservation and low noise operation.
Wheel centre / rim：
Made of rugged casting iron / steel.
RA Wheel Series
Tread：
Made of high quality rubber, Dersheng's rubber on aluminum core wheel features 75°±5° shore A hardness, high operational comfort, grest floor preservation and good shock absorption.
Color : black.
Wheel centre / rim：
Made of casting aluminum
MRC Wheel Series
Made of high-quality, impact-resistant nylon, 70° shore D, natural white.
APU Wheel Series
Tread：
Made of high quality polyurethane. Dersheng's 92° shore A polyurethane wheels offer good floor preservation and low noise operation.
Wheel centre / rim：
Made of casting aluminum
AQPU Wheel Series
Tread：
Qualthane is a premium polyurethane elastomer developed to improve maneuverability with significantly less rolling resistance. With hydrolysis at 75° shore A, Qualthane provides great performance in rebound resilient.
Wheel centre / rim：
Made of casting aluminum
Wheel Options
-
PU Series
-
RA Series
-
MRC Series
-
APU Series
-
AQPU Series
Specification
| Item No. | Wheel Diameter (D)【mm】 |
Wheel Width (T2)【mm】 |
Load Capacity 【kg(lbs)】 |
Axle Bore Ø(d)【mm】 |
Hub Length (T1)【mm】 |
Tread Profile | Bearing Type |
| PU Series | Ball bearing |
||||||
| 12033307209271 | 180 | 50 | 800kg (1764lbs) | 20 | 43.5 | Round | |
| 12033307206871 | 180 | 50 | 800kg (1764lbs) | 20 | 50 | ||
| 12033307209371 | 180 | 50 | 800kg (1764lbs) | 25 | 43.5 | ||
| 12033307206971 | 180 | 50 | 800kg (1764lbs) | 25 | 50 | ||
| 12033308206871 | 200 | 50 | 900kg (1984lbs) | 20 | 43.5 | Flat | |
| 12033308206671 | 200 | 50 | 900kg (1984lbs) | 20 | 50 | ||
| 12033308206971 | 200 | 50 | 900kg (1984lbs) | 25 | 43.5 | ||
| 12033308206171 | 200 | 50 | 900kg (1984lbs) | 25 | 50 | ||
| RA Series | |||||||
| 12046808185571 | 200 | 44 | 400kg (881lbs) | 20 | 37.5 | Flat | |
| 12046808185171 | 200 | 44 | 400kg (881lbs) | 20 | 44 | ||
| 12046808185671 | 200 | 44 | 400kg (881lbs) | 25 | 37.5 | ||
| 12046808185271 | 200 | 44 | 400kg (881lbs) | 25 | 44 | ||
| MRC Series | |||||||
| 12020708204471 | 200 | 50 | 600kg (1323lbs) | 20 | 43.5 | Round | |
| 12020708204271 | 200 | 50 | 600kg (1323lbs) | 20 | 50 | ||
| 12020708204571 | 200 | 50 | 600kg (1323lbs) | 25 | 43.5 | ||
| 12020708204371 | 200 | 50 | 600kg (1323lbs) | 25 | 50 | ||
| APU Series | |||||||
| 12035907185371 | 180 | 44 | 600kg (1323lbs) | 20 | 37.5 | Round | |
| 12035907185171 | 180 | 44 | 600kg (1323lbs) | 20 | 44 | ||
| 12035907185471 | 180 | 44 | 600kg (1323lbs) | 25 | 37.5 | ||
| 12035908205471 | 180 | 44 | 600kg (1323lbs) | 25 | 44 | ||
| 12035908205671 | 200 | 50 | 800kg (1764lbs) | 20 | 43.5 | Flat | |
| 12035908205371 | 200 | 50 | 800kg (1764lbs) | 20 | 50 | ||
| 12035908205771 | 200 | 50 | 800kg (1764lbs) | 25 | 43.5 | ||
| 12035908205471 | 200 | 50 | 800kg (1764lbs) | 25 | 50 | ||
| AQPU Series | |||||||
| 12036007185771 | 180 | 44 | 500kg (1102lbs) | 20 | 37.5 | Round | |
| 12036007185571 | 180 | 44 | 500kg (1102lbs) | 20 | 44 | ||
| 12036007185871 | 180 | 44 | 500kg (1102lbs) | 25 | 37.5 | ||
| 12036007185671 | 180 | 44 | 500kg (1102lbs) | 25 | 44 | ||
| 12036008208171 | 200 | 50 | 700kg (1543lbs) | 20 | 43.5 | Flat | |
| 12036008209871 | 200 | 50 | 700kg (1543lbs) | 20 | 50 | ||
| 12036008208271 | 200 | 50 | 700kg (1543lbs) | 25 | 43.5 | ||
| 12036008209971 | 200 | 50 | 700kg (1543lbs) | 25 | 50 | ||
