RX-Xtremethane
Electric Stacker

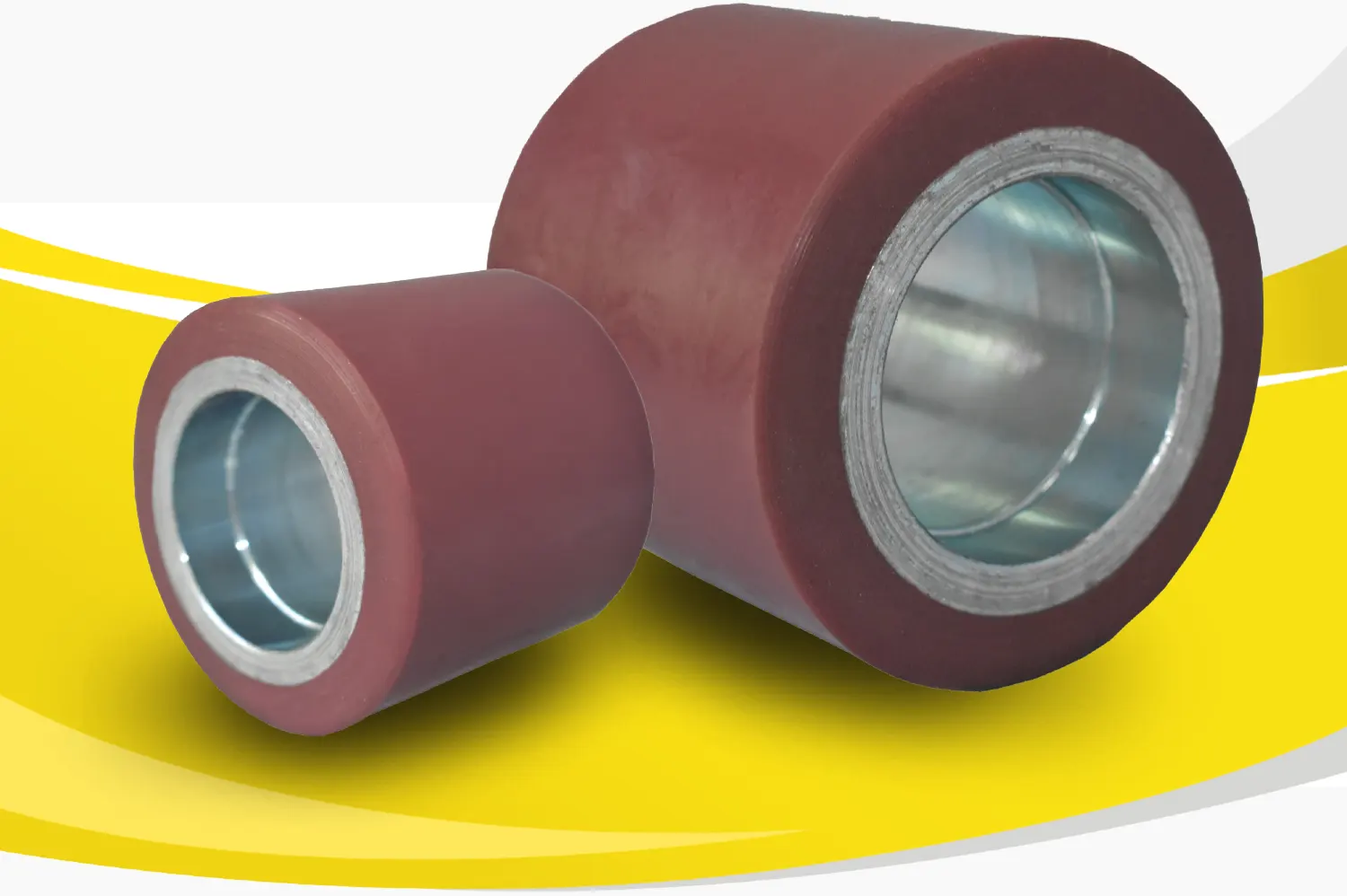

Xtremethane PU Wheel
with Xtremethane tread,
with steel / cast iron core
Tread & Tyre Hardness ○ ○ ○ ● ○ 93° ± 3° Shore A
Temperature Resistance ○ ● ● ○ ○ -30℃ to +70℃
Rolling Resistance ● ● ● ● ○ Very Good
Operating Noise ● ● ● ○ ○ Good
Floor Surface Preservation ● ● ● ○ ○ Good
Tread
Xtremethane wheels are built to carry high load at high speed. Regular tread hardness is 90°± 3° shore A. It has great mechanical properties, including high dynamic load capacity, superd wear resistant and very low compression set. Xtremethane also have great capability to tackle the internal heat build-up issue, which makes them suitable for applications like forklift trucks, electric stackers, heavy duty machines, AMR/AGV and automotive industry.
Wheel centre / rim
Made of rugged casting iron / steel.
Other features
· Good resistant to chemical, solvent and many other aggressive substances.
· Great abrasion resistance.
· Working temperature:-30°C to +70°C.
· Maintenance-free under normal conditions.
Specification
| Item No. | Wheel Diameter (D)【mm】 |
Wheel Width (T2)【mm】 |
Load Capacity 【kg(lbs)】 |
Axle Bore Ø(d)【mm】 |
Hub Length (T1)【mm】 |
Tread Profile | Bearing Type |
| 12033303151171 | 75 | 40 | 350kg (771lbs) | 20 | 40 | Flat | Ball bearing |
| 12033303201171 | 75 | 50 | 550kg (1213lbs) | 25 | 50 | ||
| 12033303251171 | 75 | 62 | 550kg (1213lbs) | 20 | 62 | ||
| 12033303351171 | 76 | 90 | 650kg (1433lbs) | 20 | 90 | ||
| 12033303101171 | 80 | 30 | 180kg (396lbs) | 12 | 30 | ||
| 12033303131171 | 80 | 34 | 200kg (440lbs) | 12 | 34 | ||
| 12033303151371 | 80 | 40 | 500kg (1100lbs) | 20 | 40 | ||
| 12033303201271 | 80 | 40 | 500kg (1100lbs) | 20 | 54 | ||
| 12033303201371 | 80 | 54 | 500kg (1100lbs) | 20 | 60 | ||
| 12033303251371 | 80 | 62 | 500kg (1100lbs) | 20 | 60 | ||
| 12033303253271 | 80 | 70 | 700kg (1543lbs) | 20 | 70 | ||
| 12033303353171 | 80 | 90 | 750kg (1653lbs) | 20 | 90 | ||
| 12033303101271 | 82 | 28 | 350kg (771lbs) | 12 | 26 | ||
| 12033303131271 | 82 | 34 | 400kg (881lbs) | 12 | 34 | ||
| 12033303251271 | 82 | 60 | 600kg (1323lbs) | 20 | 62 | ||
| 12033303251371 | 82 | 62 | 600kg (1323lbs) | 20 | 62 | ||
| 12033303281171 | 82 | 70 | 700kg (1543lbs) | 20 | 70 | ||
| 12033303301171 | 82 | 76 | 700kg (1543lbs) | 20 | 76 | ||
| 12033303301271 | 82 | 76 | 700kg (1543lbs) | 20 | 83 | ||
| 1203330401171 | 82 | 100 | 800kg (1764lbs) | 20 | 96 | ||
| 1203330401271 | 82 | 100 | 800kg (1764lbs) | 20 | 100 | ||
| 12033303201171 | 85 | 55 | 550kg (1213lbs) | 20 | 60 | ||
| 12033353251171 | 85 | 60 | 600kg (1323lbs) | 20 | 60 | ||
| 12033353281171 | 85 | 70 | 650kg (1433lbs) | 20 | 62 | ||
| 12033353281271 | 85 | 70 | 650kg (1433lbs) | 20 | 70 | ||
| 12033353301171 | 85 | 75 | 700kg (1543lbs) | 20 | 75 | ||
| 1203335301271 | 85 | 80 | 700kg (1543lbs) | 20 | 80 | ||
| 1203335356171 | 85 | 90 | 800kg (1764lbs) | 17 | 90 | ||
| 1203335356271 | 85 | 90 | 800kg (1764lbs) | 20 | 82 | ||
| 12033303353371 | 85 | 90 | 750kg (1653lbs) | 20 | 90 | ||
| 12033353386171 | 85 | 95 | 900kg (1984lbs) | 20 | 95 | ||
| 12033353406171 | 85 | 100 | 800kg (1764lbs) | 20 | 100 | ||
| 12033353451171 | 85 | 115 | 850kg (1874lbs) | 30 | 115 | ||
| 12033353201271 | 90 | 50 | 450kg (992lbs) | 20 | 50 | ||
| 12033304151171 | 95 | 40 | 400kg (881lbs) | 20 | 45 | ||
| 12033304151271 | 100 | 40 | 500kg (1100lbs) | 25 | 40 | ||
| 12033305201171 | 120 | 50 | 600kg (1323lbs) | 20 | 50 |
