1163-1 Series — Self-balancing Caster
Der Sheng’s Self-balancing Caster has the newly developed tilting structure which can tilt freely according to the flatness of the ground while at the same time, it also maintains stability and effectively reduces the wobble of the caster when rotating. Two wheels are under force at the same time minimize wear and tear, thus extending service life. The caster design features elastic and noise reduction functions. Dersheng’s Self-balancing Caster fork is made of high tensile steel with harden raceway to provide long lasting service life and extreme high load capacity while maintaining low profile and overall height. It is suitable for application like AMR/AGV and robotic industry products.
Features

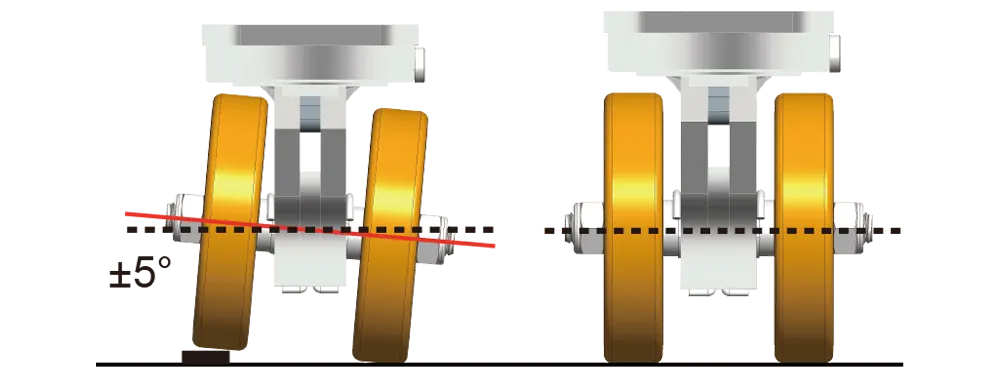

The caster can tilt freely in the range of ±5° from its central axis, it can easily cross uneven ground and small obstacles, also can maintain stability and protect the loaded products.

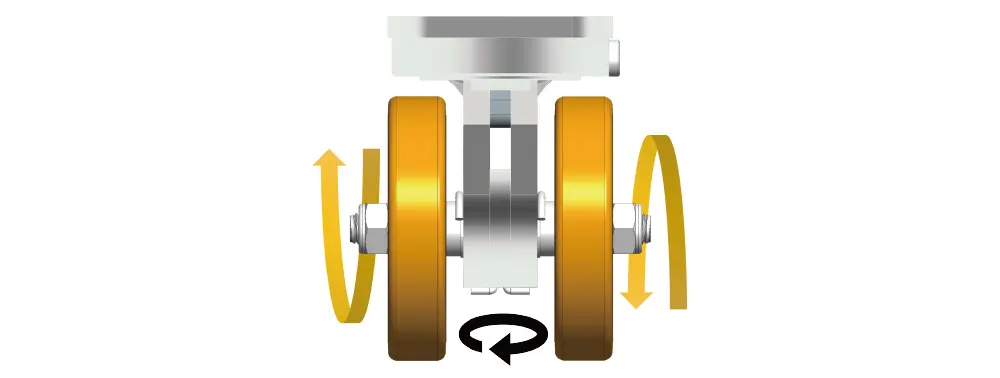

The split wheel rotates in different directions when AMR/AGV rotates, after reaching the position, they start to rotate in the same direction.This structure can effictively reduce caster offset and prevent the AMR/AGV from leaving the track.
The dual wheels structure effectively reduce caster offset when rotating, and prevent the AMR/AGV from leaving the track

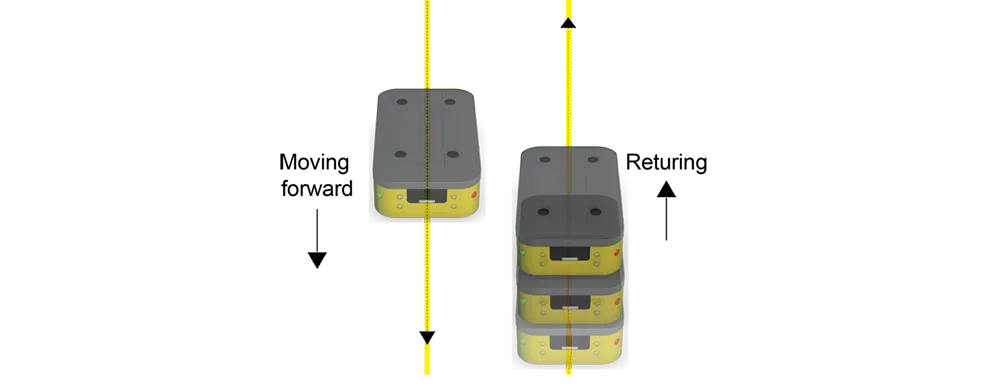

Self-balancing caster reduces caster offset when rotating, the AMR/AGV returns and keeps moving on the designed track.

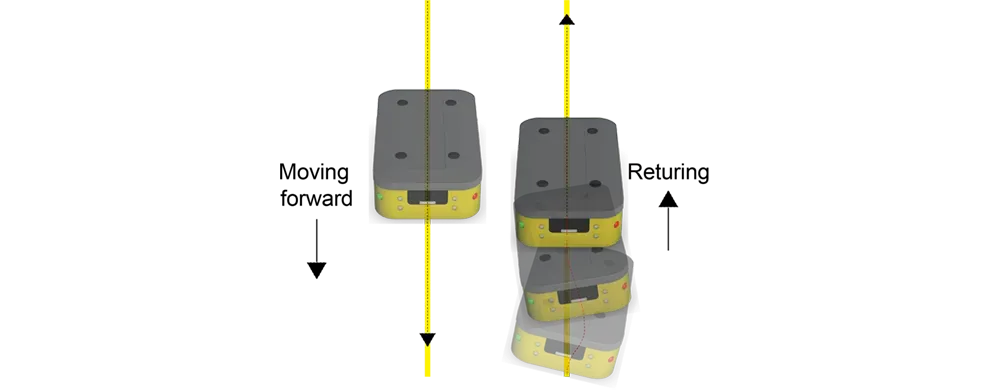

During rotation, the offset of standard caster is large, thus the AMR/AGV is easy to off track.
Wheel Options
-

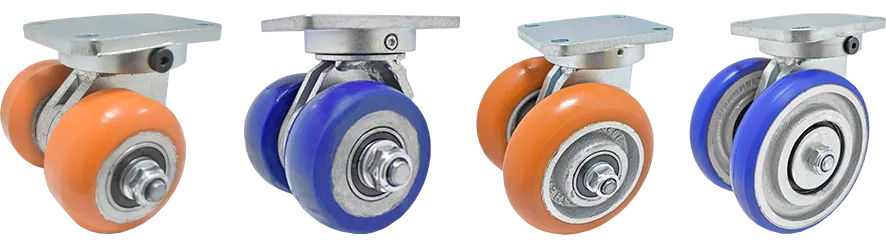

EQPU
-
XPU on Iron Core
-
ZQPU
-
QPU
Top Plate Size And Bolt Hole Spacing
| Size | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 2" | 62 x 90 mm (2-1/2" x 3-1/2") |
44.5 x 73 mm (1-3/4" x 2-1/8") |
6.35 mm (1/4") |
| 2" 2.5" 3" | 64 x 96 mm (2-1/2" x 3-25/32") |
45 x 75 mm (1-3/4" x 3") |
6.35 mm (1/4") |
| 2" 2.5" 3" 3.2" 4" 5" 6" | 85 x 110 mm (3-5/16" x 4-11/32") |
60 x 80 mm 2-3/8" x 3-7/8" |
8 mm (5/16") |
| 3.2" 4" 5" 6" | 110 x 140 mm (4-11/32" x 5-1/2") |
75 x 110 mm (2-15/16" x 4-11/32") |
12 mm (1/2") |
Top Plate Size And Bolt Hole Spacing
| Size | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 2" | 62 x 90 mm (2-1/2" x 3-1/2") |
44.5 x 73 mm (1-3/4" x 2-1/8") |
6.35 mm (1/4") |
| Size | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 2" | 62 x 90 mm (2-1/2" x 3-1/2") |
44.5 x 73 mm (1-3/4" x 2-1/8") |
6.35 mm (1/4") |
| 2" 2.5" 3" | 64 x 96 mm (2-1/2" x 3-25/32") |
45 x 75 mm (1-3/4" x 3") |
6.35 mm (1/4") |
| 2" 2.5" 3" 3.2" 4" 5" 6" | 85 x 110 mm (3-5/16" x 4-11/32") |
60 x 80 mm 2-3/8" x 3-7/8" |
8 mm (5/16") |
| 3.2" 4" 5" 6" | 110 x 140 mm (4-11/32" x 5-1/2") |
75 x 110 mm (2-15/16" x 4-11/32") |
12 mm (1/2") |
Specification
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Offset | Swivel Radius | |
| Swivel | ||||||||
| Light Duty | 50mm x 20mm (2"x 0.79") |
70kgs (154 lbs) |
ZQPU | 1163(1)-02-115-2 | Ball Bearing | 79 mm | 20.5 mm | 55 mm |
| 62.5mm x 20mm (2.5"x 0.79") |
150kgs (330 lbs) |
ZQPU | 1163(1)-25-115-2 | 94 mm | 24 mm | 65 mm | ||
| 75mm x 20mm (3"x 0.79") |
180kgs (396 lbs) |
ZQPU | 1163(1)-03-115-2 | 105 mm | 22 mm | 69 mm | ||
| Medium Duty | 75mm x 30mm (3"x 1.18") |
300kgs (660 lbs) |
QPU | 1163(1)-03-81-2 | Ball Bearing | 105 mm | 22 mm | 72 mm |
| 100mm x 22mm (4"x 0.87") |
280kgs (616 lbs) |
ZQPU | 1163(1)-04-115-2 | 130 mm | 30 mm | 91 mm | ||
| 125mm x 24mm (5"x 1") |
330kgs (726 lbs) |
ZQPU | 1163(1)-05-115-2 | 155 mm | 33 mm | 104 mm | ||
| 150mm x 24mm (6"x 1") |
380kgs (836 lbs) |
ZQPU | 1163(1)-06-115-2 | 180 mm | 35 mm | 118 mm | ||
| Heavy Duty | 80mm x 35mm (3.2"x 1.38") |
400kgs (880 lbs) |
XPU | 163(1)-03-96-2 | Ball Bearing | 110 mm | 30 mm | 90 mm |
| 100mm x 32mm (4"x 1.26") |
400kgs (880 lbs) |
QPU(Round) | 1163(1)-04-81-2 | 130 mm | 30 mm | 99 mm | ||
| Extra Heavy Duty |
80mm x 42mm (3.2"x 1.65") |
550kgs (1210 lbs) |
XPU | 1163(1)-03-96-2(1) | Ball Bearing | 110 mm | 30 mm | 93 mm |
| 125mm x 40mm (5"x 1.57") |
600kgs (1320 lbs) |
EQPU(Round) | 1163(1)-05-81-2 | 155 mm | 33 mm | 113 mm | ||
| 150mm x 42mm (6"x 1.65") |
700kgs (1540 lbs) |
EQPU(Round) | 1163(1)-06-81-2 | 180 mm | 35 mm | 127 mm |
