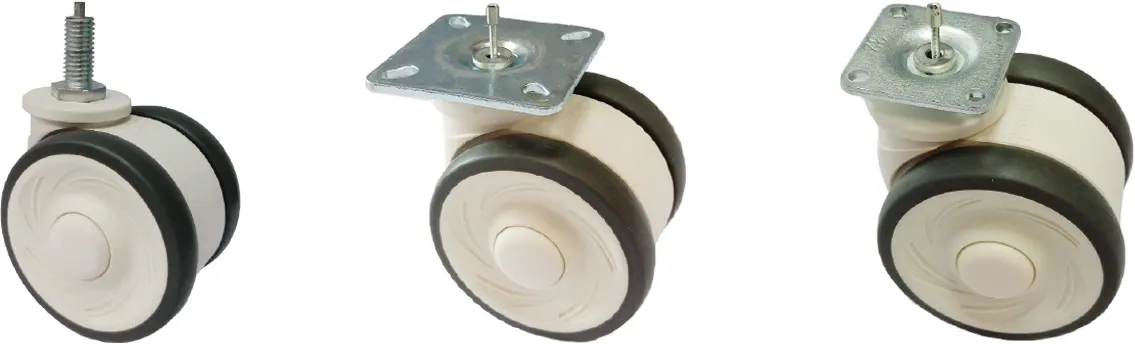

1161 Series — Automatic Cable Locking Caster
This self-locking caster is designed to immobilize the casters/wheels automatically when the casters and the cart they carried are in a non-operated condition. With a connection of a cable and lever system, the caster locks automatically when the users release a handle of the trolley/carts, which increases the safety of the products in use.
Features
Swivel W/Automatic locking
E-Conductive
Features
Swivel W/Automatic locking
E-Conductive
Wheel Options
Resolute
TPR on PP Core
E-Conductive

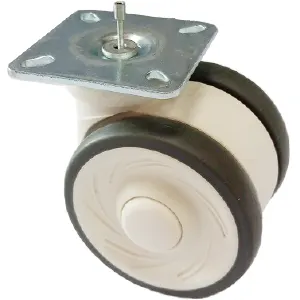

Top Plate Size And Bolt Hole Spacing
| Size | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 3" | 42 x 42 mm (1-21/32" x 1-21/32") |
32 x 32 mm (1-1/4" x 1-1/4") |
M4/M5 |
| 3" | 60 x 60 mm (2-3/8" x 2-3/8") |
42.5 x 42.5 mm (1-11/16" x 1-11/16") |
M6 |
| 4" 5" | 69 x 96 mm (2-23/32" x 3-25/32") |
45 x 75 mm (1-25/32" x 2-15/16") |
M8 |
| 4" 5" | 69 x 96 mm (2-23/32" x 3-25/32") |
49 x 74.5 mm (1-15/16" x 2-15/16") |
M8 |
* Fixed Caster is available. Please consult the factory.

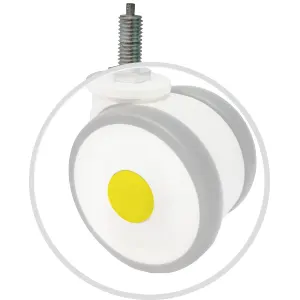

Threaded Stem Specification
| Size | Threaded Size | Size | Threaded Size |
| 3" 4" 5" | M12 x 25 mm | 4" 5" | M16 x 30 mm |
Top Plate Size And Bolt Hole Spacing
| Size | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 3" | 42 x 42 mm (1-21/32" x 1-21/32") |
32 x 32 mm (1-1/4" x 1-1/4") |
M4/M5 |
| Size | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 3" | 42 x 42 mm (1-21/32" x 1-21/32") |
32 x 32 mm (1-1/4" x 1-1/4") |
M4/M5 |
| 3" | 60 x 60 mm (2-3/8" x 2-3/8") |
42.5 x 42.5 mm (1-11/16" x 1-11/16") |
M6 |
| 4" 5" | 69 x 96 mm (2-23/32" x 3-25/32") |
45 x 75 mm (1-25/32" x 2-15/16") |
M8 |
| 4" 5" | 69 x 96 mm (2-23/32" x 3-25/32") |
49 x 74.5 mm (1-15/16" x 2-15/16") |
M8 |
* Fixed Caster is available. Please consult the factory.
Threaded Stem Specification
| Size | Threaded Size | Size | Threaded Size |
| 3" 4" 5" | M12 x 25 mm | 4" 5" | M16 x 30 mm |
Specification
| Diameter × Width | Specification | Load | Material | Item No. | Bearing | Overall Height | Offset | Swivel Radius | ||
| Fixed | Swivel | Brake | ||||||||
| Width of Tread 75mm x 14mm (3" x 0.55") _________ Caster width 75mm x 59mm (3" x 2.3") |
Plate | 90kgs (198lbs) | Resolute | 1161-03-84-1 | 1161-03-84-2 | 1161-03-84-4 | Ball Bearing | 90mm (3-17/32") |
23mm | Swivel 67mm Swivel W/Automatic locking 67mm |
| 90kgs (198lbs) | E-conductive | 1161-03-85-1 | 1161-03-85-2 | 1161-03-85-4 | ||||||
| 90kgs (198lbs) | TPR on PP Core | 1161-03-86-1 | 1161-03-86-2 | 1161-03-86-4 | ||||||
| Threaded Stem |
90kgs (198lbs) | Resolute | ─ | 1161-03-84-2 | 1161-03-84-4 | 82mm (3-7/32") |
||||
| 90kgs (198lbs) | E-conductive | ─ | 1161-03-85-2 | 1161-03-85-4 | ||||||
| 90kgs (198lbs) | TPR on PP Core | ─ | 1161-03-86-2 | 1161-03-86-4 | ||||||
| Width of Tread 100mm x 18mm (4" x 0.7") _________ Caster width 100mm x 82mm (4" x 3.2") |
Plate | 100kgs (220lbs) | Resolute | 1161-04-84-1 | 1161-04-84-2 | 1161-04-84-4 | Ball Bearing | 123mm (4-27/32") |
32mm | Swivel 91mm Swivel W/Automatic locking 91mm |
| 100kgs (220lbs) | E-conductive | 1161-04-85-1 | 1161-04-85-2 | 1161-04-85-4 | ||||||
| 100kgs (220lbs) | TPR on PP Core | 1161-04-86-1 | 1161-04-86-2 | 1161-04-86-4 | ||||||
| Threaded Stem |
100kgs (220lbs) | Resolute | ─ | 1161-04-84-2 | 1161-04-84-4 | 121mm (4-3/4") |
||||
| 100kgs (220lbs) | E-conductive | ─ | 1161-04-85-2 | 1161-04-85-4 | ||||||
| 100kgs (220lbs) | TPR on PP Core | ─ | 1161-04-86-2 | 1161-04-86-4 | ||||||
| Width of Tread 125mm x 18mm (5" x 0.7") _________ Caster width 125mm x 84.5mm (5" x 3.3") |
Plate | 110kgs (242 lbs) |
Resolute | 1161-05-84-1 | 1161-05-84-2 | 1161-05-84-4 | Ball Bearing | 147mm (5-25/32") |
40mm | Swivel 110mm Swivel W/Automatic locking 110mm |
| 110kgs (242 lbs) |
E-conductive | 1161-05-85-1 | 1161-04-85-2 | 1161-05-85-4 | ||||||
| 110kgs (242 lbs) |
TPR on PP Core | 1161-05-86-1 | 1161-05-86-2 | 1161-05-86-4 | ||||||
| Threaded Stem |
110kgs (242 lbs) |
Resolute | ─ | 1161-05-84-2 | 1161-05-84-4 | 145mm (5-23/32") |
||||
| 110kgs (242 lbs) |
E-conductive | ─ | 1161-05-85-2 | 1161-05-85-4 | ||||||
| 110kgs (242 lbs) |
TPR on PP Core | ─ | 1161-05-86-2 | 1161-05-86-4 | ||||||
