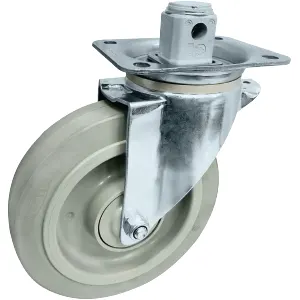

1153 Series — Heavy Duty 2" Wide General Purposes Caster
Pressed steel caster horn/ housing designed for European market. Swivel easily with high performance total lock brake, suitable for medium and heavy duty logistic equipment.
Features
Rear Total Lock
Front Total Lock
Swivel with Central, Total Lock
Directional Lock
Features
Rear Total Lock
Front Total Lock
Swivel with Central, Total Lock
Directional Lock
Wheel Options
QPU on AL Core
EQPU
VQPU
Rubber on AL Core
Nylon Wheel
Resilient Resolute Wheel
(Blue Tread)
Resilient Resolute Wheel
(Gray Tread)
Black Rubber Wheel
(Steel Core)
Gray Rubber Wheel
(Steel Core)
Black Rubber Wheel
(Plastic Core)
Gray Rubber Wheel
(Plastic Core)
Top Plate Size And Bolt Hole Spacing
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 137 x 105mm (5-3/8" x 4-1/8") | 105 x 80/75mm (4-1/8" x 3-1/8") | 10mm (3/8") |
| 2 | 137 x 105mm (5-3/8" x 4-1/8") | 92.5 x 84.5mm(3-5/8" x 3-5/16") | M10 (3/8") |
| 3 | 137 x 105mm (5-3/8" x 4-1/8") | 118 x 75mm (4-11/16" x 3") | M10 (3/8") |
Single Bolt Hole
| Suffix | Center Hole |
| 1 | 13mm |
Top Plate Size And Bolt Hole Spacing
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 137 x 105mm (5-3/8" x 4-1/8") |
105 x 80/75mm (4-1/8" x 3-1/8") |
10mm (3/8") |
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 137 x 105mm (5-3/8" x 4-1/8") |
105 x 80/75mm (4-1/8" x 3-1/8") |
10mm (3/8") |
| 2 | 137 x 105mm (5-3/8" x 4-1/8") |
92.5 x 84.5mm (3-5/8" x 3-5/16") |
M10 (3/8") |
| 3 | 137 x 105mm (5-3/8" x 4-1/8") |
118 x 75mm (4-11/16" x 3") |
M10 (3/8") |
Single Bolt Hole
| Suffix | Center Hole |
| 1 | 13mm |
Specification
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Offset | Swivel Radius | ||
| Fixed | Swivel | Brake | |||||||
| 150 x 40mm (6" x 1-9/16") |
280kgs (615 lbs) | Rubber on Aluminum Core |
1153-06-22-1 | 1153-06-22-2 | 1153-06-22-4 | Ball Bearing | 190mm (7-1/2") |
55mm | Swivel 131mm Swivel W/Rear total lock 131mm |
| 350kgs (770 lbs) | Nylon Wheel | 1153-06-45-1 | 1153-06-45-2 | 1153-06-45-4 | Ball Bearing | ||||
| 125kgs (275 lbs) | Black Rubber Wheel (Steel Core) |
1153-06-103-1 | 1153-06-103-2 | 1153-06-103-4 | Roller Bearing | ||||
| 125kgs (275 lbs) | Black Rubber Wheel (Plastic Core) |
1153-06-104-1 | 1153-06-104-2 | 1153-06-104-4 | Roller Bearing Plain Bearing |
||||
| 125kgs (275 lbs) | Gray Rubber Wheel (Steel Core) |
1153-06-106-1 | 1153-06-106-2 | 1153-06-106-4 | Roller Bearing | ||||
| 125kgs (275 lbs) | Gray Rubber Wheel (Plastic Core) |
1153-06-107-1 | 1153-06-107-2 | 1153-06-107-4 | Roller Bearing Plain Bearing |
||||
| 150 x 42mm (6" x 1-5/8") |
350kgs (770 lbs) | QPU on AL Core (Round) | 1153-06-87-1 | 1153-06-87-2 | 1153-06-87-4 | Ball Bearing | 190mm (7-1/2") |
55mm | Swivel 131mm Swivel W/Rear total lock 131mm |
| 350kgs (770 lbs) | EQPU (Round) | 1153-06-81-1 | 1153-06-81-2 | 1153-06-81-4 | |||||
| 350kgs (770 lbs) | EQPU (Flat) | 1153-06-81-1 | 1153-06-81-2 | 1153-06-81-4 | |||||
| 350kgs (770 lbs) | VQPU (Round) | 1153-06-83-1 | 1153-06-83-2 | 1153-06-83-4 | |||||
| 150 x 50mm (6" x 2") |
350kgs (770 lbs) | QPU on AL Core (Flat) | 1153-06-87-1 | 1153-06-87-2 | 1153-06-87-4 | Ball Bearing | 190mm (7-1/2") |
55mm | Swivel 131mm Swivel W/Rear total lock 131mm |
| 160 x 40mm (6-5/16" x 1-9/16") |
350kgs (770 lbs) | Nylon Wheel | 1153-65-45-1 | 1153-65-45-2 | 1153-65-45-4 | Ball Bearing Plain Bearing Roller Bearing Annular ball bearing |
200mm (7-7/8") |
55mm | Swivel 136mm Swivel W/Rear total lock 136mm |
| 135kgs (295 lbs) | Black Rubber Wheel (Steel Core) |
1153-65-103-1 | 1153-65-103-2 | 1153-65-103-4 | Roller Bearing | ||||
| 135kgs (295 lbs) | Black Rubber Wheel (Plastic Core) |
1153-65-104-1 | 1153-65-104-2 | 1153-65-104-4 | Roller Bearing Plain Bearing |
||||
| 135kgs (295 lbs) | Gray Rubber Wheel (Steel Core) |
1153-65-106-1 | 1153-65-106-2 | 1153-65-106-4 | Roller Bearing | ||||
| 135kgs (295 lbs) | Gray Rubber Wheel (Plastic Core) |
1153-65-107-1 | 1153-65-107-2 | 1153-65-107-4 | Roller Bearing Plain Bearing |
||||
| 160 x 42mm (6-5/16" 1-5/8") |
350kgs (770 lbs) | QPU on AL Core (Round) | 1153-65-87-1 | 1153-65-87-2 | 1153-65-87-4 | Ball Bearing | 200mm (7-7/8") |
55mm | Swivel 136mm Swivel W/Rear total lock 136mm |
| 300kgs (660 lbs) | Rubber on Aluminum Core |
1153-65-22-1 | 1153-65-22-2 | 1153-65-22-4 | Ball Bearing | ||||
| 160 x 48mm (6-5/16" x 1-7/8") |
300kgs (660 lbs) | Resilient Resolute Wheel(Gray tread) |
1153-65-105-1 | 1153-65-105-2 | 1153-65-105-4 | Ball Bearing Roller Bearing Annular ball bearing |
200mm (7-7/8") |
55mm | Swivel 136mm Swivel W/Rear total lock 136mm |
| 300kgs (660 lbs) | Resilient Resolute Wheel(Blue tread) |
1153-65-50-1 | 1153-65-50-2 | 1153-65-50-4 | Ball Bearing Roller Bearing Annular ball bearing |
||||
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Offset | Swivel Radius | ||
| Fixed | Swivel | Brake | |||||||
| 160 x 50mm (6-5/16" x 2") |
350kgs (770 lbs) | QPU on AL Core (Flat) | 1153-65-87-1 | 1153-65-87-2 | 1153-65-87-4 | Ball Bearing | 200mm (7-7/8") |
55mm | Swivel 136mm Swivel W/Rear total lock 136mm |
| 180 x 44mm (7" x 1-3/4") |
350kgs (770 lbs) | QPU on AL Core (Round) | 1153-07-87-1 | 1153-07-87-2 | 1153-07-87-4 | Ball Bearing | 220mm (8-11/16") |
55mm | Swivel 145mm Swivel W/Rear total lock 145mm |
| 180 x 50mm (7" x 2") |
175kgs (385 lbs) | Black Rubber Wheel (Steel Core) |
1153-07-103-1 | 1153-07-103-2 | 1153-07-103-4 | Roller Bearing | 220mm (8-11/16") |
55mm | Swivel 145mm Swivel W/Rear total lock 145mm |
| 175kgs (385 lbs) | Black Rubber Wheel (Plastic Core) |
1153-07-104-1 | 1153-07-104-2 | 1153-07-104-4 | Roller Bearing 中管 Plain Bearing |
||||
| 175kgs (385 lbs) | Gray Rubber Wheel (Steel Core) |
1153-07-106-1 | 1153-07-106-2 | 1153-07-106-4 | Roller Bearing | ||||
| 175kgs (385 lbs) | Gray Rubber Wheel (Plastic Core) |
1153-07-107-1 | 1153-07-107-2 | 1153-07-107-4 | Roller Bearing Plain Bearing |
||||
| 200 x 44mm (8" x 1-3/4") |
350kgs (770 lbs) | Rubber on Aluminum Core |
1153-08-22-1 | 1153-08-22-2 | 1153-08-22-4 | Ball Bearing | 240mm (9-1/2") |
55mm | Swivel 155mm Swivel W/Rear total lock 155mm |
| 200 x 48mm (8" x 1-7/8") |
325kgs (715 lbs) | Resilient Resolute Wheel(Gray tread) |
1153-08-105-1 | 1153-08-105-2 | 1153-08-105-4 | Ball Bearing Roller Bearing Annular ball bearing |
240mm (9-1/2") |
55mm | Swivel 155mm Swivel W/Rear total lock 155mm |
| 325kgs (715 lbs) | Resilient Resolute Wheel(Blue tread) |
1153-08-50-1 | 1153-08-50-2 | 1153-08-50-4 | Ball Bearing Roller Bearing Annular ball bearing |
||||
| 200 x 50mm (8" x 2") |
350kgs (770 lbs) | QPU on AL Core (Flat) | 1153-08-87-1 | 1153-08-87-2 | 1153-08-87-4 | Ball Bearing | 240mm (9-1/2") |
55mm | Swivel 155mm Swivel W/Rear total lock 155mm |
| 350kgs (770 lbs) | QPU on AL Core (Round) | 1153-08-87-1 | 1153-08-87-2 | 1153-08-87-4 | |||||
| 350kgs (770 lbs) | EQPU (Round) | 1153-08-81-1 | 1153-08-81-2 | 1153-08-81-4 | |||||
| 350kgs (770 lbs) | EQPU (Flat) | 1153-08-81-1 | 1153-08-81-2 | 1153-08-81-4 | |||||
| 350kgs (770 lbs) | VQPU (Round) | 1153-08-83-1 | 1153-08-83-2 | 1153-08-83-4 | |||||
| 350kgs (770 lbs) | Nylon Wheel | 1153-08-45-1 | 1153-08-45-2 | 1153-08-45-4 | Ball Bearing Plain Bearing Roller Bearing Annular ball bearing |
||||
| 205kgs (450 lbs) | Black Rubber Wheel (Steel Core) |
1153-08-103-1 | 1153-08-103-2 | 1153-08-103-4 | Roller Bearing | ||||
| 205kgs (450 lbs) | Black Rubber Wheel (Plastic Core) |
1153-08-104-1 | 1153-08-104-2 | 1153-08-104-4 | Roller Bearing Plain Bearing |
||||
| 205kgs (450 lbs) | Gray Rubber Wheel (Steel Core) |
1153-08-106-1 | 1153-08-106-2 | 1153-08-106-4 | Roller Bearing | ||||
| 205kgs (450 lbs) | Gray Rubber Wheel (Plastic Core) |
1153-08-107-1 | 1153-08-107-2 | 1153-08-107-4 | Roller Bearing Plain Bearing |
||||
