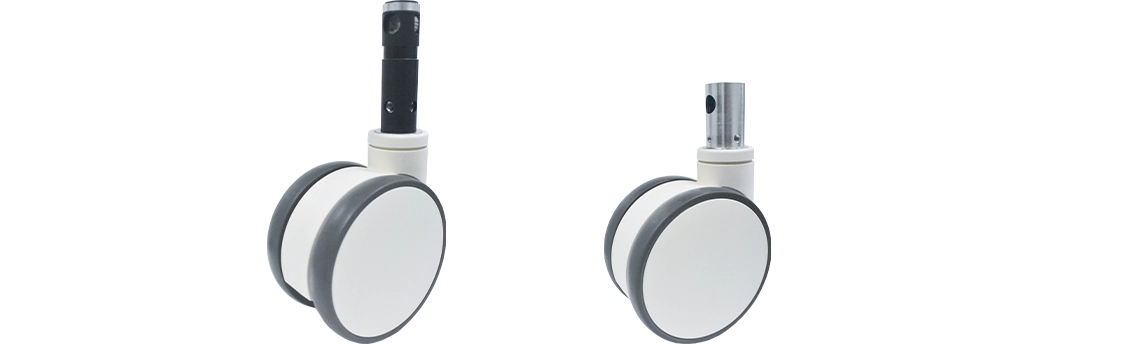

1148-1 Series — 48-1 Economic Central Control Twin Ball Caster Series
Smooth and flexible rotation with high load capacity, featuring a sleek and minimalist design that combines cost-effectiveness with functionality.
Provides stable and effortless movement, suitable for various applications.
Equipped with high-precision ball bearings for enhanced durability and smooth operation.
Specification
| Brake type | Wheel diameter (mm) | Width of Tread (mm) | Stem diameter (mm) | Stem length (mm) | Offset (mm) | Overall height (mm) | Load capacity (kg) | Swivel radius (mm) | Hole height (mm) | Hole diameter (mm) | Angle | Wheel Tread Material | ITEM NO. |
| Swivel caster with total lock |

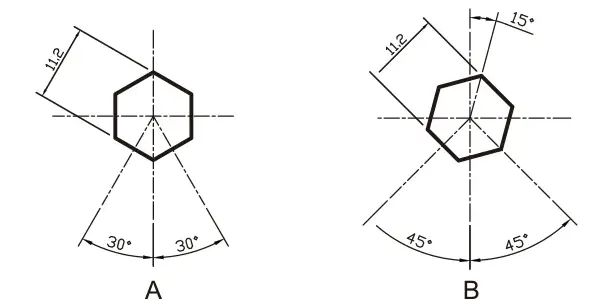

125 | 18 | 28 | 95 | 38.5 | 150 | 150 | 107 | 78.5 | 11 | A | Resolute Rubber |
11480501458033 |
| B | 11480501458233 | ||||||||||||
| 125 | 18 | 32 | 50 | 38.5 | 150 | 150 | 107 | 34 | 11 | A | 11480501458133 | ||
| B | 11480501458333 | ||||||||||||
| 150 | 18 | 28 | 95 | 40 | 167 | 150 | 120 | 34 | 11 | A | 11480601458033 | ||
| B | 11480601458233 | ||||||||||||
| 150 | 18 | 32 | 50 | 40 | 167 | 150 | 120 | 34 | 11 | A | 11480601458133 | ||
| B | 11480601458333 | ||||||||||||
| Swivel caster with total and directional lock | 125 | 18 | 28 | 95 | 38.5 | 150 | 150 | 107 | 78.5 | 11 | A | Resolute | 11480501458023 |
| B | 11480501458223 | ||||||||||||
| 125 | 18 | 32 | 50 | 38.5 | 150 | 150 | 107 | 34 | 11 | A | 11480501458123 | ||
| B | 11480501458323 | ||||||||||||
| 150 | 18 | 28 | 95 | 40 | 167 | 150 | 120 | 78.5 | 11 | A | 11480601458023 | ||
| B | 11480601458223 | ||||||||||||
| 150 | 18 | 32 | 50 | 40 | 167 | 150 | 120 | 34 | 11 | A | 11480601458123 | ||
| B | 11480601458323 |
