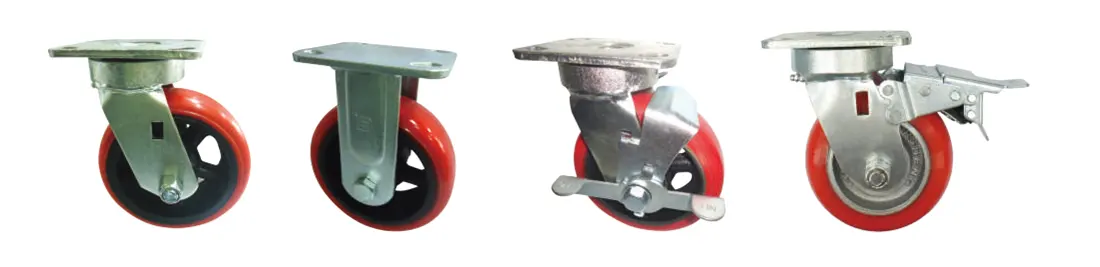

1141 Series — Kingpinless Caster (American Style)
Heavy Duty Kingpinless casters with hardened raceways for greater impact resistance to avoid distortions.Ideal for towing application in automobile, glass, textile, tyre industry, etc...Patented thread guards and dust covers prevent swivel failure caused by build-up of strings between the wheel and fork legs, as well as the dust in the wheel bearing. Suitable for application with shock loads, towing and unven floor surface.
Features
.webp)
Side Lock Beake
.webp)

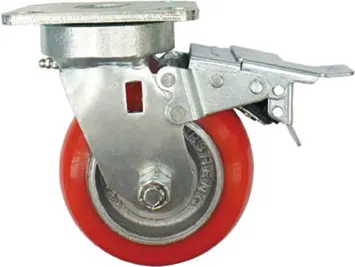

AK Brake
.webp)
Directional Lock
.webp)
Double groove is also available. Please consult with factory.
Features
Side Lock Beake
AK Brake
Directional Lock
Double groove is also available. Please consult with factory.
Wheel Options
-
PU on PP Core
(Round Shape) -
NBR Rubberon Cast
-
PU on Cast
-
TPR on PP Core
(Round Shpae) -
TPR on PP Core
(Flate Shape) -
PU on Cast
(Round Shape) -
Phenolic
-
PU on PP core
-
Cast Iron
-
V Groove
-
CPU on PP core
-
EPU
-
HD Resolute Wheel
(Round Shape) -
WHDR
-
Resolute
(Round Shape) -
Resolute
(Flate Shape) -
W Resolute
(Flate Shape) -
WPPR
(Flate Shape)
Top Plate Size And Bolt Hole Spacing
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 100 × 115 (4" × 4-1/2") |
70 × 85mm (2-5/8"~3" × 3"~3-5/8") |
9.5mm (3/8") |
| 2 | 115 × 159 (4-1/2" × 6-1/4") |
75 × 130mm (2-7/16"~3-3/8" × 4-15/16"~5-1/4") |
12.7mm (1/2") |
Top Plate Size And Bolt Hole Spacing
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 100 × 115 (4" × 4-1/2") |
70 × 85mm (2-5/8"~3" × 3"~3-5/8") |
9.5mm (3/8") |
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 100 × 115 (4" × 4-1/2") |
70 × 85mm (2-5/8"~3" × 3"~3-5/8") |
9.5mm (3/8") |
| 2 | 115 × 159 (4-1/2" × 6-1/4") |
75 × 130mm (2-7/16"~3-3/8" × 4-15/16"~5-1/4") |
12.7mm (1/2") |
Specification
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Swivel Radius | ||
| Fixed | Swivel | Brake | ||||||
| 100×50mm (4"×2") |
270kgs(600lbs) | PU on PP Core (Round Shpae) |
1141-04-43-1 | 1141-04-43-2 | 1141-04-43-4 | Ball Bearing | 142mm (5-5/8") |
Single groove: Swivel 80mm Swivel W/Side Brake 102mm AK Brake 143mm Double groove: Swivel 90mm Swivel W/Side Brake 112mm AK Brake 153mm |
| 200kgs(440lbs) | PU on Cast (Round Shpae) |
1141-04-42-1 | 1141-04-42-2 | 1141-04-42-4 | ||||
| 150kgs(325lbs) | NBR Rubber on Cast | 1141-04-04-1 | 1141-04-04-2 | 1141-04-04-4 | Roller Bearing | |||
| 320kgs(700lbs) | PU on Cast | 1141-04-33-1 | 1141-04-33-2 | 1141-04-33-4 | ||||
| 360kgs(800lbs) | Phenolic | 1141-04-25-1 | 1141-04-25-2 | 1141-04-25-4 | ||||
| 270kgs(600lbs) | PU on PP core | 1141-04-31-1 | 1141-04-31-2 | 1141-04-31-4 | ||||
| 360kgs(800lbs) | Cast Iron | 1141-04-21-1 | 1141-04-21-2 | 1141-04-21-4 | ||||
| 360kgs(800lbs) | V Groove | 1141-04-28-1 | 1141-04-28-2 | 1141-04-28-4 | ||||
| 120kgs(265lbs) | TPR on PP | 1141-04-26-1 | 1141-04-26-2 | 1141-04-26-4 | Roller Bearing Annular ball bearing |
|||
| 150kgs(330lbs) | TPR on PP Core (Flate Shape) |
1141-04-52-1 | 1141-04-52-2 | 1141-04-52-4 | ||||
| 150kgs(330lbs) | WPPR | 1141-04-47-1 | 1141-04-47-2 | 1141-04-47-4 | ||||
| 181kgs(400lbs) | W Resolute (Flate Shape) |
1141-04-48-1 | 1141-04-48-2 | 1141-04-48-4 | ||||
| 181kgs(400lbs) | Resolute (Flate Shape) |
1141-04-51-1 | 1141-04-51-2 | 1141-04-51-4 | ||||
| 136kgs(300lbs) | Resolute (Round Shape) |
1141-04-44-1 | 1141-04-44-2 | 1141-04-44-4 | ||||
| 228kgs(500lbs) | HD Resolute Wheel (Round Shape) |
1141-04-54-1 | 1141-04-54-2 | 1141-04-54-4 | ||||
| 270kgs(600lbs) | WHDR | 1141-04-55-1 | 1141-04-55-2 | 1141-04-55-4 | ||||
| 125×50mm (5"×2") |
340kgs(750lbs) | PU on PP Core (Round Shape) |
1141-05-43-1 | 1141-05-43-2 | 1141-05-43-4 | Ball Bearing | 167mm (6-1/2") |
Single groove: Swivel 95.5mm Swivel W/Side Brake 102mm AK Brake 154mm Double groove: Swivel 105.5mm Swivel W/Side Brake 122mm AK Brake 164mm |
| 230kgs(500lbs) | PU on Cast (Round Shape) |
1141-05-42-1 | 1141-05-42-2 | 1141-05-42-4 | ||||
| 340kgs(750lbs) | CPU on PP core | 1141-05-63-1 | 1141-05-63-2 | 1141-05-63-4 | ||||
| 400kgs(880lbs) | EPU | 1141-05-78-1 | 1141-05-78-2 | 1141-05-78-4 | ||||
| 500kgs(1100lbs) | EQPU | 1141-05-81-1 | 1141-05-81-2 | 1141-05-81-4 | ||||
| 200kgs(440lbs) | NBR Rubber on Cast | 1141-05-04-1 | 1141-05-04-2 | 1141-05-04-4 | Roller Bearing | |||
| 360kgs(790lbs) | PU on Cast | 1141-05-33-1 | 1141-05-33-2 | 1141-05-33-4 | ||||
| 400kgs(880lbs) | Phenolic | 1141-05-25-1 | 1141-05-25-2 | 1141-05-25-4 | ||||
| 340kgs(750lbs) | PU on PP core | 1141-05-31-1 | 1141-05-31-2 | 1141-05-31-4 | ||||
| 400kgs(880lbs) | Cast Iron | 1141-05-21-1 | 1141-05-21-2 | 1141-05-21-4 | ||||
| 400kgs(880lbs) | V Groove | 1141-05-28-1 | 1141-05-28-2 | 1141-05-28-4 | ||||
| 140kgs(300lbs) | TPR on PP Core (Round Shpae) |
1141-05-26-1 | 1141-05-26-2 | 1141-05-26-4 | Roller Bearing Annular ball bearing |
|||
| 180kgs(396lbs) | TPR on PP Core (Flate Shape) |
1141-05-52-1 | 1141-05-52-2 | 1141-05-52-4 | ||||
| 180kgs(396lbs) | WPPR | 1141-05-47-1 | 1141-05-47-2 | 1141-05-47-4 | ||||
| 227kgs(500lbs) | W Resolute (Flate Shape) |
1141-05-48-1 | 1141-05-48-2 | 1141-05-48-4 | ||||
| 227kgs(500lbs) | Resolute (Flate Shape) |
1141-05-51-1 | 1141-05-51-2 | 1141-05-51-4 | ||||
| 170kgs(375lbs) | Resolute (Round Shape) |
1141-05-44-1 | 1141-05-44-2 | 1141-05-44-4 | ||||
| 261kgs(575lbs) | HD Resolute Wheel (Round Shape) |
1141-05-54-1 | 1141-05-54-2 | 1141-05-54-4 | ||||
| 340kgs(750lbs) | WHDR | 1141-05-55-1 | 1141-05-55-2 | 1141-05-55-4 | ||||
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Swivel Radius | ||
| Fixed | Swivel | Brake | ||||||
| 150×50mm (6"×2") |
410kgs(900lbs) | PU on PP Core (Round Shape) |
1141-06-43-1 | 1141-06-43-2 | 1141-06-43-4 | Ball Bearing | 190mm (7-1/2") |
Single groove: Swivel 111mm Swivel W/Side Brake 123mm AK Brake 158mm Double groove: Swivel 123mm Swivel W/Side Brake 135mm AK Brake 170mm |
| 260kgs(570lbs) | PU on Cast (Round Shape) |
1141-06-42-1 | 1141-06-42-2 | 1141-06-42-4 | ||||
| 410kgs(900lbs) | CPU on PP core | 1141-06-63-1 | 1141-06-63-2 | 1141-06-63-4 | ||||
| 500kgs(1100lbs) | EPU | 1141-06-78-1 | 1141-06-78-2 | 1141-06-78-4 | ||||
| 600kgs(1320lbs) | EQPU | 1141-06-81-1 | 1141-06-81-2 | 1141-06-81-4 | ||||
| 250kgs(550lbs) | NBR Rubber on Cast | 1141-06-04-1 | 1141-06-04-2 | 1141-06-04-4 | Roller Bearing | |||
| 410kgs(900lbs) | PU on Cast | 1141-06-33-1 | 1141-06-33-2 | 1141-06-33-4 | ||||
| 420kgs(925lbs) | Phenolic | 1141-06-25-1 | 1141-06-25-2 | 1141-06-25-4 | ||||
| 410kgs(900lbs) | PU on PP core | 1141-06-31-1 | 1141-06-31-2 | 1141-06-31-4 | ||||
| 420kgs(925lbs) | Cast Iron | 1141-06-21-1 | 1141-06-21-2 | 1141-06-21-4 | ||||
| 420kgs(925lbs) | V Groove | 1141-06-28-1 | 1141-06-28-2 | 1141-06-28-4 | ||||
| 160kgs(350lbs) | TPR on PP Core (Round Shpae) |
1141-06-26-1 | 1141-06-26-2 | 1141-06-26-4 | Roller Bearing Annular ball bearing |
|||
| 210kgs(462lbs) | TPR on PP Core (Flate Shape) |
1141-06-52-1 | 1141-06-52-2 | 1141-06-52-4 | ||||
| 210kgs(462lbs) | WPPR | 1141-06-47-1 | 1141-06-47-2 | 1141-06-47-4 | ||||
| 272kgs(600lbs) | W Resolute (Flate Shape) |
1141-06-48-1 | 1141-06-48-2 | 1141-06-48-4 | ||||
| 272kgs(600lbs) | Resolute (Flate Shape) |
1141-06-51-1 | 1141-06-51-2 | 1141-06-51-4 | ||||
| 204kgs(450lbs) | Resolute (Round Shape) |
1141-06-44-1 | 1141-06-44-2 | 1141-06-44-4 | ||||
| 295kgs(650lbs) | HD Resolute Wheel (Round Shape) |
1141-06-54-1 | 1141-06-54-2 | 1141-06-54-4 | ||||
| 408kgs(900lbs) | WHDR | 1141-06-55-1 | 1141-06-55-2 | 1141-06-55-4 | ||||
| 200×50mm (8"×2") |
420kgs(925lbs) | PU on PP Core (Round Shape) |
1141-08-43-1 | 1141-08-43-2 | 1141-08-43-4 | Ball Bearing | 240mm (9-1/2") |
Single groove: Swivel 145mm Swivel W/Side Brake 145mm AK Brake 169mm Double groove: Swivel 157mm Swivel W/Side Brake 157mm AK Brake 181mm |
| 300kgs(660lbs) | PU on Cast (Round Shape) |
1141-08-42-1 | 1141-08-42-2 | 1141-08-42-4 | ||||
| 420kgs(925lbs) | CPU on PP core | 1141-08-63-1 | 1141-08-63-2 | 1141-08-63-4 | ||||
| 600kgs(1320lbs) | EPU | 1141-08-78-1 | 1141-08-78-2 | 1141-08-78-4 | ||||
| 750kgs(1650lbs) | EQPU | 1141-08-81-1 | 1141-08-81-2 | 1141-08-81-4 | ||||
| 300kgs(660lbs) | NBR Rubber on Cast | 1141-08-04-1 | 1141-08-04-2 | 1141-08-04-4 | Roller Bearing | |||
| 450kgs(990lbs) | PU on Cast | 1141-08-33-1 | 1141-08-33-2 | 1141-08-33-4 | ||||
| 450kgs(990lbs) | Phenolic | 1141-08-25-1 | 1141-08-25-2 | 1141-08-25-4 | ||||
| 420kgs(925lbs) | PU on PP core | 1141-08-31-1 | 1141-08-31-2 | 1141-08-31-4 | ||||
| 450kgs(990lbs) | Cast Iron | 1141-08-21-1 | 1141-08-21-2 | 1141-08-21-4 | ||||
| 450kgs(990lbs) | V Groove | 1141-08-28-1 | 1141-08-28-2 | 1141-08-28-4 | ||||
| 185kgs(400lbs) | TPR on PP Core (Round Shpae) |
1141-08-26-1 | 1141-08-26-2 | 1141-08-26-4 | Roller Bearing Annular ball bearing |
|||
| 230kgs(506lbs) | TPR on PP Core (Flate Shape) |
1141-08-52-1 | 1141-08-52-2 | 1141-08-52-4 | ||||
| 230kgs(506lbs) | WPPR | 1141-08-47-1 | 1141-08-47-2 | 1141-08-47-4 | ||||
| 306kgs(675lbs) | W Resolute (Flate Shape) |
1141-08-48-1 | 1141-08-48-2 | 1141-08-48-4 | ||||
| 306kgs(675lbs) | Resolute (Flate Shape) |
1141-08-51-1 | 1141-08-51-2 | 1141-08-51-4 | ||||
| 272kgs(600lbs) | Resolute (Round Shape) |
1141-08-44-1 | 1141-08-44-2 | 1141-08-44-4 | ||||
| 318kgs(700lbs) | HD Resolute Wheel (Round Shape) |
1141-08-54-1 | 1141-08-54-2 | 1141-08-54-4 | ||||
| 430kgs(950lbs) | WHDR | 1141-08-55-1 | 1141-08-55-2 | 1141-08-55-4 | ||||
