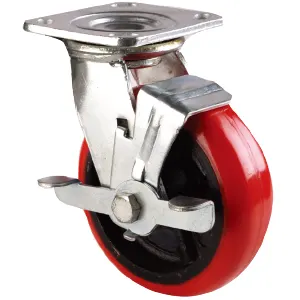

1124Series — 1-1/2" Wide General Purposes Caster (American Style)
Swivel easily under heavy load, for workshop carts. Patented thread guards prevent swivel failute caused by build-up of strings between the wheel and fork legs, as well as the dust in the wheel bearing.
Features
Side Lock Brake
Center Lock Brake
Thread Guard
Different PU tread handness available
Features
Side Lock Brake
Center Lock Brake
Thread Guard
Different PU tread handness available
Wheel Options
-
PU on Cast
-
Rubber on Cast
-
NBR Rubber on Cast
-
Nylon
-
WMRC
-
QPU
-
CPD
-
WCPD
-
Cast Iron
-
Non-marking
Rubber on Cast -
EQPU
-
EPU
-
QPU on AL Core
-
W Resolute
-
Resolute
-
King Kong Wheel
Top Plate Size And Bolt Hole Spacing
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3" x 3"~3-5/8") | 9.5mm(3/8") |
| 2 | 108 x 84 mm (4-1/4"x 3-5/16") | 87.5 x 63.5 mm (3-7/16 x 2-1/2") | M8 (5/16") |
| 3 | 115 x 159 mm (4-1/2"x 6-1/4") | 75 x 130 mm (2-7/16~3-3/8" x 4-15/16"~5-1/4") | 12.7mm(1/2") |
Top Plate Size And Bolt Hole Spacing
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3" x 3"~3-5/8") |
9.5mm (3/8") |
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3" x 3"~3-5/8") |
9.5mm (3/8") |
| 2 | 108 x 84 mm (4-1/4"x 3-5/16") |
87.5 x 63.5 mm (3-7/16 x 2-1/2") |
M8 (5/16") |
| 3 | 115 x 159 mm (4-1/2"x 6-1/4") |
75 x 130 mm (2-7/16~3-3/8" x 4-15/16"~5-1/4") |
12.7mm (1/2") |
Specification
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Swivel Radius | ||
| Fixed | Swivel | Brake | ||||||
| 50mm x 45mm (2" x 1-3/4") |
275 kgs (606 lbs) |
King Kong Wheel | 11240200711013 | 11240200712013 | — | Ball Bearing | 82mm (3-1/4") |
Swivel 51mm |
| 93mm x 28mm (3-21/32" x 1-3/32") |
175 kgs (385 lbs) |
Cast Iron | 1124-04-14-1 | 1124-04-14-2 | — | Ball Bearing | 138.5mm | Swivel 71.5mm |
| 100mm x 32mm (4" x 1-1/4") |
200 kgs (440 lbs) |
Nylon | 1124-04-07-1 | 1124-04-07-2 | 1124-04-07-4 | Ball Bearing | 142mm (5-5/8") |
Swivel 75mm Swivel W/Side Brake 75mm Swivel W/Center lock 115mm |
| 150 kgs (330 lbs) |
CPD | 1124-04-49-1 | 1124-04-49-2 | 1124-04-49-4 | ||||
| 100mm x 34mm (4" x 1-1/3") |
200 kgs (440 lbs) |
PU on Cast | 1124-04-33-1 | 1124-04-33-2 | 1124-04-33-4 | |||
| 300 kgs (660 lbs) |
QPU | 1124-04-80-1 | 1124-04-80-2 | 1124-04-80-4 | ||||
| 150 kgs (330 lbs) |
NBR Rubber on Cast | 1124-04-04-1 | 1124-04-04-2 | 1124-04-04-4 | ||||
| 150 kgs (330 lbs) |
Non-marking Rubber on Cast | 1124-04-11-1 | 1124-04-11-2 | 1124-04-11-4 | ||||
| 100mm x 35mm (4" x 1-1/8") |
150 kgs (330 lbs) |
Rubber on Cast | 1124-04-03-1 | 1124-04-03-2 | 1124-04-03-4 | |||
| 100mm x 36mm (4" x 1-7/16") |
325 kgs (715 lbs) |
QPU on AL Core (Round) | 1124-04-87-1 | 1124-04-87-2 | 1124-04-87-4 | |||
| 100mm x 37.5mm (4" x 1-1/2") |
140 kgs (308 lbs) |
W Resolute | 1124-04-64-1 | 1124-04-64-2 | 1124-04-64-4 | |||
| 100mm x 40mm (4" x 1-9/16") |
350 kgs (770 lbs) |
QPU on AL Core (Round) | 1124-04(40)-87-1 | 1124-04(40)-87-2 | 1124-04(40)-87-4 | |||
| 122mm x 36mm (4-13/16" x 1-7/16") |
250 kgs (550 lbs) |
Cast Iron | 1124-05-14-1 | 1124-05-14-2 | — | Ball Bearing | 165.5mm | Swivel 91.5mm |
| 125mm x 37.5mm (5" x 1-1/2") |
250 kgs (550 lbs) |
W Resolute | 1124-05-64-1 | 1124-05-64-2 | 1124-05-64-4 | Ball Bearing | 167mm (6-1/2") |
Swivel 93mm Swivel W/Side Brake 93mm Swivel W/Center lock 112mm |
| 125mm x 40mm (5" x 1-9/16") |
250 kgs (550 lbs) |
PU on Cast | 1124-05-33-1 | 1124-05-33-2 | 1124-05-33-4 | |||
| 350 kgs (770 lbs) |
QPU | 1124-05-80-1 | 1124-05-80-2 | 1124-05-80-4 | ||||
| 350 kgs (770 lbs) |
QPU on AL Core (Round) | 1124-05-87-1 | 1124-05-87-2 | 1124-05-87-4 | ||||
| 250 kgs (550 lbs) |
EPU | 1124-05-78-1 | 1124-05-78-2 | 1124-05-78-4 | ||||
| 300 kgs (660 lbs) |
EQPU | 1124-05-81-1 | 1124-05-81-2 | 1124-05-81-4 | ||||
| 200 kgs (440 lbs) |
Rubber on Cast | 1124-05-03-1 | 1124-05-03-2 | 1124-05-03-4 | ||||
| 200 kgs (440 lbs) |
NBR Rubber on Cast | 1124-05-04-1 | 1124-05-04-2 | 1124-05-04-4 | ||||
| 200 kgs (440 lbs) |
Non-marking Rubber on Cast | 1124-05-11-1 | 1124-05-11-2 | 1124-05-11-4 | ||||
| 125mm x 41mm (5" x 1-5/8") |
250 kgs (550 lbs) |
Nylon | 1124-05-07-1 | 1124-05-07-2 | 1124-05-07-4 | |||
| 200 kgs (440 lbs) |
CPD | 1124-05-49-1 | 1124-05-49-2 | 1124-05-49-4 | ||||
| 138mm x 42mm (5-7/16" x 1-5/8") |
300 kgs (660 lbs) |
Cast Iron | 1124-06-14-1 | 1124-06-14-2 | — | Ball Bearing | 184mm | Swivel 104mm |
| 150mm x 37.5mm (6" x 1-1/2") |
180 kgs (396 lbs) |
W Resolute | 1124-06-64-1 | 1124-06-64-2 | 1124-06-64-4 | Ball Bearing | 190mm (7-1/2") |
Swivel 110mm Swivel W/Side Brake 110mm Swivel W/Center lock 160mm |
| 150mm x 40mm (6" x 1-9/16") |
250 kgs (550 lbs) |
NBR Rubber on Cast | 1124-06-04-1 | 1124-06-04-2 | 1124-06-04-4 | |||
| 250 kgs (550 lbs) |
Non-marking Rubber on Cast | 1124-06-11-1 | 1124-06-11-2 | 1124-06-11-4 | ||||
| 350 kgs (770 lbs) |
Nylon | 1124-06-07-1 | 1124-06-07-2 | 1124-06-07-4 | ||||
| 250 kgs (550 lbs) |
CPD | 1124-06-49-1 | 1124-06-49-2 | 1124-06-49-4 | ||||
| 350 kgs (770 lbs) |
WMRC | 1124-06-45-1 | 1124-06-45-2 | 1124-06-45-4 | ||||
| 250 kgs (550 lbs) |
WCPD | 1124-06-79-1 | 1124-06-79-2 | 1124-06-79-4 | ||||
* 50mm x 45mm (2" x 1-3/4") Static load capacity:550kg (1212.5 lbs)
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Swivel Radius | ||
| Fixed | Swivel | Brake | ||||||
| 150mm x 42mm (6" x 1-5/8") |
350 kgs (770 lbs) |
PU on Cast | 1124-06-33-1 | 1124-06-33-2 | 1124-06-33-4 | Ball Bearing | 190mm (7-1/2") |
Swivel 110mm Swivel W/Side Brake 110mm Swivel W/Center lock 160mm |
| 400 kgs (880 lbs) |
QPU | 1124-06-80-1 | 1124-06-80-2 | 1124-06-80-4 | ||||
| 350 kgs (770 lbs) |
EPU | 1124-06-78-1 | 1124-06-78-2 | 1124-06-78-4 | ||||
| 400 kgs (880 lbs) |
EQPU | 1124-06-81-1 | 1124-06-81-2 | 1124-06-81-4 | ||||
| 400 kgs (880 lbs) |
QPU on AL Core (Round) | 1124-06-87-1 | 1124-06-87-2 | 1124-06-87-4 | ||||
| 150mm x 45.5mm (6" x 1-13/16") |
220 kgs (485 lbs) |
Rubber on Cast | 1124-06-03-1 | 1124-06-03-2 | 1124-06-03-4 | |||
| 200mm x 44mm (8" x 1-3/4") |
300 kgs (660 lbs) |
NBR Rubber on Cast | 1124-08-04-1 | 1124-08-04-2 | 1124-08-04-4 | Ball Bearing | 240mm (9-1/2") |
Swivel 145mm Swivel W/Side Brake 145mm Swivel W/Center lock 162.5mm |
| 300 kgs (660 lbs) |
Non-marking Rubber on Cast | 1124-08-11-1 | 1124-08-11-2 | 1124-08-11-4 | ||||
| 200mm x 45mm (8" x 1-13/16") |
350 kgs (770 lbs) |
Cast Iron | 1124-08-14-1 | 1124-08-14-2 | 1124-08-14-4 | |||
| 200mm x 50mm (8" x 2") |
400 kgs (880 lbs) |
PU on Cast | 1124-08-33-1 | 1124-08-33-2 | 1124-08-33-4 | |||
| 400 kgs (880 lbs) |
QPU | 1124-08-80-1 | 1124-08-80-2 | 1124-08-80-4 | ||||
| 400 kgs (880 lbs) |
EPU | 1124-08-78-1 | 1124-08-78-2 | 1124-08-78-4 | ||||
| 400 kgs (880 lbs) |
EQPU | 1124-08-81-1 | 1124-08-81-2 | 1124-08-81-4 | ||||
| 260 kgs (570 lbs) |
Rubber on Cast | 1124-08-03-1 | 1124-08-03-2 | 1124-08-03-4 | ||||
| 300 kgs (660 lbs) |
NBR Rubber on Cast | 1124-08-04-1 | 1124-08-04-2 | 1124-08-04-4 | ||||
| 300 kgs (660 lbs) |
Non-marking Rubber on Cast | 1124-08-11-1 | 1124-08-11-2 | 1124-08-11-4 | ||||
| 400 kgs (880 lbs) |
Nylon | 1124-08-07-1 | 1124-08-07-2 | 1124-08-07-4 | ||||
| 300 kgs (660 lbs) |
CPD | 1124-08-49-1 | 1124-08-49-2 | 1124-08-49-4 | ||||
| 180 kgs (396 lbs) |
Resolute | 1124-08-53-1 | 1124-08-53-2 | 1124-08-53-4 | ||||
| 400 kgs (880 lbs) |
WMRC | 1124-08-45-1 | 1124-08-45-2 | 1124-08-45-4 | ||||
| 300 kgs (660 lbs) |
WCPD | 1124-08-79-1 | 1124-08-79-2 | 1124-08-79-4 | ||||
| 400 kgs (880 lbs) |
QPU on AL Core (Round) | 1124-08-87-1 | 1124-08-87-2 | 1124-08-87-4 | ||||
| 400 kgs (880 lbs) |
QPU on AL Core (Flat) | 1124-08-87-1 | 1124-08-87-2 | 1124-08-87-4 | ||||
