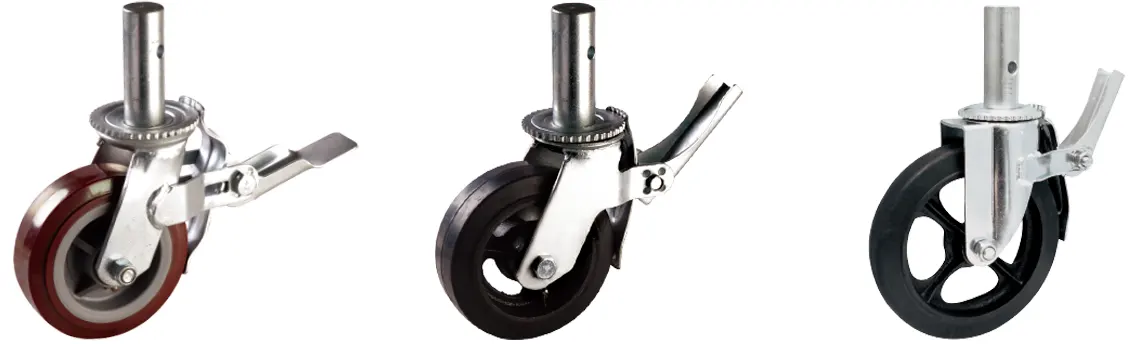

1119 Series — Scaffolding Caster
Design for Scaffolds.
Wheel Options
-
NBR Rubber on Cast
-
PU on PP Core
Top Plate Size And Bolt Hole Spacing
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 35mm (1-3/8") |
100 × 60mm (3-15/16" × 2-3/8") |
11mm (7/16") |
Specification
| Diameter × Width | Load | Material | Item No. | Bearing | Swivel Radius | ||
| Fixed | Swivel | Brake | |||||
| 150mm × 50mm (6" × 2") |
350kgs (770lbs) |
NBR Rubber on Cast | –– | –– | 1119-06-04-4 | Roller Bearing | Swivel W/Center lock 120mm |
| 350kgs (770lbs) |
PU on PP Core | –– | –– | 1119-06-31-4 | |||
| 200mm × 45mm (8" × 1-3/4") |
420kgs (925lbs) |
NBR Rubber on Cast | –– | –– | 1119-08-04-4 | Ball Bearing | Swivel W/Center lock 143.5mm |
| 200mm × 50mm (8" × 2") |
420kgs (925lbs) |
NBR Rubber on Cast | –– | –– | 1119-08-04-4 | Roller Bearing | Swivel W/Center lock 152mm |
| 420kgs (925lbs) |
PU on PP Core | –– | –– | 1119-08-31-4 | |||
