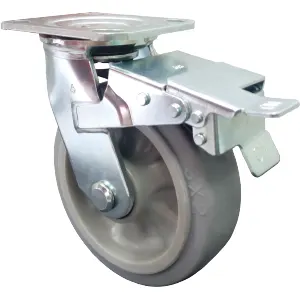

1112 Series — 2" Wide General Purposes Caster (American Style)
Swivel easily under heavy load, good for workshop carts. Patented thread guards and dust covers prevent swivel failute caused by build-up of strings between the wheel and fork legs, as well as the dust in the wheel bearing.
Features
Side Lock Brake
AK Total Lock Brake
Thread Guard
Directional Lock
Different PU tread handness available
Features
Side Lock Brake
AK Total Lock Brake
Thread Guard
Directional Lock
Different PU tread handness available
Wheel Options
-
PU on PP Core
(Round Shape) -
NBR Rubber on Cast
-
PU on Cast
-
TPR on PP Core
(Round Shape) -
TPR on PP Core
(Flat Shape) -
PU on Cast
(Round Shape) -
Phenolic
-
PU on PP Core
-
Cast Iron
-
V Groove
-
CPU on PP Core
-
EPU
-
HD Resolute Wheel
(Round Shape) -
WHDR
-
Resolute
(Round Shape) -
Resolute
(Flat Shape) -
W Resolute Wheel
-
WPPR
-
EQPU
Top Plate Size And Bolt Hole Spacing
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3"x 3"~3-5/8") | 9.5mm(3/8") |
| 2 | 115 x 159 mm (4-1/2"x 6-1/4") | 75 x 130mm (2-7/16"~3-3/8" x 4-15/16"~5-1/4") | 12.7mm(1/2") |
Threaded Stem Specification
| Suffix | Threaded Size |
| 4" 5" 6" 8" | M24 × 150mm |
Top Plate Size And Bolt Hole Spacing
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3"x 3"~3-5/8") | 9.5mm(3/8") |
| Suffix | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 1 | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3"x 3"~3-5/8") | 9.5mm(3/8") |
| 2 | 115 x 159 mm (4-1/2"x 6-1/4") | 75 x 130mm (2-7/16"~3-3/8" x 4-15/16"~5-1/4") | 12.7mm(1/2") |
Threaded Stem Specification
| Suffix | Threaded Size |
| 4" 5" 6" 8" | M24 × 150mm |
Specification
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Swivel Radius | ||
| Fixed | Swivel | Brake | ||||||
| 100 × 50mm (4" × 2") |
270 kgs (600 lbs) |
PU on PP Core (Round Shape) |
1112-04-43-1 | 1112-04-43-2 | 1112-04-43-4 | Ball Bearing | 142mm (5-5/8") |
Swivel 74.5mm Swivel W/Sidebrake 78.5mm AK Total Lock Brake 136.5mm |
| 200 kgs (440 lbs) |
PU on Cast(Round Shape) | 1112-04-42-1 | 1112-04-42-2 | 1112-04-42-4 | ||||
| 150 kgs (325 lbs) |
NBR Rubber on Cast | 1112-04-04-1 | 1112-04-04-2 | 1112-04-04-4 | Roller Bearing | |||
| 270 kgs (600 lbs) |
PU on Cast | 1112-04-33-1 | 1112-04-33-2 | 1112-04-33-4 | ||||
| 360 kgs (800 lbs) |
Phenolic | 1112-04-25-1 | 1112-04-25-2 | 1112-04-25-4 | ||||
| 270 kgs (600 lbs) |
PU on PP Core | 1112-04-31-1 | 1112-04-31-2 | 1112-04-31-4 | ||||
| 360 kgs (800 lbs) |
Cast Iron | 1112-04-21-1 | 1112-04-21-2 | 1112-04-21-4 | ||||
| 360 kgs (800 lbs) |
V Groove | 1112-04-28-1 | 1112-04-28-2 | 1112-04-28-4 | ||||
| 120 kgs (265 lbs) |
TPR on PP Core (Round Shape) |
1112-04-26-1 | 1112-04-26-2 | 1112-04-26-4 | Roller Bearing Annular ball bearing |
|||
| 150 kgs (330 lbs) |
TPR on PP Core(Flat Shape) | 1112-04-52-1 | 1112-04-52-2 | 1112-04-52-4 | ||||
| 150 kgs (330 lbs) |
WPPR | 1112-04-47-1 | 1112-04-47-2 | 1112-04-47-4 | ||||
| 181 kgs (400 lbs) |
W Resolute | 1112-04-48-1 | 1112-04-48-2 | 1112-04-48-4 | ||||
| 181 kgs (400 lbs) |
Resolute (Flat Shape) |
1112-04-51-1 | 1112-04-51-2 | 1112-04-51-4 | ||||
| 136 kgs (300 lbs) |
Resolute (Round Shape) |
1112-04-44-1 | 1112-04-44-2 | 1112-04-44-4 | ||||
| 228 kgs (500 lbs) |
HD Resolute Wheel (Round Shape) |
1112-04-54-1 | 1112-04-54-2 | 1112-04-54-4 | ||||
| 270 kgs (600 lbs) |
WHDR | 1112-04-55-1 | 1112-04-55-2 | 1112-04-55-4 | 125 × 50mm (5" × 2") |
340 kgs (750 lbs) |
PU on PP Core (Round Shape) |
1112-05-43-1 | 1112-05-43-2 | 1112-05-43-4 | Ball Bearing | 167mm (6-1/2") |
Swivel 92.5mm Swivel W/Sidebrake 92.5mm AK Total Lock Brake 140mm |
| 230 kgs (500 lbs) |
PU on Cast (Round Shape) |
1112-05-42-1 | 1112-05-42-2 | 1112-05-42-4 | ||||
| 340 kgs (750 lbs) |
CPU on PP core | 1112-05-63-1 | 1112-05-63-2 | 1112-05-63-4 | ||||
| 360 kgs (790 lbs) |
EPU | 1112-05-78-1 | 1112-05-78-2 | 1112-05-78-4 | ||||
| 450 kgs (990 lbs) |
EQPU | 1112-05-81-1 | 1112-05-81-2 | 1112-05-81-4 | ||||
| 200 kgs (440 lbs) |
NBR Rubber on Cast | 1112-05-04-1 | 1112-05-04-2 | 1112-05-04-4 | Roller Bearing | |||
| 360 kgs (790 lbs) |
PU on Cast | 1112-05-33-1 | 1112-05-33-2 | 1112-05-33-4 | ||||
| 400 kgs (880 lbs) |
Phenolic | 1112-05-25-1 | 1112-05-25-2 | 1112-05-25-4 | ||||
| 340 kgs (750 lbs) |
PU on PP Core | 1112-05-31-1 | 1112-05-31-2 | 1112-05-31-4 | ||||
| 400 kgs (880 lbs) |
Cast Iron | 1112-05-21-1 | 1112-05-21-2 | 1112-05-21-4 | ||||
| 400 kgs (880 lbs) |
V Groove | 1112-05-28-1 | 1112-05-28-2 | 1112-05-28-4 | ||||
| 140 kgs (300 lbs) |
TPR on PP Core (Round Shape) |
1112-05-26-1 | 1112-05-26-2 | 1112-05-26-4 | Roller Bearing Annular ball bearing |
|||
| 180 kgs (396 lbs) |
TPR on PP Core (Flat Shape) |
1112-05-52-1 | 1112-05-52-2 | 1112-05-52-4 | ||||
| 180 kgs (396 lbs) |
WPPR | 1112-05-47-1 | 1112-05-47-2 | 1112-05-47-4 | ||||
| 227 kgs (500 lbs) |
W Resolute | 1112-05-48-1 | 1112-05-48-2 | 1112-05-48-4 | ||||
| 227 kgs (500 lbs) |
Resolute (Flat Shape) |
1112-05-51-1 | 1112-05-51-2 | 1112-05-51-4 | ||||
| 170 kgs (375 lbs) |
Resolute (Round Shape) |
1112-05-44-1 | 1112-05-44-2 | 1112-05-44-4 | ||||
| 261 kgs (575 lbs) |
HD Resolute Wheel (Round Shape) |
1112-05-54-1 | 1112-05-54-2 | 1112-05-54-4 | ||||
| 340 kgs (750 lbs) |
WHDR | 1112-05-55-1 | 1112-05-55-2 | 1112-05-55-4 | ||||
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Swivel Radius | ||
| Fixed | Swivel | Brake | 150 × 50mm (6" × 2") |
410 kgs (900 lbs) |
PU on PP Core (Round Shape) |
1112-06-43-1 | 1112-06-43-2 | 1112-06-43-4 | Ball Bearing | 190mm (7-1/2") |
Swivel 111mm Swivel W/Sidebrake 111mm AK Total Lock Brake 154mm |
| 260 kgs (570 lbs) |
PU on Cast (Round Shape) |
1112-06-42-1 | 1112-06-42-2 | 1112-06-42-4 | ||||
| 410 kgs (900 lbs) |
CPU on PP core | 1112-06-63-1 | 1112-06-63-2 | 1112-06-63-4 | ||||
| 450 kgs (990 lbs) |
EPU | 1112-06-78-1 | 1112-06-78-2 | 1112-06-78-4 | ||||
| 450 kgs (990 lbs) |
EQPU | 1112-06-81-1 | 1112-06-81-2 | 1112-06-81-4 | ||||
| 250 kgs (550 lbs) |
NBR Rubber on Cast | 1112-06-04-1 | 1112-06-04-2 | 1112-06-04-4 | Roller Bearing | |||
| 410 kgs (900 lbs) |
PU on Cast | 1112-06-33-1 | 1112-06-33-2 | 1112-06-33-4 | ||||
| 420 kgs (925 lbs) |
Phenolic | 1112-06-25-1 | 1112-06-25-2 | 1112-06-25-4 | ||||
| 410 kgs (900 lbs) |
PU on PP Core | 1112-06-31-1 | 1112-06-31-2 | 1112-06-31-4 | ||||
| 420 kgs (925 lbs) |
Cast Iron | 1112-06-21-1 | 1112-06-21-2 | 1112-06-21-4 | ||||
| 420 kgs (925 lbs) |
V Groove | 1112-06-28-1 | 1112-06-28-2 | 1112-06-28-4 | ||||
| 160 kgs (350 lbs) |
TPR on PP Core (Round Shape) |
1112-06-26-1 | 1112-06-26-2 | 1112-06-26-4 | Roller Bearing Annular ball bearing |
|||
| 210 kgs (462 lbs) |
TPR on PP Core (Flat Shape) |
1112-06-52-1 | 1112-06-52-2 | 1112-06-52-4 | ||||
| 210 kgs (462 lbs) |
WPPR | 1112-06-47-1 | 1112-06-47-2 | 1112-06-47-4 | ||||
| 272 kgs (600 lbs) |
W Resolute | 1112-06-48-1 | 1112-06-48-2 | 1112-06-48-4 | ||||
| 272 kgs (600 lbs) |
Resolute (Flat Shape) |
1112-06-51-1 | 1112-06-51-2 | 1112-06-51-4 | ||||
| 204 kgs (450 lbs) |
Resolute (Round Shape) |
1112-06-44-1 | 1112-06-44-2 | 1112-06-44-4 | ||||
| 295 kgs (650 lbs) |
HD Resolute Wheel (Round Shape) |
1112-06-54-1 | 1112-06-54-2 | 1112-06-54-4 | ||||
| 410 kgs (900 lbs) |
WHDR | 1112-06-55-1 | 1112-06-55-2 | 1112-06-55-4 | 200 × 50mm (8" × 2") |
420 kgs (925 lbs) |
PU on PP Core (Round Shape) |
1112-08-43-1 | 1112-08-43-2 | 1112-08-43-4 | Ball Bearing | 240mm (9-1/2") |
Swivel 140mm Swivel W/Sidebrake 140mm AK Total Lock Brake 160mm |
| 300 kgs (660 lbs) |
PU on Cast(Round Shape) | 1112-08-42-1 | 1112-08-42-2 | 1112-08-42-4 | ||||
| 420 kgs (925 lbs) |
CPU on PP core | 1112-08-63-1 | 1112-08-63-2 | 1112-08-63-4 | ||||
| 450 kgs (990 lbs) |
EPU | 1112-08-78-1 | 1112-08-78-2 | 1112-08-78-4 | ||||
| 450 kgs (990 lbs) |
EQPU | 1112-08-81-1 | 1112-08-81-2 | 1112-08-81-4 | ||||
| 300 kgs (660 lbs) |
NBR Rubber on Cast | 1112-08-04-1 | 1112-08-04-2 | 1112-08-04-4 | Roller Bearing | |||
| 420 kgs (925 lbs) |
PU on Cast | 1112-08-33-1 | 1112-08-33-2 | 1112-08-33-4 | ||||
| 450 kgs (990 lbs) |
Phenolic | 1112-08-25-1 | 1112-08-25-2 | 1112-08-25-4 | ||||
| 420 kgs (925 lbs) |
PU on PP Core | 1112-08-31-1 | 1112-08-31-2 | 1112-08-31-4 | ||||
| 450 kgs (990 lbs) |
Cast Iron | 1112-08-21-1 | 1112-08-21-2 | 1112-08-21-4 | ||||
| 450 kgs (990 lbs) |
V Groove | 1112-08-28-1 | 1112-08-28-2 | 1112-08-28-4 | ||||
| 185 kgs (400 lbs) |
TPR on PP Core (Round Shape) |
1112-08-26-1 | 1112-08-26-2 | 1112-08-26-4 | Roller Bearing Annular ball bearing |
|||
| 230 kgs (506 lbs) |
TPR on PP Core (Flat Shape) |
1112-08-52-1 | 1112-08-52-2 | 1112-08-52-4 | ||||
| 230 kgs (506 lbs) |
WPPR | 1112-08-47-1 | 1112-08-47-2 | 1112-08-47-4 | ||||
| 306 kgs (675 lbs) |
W Resolute | 1112-08-48-1 | 1112-08-48-2 | 1112-08-48-4 | ||||
| 306 kgs (675 lbs) |
Resolute (Flat Shape) |
1112-08-51-1 | 1112-08-51-2 | 1112-08-51-4 | ||||
| 272 kgs (600 lbs) |
Resolute (Round Shape) |
1112-08-44-1 | 1112-08-44-2 | 1112-08-44-4 | ||||
| 318 kgs (700 lbs) |
HD Resolute Wheel (Round Shape) |
1112-08-54-1 | 1112-08-54-2 | 1112-08-54-4 | ||||
| 430 kgs (950 lbs) |
WHDR | 1112-08-55-1 | 1112-08-55-2 | 1112-08-55-4 | ||||
