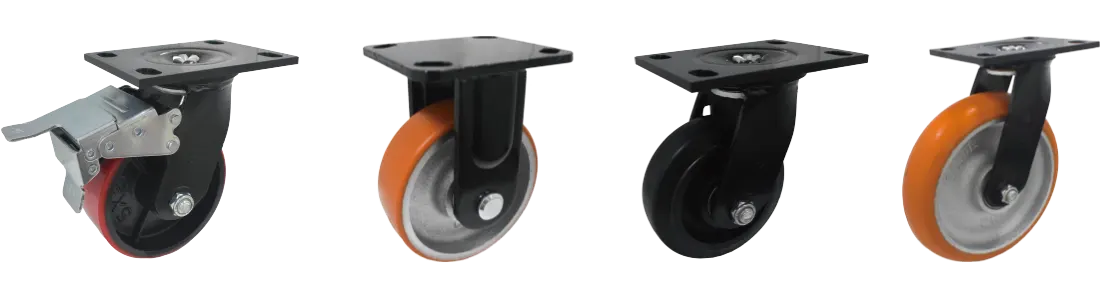

1112-1 Series — 2" Wide General Purposes Caster (American Style)
Heat- treated raceways increase Load cap and actuall Service Life. Swivel easily under heavy load,
good for workshop carts. Patented thread guards and dust covers prevent swivel failures caused
by a build-up of strings between the wheel and fork legs, as well as the dust in the wheel bearing.
Features
Side Lock Brake
AK Total Lock Brake
Different PU tread handness available
Thread guard
Directional Lock
Thread guard specially for textfile industry(optional)
Features
Side Lock Brake
AK Total Lock Brake
Different PU tread handness available
Thread guard
Directional Lock
Thread guard specially for textfile industry(optional)
Wheel Options
-
PU on Cast
-
PU on Cast
-
Phenolic
-
NBR Rubber on Cast
-
QPU
-
EQPU
-
VQPU
Top Plate Size And Bolt Hole Spacing
| Caster Size | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 4" 5" 6" 8" | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3"x 3"~3-5/8") | 9.5mm (3/8") |
| 110 x 140 mm (4-11/32"x 5-1/2") | 75 x110mm (2-15/16" x 4-11/32") | 12mm (1/2") | |
| 110 x 137 mm (4-11/32"x 5-13/32") | 78 x105mm (3-5/32" x 4-1/8") | 12mm (1/2") | |
| 110 x 140 mm (4-11/32"x 5-1/2") | 78 x105mm (3-5/32" x 4-1/8") | 12mm (1/2") | |
| 114 x 159 mm (4-1/2"x 6-1/4") | 73.8 x 129.4mm (2-29/32" x 5-3/32") | 12mm (1/2") |
Top Plate Size And Bolt Hole Spacing
| Caster Size | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 4" 5" 6" 8" | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3"x 3"~3-5/8") |
9.5mm (3/8") |
| Caster Size | Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 4" 5" 6" 8" | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3"x 3"~3-5/8") |
9.5mm (3/8") |
| 110 x 140 mm (4-11/32"x 5-1/2") |
75 x110mm (2-15/16" x 4-11/32") |
12mm (1/2") | |
| 110 x 137 mm (4-11/32"x 5-13/32") |
78 x105mm (3-5/32" x 4-1/8") |
12mm (1/2") | |
| 110 x 140 mm (4-11/32"x 5-1/2") |
78 x105mm (3-5/32" x 4-1/8") |
12mm (1/2") | |
| 114 x 159 mm (4-1/2"x 6-1/4") |
73.8 x 129.4mm (2-29/32" x 5-3/32") |
12mm (1/2") |
Specification
| Diameter × Width | Load | Material | Item No. | Bearing | Overall Height | Swivel Radius | ||
| Fixed | Swivel | Brake | ||||||
| 100mm x 45mm (4" x 1-3/4") |
200 kgs (440 lbs) |
PU on Cast | 1112-04-33-1(1) | 1112-04-33-1(2) | 1112-04-33-1(3) | Ball Bearing | 142mm (5-5/8") |
Swivel 79mm Swivel W/Side Brake 98mm Swivel W/AK Lock Brake 148mm |
| 100mm x 50mm (4" x 2") |
350 kgs (770 lbs) |
PU on Cast | 1112-04-33-1(1) | 1112-04-33-1(2) | 1112-04-33-1(3) | |||
| 100mm x 50mm (4" x 2") |
200 kgs (440 lbs) |
Phenolic | 1112-04-25-1(1) | 1112-04-25-1(2) | 1112-04-25-1(3) | |||
| 100mm x 34mm (4" x 1-3/8") |
300 kgs (660 lbs) |
QPU | 1112-04-53-1(1) | 1112-04-53-1(2) | 1112-04-53-1(3) | |||
| 100mm x 50mm (4" x 2") |
400 kgs (880 lbs) |
QPU | 1112-04-53-1(1) | 1112-04-53-1(2) | 1112-04-53-1(3) | |||
| 100mm x 38mm (4" x 1-1/2") |
400 kgs (880 lbs) |
NBR Rubber on Cast | 1112-04-04-1(1) | 1112-04-04-1(2) | 1112-04-04-1(3) | |||
| 125mm x 45mm (5" x 1-3/4") |
230 kgs (507 lbs) |
PU on Cast | 1112-05-33-1(1) | 1112-05-33-1(2) | 1112-05-33-1(3) | Ball Bearing | 167mm (6-1/2") |
Swivel 96mm Swivel W/Side Brake 102mm Swivel W/AK Lock Brake 153mm |
| 125mm x 50mm (5" x 2") |
420 kgs (925 lbs) |
PU on Cast | 1112-05-33-1(1) | 1112-05-33-1(2) | 1112-05-33-1(3) | |||
| 125mm x 50mm (5" x 2") |
250 kgs (550 lbs) |
Phenolic | 1112-05-25-1(1) | 1112-05-25-1(2) | 1112-05-25-1(3) | |||
| 125mm x 40mm (5" x 1-5/8") |
400 kgs (880 lbs) |
QPU | 1112-05-53-1(1) | 1112-05-53-1(2) | 1112-05-53-1(3) | |||
| 125mm x 50mm (5" x 2") |
450 kgs (990 lbs) |
EQPU | 1112-05-55-1(1) | 1112-05-55-1(2) | 1112-05-55-1(3) | |||
| 125mm x 40mm (5" x 1-5/8") |
400 kgs (880 lbs) |
NBR Rubber on Cast | 1112-05-04-1(1) | 1112-05-04-1(2) | 1112-05-04-1(3) | |||
| 150mm x 45mm (6" x 1-3/4") |
260 kgs (573 lbs) |
PU on Cast | 1112-06-33-1(1) | 1112-06-33-1(2) | 1112-06-33-1(3) | Ball Bearing | 190mm (7-1/2") |
Swivel 115mm Swivel W/Side Brake 115mm Swivel W/AK Lock Brake 154mm |
| 150mm x 50mm (6" x 2") |
450 kgs (990 lbs) |
PU on Cast | 1112-06-33-1(1) | 1112-06-33-1(2) | 1112-06-33-1(3) | |||
| 150mm x 50mm (6" x 2") |
500 kgs (1100 lbs) |
Phenolic | 1112-06-25-1(1) | 1112-06-25-1(2) | 1112-06-25-1(3) | |||
| 150mm x 42mm (6" x 1-5/8") |
600 kgs (1320 lbs) |
QPU | 1112-06-53-1(1) | 1112-06-53-1(2) | 1112-06-53-1(3) | |||
| 150mm x 50mm (6" x 2") |
600 kgs (1320 lbs) |
WQPU | 1112-06-55-1(1) | 1112-06-55-1(2) | 1112-06-55-1(3) | |||
| 150mm x 40mm (6" x 1-5/8") |
600 kgs (1320 lbs) |
VQPU | 1112-06-54-1(1) | 1112-06-54-1(2) | 1112-06-54-1(3) | |||
| 150mm x 40mm (6" x 1-5/8") |
400 kgs (880 lbs) |
NBR Rubber on Cast | 1112-06-04-1(1) | 1112-06-04-1(2) | 1112-06-04-1(3) | |||
| 200mm x 45mm (8" x 1-3/4") |
300 kgs (660 lbs) |
PU on Cast | 1112-08-33-1(1) | 1112-08-33-1(2) | 1112-08-33-1(3) | Ball Bearing | 240mm (9-1/2") |
Swivel 145mm Swivel W/Side Brake 145mm Swivel W/AK Lock Brake 165mm |
| 200mm x 50mm (8" x 2") |
500 kgs (1100 lbs) |
PU on Cast | 1112-08-33-1(1) | 1112-08-33-1(2) | 1112-08-33-1(3) | |||
| 200mm x 50mm (8" x 2") |
400 kgs (880 lbs) |
Phenolic | 1112-08-25-1(1) | 1112-08-25-1(2) | 1112-08-25-1(3) | |||
| 200mm x 50mm (8" x 2") |
700 kgs (1543 lbs) |
QPU | 1112-08-53-1(1) | 1112-08-53-1(2) | 1112-08-53-1(3) | |||
| 200mm x 50mm (8" x 2") |
700 kgs (1543 lbs) |
EQPU | 1112-08-55-1(1) | 1112-08-55-1(2) | 1112-08-55-1(3) | |||
| 200mm x 50mm (8" x 2") |
700 kgs (1543 lbs) |
VQPU | 1112-08-54-1(1) | 1112-08-54-1(2) | 1112-08-54-1(3) | |||
| 200mm x 44mm (8" x 1-3/4") |
400 kgs (880 lbs) |
NBR Rubber on Cast | 1112-08-04-1(1) | 1112-08-04-1(2) | 1112-08-04-1(3) | |||
