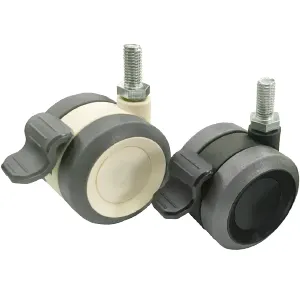

1110-YOYO Series — YOYO Series-Light Duty Twin Wheel Caster (All Plastic)
Large caster width provide stability with soft PVC tread for quite operation. Customed exterior design provide great aesthetic value.
Two types of brake pedals, big and small to choose from.Easy to maneuver.
Features
Big peda
Small peda
Two different colors to choose from
Features
Big peda
Small peda
Two different colors to choose from
Wheel Options
PVC
Top Plate Size And Bolt Hole Spacing
| Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 42X42mm | 32X32mm | M4/M5 |
| 60X60mm | 39X39mm / 46X46mm | M6 |
| 69X96mm | 45X75mm | M8 |
Cylindrical Stem Specification
| Diameter x Length | Hole Height | Bore Size |
| 11X22mm | — | Grip Ring |
| 11X31.8mm | — | Grip Ring |
| 11X38mm | — | Grip Ring |
| 11X50mm | — | Grip Ring |
Threaded Stem Specification
| Threaded Size | Threaded Size | Threaded Size | Threaded Size |
| M8X15mm (With Flange) |
M8X25mm | M10X15mm | M10X19mm |
| M12X25mm | M12X25mm | 1/2-12UNCX25mm | 1/2-13UNCX25mm |
| 3/8-16UNCX25mm |
Top Plate Size And Bolt Hole Spacing
| Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 42X42mm | 32X32mm | M4/M5 |
| Top Plate Size | Bolt Hole Spacing | Attaching Bolt Size |
| 42X42mm | 32X32mm | M4/M5 |
| 60X60mm | 39X39mm / 46X46mm | M6 |
| 69X96mm | 45X75mm | M8 |
Cylindrical Stem Specification
| Diameter x Length | Hole Height | Bore Size |
| 11X22mm | — | Grip Ring |
| 11X31.8mm | — | Grip Ring |
| 11X38mm | — | Grip Ring |
| 11X50mm | — | Grip Ring |
Threaded Stem Specification
| Threaded Size | Threaded Size | Threaded Size | Threaded Size |
| M8X15mm (With Flange) |
M8X25mm | M10X15mm | M10X19mm |
| M12X25mm | M12X25mm | 1/2-12UNCX25mm | 1/2-13UNCX25mm |
| 3/8-16UNCX25mm |
Specification
| Diameter × Width | Specification | Load | Material | Item No. | Bearing | Overall Height | Offset | Swivel Radius | |
| Swivel | Center Brake | ||||||||
| Width of Tread 65mm x 14.6mm (2.5" x 0.57") ——————————— Caster width 65mm x 59mm (2.5" x 2.3") |
Plate | 45kgs (110 lbs) | PVC on PP Core | 1110-Y-25-113-2 | 1110-Y-25-113-4 | Plain Bearing | 81.5mm | 20 mm | Swivel 52.5mm Swivel W/Brake (Big pedal) 77mm Swivel W/Brake (Small pedal) 68.5mm |
| Threaded Stem |
45kgs (110 lbs) | PVC on PP Core | 1110-Y-25-113-2 | 1110-Y-25-113-4 | 75mm | ||||
| Cylindrical Stem |
45kgs (110 lbs) | PVC on PP Core | 1110-Y-25-113-2(1) | 1110-Y-25-113-4(1) | 72mm | ||||
| 1110-Y-25-113-2 | 1110-Y-25-113-4 | 79mm | |||||||
| Width of Tread 73mm x 16.3mm (3" x 0.64") ——————————— Caster width 73mm x 63mm (3" x 2.48") |
Plate | 45kgs (110 lbs) | PVC on PP Core | 1110-Y-03-113-2 | 1110-Y-03-113-4 | Plain Bearing | 90mm | 24.5mm | Swivel 61mm Swivel W/Brake (Big pedal) 85mm Swivel W/Brake (Small pedal) 77mm |
| Threaded Stem |
45kgs (110 lbs) | PVC on PP Core | 1110-Y-03-113-2 | 1110-Y-03-113-4 | 83mm | ||||
| Cylindrical Stem |
45kgs (110 lbs) | PVC on PP Core | 1110-Y-03-113-2(1) | 1110-Y-03-113-4(1) | 80mm | ||||
| 1110-Y-03-113-2 | 1110-Y-03-113-2 | 87mm | |||||||
| Width of Tread 100mm x 18mm (4" x 0.71") ——————————— Caster width 100mm x 72mm (4" x 2.83") |
Plate | 100kgs (220 lbs) | PVC on PP Core | 1110-Y-04-113-2 | 1110-Y-04-113-4 | Precision Ball Bearing |
115mm | 32mm | Swivel 82mm Swivel W/Brake (Big pedal) 105mm Swivel W/Brake (Small pedal) 99mm |
| Threaded Stem |
100kgs (220 lbs) | PVC on PP Core | 1110-Y-04-113-2 | 1110-Y-04-113-4 | 108.5mm | ||||
| Cylindrical Stem |
100kgs (220 lbs) | PVC on PP Core | 1110-Y-04-113-2(1) | 1110-Y-04-113-4(1) | 105.5mm | ||||
| 1110-Y-04-113-2 | 1110-Y-04-113-4 | 113mm | |||||||
