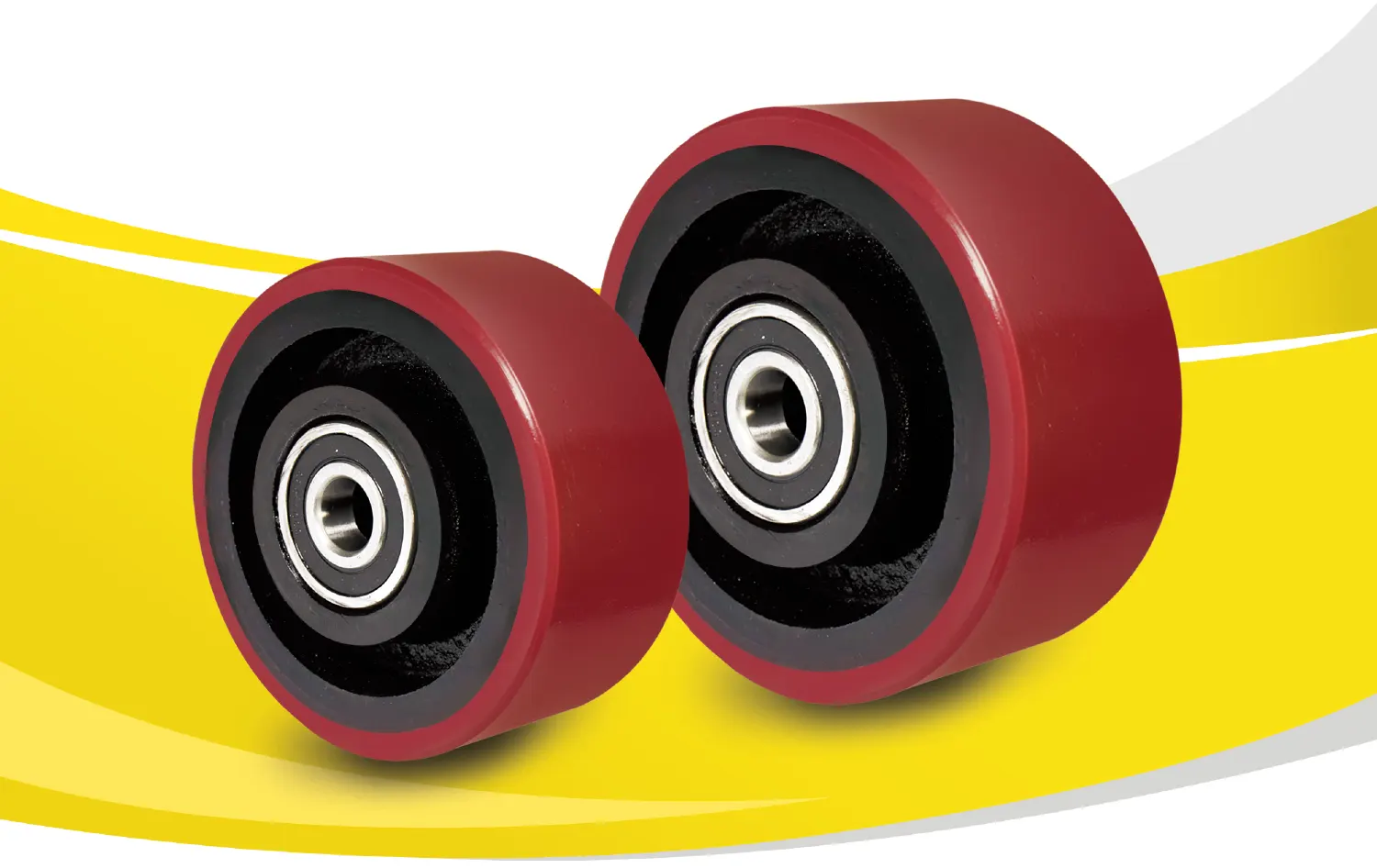

XPU系列
重型轮
XPU外包+ 铁芯 / 铸铁芯
轮面硬度 ○ ○ ○ ● ○ 90° Shore A
温度范围 ○ ● ● ○ ○ -30℃ 至 +70℃
滚动顺畅 ● ● ● ● ○ 优秀
静音表现 ● ● ● ○ ○ 良好
保护地板 ● ● ● ○ ○ 良好
轮面
XPU轮的设计理念是轮子在高速运作时可负载高荷重。XPU轮的轮面硬度是90°±3°，有着极佳的机械性能，包含高速移动时能保持高荷重，极好的耐磨性，且不易永久变形。得貹XPU轮还有着优秀的抑制内生热产生的能力，适用于叉车、电动堆高机、重型机械、AGV和自动工业上。
轮框
内框：铁芯/铸铁芯
特色
•抗化学、溶剂及侵蚀
•耐磨
•适用环境温度：-30°C~+70°C
•在正常使用情况下，无需维修
轮子详细资讯
| 品号 | 轮径 (D)【mm】 |
轮宽 (T2)【mm】 |
载重 【kg(lbs)】 |
轴承内径 Ø(d)【mm】 |
中宽 (T1)【mm】 |
轮面 | 轴承 |
| 12036404136471 | 100 | 34 | 320kg (705lbs) | 15 | 34 | 圆弧 | 精密滚珠轴承 |
| 12036404136571 | 100 | 34 | 320kg (705lbs) | 17 | 34 | ||
| 12036404186171 | 100 | 45 | 400kg (881lbs) | 13 | 62 | ||
| 12036405150371 | 125 | 40 | 500kg (1102lbs) | 15 | 40 | ||
| 12036405150471 | 125 | 40 | 500kg (1102lbs) | 17 | 42 | ||
| 12036405180101 | 125 | 40 | 350kg (771lbs) | 20 | 44.5 | ||
| 12036405180171 | 125 | 45 | 500kg (1102lbs) | 13 | 62 | ||
| 12036406186271 | 150 | 42 | 600kg (1102lbs) | 17 | 42 | ||
| 12036406186371 | 150 | 45 | 600kg (1102lbs) | 13 | 62 | ||
| 12036407206171 | 180 | 50 | 800kg (1764lbs) | 20 | 50 | ||
| 12036407206271 | 180 | 50 | 800kg (1764lbs) | 25 | 50 | ||
| 12036408186171 | 200 | 45 | 800kg (1764lbs) | 13 | 62 | ||
| 12036408206371 | 200 | 50 | 900kg (1984lbs) | 20 | 50 | ||
| 12036408206471 | 200 | 50 | 900kg (1984lbs) | 25 | 50 | ||
| 12036410256471 | 250 | 62 | 1500kg (3307lbs) | 20 | 61 | ||
| 12036410256571 | 250 | 62 | 1500kg (3307lbs) | 25 | 61 | ||
| 12036410266471 | 250 | 62 | 1500kg (3307lbs) | 30 | 61 | ||
| 12036403136171 | 75 | 32 | 180kg (396lbs) | 12 | 32 | 平面 | |
| 12036403136271 | 75 | 32 | 180kg (396lbs) | 15 | 32 | ||
| 120364043136171 | 100 | 34 | 320kg (705lbs) | 15 | 34 | ||
| 120364043136371 | 100 | 34 | 320kg (705lbs) | 17 | 34 | ||
| 120364043206171 | 100 | 50 | 450kg (992lbs) | 17 | 55 | ||
| 120364043156171 | 114 | 38 | 450kg (992lbs) | 17 | 38 | ||
| 12036405150171 | 125 | 40 | 500kg (1102lbs) | 15 | 40 | ||
| 12036405150271 | 125 | 40 | 500kg (1102lbs) | 17 | 42 | ||
| 12036405200171 | 125 | 50 | 600kg (1323lbs) | 17 | 55 | ||
| 12036455256171 | 138 | 60 | 700kg (1543lbs) | 15 | 40 | ||
| 12036455256271 | 138 | 60 | 700kg (1543lbs) | 25 | 68 | ||
| 12036406186171 | 150 | 42 | 600kg (1323lbs) | 17 | 42 | ||
| 12036406206171 | 150 | 50 | 750kg (1653lbs) | 17 | 55 | ||
| 12036457186171 | 183 | 44 | 800kg (1764lbs) | 17 | 50 | ||
| 12036457186271 | 183 | 44 | 800kg (1764lbs) | 20 | 50 | ||
| 12036457186371 | 183 | 44 | 800kg (1764lbs) | 25 | 50 | ||
| 12036408206171 | 200 | 50 | 900kg (1984lbs) | 20 | 50 | ||
| 12036408206271 | 200 | 50 | 900kg (1984lbs) | 25 | 50 | ||
| 12036408206171 | 231 | 52 | 1200kg (2646lbs) | 20 | 50 | ||
| 12036410256371 | 250 | 62 | 1500kg (3307lbs) | 20 | 61 | ||
| 12036410256171 | 250 | 62 | 1500kg (3307lbs) | 25 | 61 | ||
| 12036410256271 | 250 | 62 | 1500kg (3307lbs) | 30 | 61 | ||
| 12036412286171 | 305 | 70 | 1800kg (3968lbs) | 25 | 70 | ||
| 12036412286271 | 305 | 70 | 1800kg (3968lbs) | 30 | 70 | ||
| 12036412286371 | 305 | 70 | 1800kg (3968lbs) | 35 | 70 | ||
| 12036412386171 | 305 | 95 | 2400kg (5291lbs) | 25 | 95 | ||
| 12036412386271 | 305 | 95 | 2400kg (5291lbs) | 30 | 95 | ||
| 12036412386371 | 305 | 95 | 2400kg (5291lbs) | 35 | 95 |
