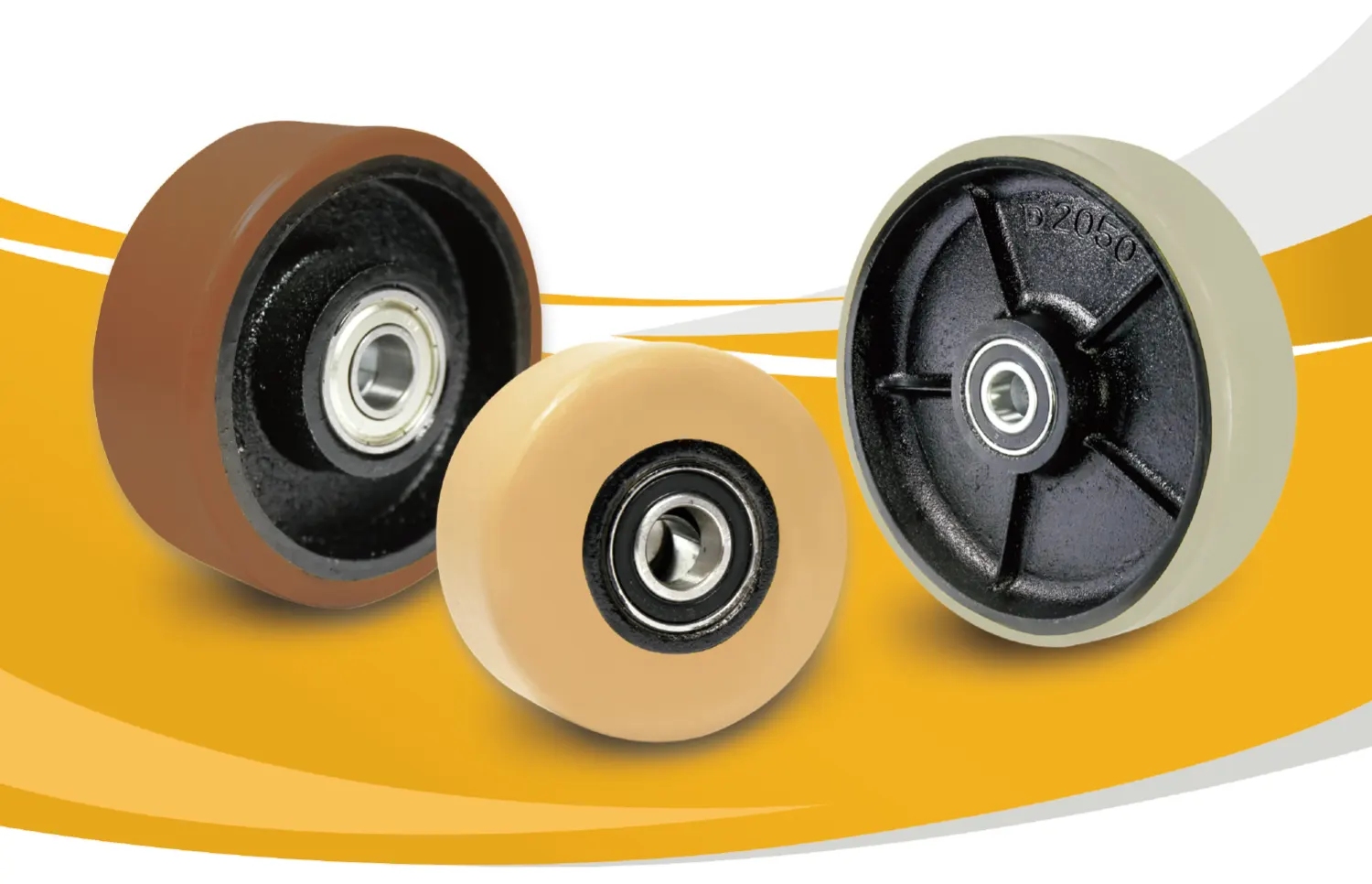

VulkoTough系列
重型轮
VulkoTough外包 + 铁芯 / 铸铁芯
轮面硬度 ○ ○ ○ ● ○ 94° Shore A
温度范围 ○ ● ● ○ ○ -40℃ 至 +80℃
滚动顺畅 ● ● ● ● ● 非常优秀
静音表现 ● ● ● ● ○ 优秀
保护地板 ● ● ● ● ○ 优秀
轮面
得貹的NPU轮是使用NDI作为基础的材料研发而来。NPU轮在动态时其载重的性能一样出色，且长时间在负载重力的情况下还拥有优异的回弹力，这使得它是应用在工业用轮及重型轮的首选。此外，NPU轮即使在高温下也有很好的热稳定性。
轮框
内框：铁芯 / 铸铁芯。
特色
•抗化学、溶剂及侵蚀
•耐磨
•抗微生物
•适用环境温度：-40°C~+80°C
•在正常使用情况下，无需维修

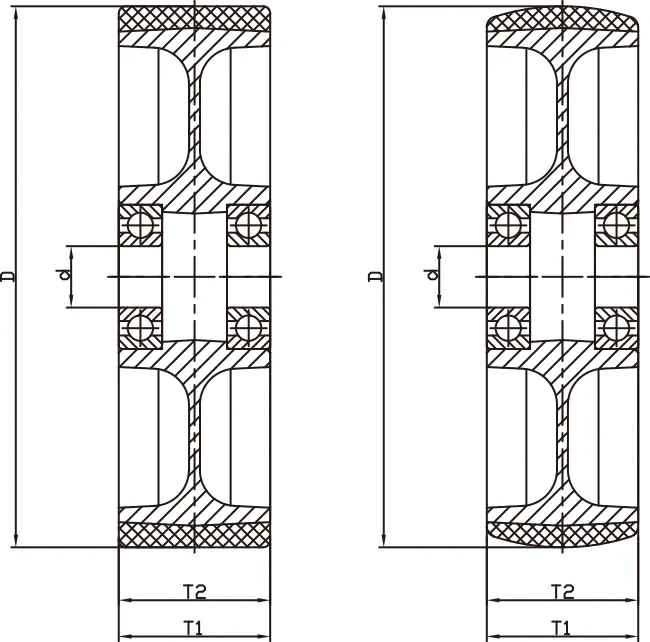

轮子详细资讯
| 品号 | 轮径 (D)【mm】 |
轮宽 (T2)【mm】 |
载重 【kg(lbs)】 |
轴承内径 Ø(d)【mm】 |
中宽 (T1)【mm】 |
轮面 | 轴承 |
| 12033004136171 | 100 | 34 | 320kg (705lbs) | 15 | 34 | 圆弧 | 精密滚珠轴承 |
| 12033004136271 | 100 | 34 | 320kg (705lbs) | 17 | 34 | ||
| 12033004186171 | 100 | 45 | 400kg (881lbs) | 13 | 62 | ||
| 12033005156171 | 125 | 40 | 500kg (1102lbs) | 15 | 40 | ||
| 12033005156271 | 125 | 40 | 500kg (1102lbs) | 17 | 42 | ||
| 12033005186171 | 125 | 45 | 500kg (1102lbs) | 13 | 62 | ||
| 12033006186171 | 150 | 42 | 600kg (1323lbs) | 17 | 42 | ||
| 12033006186271 | 150 | 45 | 600kg (1323lbs) | 13 | 62 | ||
| 12033007206171 | 180 | 50 | 800kg (1764lbs) | 20 | 50 | ||
| 12033007206271 | 180 | 50 | 800kg (1764lbs) | 25 | 50 | ||
| 12033008186171 | 200 | 45 | 800kg (1764lbs) | 13 | 62 | ||
| 12033008206171 | 200 | 45 | 900kg (1984lbs) | 20 | 50 | ||
| 12033008206271 | 200 | 50 | 900kg (1984lbs) | 25 | 50 | ||
| 12033010256171 | 250 | 62 | 1500kg (3307lbs) | 20 | 61 | ||
| 12033010256271 | 250 | 62 | 1500kg (3307lbs) | 25 | 61 | ||
| 12033010256371 | 250 | 62 | 1500kg (3307lbs) | 30 | 61 | ||
| 12033003136171 | 75 | 32 | 180kg (396lbs) | 12 | 32 | 平面 | |
| 12033003136271 | 75 | 32 | 180kg (396lbs) | 15 | 32 | ||
| 12033004136371 | 100 | 34 | 320kg (705lbs) | 15 | 34 | ||
| 12033004136471 | 100 | 34 | 320kg (705lbs) | 17 | 34 | ||
| 12033004206171 | 100 | 50 | 450kg (992lbs) | 17 | 38 | ||
| 12033054156171 | 114 | 38 | 450kg (992lbs) | 17 | 38 | ||
| 12033005156371 | 125 | 40 | 500kg (1102lbs) | 15 | 40 | ||
| 12033005156471 | 125 | 40 | 500kg (1102lbs) | 17 | 42 | ||
| 1203300520617171 | 125 | 50 | 600kg (1323lbs) | 17 | 55 | ||
| 12033057186171 | 183 | 44 | 800kg (1764lbs) | 17 | 50 | ||
| 12033057186271 | 183 | 44 | 800kg (1764lbs) | 20 | 50 | ||
| 12033057186371 | 183 | 44 | 800kg (1764lbs) | 25 | 50 | ||
| 12033008206371 | 200 | 50 | 900kg (1984lbs) | 20 | 50 | ||
| 12033008206471 | 200 | 50 | 900kg (1984lbs) | 25 | 20 | ||
| 12033009206171 | 231 | 52 | 1200kg (2646lbs) | 17 | 53 | ||
| 12033010256471 | 250 | 62 | 1500kg (3307lbs) | 20 | 61 | ||
| 12033010256571 | 250 | 62 | 1500kg (3307lbs) | 25 | 61 | ||
| 12033010256671 | 250 | 62 | 1500kg (3307lbs) | 30 | 61 | ||
| 12033010286171 | 305 | 70 | 1800kg (3968lbs) | 25 | 70 | ||
| 12033012286271 | 305 | 70 | 1800kg (3968lbs) | 30 | 70 | ||
| 12033012286371 | 305 | 70 | 1800kg (3968lbs) | 35 | 70 | ||
| 12033012386171 | 305 | 95 | 2400kg (5291lbs) | 25 | 95 | ||
| 12033012386271 | 305 | 95 | 2400kg (5291lbs) | 30 | 95 | ||
| 12033012386371 | 305 | 95 | 2400kg (5291lbs) | 35 | 95 |
