RX-Xtremethane系列

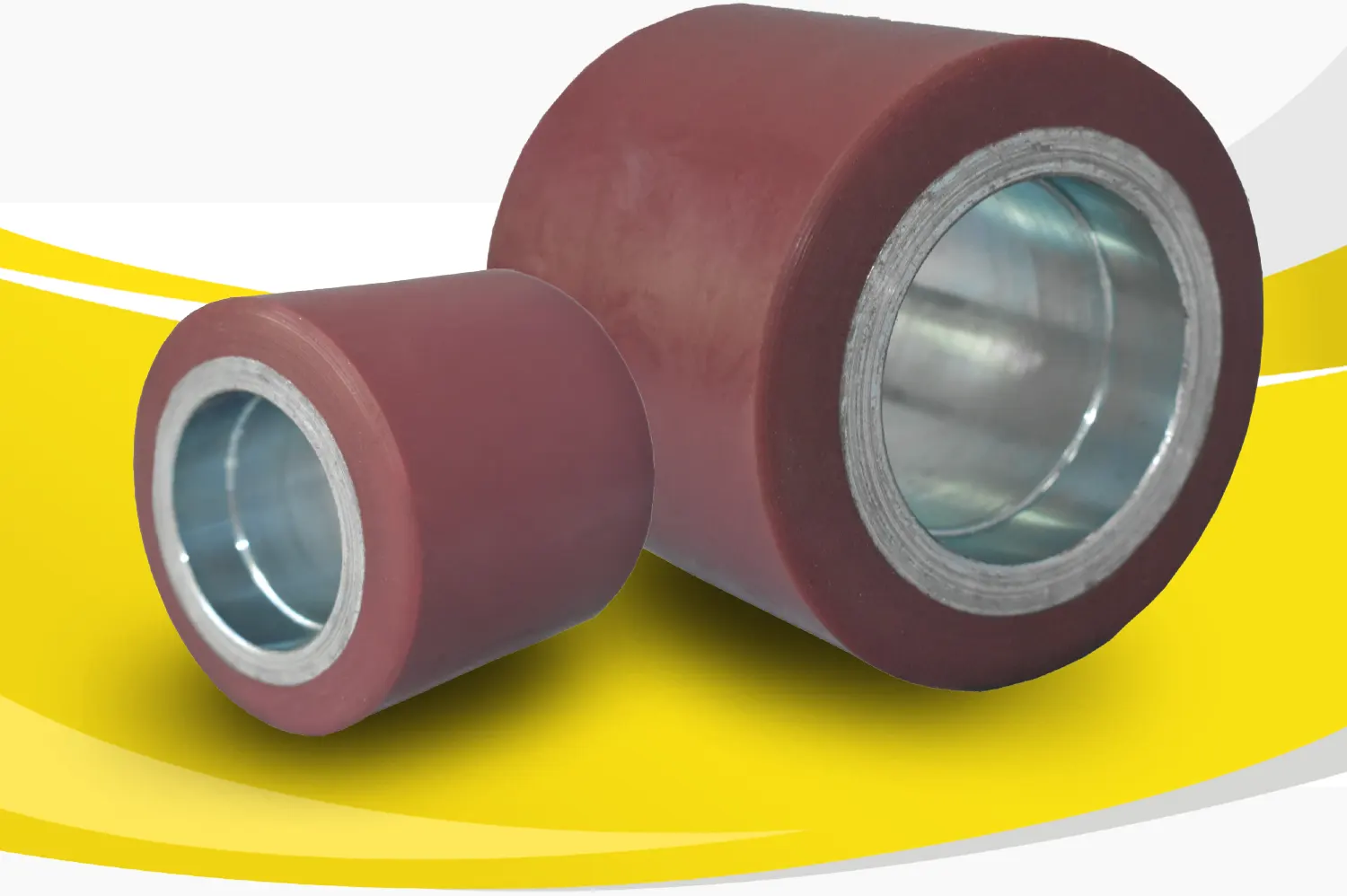

铁芯电动堆高机轮(XPU)
XPU外包+铁芯 / 铸铁芯
轮面硬度 ○ ○ ○ ● ○ 90°±3° Shore A
温度范围 ○ ● ● ○ ○ -30℃ 至 +70℃
滚动顺畅 ● ● ● ● ○ 优秀
静音表现 ● ● ● ○ ○ 良好
保护地板 ● ● ● ○ ○ 良好
轮面
XPU轮的设计理念是轮子在高速运作时可负载高荷重。XPU轮的轮面硬度是90°±3°，有着极佳的机械性能，包含高速移动时能保持高荷重，极好的耐磨性，且不易永久变形。得貹XPU轮还有着优秀的抑制内生热产生的能力，适用于叉车、电动堆高机、重型机械、AGV和自动工业上。
轮框
内框：铁芯/铸铁芯
特色
•抗化学、溶剂及侵蚀
•耐磨•适用环境温度：-30°C~+70°C
•在正常使用情况下，无需维修
轮子详细资讯
| 品号 | 轮径 (D)【mm】 |
轮宽 (T2)【mm】 |
载重 【kg(lbs)】 |
轴承内径 Ø(d)【mm】 |
中宽 (T1)【mm】 |
轮面 | 轴承 |
| 12033303151171 | 75 | 40 | 350kg (771lbs) | 20 | 40 | 平面 | 精密滚珠轴承 |
| 12033303201171 | 75 | 50 | 550kg (1213lbs) | 25 | 50 | ||
| 12033303251171 | 75 | 62 | 550kg (1213lbs) | 20 | 62 | ||
| 12033303351171 | 76 | 90 | 650kg (1433lbs) | 20 | 90 | ||
| 12033303101171 | 80 | 30 | 180kg (396lbs) | 12 | 30 | ||
| 12033303131171 | 80 | 34 | 200kg (440lbs) | 12 | 34 | ||
| 12033303151371 | 80 | 40 | 500kg (1100lbs) | 20 | 40 | ||
| 12033303201271 | 80 | 40 | 500kg (1100lbs) | 20 | 54 | ||
| 12033303201371 | 80 | 54 | 500kg (1100lbs) | 20 | 60 | ||
| 12033303251371 | 80 | 62 | 500kg (1100lbs) | 20 | 60 | ||
| 12033303253271 | 80 | 70 | 700kg (1543lbs) | 20 | 70 | ||
| 12033303353171 | 80 | 90 | 750kg (1653lbs) | 20 | 90 | ||
| 12033303101271 | 82 | 28 | 350kg (771lbs) | 12 | 26 | ||
| 12033303131271 | 82 | 34 | 400kg (881lbs) | 12 | 34 | ||
| 12033303251271 | 82 | 60 | 600kg (1323lbs) | 20 | 62 | ||
| 12033303251371 | 82 | 62 | 600kg (1323lbs) | 20 | 62 | ||
| 12033303281171 | 82 | 70 | 700kg (1543lbs) | 20 | 70 | ||
| 12033303301171 | 82 | 76 | 700kg (1543lbs) | 20 | 76 | ||
| 12033303301271 | 82 | 76 | 700kg (1543lbs) | 20 | 83 | ||
| 1203330401171 | 82 | 100 | 800kg (1764lbs) | 20 | 96 | ||
| 1203330401271 | 82 | 100 | 800kg (1764lbs) | 20 | 100 | ||
| 12033303201171 | 85 | 55 | 550kg (1213lbs) | 20 | 60 | ||
| 12033353251171 | 85 | 60 | 600kg (1323lbs) | 20 | 60 | ||
| 12033353281171 | 85 | 70 | 650kg (1433lbs) | 20 | 62 | ||
| 12033353281271 | 85 | 70 | 650kg (1433lbs) | 20 | 70 | ||
| 12033353301171 | 85 | 75 | 700kg (1543lbs) | 20 | 75 | ||
| 1203335301271 | 85 | 80 | 700kg (1543lbs) | 20 | 80 | ||
| 1203335356171 | 85 | 90 | 800kg (1764lbs) | 17 | 90 | ||
| 1203335356271 | 85 | 90 | 800kg (1764lbs) | 20 | 82 | ||
| 12033303353371 | 85 | 90 | 750kg (1653lbs) | 20 | 90 | ||
| 12033353386171 | 85 | 95 | 900kg (1984lbs) | 20 | 95 | ||
| 12033353406171 | 85 | 100 | 800kg (1764lbs) | 20 | 100 | ||
| 12033353451171 | 85 | 115 | 850kg (1874lbs) | 30 | 115 | ||
| 12033353201271 | 90 | 50 | 450kg (992lbs) | 20 | 50 | ||
| 12033304151171 | 95 | 40 | 400kg (881lbs) | 20 | 45 | ||
| 12033304151271 | 100 | 40 | 500kg (1100lbs) | 25 | 40 | ||
| 12033305201171 | 120 | 50 | 600kg (1323lbs) | 20 | 50 |
