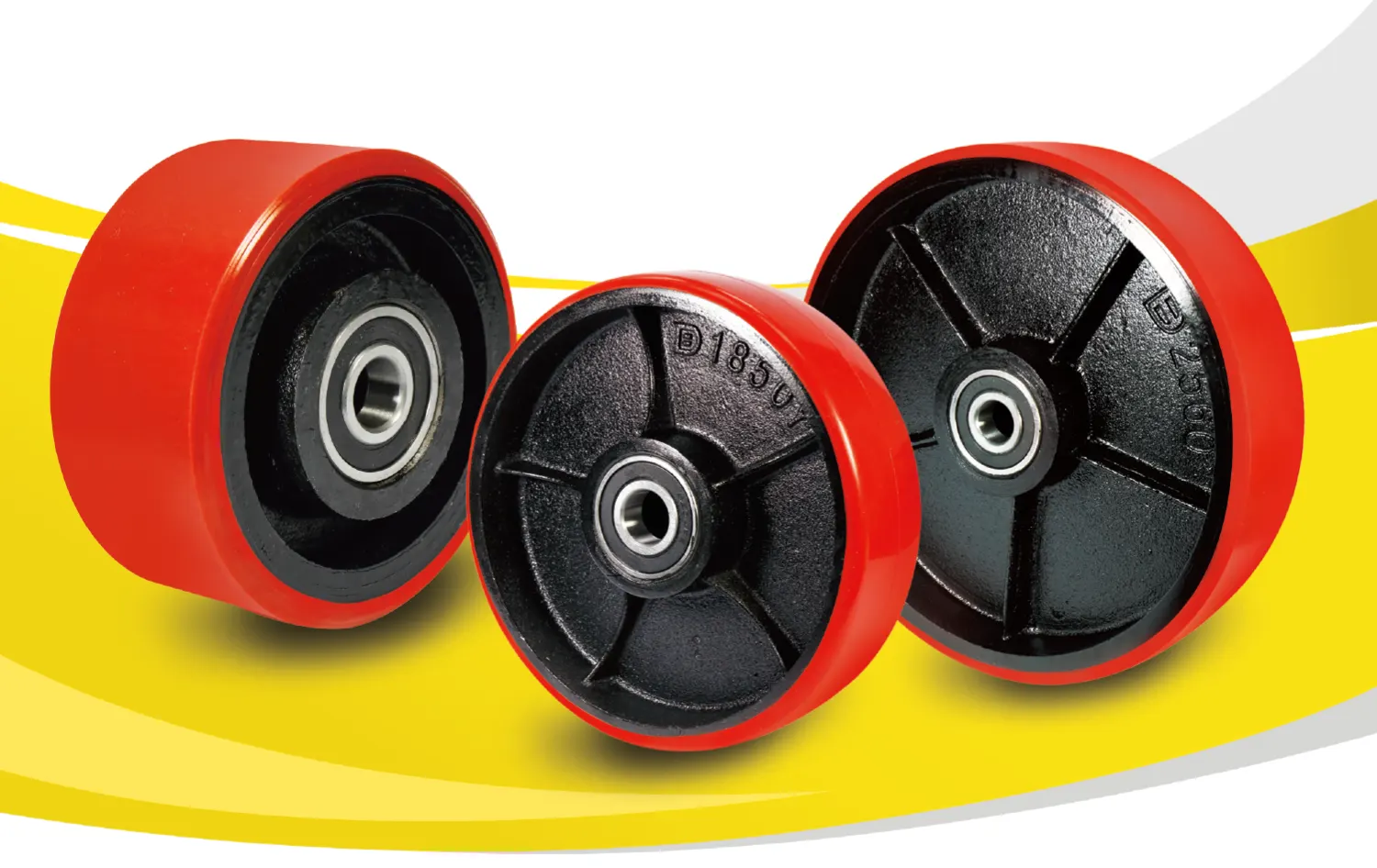

PU系列
重型轮
PU外包+铁芯 / 铸铁芯
轮面硬度 ○ ○ ○ ● ○ 92° Shore A
温度范围 ○ ● ● ○ ○ -30℃ 至 +70℃
滚动顺畅 ● ● ● ● ○ 优秀
静音表现 ● ● ● ○ ○ 良好
保护地板 ● ● ● ○ ○ 良好
轮面
由高品质聚氨酯製成。得貹硬度92°的PU轮不仅能提供良好的地板保护作用，而且低噪音。得貹PU轮有着优秀的抗水解特性，是用热带地区及潮溼的工作环境。
轮框
内框：铁芯 / 铸铁芯
特色
•抗化学、溶剂及侵蚀
•耐磨
•抗微生物
•适用环境温度：-30°C~+70°C
•在正常使用情况下，无需维修
轮子详细资讯
| 品号 | 轮径 (D)【mm】 |
轮宽 (T2)【mm】 |
载重 【kg(lbs)】 |
轴承内径 Ø(d)【mm】 |
中宽 (T1)【mm】 |
轮面 | 轴承 |
| 1203304136771 | 100 | 34 | 320kg (705lbs) | 15 | 34 | 圆弧 | 精密滚珠轴承 |
| 1203304136871 | 100 | 34 | 320kg (705lbs) | 17 | 34 | ||
| 1203304186192 | 100 | 45 | 400kg (881lbs) | 13 | 62 | ||
| 1203305156871 | 125 | 40 | 500kg (1102lbs) | 15 | 40 | ||
| 1203305156971 | 125 | 40 | 500kg (1102lbs) | 17 | 42 | ||
| 1203305180101 | 125 | 40 | 350kg (771lbs) | 20 | 44.5 | ||
| 1203305186171 | 125 | 45 | 500kg (1102lbs) | 13 | 62 | ||
| 1203306186571 | 150 | 42 | 600kg (1323lbs) | 17 | 42 | ||
| 1203306186671 | 150 | 45 | 600kg (1323lbs) | 13 | 62 | ||
| 1203307206871 | 180 | 50 | 800kg (1764lbs) | 20 | 50 | ||
| 1203307206971 | 180 | 50 | 800kg (1764lbs) | 25 | 50 | ||
| 1203308186171 | 200 | 45 | 800kg (1764lbs) | 13 | 62 | ||
| 1203308206471 | 200 | 50 | 800kg (1764lbs) | 20 | 50 | ||
| 1203308209471 | 200 | 50 | 900kg (1984lbs) | 25 | 50 | ||
| 1203310259471 | 250 | 62 | 1500kg (3307lbs) | 20 | 61 | ||
| 1203310256471 | 250 | 62 | 1500kg (3307lbs) | 25 | 61 | ||
| 1203310258471 | 250 | 62 | 1500kg (3307lbs) | 30 | 61 | ||
| 1203303131173 | 75 | 32 | 180kg (396lbs) | 12 | 32 | 平面 | |
| 1203303136171 | 75 | 32 | 180kg (396lbs) | 15 | 32 | ||
| 1203304131171 | 100 | 34 | 320kg (705lbs) | 15 | 34 | ||
| 1203304136971 | 100 | 34 | 320kg (705lbs) | 17 | 34 | ||
| 1203304206171 | 100 | 50 | 450kg (992lbs) | 17 | 55 | ||
| 1203354156271 | 114 | 38 | 450kg (992lbs) | 17 | 38 | ||
| 1203305152171 | 125 | 40 | 500kg (1102lbs) | 15 | 40 | ||
| 1203305156171 | 125 | 40 | 500kg (1102lbs) | 17 | 42 | ||
| 1203305206171 | 125 | 50 | 600kg (1323lbs) | 17 | 55 | ||
| 1203355256271 | 138 | 60 | 700kg (1543lbs) | 20 | 68 | ||
| 1203355256171 | 138 | 60 | 700kg (1543lbs) | 25 | 68 | ||
| 1203306188371 | 150 | 42 | 600kg (1323lbs) | 17 | 50 | ||
| 1203306206171 | 150 | 50 | 750kg (1653lbs) | 17 | 55 | ||
| 1203307308271 | 183 | 44 | 800kg (1764lbs) | 17 | 50 | ||
| 1203307308171 | 183 | 44 | 800kg (1764lbs) | 20 | 50 | ||
| 1203307308371 | 183 | 44 | 800kg (1764lbs) | 25 | 50 | ||
| 1203308206671 | 200 | 50 | 900kg (1984lbs) | 20 | 50 | ||
| 1203308206171 | 200 | 50 | 900kg (1984lbs) | 25 | 50 | ||
| 1203309201171 | 231 | 52 | 1200kg (2646lbs) | 17 | 53 | ||
| 1203310252175 | 250 | 62 | 1500kg (3307lbs) | 20 | 61 | ||
| 1203310252171 | 250 | 62 | 1500kg (3307lbs) | 25 | 61 | ||
| 1203310253171 | 250 | 62 | 1500kg (3307lbs) | 30 | 61 | ||
| 1203312286271 | 305 | 70 | 1800kg (3968lbs) | 25 | 70 | ||
| 1203312286171 | 305 | 70 | 1800kg (3968lbs) | 30 | 70 | ||
| 1203312286371 | 305 | 70 | 1800kg (3968lbs) | 35 | 70 | ||
| 1203312386171 | 305 | 95 | 2400kg (5291lbs) | 25 | 95 | ||
| 1203312386271 | 305 | 95 | 2400kg (5291lbs) | 30 | 95 | ||
| 1203312386371 | 305 | 95 | 2400kg (5291lbs) | 35 | 95 |
