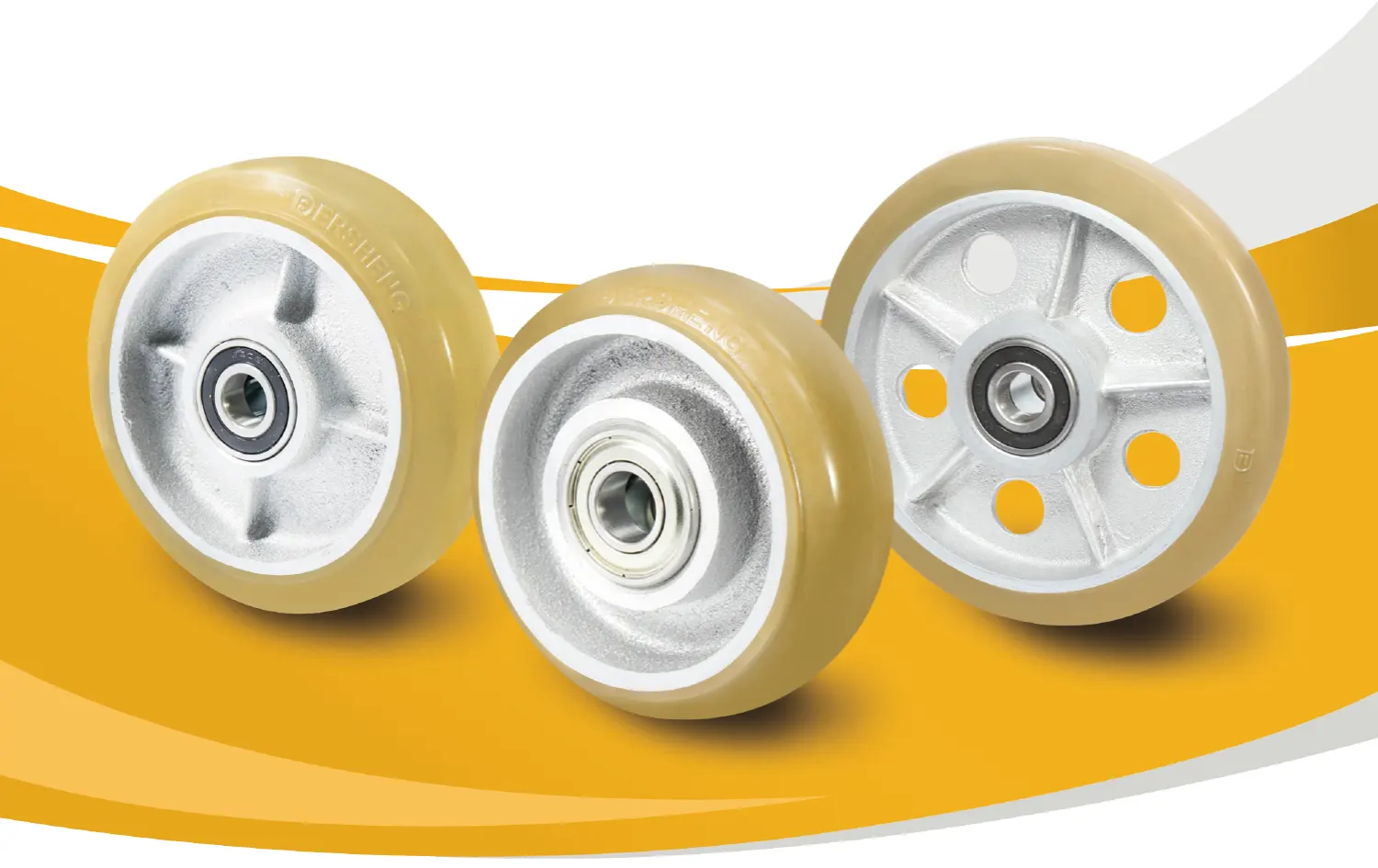

NMBR系列
重型轮
弹力不托黑环保橡胶外包+铁芯 / 铸铁芯
轮面硬度 ○ ○ ○ ● ○ 60±5 Shore A
温度范围 ○ ● ● ○ ○ -25℃ 至 +80℃
滚动顺畅 ● ● ● ○ ○ 良好
静音表现 ● ● ● ● ● 非常优秀
保护地板 ● ● ● ● ○ 优秀
轮面
由高品质的弹力不拖黑环保橡胶製成，得貹环保铁芯橡胶轮面硬度65°±5°。具有高回弹力特性，得貹环保橡胶轮提供优良的地板保护作用，减震及减低音量。不拖黑的橡胶，在地板行走时不会有痕迹，得貹这款轮子非常适合用在任何地方。
轮框
内框：铁芯 / 铸铁芯。
特色
•抗化学、溶剂及侵蚀
•适用环境温度：-25°C~+80°C
•在正常使用情况下，无需维修
轮子详细资讯
| 品号 | 轮径 (D)【mm】 |
轮宽 (T2)【mm】 |
载重 【kg(lbs)】 |
轴承内径 Ø(d)【mm】 |
中宽 (T1)【mm】 |
轮面 | 轴承 |
| 12041104156271 | 100 | 37 | 200kg (440lbs) | 15 | 34 | 平面 | 精密滚珠轴承 |
| 12041104156371 | 100 | 37 | 200kg (440lbs) | 17 | 34 | ||
| 12041105156371 | 125 | 40 | 250kg (551lbs) | 17 | 42 | ||
| 12041106156271 | 150 | 40 | 300kg (661lbs) | 17 | 42 | ||
| 12041106186171 | 150 | 46 | 300kg (661lbs) | 17 | 46 | ||
| 12040306306271 | 150 | 57 | 300kg (661lbs) | 17 | 57 | ||
| 12041108186471 | 200 | 44 | 400kg (881lbs) | 17 | 50 | ||
| 12041108186371 | 200 | 44 | 400kg (881lbs) | 20 | 50 | ||
| 12041108186971 | 200 | 44 | 400kg (881lbs) | 25 | 50 | ||
| 12041108186571 | 200 | 46 | 400kg (881lbs) | 17 | 46 | ||
| 12041108286171 | 200 | 70 | 500kg (1102lbs) | 17 | 68 | ||
| 12041108286271 | 200 | 70 | 500kg (1102lbs) | 20 | 68 | ||
| 12041108286371 | 200 | 70 | 500kg (1102lbs) | 25 | 68 | ||
| 12041110206271 | 250 | 50 | 500kg (1102lbs) | 17 | 50 | 圆弧 | |
| 12041110206371 | 250 | 50 | 500kg (1102lbs) | 20 | 50 | ||
| 12041110206171 | 250 | 50 | 500kg (1102lbs) | 25 | 50 | ||
| 12041110256371 | 254 | 63 | 600kg (1323lbs) | 17 | 63 | ||
| 12041110256171 | 254 | 63 | 600kg (1323lbs) | 20 | 63 | ||
| 12041110256271 | 254 | 63 | 600kg (1323lbs) | 25 | 63 | ||
| 12041110286371 | 254 | 71 | 600kg (1323lbs) | 17 | 69 | ||
| 12041110286271 | 254 | 71 | 600kg (1323lbs) | 20 | 69 | ||
| 12041110286171 | 254 | 71 | 600kg (1323lbs) | 25 | 69 | ||
| 12041112606171 | 302 | 150 | 800kg (1764lbs) | 30 | 150 | ||
| 12041112606271 | 302 | 150 | 800kg (1764lbs) | 35 | 150 | ||
| 12041112406171 | 304 | 105 | 750kg (1653lbs) | 25 | 106 | ||
| 12041112406271 | 304 | 105 | 750kg (1653lbs) | 30 | 106 | ||
| 12041112406371 | 304 | 105 | 750kg (1653lbs) | 35 | 106 | ||
| 12041112206171 | 306 | 49 | 650kg (1433lbs) | 20 | 51 | ||
| 12041112206271 | 306 | 49 | 650kg (1433lbs) | 25 | 51 | ||
| 12041112306271 | 308 | 76 | 700kg (1543lbs) | 25 | 74 | ||
| 12041112306171 | 308 | 76 | 700kg (1543lbs) | 30 | 74 | ||
| 12041112306371 | 308 | 76 | 700kg (1543lbs) | 35 | 74 |
