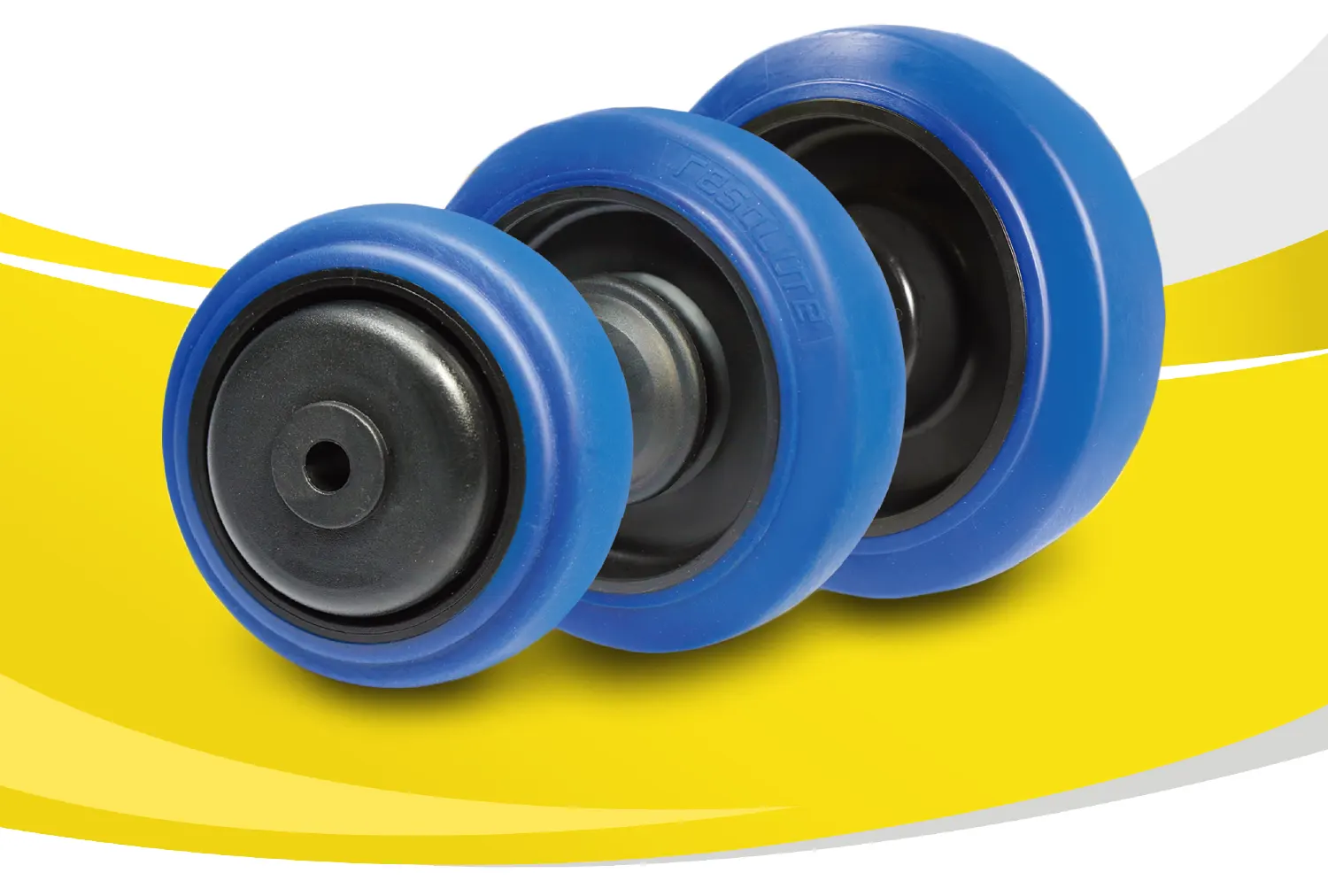

蓝色弹力全效轮系列
*颜色可依客人喜好客製
轮面硬度 ○ ○ ○ ● ○ 68±5 Shore A
温度范围 ○ ● ● ○ ○ -20℃ 至 +60℃
滚动顺畅 ● ● ● ● ● 非常优秀
静音表现 ● ● ● ● ● 非常优秀
保护地板 ● ● ● ● ● 非常优秀
轮面
为热塑性橡胶弹性体（TPR），便于保护地面, 无痕, 操作舒适, 承受大载重，滚动阻力和旋转阻力小, 耐许多侵蚀性物质的腐蚀。 颜色：灰色。硬度为 68°±5° Shore A。 与轮体的化学黏合不可分解。
轮框
採用优质耐冲击聚丙烯。
特色
•大载重，保护地面，正常使用免维护。
•适用温度范围： -20° C至 +60° C。

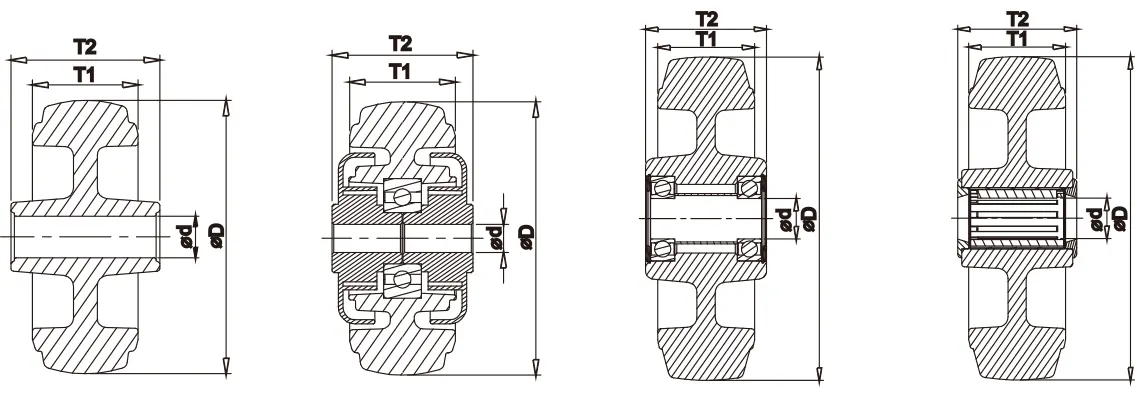

轮子详细资讯
| 品号 | 轮径 (D)【mm】 |
轮宽 (T2)【mm】 |
载重 【kg(lbs)】 |
轴承内径 Ø(d)【mm】 |
中宽 (T1)【mm】 |
轴承 |
| 12024523133200 | 80 | 32 | 120lgs (264lbs) | 12 | 43.6 | 中管 |
| 12024523133174 | 80 | 32 | 120lgs (264lbs) | 8 | 41 | 滚珠轴承 |
| 12024523133173 | 80 | 32 | 120lgs (264lbs) | 10 | 41 | 滚珠轴承 |
| 12024523133172 | 80 | 32 | 120lgs (264lbs) | 8 | 46 | 滚珠轴承 |
| 12024523133171 | 80 | 32 | 120lgs (264lbs) | 10 | 46 | 滚珠轴承 |
| 12024504153174 | 100 | 34 | 150lgs (330lbs) | 10 | 41 | 滚珠轴承 |
| 12024504153173 | 100 | 34 | 150lgs (330lbs) | 8 | 46 | 滚珠轴承 |
| 12024504153172 | 100 | 34 | 150lgs (330lbs) | 10 | 46 | 滚珠轴承 |
| 12024504153171 | 100 | 34 | 150lgs (330lbs) | 8 | 50 | 滚珠轴承 |
| 12024504153176 | 100 | 34 | 150lgs (330lbs) | 10 | 50 | 滚珠轴承 |
| 12024504153175 | 100 | 34 | 150lgs (330lbs) | 8 | 41 | 滚珠轴承 |
| 12024505153174 | 125 | 36 | 180lgs (396lbs) | 8 | 41 | 滚珠轴承 |
| 12024505153173 | 125 | 36 | 180lgs (396lbs) | 10 | 41 | 滚珠轴承 |
| 12024505153172 | 125 | 36 | 180lgs (396lbs) | 8 | 46 | 滚珠轴承 |
| 12024505153171 | 125 | 36 | 180lgs (396lbs) | 10 | 46 | 滚珠轴承 |
| 12024505153176 | 125 | 36 | 180lgs (396lbs) | 8 | 50 | 滚珠轴承 |
| 12024505153175 | 125 | 36 | 180lgs (396lbs) | 10 | 50 | 滚珠轴承 |
| 12024536191171 | 160 | 48 | 300lgs (661lbs) | 20 | 60 | 滚针轴承 |
| 12024536193171 | 160 | 48 | 300lgs (661lbs) | 20 | 58 | 滚珠轴承 |
| 12024536191171 | 200 | 48 | 325lgs (716lbs) | 20 | 60 | 滚针轴承 |
| 12024536193171 | 200 | 48 | 325lgs (716lbs) | 20 | 58 | 滚珠轴承 |
