1300系列 — 手推车系列

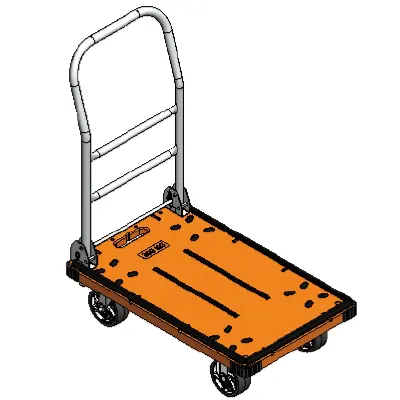

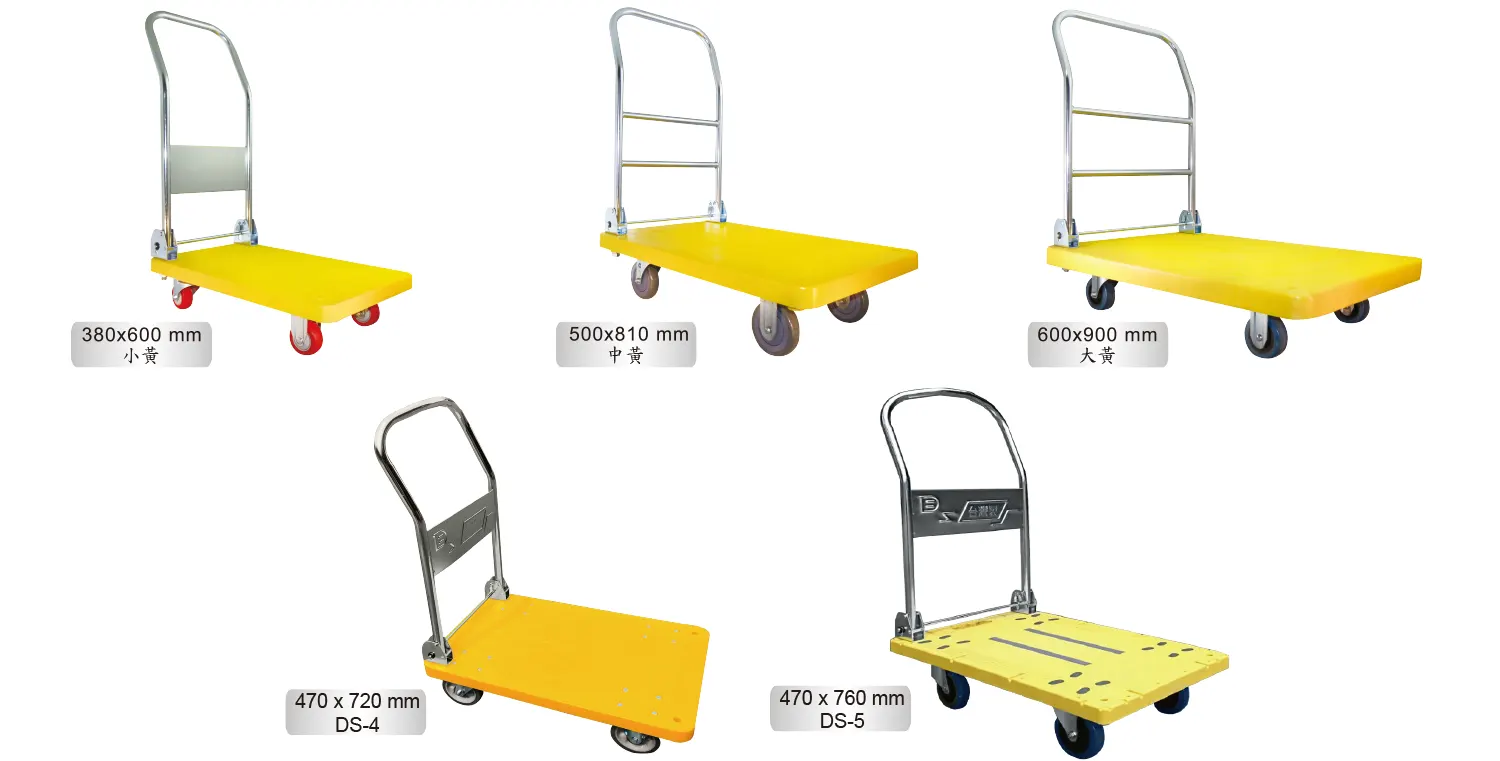

A 塑钢平板车
採用强化塑钢板，荷重不易变形。把手採用镀铬处理，美观耐用。尺寸大小多样，可供多类场所空间搭配使用。

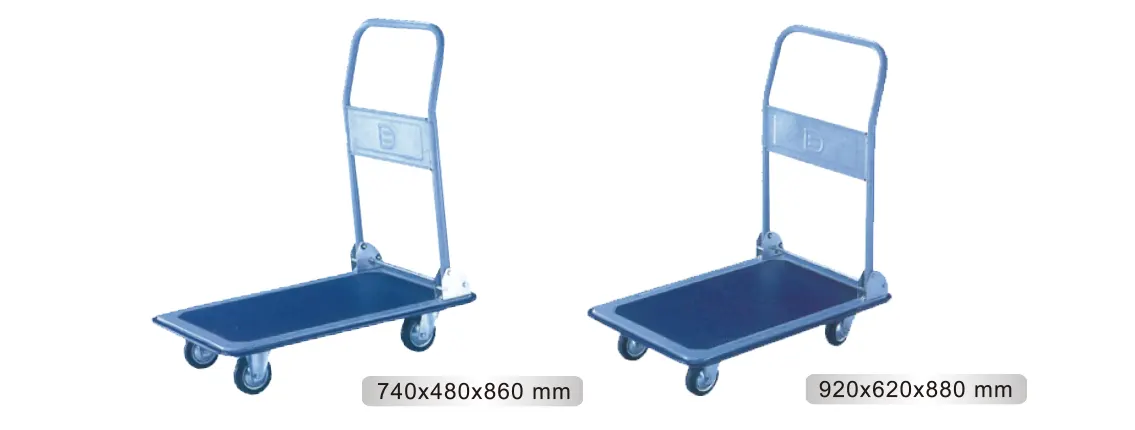

B 四轮手推车
手把底部经特殊补强设计，不易变形，并使车台更具稳定性。
特色区

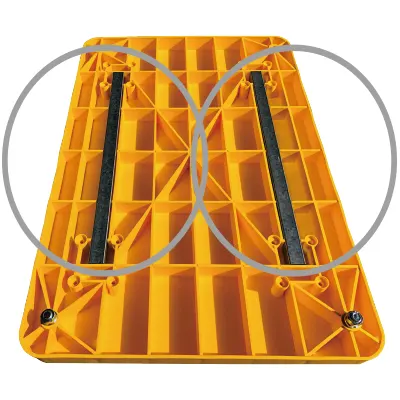

铁管补强
(可选配，适用于中黄、大黄、DS-4、DS-5)

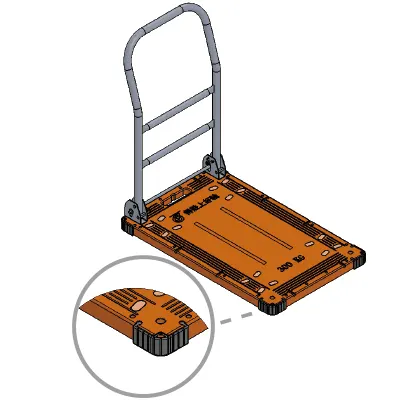

角落防撞块(只适用DS-5)

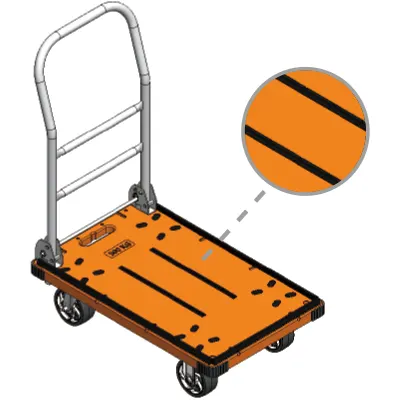

止滑条(只适用DS-5)
角落边条(只适用DS-5)

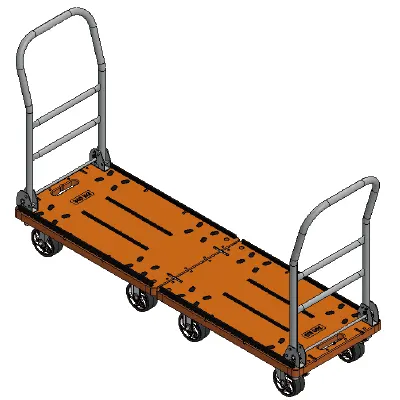

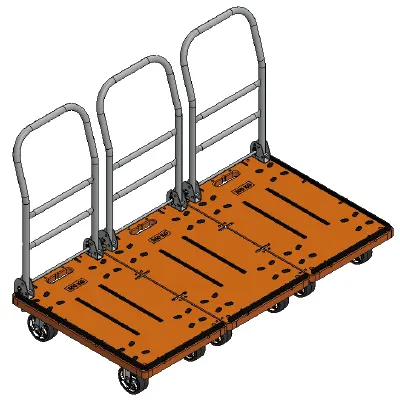

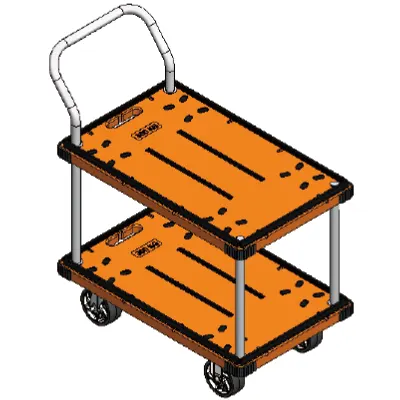

弹性的模组组合
(只适用DS-5)
特色区
铁管补强
(可选配，适用于中黄、大黄、DS-4、DS-5)

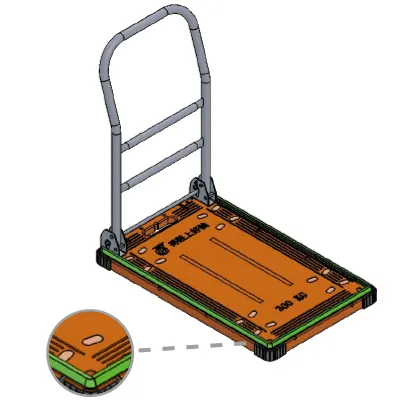

角落防撞块(只适用DS-5)
止滑条(只适用DS-5)
角落边条(只适用DS-5)
弹性的模组组合
(只适用DS-5)
详细资讯(A 塑钢平板车)
| 平板车规格 Truck Plate Dimension (L × W) |
所搭配脚轮规格 Specs of Casters Assembled |
载重 Load |
型号 Item No. |
||||
| 轮径 Wheel Diameter |
轮宽 Wheel Width |
铁管补强 (with Steel Tube) (勾选V) |
材质 Material |
轴承 Bearing |
|||
| 380mm × 600mm (小黄) |
75mm (3") | 32mm (1-1/4") | W 全效轮 W Resolute Wheel |
滚珠 Ball Bearing |
160kgs (352 lbs) | 130432000304 | |
| 100mm (4") | 32mm (1-1/4") | 180kgs (396 lbs) | 130432000408 | ||||
| 平板车规格 Truck Plate Dimension (L × W) |
所搭配脚轮规格 Specs of Casters Assembled |
载重 Load |
型号 Item No. |
||||
| 轮径 Wheel Diameter |
轮宽 Wheel Width |
铁管补强 (with Steel Tube) (勾选V) |
材质 Material |
轴承 Bearing |
|||
| 500mm × 810mm (中黄) |
100mm (4") | 32mm (1-1/4") | W 全效轮 W Resolute Wheel |
滚珠 Ball Bearing |
200kgs (440 lbs) | 130432000408 | |
| V | 250kgs (550 lbs) | 130432000410 | |||||
| 125mm (5") | 32mm (1-1/4") | 220kgs (480 lbs) | 130432000502 | ||||
| V | 300kgs (660 lbs) | 130432000514 | |||||
| 600mm × 900mm (大黄) |
100mm (4") | 32mm (1-1/4") | W 全效轮 W Resolute Wheel |
滚珠 Ball Bearing |
300kgs (660 lbs) | 130432000408 | |
| V | 420kgs (924 lbs) | 130432000406 | |||||
| 125mm (5") | 32mm (1-1/4") | 320kgs (704 lbs) | 130432000531 | ||||
| V | 450kgs (990 lbs) | 130432000514 | |||||
| 470mm × 720mm DS-4 |
100mm (4") | 32mm (1-1/4") | W 全效轮 W Resolute Wheel |
滚珠 Ball Bearing |
200kgs (440 lbs) | 130431000418 | |
| V | 250kgs (550 lbs) | 130431000419 | |||||
| 125mm (5") | 32mm (1-1/4") | 220kgs (480 lbs) | 130431000515 | ||||
| V | 300kgs (660 lbs) | 130431000526 | |||||
| 470mm × 760mm DS-5 |
100mm (4") | 32mm (1-1/4") | V | W 全效轮 W Resolute Wheel |
滚珠 Ball Bearing |
280kgs (616 lbs) | 130433010402 |
| 125mm (5") | 32mm (1-1/4") | V | 300kgs (660 lbs) | 130433010502 | |||
详细资讯(B 四轮手推车)
| 平板车规格 Truck Plate Dimension (L × W × H) |
所搭配脚轮规格 Specs of Casters Assembled |
载重 Load |
型号 Item No. |
|||
| 轮径 Wheel Diameter |
轮宽 Wheel Width |
材质 Material |
轴承 Bearing |
|||
| 740mm × 480mm × 860mm | 100mm (4") | 32mm (1-1/4") | 黑胎轮 Black Rubber on Steel/Plastic Core |
滚针 Roller Bearing |
150kgs (330 lbs) | 1304-B01-04-01 |
| 920mm × 620mm × 880mm | 125mm (5") | 32mm (1-1/4") | 黑胎轮 Black Rubber on Steel/Plastic Core |
滚针 Roller Bearing |
300kgs (660 lbs) | 1304-B02-04-01 |
