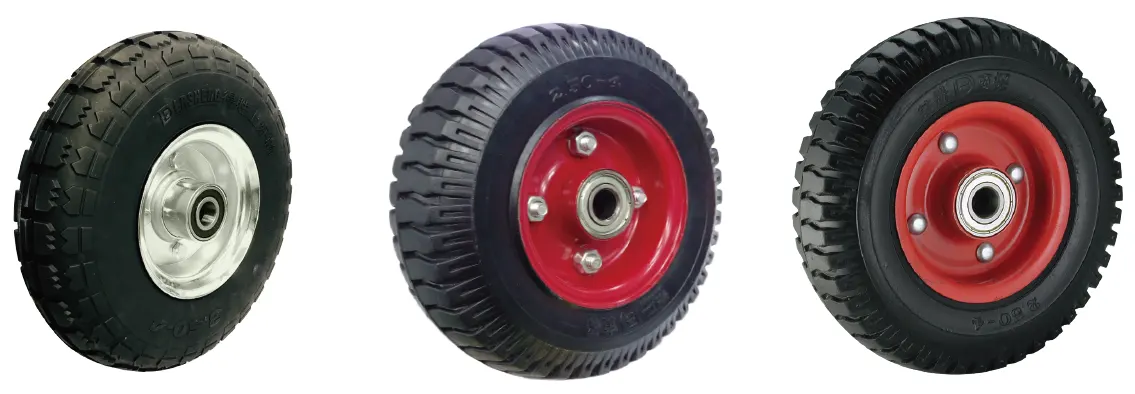

1243系列 — TW风硬轮/风硬省力轮系列
高负载, 用于重物搬运，行走宁静，尤其适用于凹凸不平的路面及杂物较多的环境。
轮子选择
-
风轮
(烤漆铁框) -
风轮
(塑框) -
防爆轮
-
风硬省力轮
-
防刺轮
轮子详细资讯
| 规格 | 轮径 | 轮宽 | 材质 | 轮框 | 中宽 | 载重 | 轴承 | 轴承孔径 | 型号 | 轮子样式 |
| 8" (250-4) |
198mm | 51mm | 风式硬轮(Q) Soild Rubber Wheel(Q) |
铁框(烤漆) Steel rim (painted) |
50mm 正心 (2" centered) |
100 kgs (220 lbs) |
滚珠 Ball Bearing |
17mm | 1243080015 |  |
| 200mm | 53mm | 风式硬轮 Soild Rubber Wheel |
铁框(烤漆) Steel rim (painted) |
55mm 正心 (2-1/5" centered) |
120 kgs (264 lbs) |
滚珠 Ball Bearing |
17mm | 1243080077 |  |
|
| 铁框(镀锌) Steel rim (zinc-plated) |
1243080019 | |||||||||
| 塑框 Plastic rim | 57.5mm 正心 (2-1/4" centered) |
1243080068 | ||||||||
| 200mm | 53mm | 风硬省力轮 Soild Rubber Wheel (EZ Roll) |
铁框(镀锌) Steel rim (zinc-plated) |
55mm 正心 (2-1/5" centered) |
120 kgs (264 lbs) |
滚珠 Ball Bearing |
17mm | 1243080079 |  |
|
| 208mm | 53.5 mm | 防爆轮 Flat Free Tire |
铁框(镀锌) Steel rim (zinc-plated) |
100 kgs (220 lbs) |
滚珠 Ball Bearing |
17mm | 1243080067 |  |
||
| 10" (350-4) |
250mm | 68mm | 风硬省力轮 Soild Rubber Wheel (EZ Roll) |
铁框(烤漆) Steel rim (painted) |
65mm 正心 (2-9/16" centered) |
180 kgs (396 lbs) |
滚珠 Ball Bearing |
17mm | 1243100070 | |
| 铁框(镀锌) Steel rim (zinc-plated) |
1243100069 | |||||||||
| 255mm | 85mm | 防爆轮 Flat Free Tire |
铁框(镀锌) Steel rim (zinc-plated) |
65mm 正心 (2-9/16" centered) |
150 kgs (330 lbs) |
滚珠 Ball Bearing |
17mm | 1243100049 | |
|
| 257mm | 79.5mm | 风硬弹力轮 Soild Resilient Rubber Wheel |
铁框(烤漆) Steel rim (painted) |
65mm 正心 (2-9/16" centered) |
180 kgs (396 lbs) |
滚珠 Ball Bearing |
17mm | 1243100076 | |
|
| 铁框(镀锌) Steel rim (zinc-plated) |
1243100051 | |||||||||
| 263mm | 87mm | 防刺轮 PU Foam Tire |
铁框(镀锌) Steel rim (zinc-plated) |
65mm 正心 (2-9/16" centered) |
150 kgs (330 lbs) |
滚珠 Ball Bearing |
17mm | 1243100058 |  |
