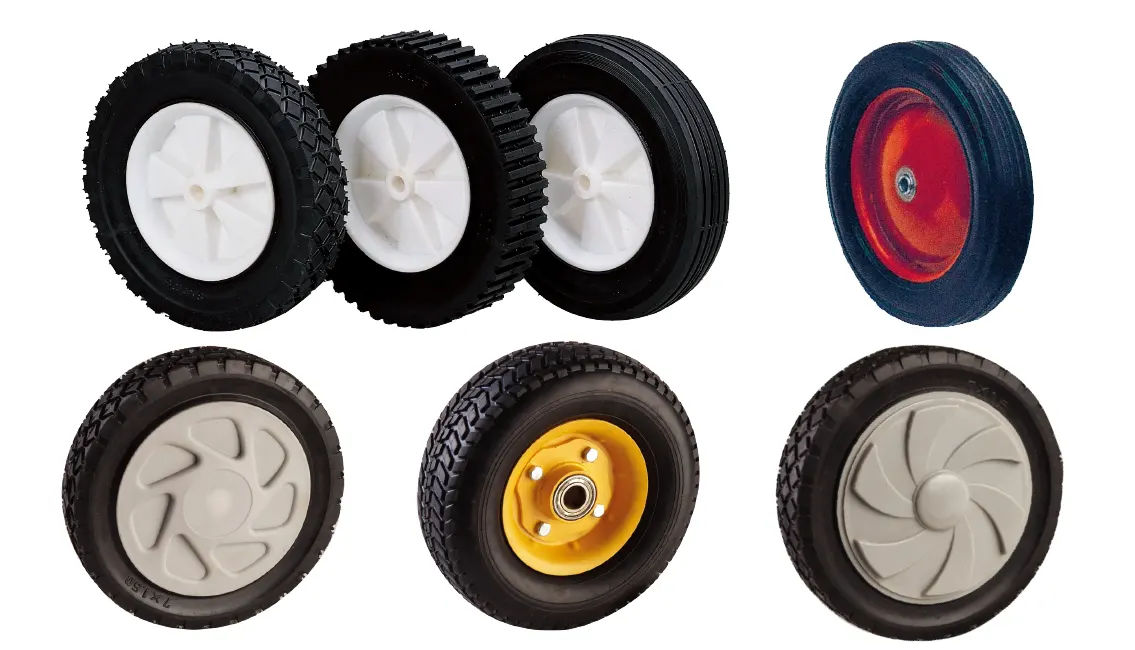

1204系列 — 空心胎/实心胎割草机轮系列
适用于割草机，木工机械，高压清洗机，发电机，搬运车与氧气车等
有多样的胎纹供选择，请联络工厂
轮框材质有铁框(可做烤漆或电镀处理)及塑框可供选择
各种OEM尺寸及设计可以依据产品设计需求生产。
特色区

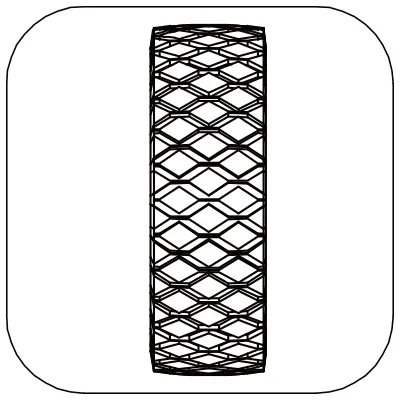

| 1) 鑽纹 Diamond Tread Profile |
 |
| 2) X纹 X Tread Profile |
 |

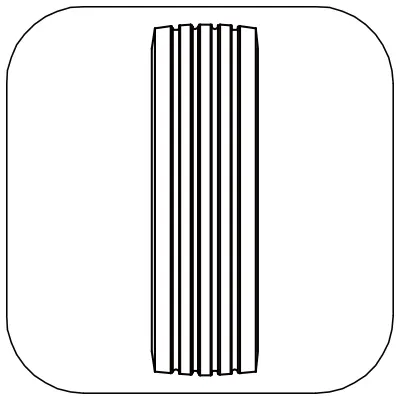

| 3) 直纹 Rib Tread Profile |
 |

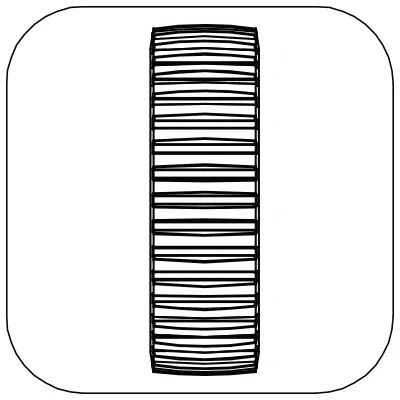

| 4) 齿纹 Gear Tread Profile |
 |

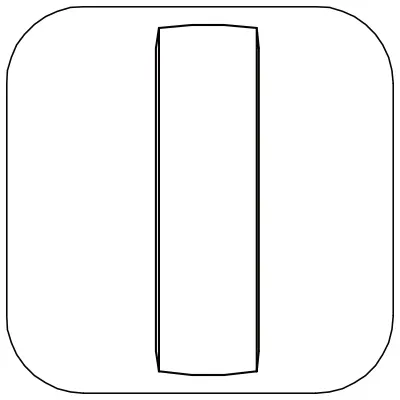

| 5) 光面 Smooth Tread Profile |
 |
| 6) V纹 V Tread Profile |
 |
| 7) G-2纹 G-2 Tread Profile |
 |

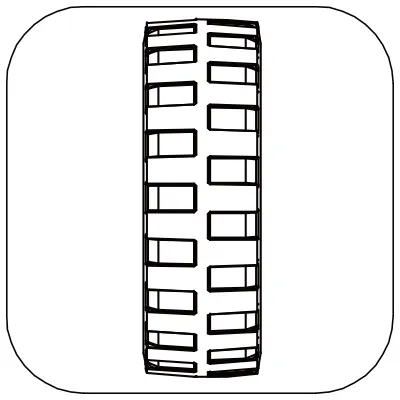

| 8) 方块纹 Stud Tread Profile |
 |
| 9) G-3纹 G-3 Tread Profile |
 |
| 10) L纹 L Tread Profile |
 |
| 11) 横纹 Lateral Tread Profile |
 |
轮子详细资讯
实心胎橡胶轮 (铁框-正心) Solid Rubber Wheel with Steel Rim (Centered Hub)
| 轮径 | 轮宽 | 中宽 | 轴承 | 胎纹 | 厚胶/薄胶 | 铁框颜色 | 荷重 | |
| 精密滚珠轴承 | A珠 | |||||||
| 6" | 1-1/2" (37 mm) |
1-17/32" (39 mm) |
— | 1/2"(12.7 mm) | 直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
60kg (130 lbs) |
| 6" | 1-1/2" (37 mm) |
1-27/32" (47 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
60kg (130 lbs) |
| 7" | 1-1/2" (35 mm) |
2" (51 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
70kg (155 lbs) |
| 8" | 1-3/4" (42 mm) |
2" (51 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
70kg (155 lbs) |
| 8" | 1-3/4" (42 mm) |
2-1/4" (57 mm) |
— | 1/2"(12.7 mm) | 直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
70kg (155 lbs) |
| 8" | 2-1/2" (62 mm) |
2-11/64" (55.2 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
红 Red / 镀锌 Zinc Plated |
70kg (155 lbs) |
| 10" | 1-3/4" (41 mm) |
2-3/16" (55.5 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red / 银灰Silver |
70kg (155 lbs) |
| 10" | 2-1/2" (57 mm) |
2-3/4" (70 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
红 Red | 110kg (240 lbs) |
| 10" | 2-3/4" (65 mm) |
2-3/4" (70 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
银灰Silver / 镀锌 Zinc Plated |
115kg (255 lbs) |
| 12" | 1-3/4" (43 mm) |
2-21/64" (59 mm) |
— | 1/2"(12.7 mm) | 直纹 Rib |
厚胶 Thick Tread |
红 Red | 70kg (155 lbs) |
实心胎橡胶轮 (铁框-偏心) Solid Rubber Wheel with Steel Rim (Offset Hub)
| 轮径 | 轮宽 | 中宽 | 轴承 | 胎纹 | 厚胶/薄胶 | 铁框颜色 | 荷重 | |
| 精密滚珠轴承 | A珠 | |||||||
| 6" | 1-1/2" (37 mm) |
1-17/32" (39 mm) |
— | 1/2"(12.7 mm) | 直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
60kg (130 lbs) |
| 6" | 1-1/2" (37 mm) |
1-27/32" (47 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
60kg (130 lbs) |
| 7" | 1-1/2" (35 mm) |
2" (51 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
70kg (155 lbs) |
| 8" | 1-3/4" (42 mm) |
2" (51 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
70kg (155 lbs) |
| 8" | 1-3/4" (42 mm) |
2-1/4" (57 mm) |
— | 1/2"(12.7 mm) | 直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
70kg (155 lbs) |
| 8" | 2-1/2" (62 mm) |
2-11/64" (55.2 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
红 Red / 镀锌 Zinc Plated |
70kg (155 lbs) |
| 10" | 1-3/4" (41 mm) |
2-3/16" (55.5 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red / 银灰Silver |
70kg (155 lbs) |
| 10" | 2-1/2" (57 mm) |
2-3/4" (70 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
红 Red | 110kg (240 lbs) |
| 10" | 2-3/4" (65 mm) |
2-3/4" (70 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
银灰Silver / 镀锌 Zinc Plated |
115kg (255 lbs) |
| 12" | 1-3/4" (43 mm) |
2-21/64" (59 mm) |
— | 1/2"(12.7 mm) | 直纹 Rib |
厚胶 Thick Tread |
红 Red | 70kg (155 lbs) |
实心胎橡胶轮 (塑框-正心) Solid Rubber Wheel with Plastic Rim (Centered Hub)
| 轮径 | 轮宽 | 中宽 (含轴承) |
轴承 | 胎纹 | 厚胶/薄胶 | 塑框颜色 | 塑框形状 | 荷重 | |
| 中管 | 双轴承 | ||||||||
| 6" | 1-1/2" (35 mm) |
1-17/32" (39 mm) |
13 mm | — | 直纹 Rib |
厚胶 Thick Tread |
黑 blacke / 白 White |
五风 | 55kg (120 lbs) |
| 7" | 1-1/2" (35 mm) |
1-31/64" (37.5 mm) |
12.7 mm | — | 直纹 Rib |
薄胶 Regular Tread |
黑 blacke | 五风 | 55kg (120 lbs) |
| 7" | 1-1/2" (35 mm) |
1-31/64" (37.5 mm) |
12.7 mm | — | 直纹 Rib |
厚胶 Thick Tread |
黑 blacke | 五风 | 55kg (120 lbs) |
| 8" | 1-3/4" (42.5 mm) |
1-31/64" (37.5 mm) |
12.7 mm | — | 齿纹 Gear |
厚胶 Thick Tread |
黑 blacke / 白 White |
五风 | 55kg (120 lbs) |
| 8" | 1-3/4" (42.5 mm) |
1-15/64" (56 mm) |
16 mm | — | 直纹 Rib |
厚胶 Thick Tread |
白 White | 五风 | 55kg (120 lbs) |
| 10" | 1-3/4" (41 mm) |
2" (50 mm) |
12.7 mm | — | 直纹 Rib |
厚胶 Thick Tread |
白 White | 五风 | 65kg (140 lbs) |
实心胎橡胶轮 (塑框-偏心) Solid Rubber Wheel with Plastic Rim (Offset Hub)
| 轮径 | 轮宽 | 中宽 (含轴承) |
轴承 | 胎纹 | 厚胶/薄胶 | 塑框颜色 | 塑框形状 | 荷重 | |
| 中管 | 双轴承 | ||||||||
| 6" | 1-1/2" (35 mm) |
1-9/32" (32 mm) |
13 mm | — | 直纹 Rib |
厚胶 Thick Tread |
灰 Gray | 五风 | 55kg (120 lbs) |
| 6" | 1-1/2" (35 mm) |
1-3/8" (34.5 mm) |
12.8 mm | — | 直纹 Rib |
厚胶 Thick Tread |
白 White | 五风 | 55kg (120 lbs) |
| 7" | 1-1/2" (35 mm) |
1-41/64" (41 mm) |
12.8 mm | — | 直纹 Rib |
薄胶 Regular Tread |
黑 Black | 五风 | 55kg (120 lbs) |
| 7" | 1-1/2" (35 mm) |
1-41/64" (41 mm) |
12.8 mm | — | 直纹 Rib |
薄胶 Regular Tread |
黑 Black | 五风 | 55kg (120 lbs) |
| 8" | 1-3/4" (42 mm) |
1-23/64" (34 mm) |
12.7 mm | — | 直纹 Rib |
厚胶 Thick Tread |
深灰 Dark Gray | 五风 | 55kg (120 lbs) |
| 8" | 1-3/4" (42 mm) |
1-33/64" (38 mm) |
12.5 mm | — | 直纹 Rib |
厚胶 Thick Tread |
绿 Green | 三叉 | 55kg (120 lbs) |
| 8" | 1-3/4" (42 mm) |
1-41/64" (39 mm) |
12.85 mm | — | 直纹 Rib |
厚胶 Thick Tread |
黑 Black | 五风 | 55kg (120 lbs) |
| 8" | 1-3/4" (42 mm) |
1-41/64" (39 mm) |
12.8 mm / 12.85 mm |
— | 直纹 Rib |
厚胶 Thick Tread |
灰 Gray / 黑 Black / 红 Red |
三叉 | 55kg (120 lbs) |
| 8" | 1-3/4" (42 mm) |
1-41/64" (41 mm) |
12.8 mm | — | 直纹 Rib |
厚胶 Thick Tread |
白 White | 五风 | 55kg (120 lbs) |
| 8" | 1-3/4" (42 mm) |
1-41/64" (41 mm) |
14.5 mm | — | 直纹 Rib |
厚胶 Thick Tread |
黑 Black | 五风 | 55kg (120 lbs) |
| 8" | 2" (46 mm) | 2-9/64" (53.5 mm) |
— | — | 直纹 Rib |
厚胶 Thick Tread |
灰 Gray | 五风 | 55kg (120 lbs) |
| 10" | 1-3/4" (41 mm) |
1-17/32" (38.4 mm) |
12.8 mm | — | 直纹 Rib |
厚胶 Thick Tread |
白 White | 五风 | 65kg (145 lbs) |
| 10" | 1-3/4" (41 mm) |
1-37/64" (39.6 mm) |
12.8 mm | — | 齿纹 Gear |
厚胶 Thick Tread |
黑 Black | 五风 | 65kg (145 lbs) |
| 12" | 1-3/4" (43 mm) |
1-37/64" (39.6 mm) |
14.8 mm | — | 直纹 Rib |
厚胶 Thick Tread |
灰 Gray / 黑 Black |
五风 | 80kg (175 lbs) |
空心胎橡胶轮 (铁框-正心) Semi-Pneumatic Rubber Wheel with Steel Rim (Centered Hub)
| 轮径 | 轮宽 | 中宽 | 轴承 | 胎纹 | 厚胶/薄胶 | 铁框颜色 | 荷重 | |
| 精密滚珠轴承 | A珠 | |||||||
| 6" | 1-1/2" (37 mm) |
1-17/32" (39 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
25kg (55 lbs) |
| 6" | 1-1/2" (37 mm) |
1-17/32" (39 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
25kg (55 lbs) |
| 6" | 1-1/2" (37 mm) |
1-27/32" (47 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
25kg (55 lbs) |
| 6" | 1-1/2" (37 mm) |
1-27/32" (47 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
25kg (55 lbs) |
| 6" | 1-4/5" (45 mm) |
2-13/64" (56 mm) |
— | 1/2" (12.7 mm) | 鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 7" | 1-1/2" (36 mm) |
1-31/64" (37.5 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 7" | 1-1/2" (36 mm) |
1-31/64" (37.5 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 7" | 1-1/2" (36 mm) |
2" (51 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 7" | 1-1/2" (36 mm) |
2" (51 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 7" | 1-3/4" (44.5 mm) |
1-31/64" (37.5 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 7" | 1-3/4" (44.5 mm) |
2" (51 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 8" | 1-3/4" (42 mm) |
1-31/64" (37.5 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
35kg (80 lbs) |
| 8" | 1-3/4" (42 mm) |
2" (51 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-31/64" (37.5 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
2" (51 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
35kg (80 lbs) |
| 10" | 1-3/4" (41 mm) |
1-39/64" (41 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
45kg (100 lbs) |
| 10" | 1-3/4" (41 mm) |
1-39/64" (41 mm) |
— | 1/2"(12.7 mm) / 5/8"(15.88 mm) / 3/4"(19.05 mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
45kg (100 lbs) |
| 10" | 2-1/2" (57 mm) |
1-55/64" (47.3 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
红 Red | 70kg (155 lbs) |
| 10" | 2-3/4" (62 mm) |
2-9/64" (54 mm) |
— | 5/8"(15.88 mm) / 3/4"(19.05 mm) |
直纹 Rib |
厚胶 Thick Tread |
银灰 Silver / 镀锌 Zinc Plated |
70kg (155 lbs) |
| 10" | 3-25/64" (85 mm) |
2-19/32" (65mm) |
6203 (17 mm) / 6904 (20 mm) |
5/8"(15.88 mm) / 3/4"(19.05 mm) |
横纹 Latera |
厚胶 Thick Tread |
红 Red / 银灰 Silver / 镀锌 Zinc Plated / 黄 Yellow |
90kg (200 lbs) |
| 12" | 1-3/4" (43 mm) |
1-39/64" (56 mm) |
— | 1/2" (12.7 mm) | 直纹 Rib |
厚胶 Thick Tread |
红 Red | 35kg (80 lbs) |
空心胎橡胶轮 (铁框-偏心) Semi-Pneumatic Rubber Wheel with Steel Rim (Offset Hub)
| 轮径 | 轮宽 | 中宽 | 轴承 | 胎纹 | 厚胶/薄胶 | 铁框颜色 | 荷重 | |
| 精密滚珠轴承 | A珠 | |||||||
| 6" | 1-1/2" (37mm) |
1-29/64" (37mm) |
— | 1/2"(12.7mm) / 5/8"(15.88mm) / 3/4"(19.05mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
25kg (55 lbs) |
| 6" | 1-1/2" (37mm) |
1-29/64" (37mm) |
— | 1/2"(12.7mm) / 5/8"(15.88mm) / 3/4"(19.05mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
25kg (55 lbs) |
| 7" | 1-1/2" (36mm) |
1-31/64" (37.5mm) |
— | 1/2"(12.7mm) / 5/8"(15.88mm) / 3/4"(19.05mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 7" | 1-1/2" (36mm) |
1-31/64" (37.5mm) |
— | 1/2"(12.7mm) / 5/8"(15.88mm) / 3/4"(19.05mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 7" | 1-3/4" (44.5mm) |
1-31/64" (37.5mm) |
— | 1/2"(12.7mm) / 5/8"(15.88mm) / 3/4"(19.05mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
30kg (65 lbs) |
| 8" | 1-3/4" (42mm) |
1-31/64" (37.5mm) |
— | 1/2"(12.7mm) / 5/8"(15.88mm) / 3/4"(19.05mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
白 White / 红 Red |
35kg (80 lbs) |
| 8" | 1-3/4" (42mm) |
1-1/2" (38mm) |
6002 (15 mm) |
— | 鑽纹 Diamond |
厚胶 Thick Tread |
白 White | 35kg (80 lbs) |
| 8" | 1-3/4" (43mm) |
1-31/64" (37.5mm) |
— | 1/2"(12.7mm) / 5/8"(15.88mm) / 3/4"(19.05mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
35kg (80 lbs) |
| 8" | 1-3/4" (43mm) |
1-1/2" (38mm) |
6002 (15 mm) |
— | 直纹 Rib |
厚胶 Thick Tread |
白 White | 35kg (80 lbs) |
| 10" | 1-3/4" (41mm) |
1-39/64" (41mm) |
— | 1/2"(12.7mm) / 5/8"(15.88mm) / 3/4"(19.05mm) |
直纹 Rib |
厚胶 Thick Tread |
白 White / 红 Red |
45kg (100 lbs) |
| 10" | 2-1/2" (57mm) |
1-55/64" (47.3mm) |
— | 5/8"(15.88mm) / 3/4"(19.05mm) |
直纹 Rib |
厚胶 Thick Tread |
红 Red | 70kg (155 lbs) |
| 10" | 3-25/64" (85mm) |
2-19/32" (65mm) |
6203 (17 mm) / 6904 (20 mm) |
— | 横纹 Lateral |
厚胶 Thick Tread |
红 Red / 银灰 Silver / 镀锌 Zinc Plated / 黄 Yellow |
80kg (175 lbs) |
空心胎橡胶轮 (塑框-正心) Semi-Pneumatic Rubber Wheel with Plastic Rim (Centered Hub)
| 轮径 | 轮宽 | 中宽 (含轴承) |
轴承 | 胎纹 | 厚胶/薄胶 | 塑框颜色 | 塑框形状 | 荷重 | |
| 中管 | 双轴承 | ||||||||
| 6" | 1-1/2" (34.5 mm) |
1-31/64" (37.5mm) |
12.7 mm | — | 鑽纹 Diamond |
薄胶 Regular Tread |
灰 Gray / 黄 Yellow / 黑 Black |
五风 | 25kg (55 lbs) |
| 6" | 1-1/2" (34.5 mm) |
1-31/64" (37.5mm) |
13 mm | — | 直纹 Rib |
厚胶 Thick Tread |
白 White | 五风 | 25kg (55 lbs) |
| 6" | 1-1/2" (34.5 mm) |
1-31/64" (37.5mm) |
13 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
白 White | 五风 | 25kg (55 lbs) |
| 7" | 1-1/2" (35 mm) |
1-31/64" (37.5mm) |
12.7 mm | — | 直纹 Rib |
薄胶 Regular Tread |
白 White | 五风 | 30kg (65 lbs) |
| 7" | 1-1/2" (35 mm) |
1-15/64" (56mm) |
16 mm | — | 直纹 Rib |
薄胶 Regular Tread |
白 White | 五风 | 30kg (65 lbs) |
| 7" | 1-1/2" (37 mm) |
1-31/64" (37.5mm) |
12.7 mm | — | 鑽纹 Diamond |
薄胶 Regular Tread |
白 White | 五风 | 30kg (65 lbs) |
| 8" | 1-3/4" (43 mm) |
1-31/64" (37.5mm) |
12.7 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
黑 Black / 白 White |
五风 | 35kg (80 lbs) |
| 8" | 1-3/4" (44.5 mm) |
1-31/64" (37.5mm) |
12.7 mm | — | 直纹 Rib |
厚胶 Thick Tread |
黑 Black / 白 White |
五风 | 35kg (80 lbs) |
| 8" | 1-3/4" (44.5 mm) |
1-31/64" (37.5mm) |
12.7 mm | — | 粗齿纹 Gear |
厚胶 Thick Tread |
黑 Black / 白 White |
五风 | 35kg (80 lbs) |
| 8" | 2-1/2" (53.5 mm) |
2" (51mm) |
— | 6202 (15.88 mm) |
直纹 Rib |
厚胶 Thick Tread |
灰 Gray | 其他 | 35kg (80 lbs) |
| 10" | 1-3/4" (41 mm) |
2" (51mm) |
12.7 mm | — | 直纹 Rib |
厚胶 Thick Tread |
白 White | 五风 | 45kg (100 lbs) |
空心胎橡胶轮 (塑框-偏心) Semi-Pneumatic Rubber Wheel with Plastic Rim (Offset Hub)
| 轮径 | 轮宽 | 中宽 (含轴承) |
轴承 | 胎纹 | 厚胶/薄胶 | 塑框颜色 | 塑框形状 | 荷重 | |
| 中管 | 双轴承 | ||||||||
| 6" | 1-1/2" (33 mm) |
1-13/64" (30.25 mm) |
12.9 mm | — | 方块纹 Stud |
厚胶 Thick Tread |
深灰 Dark Gray / 浅灰 Light Gray |
三爪 | 25kg (55 lbs) |
| 6" | 1-1/2" (37 mm) |
1-3/8" (34.5 mm) |
12.8 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
白 White | 五叉 | 25kg (55 lbs) |
| 6" | 1-1/2" (37.5 mm) |
1-39/64" (40.5 mm) |
13 mm | — | G-2纹 G-2 |
厚胶 Thick Tread |
灰 Gray | 五风 | 25kg (55 lbs) |
| 6" | 1-1/2" (38 mm) |
1-3/8" (34.5 mm) |
12.8 mm | — | 光面 Smooth |
厚胶 Thick Tread |
白 White | 五风 | 25kg (55 lbs) |
| 6" | 1-1/2" (37.3mm) |
1-7/8" (47.2mm) |
10.5 mm | — | 齿纹 Gear |
薄胶 Regular Tread |
灰 Gray | 五叉 | 25kg (55 lbs) |
| 7" | 1-1/2" (38 mm) |
1-19/64" (32.5 mm) |
— | 6201 (12.75 mm) |
鑽纹 Diamond |
薄胶 Regular Tread |
黑 Black | 三叉 | 30kg (65 lbs) |
| 7" | 1-1/2" (38 mm) |
1-25/64" (34.9 mm) |
12.8 mm | — | 鑽纹 Diamond |
薄胶 Regular Tread |
深灰 Dark Gray | 三叉 | 30kg (65 lbs) |
| 7" | 1-1/2" (38 mm) |
1-25/64" (34.9 mm) |
12.8 mm | — | 光面 Smooth |
薄胶 Regular Tread |
黄 Yellow | 三叉 | 30kg (65 lbs) |
| 7" | 1-1/2" (38 mm) |
1-7/16" (36 mm) |
— | 6201 (12.75mm) |
鑽纹 Diamond |
薄胶 Regular Tread |
冷灰 Cool Gray / 黑 Black |
十二叉 | 30kg (65 lbs) |
| 7" | 1-1/2" (38 mm) |
1-7/16" (36 mm) |
12.7 mm | — | X纹 X Profile |
薄胶 Regular Tread |
灰 Gray / 白 White |
其他 | 30kg (65 lbs) |
| 7" | 1-1/2" (38 mm) |
1-41/64" (39 mm) |
13 mm | — | 鑽纹 Diamond |
薄胶 Regular Tread |
灰 Gray | 三叉 | 30kg (65 lbs) |
| 7" | 1-1/2" (38 mm) |
1-41/64" (41 mm) |
14.5 mm | — | 鑽纹 Diamond |
薄胶 Regular Tread |
白 White | 五风 | 30kg (65 lbs) |
| 8" | 1-3/4" (41.5 mm) |
1-25/64" (34.9 mm) |
12.8 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
白 White | 三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (41.5 mm) |
1-41/64" (39 mm) |
13 mm | — | 粗齿纹 Gear |
厚胶 Thick Tread |
白 White | 三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-41/64" (39 mm) |
13 mm | — | 直纹 Rib |
厚胶 Thick Tread |
白 White | 三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-3/32" (27 mm) |
12.9 mm | — | 方块纹 Stud |
厚胶 Thick Tread |
深灰 Dark Gray / 灰 Gray |
三爪 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
-5/16" (33 mm) |
— | 6201 (12.75mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
冷灰 Cool Gray / 黑 Black |
十二叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-25/64" (34.9 mm) |
12.7 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
白 White | 三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-25/64" (34.9 mm) |
12.7 mm | — | 齿纹 Gear |
厚胶 Thick Tread |
白 White | 三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-27/64" (36 mm) |
— | 6201 (12.75mm) |
直纹 Rib |
厚胶 Thick Tread |
冷灰 Cool Gray / 黑 Black |
三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-15/32" (37 mm) |
— | 6201 (12.75mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
灰 Gray | 五风 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-33/64" (38 mm) |
12.7 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
灰 Gray / 绿 Green |
五叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-33/64" (38 mm) |
12.7 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
黑 Black / 绿 Green |
三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-41/64" (39 mm) |
— | 6201 (12.75mm) |
鑽纹 Diamond |
厚胶 Thick Tread |
灰 Gray | 三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-41/64" (39 mm) |
13 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
灰 Gray / 黑 Black / 白 White / 红 Red |
三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (43 mm) |
1-41/64" (40.9 mm) |
12.7 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
白 White | 三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (44 mm) |
1-25/64" (34.9 mm) |
12.7 mm | — | 光面 Smooth |
厚胶 Thick Tread |
白 White | 三叉 | 35kg (80 lbs) |
| 8" | 1-3/4" (44 mm) |
1-27/64" (36 mm) |
— | 6201 (12.75mm) |
鑽纹 Diamond |
薄胶 Regular Tread |
灰 Gray / 黑 Black |
十二叉 | 35kg (80 lbs) |
空心胎橡胶轮 (塑框-偏心) Semi-Pneumatic Rubber Wheel with Plastic Rim (Offset Hub)
| 轮径 | 轮宽 | 中宽 (含轴承) |
轴承 | 胎纹 | 厚胶/薄胶 | 塑框颜色 | 塑框形状 | 荷重 | |
| 中管 | 双轴承 | ||||||||
| 8" | 1-3/4" (44.5 mm) |
1-5/16" (33mm) |
6201 (12.75 mm) |
V纹 V Profile |
厚胶 Thick Tread |
灰 Gray | 五爪 | 35kg (80 lbs) |
|
| 8" | 2" (52 mm) |
1-23/64" (34.5 mm) |
13 mm | — | G-2纹 G-2 |
厚胶 Thick Tread |
灰 Gray | 五风 / 六风 | 35kg (80 lbs) |
| 8" | 2" (52 mm) |
1-23/64" (34.5 mm) |
13 mm | — | G-2纹 G-2 |
厚胶 Thick Tread |
红 Red | 其他 | 35kg (80 lbs) |
| 8" | 2" (52 mm) |
1-9/32" (32.5 mm) |
12.85 mm | — | G-3纹 G-3 |
厚胶 Thick Tread |
黄 Yellow | 五风 | 35kg (80 lbs) |
| 8" | 2" (52 mm) |
1-33/64" (38 mm) |
15.1 mm / 17.5 mm |
— | 方块纹 Stud |
厚胶 Thick Tread |
黄 Yellow | 其他 | 35kg (80 lbs) |
| 8" | 2.5" (56.6 mm) |
2-1/8" (54 mm) |
— | 6202 (20 mm) |
直纹 Rib |
厚胶 Thick Tread |
灰 Gray | 十叉 | 35kg (80 lbs) |
| 8" | 2.5" (56.6 mm) |
1-61/64" (49.6 mm) |
10.2 mm | — | L纹 L Profile |
厚胶 Thick Tread |
灰 Gray | 三叉 / 六风 | 35kg (80 lbs) |
| 10" | 1.5" (38.5 mm) |
1-9/16" (39.6 mm) |
13 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
灰 Gray | 三爪 | 45kg (100 lbs) |
| 10" | 1-3/4" (41 mm) |
1-1/2" (38 mm) |
14.5 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
灰 Gray / 黑 Black |
三叉 | 45kg (100 lbs) |
| 10" | 1-3/4" (41 mm) |
1-1/2" (38 mm) |
13 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
白 White | 三叉 | 45kg (100 lbs) |
| 10" | 1-3/4" (44.5 mm) |
1-7/16" (36 mm) |
12.7 mm | — | X纹 X Profile |
厚胶 Thick Tread |
冷灰 Cool Gray / 灰 Gray |
五爪 | 45kg (100 lbs) |
| 10" | 2" (50.8 mm) |
1-9/16" (39.6 mm) |
13 mm | — | 鑽纹 Diamond |
厚胶 Thick Tread |
灰 Gray | 五叉 | 50kg (110 lbs) |
| 11" | 1-3/4" (45 mm) |
1-13/64" (30 mm) |
16.2 mm | — | 直纹 Rib |
厚胶 Thick Tread |
黑 Black | 其他 | 45kg (100 lbs) |
| 12" | 1-3/4" (44.5 mm) |
1-17/64" (32 mm) |
12.8 mm / 14.8 mm |
— | G-2纹 G-2 |
厚胶 Thick Tread |
灰 Gray | 五风 | 45kg (100 lbs) |
