1202系列 — 风轮系列
高负载, 用于重物搬运，行走宁静，尤其适用于凹凸不平的路面及杂物较多的环境。

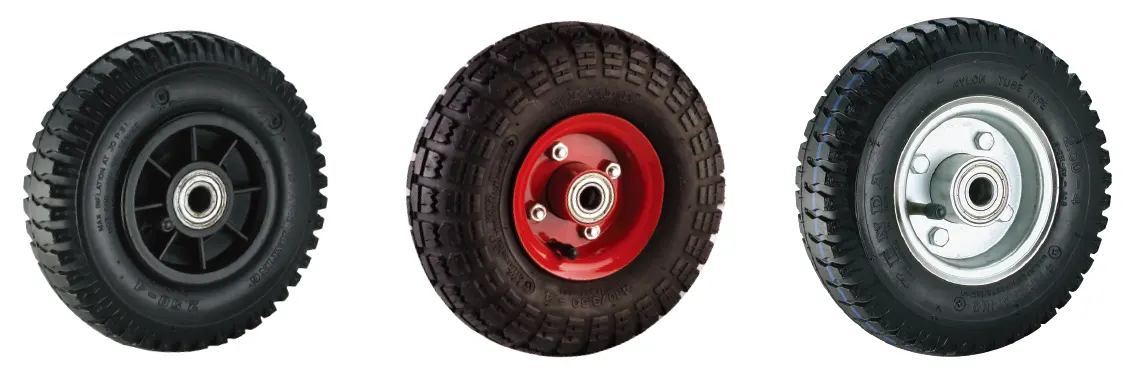

轮子选择
-
.webp)
风轮
(烤漆铁框) -
.webp)
风轮
(塑框) -
.webp )
风轮
(镀锌铁框) -
.webp)
风硬轮
(烤漆铁框) -
.webp)
风硬轮
(镀锌铁框)
轮子详细资讯
| 规格 | 轮框 | 轴长 | 载重 | 型号 | 轴承 | 轮子样式 |
| 8" | 铁框(烤漆) Steel rim(painted) |
95mm (3" Centered) 57mm (2-1/4" Offset) |
100kgs (220lbs) | 1202-08-SA | 1/2" , 3/4" , 5/8" 滚珠 Ball Bearing 3/4" 滚针 Rolling Bearing |
 |
| 铁框(镀锌) Steel rim(zinc-plated) |
1202-08-SB | |||||
| 塑框 Plastic rim |
1202-08-P | |||||
| 10" | 铁框(烤漆) Steel rim(painted) |
95mm (3" Centered) 57mm (2-1/4" Offset) |
150kgs (330lbs) | 1202-10-SA | 1/2" , 3/4" , 5/8" 滚珠 Ball Bearing 3/4" 滚针 Rolling Bearing |
 |
| 铁框(镀锌) Steel rim(zinc-plated) |
1202-10-SB | |||||
| 塑框 Plastic rim |
1202-10-P | |||||
| 11" | 铁框(烤漆) Steel rim(painted) |
95mm (3" Centered) | 170kgs (375lbs) | 1202-11-SA | 1/2" , 3/4" , 5/8" 滚珠 Ball Bearing |
|
| 铁框(镀锌) Steel rim(zinc-plated) |
1202-11-SB | |||||
| 塑框 Plastic rim |
1202-11-P | |||||
| 12" | 铁框(烤漆) Steel rim(painted) |
100mm (4" Centered) | 190kgs (415lbs) | 1202-12-SA | 1/2" , 3/4" , 5/8" 滚珠 Ball Bearing |
|
| 铁框(镀锌) Steel rim(zinc-plated) |
1202-12-SB | |||||
| 塑框 Plastic rim |
1202-12-P | |||||
| 14" | 铁框(烤漆) Steel rim(painted) |
100mm (4" Centered) | 200kgs (440lbs) | 1202-14-SA | 1/2" , 3/4" , 5/8" 滚珠 Ball Bearing |
|
| 铁框(镀锌) Steel rim(zinc-plated) |
1202-14-SB | |||||
| 塑框 Plastic rim |
1202-14-P |
