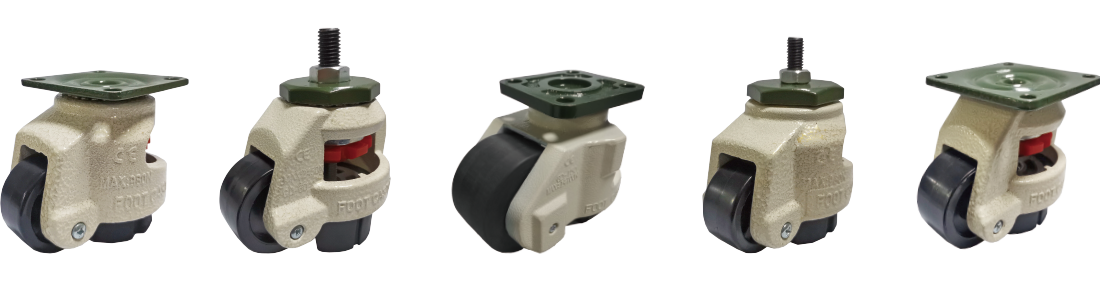

1169系列 — 水平调节轮系列
水平调节轮系列脚轮适用于电气自动化设备类、半导体设备类、医疗机械类、其他机臺、机柜设备类，
适用于3T以下的设备支撑要求，具有重型支撑、水平调节、可移动、环保清洁等专业特点，
可根据客户需求提供客製化服务，详情请洽工厂。
轮子选择
-
PA轮
PA wheel
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| GD-40F | 55 x 55 mm (2-1/8" x 2-1/8") | 42 x 42 mm (1-5/8" x 1-5/8") | M6 |
| GD-60F | 73 x 73 mm (2-7/8" x 2-7/8") | 58 x 58 mm (2-1/4" x 2-1/4") | M6 |
| GD-80F | 90 x 90 mm (3-1/2" x 3-1/2") | 70 x 70 mm (2-3/4" x 2-3/4") | M8 |
| GD-100F、GD-120F | 95 x 95 mm (3-3/4" x 3-3/4") | 70 x 70 mm (2-3/4" x 2-3/4") | M10 |
| GD-150F | 100 x 100 mm (4" x 4") | 70 x 70 mm (2-3/4" x 2-3/4") | M12 |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 - 牙矩 Threaded Size |
规格 Size |
丝扣牙径 x 长度 - 牙矩 Threaded Size |
| GD-40S | M8 × 30 - P1.25 | GD-60S、GD-80S | M12 × 40 - P2 |
| GD-100S、GD-120S | M16 × 50 - P2 |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| GD-40F | 55 x 55 mm (2-1/8" x 2-1/8") |
42 x 42 mm (1-5/8" x 1-5/8") |
M6 |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| GD-40F | 55 x 55 mm (2-1/8" x 2-1/8") |
42 x 42 mm (1-5/8" x 1-5/8") |
M6 |
| GD-60F | 73 x 73 mm (2-7/8" x 2-7/8") |
58 x 58 mm (2-1/4" x 2-1/4") |
M6 |
| GD-80F | 90 x 90 mm (3-1/2" x 3-1/2") |
70 x 70 mm (2-3/4" x 2-3/4") |
M8 |
| GD-100F GD-120F |
95 x 95 mm (3-3/4" x 3-3/4") |
70 x 70 mm (2-3/4" x 2-3/4") |
M10 |
| GD-150F | 100 x 100 mm (4" x 4") |
70 x 70 mm (2-3/4" x 2-3/4") |
M12 |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 - 牙矩 Threaded Size |
规格 Size |
丝扣牙径 x 长度 - 牙矩 Threaded Size |
| GD-40S | M8 × 30 - P1.25 | GD-60S GD-80S |
M12 × 40 - P2 |
| GD-100S GD-120S |
M16 × 50 - P2 |
轮子详细资讯
| 规格 | 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高+可调高度 | 迴旋半径 | ||
| 固定 | 活动 | 煞车 | |||||||
| GD - 40 | 40mm x 20mm (1-5/8" x 3/4") |
50kgs (110 lbs) |
PA轮 PA wheel |
— | 1169-0150-07-2 | — | 无 N/A |
71+10mm (2-3/4") |
51mm |
| GD - 60 | 50mm x 25mm (2" x 1") |
250kgs (551 lbs) |
PA轮 PA wheel |
— | 1169-0200-07-2 | — | 82+10mm (3-1/4") |
63mm | |
| GD - 80 | 61mm x 28mm (2-3/8" x 1-1/8") |
500kgs (1102 lbs) |
PA轮 PA wheel |
— | 1169-0250-07-2 | — | 103+15mm (4") |
78mm | |
| GD - 100 | 72mm x 30mm (2-7/8" x 1-1/8") |
750kgs (1653 lbs) |
PA轮 PA wheel |
— | 1169-0250-07-2 | — | 120+12mm (4-3/4") |
90.5mm | |
| GD - 120 | 72mm x 30mm (2-7/8" x 1-1/8") |
1000kgs (2204 lbs) |
PA轮 PA wheel |
— | 1169-0250-07-2 | — | 120+12mm (4-3/4") |
90mm | |
| GD - 150 | 95mm x 55mm (3-3/4" x 2-1/8") |
1500kgs (3306 lbs) |
PA轮 PA wheel |
— | 1169-0350-07-2 | — | 132+15mm (5-1/4") |
116mm | |
使用标准
*4pcs脚轮支撑承重标准为单个脚轮承重x2
**脚轮行走状态应在平整地面、行走速度≤1km/h，短距离行走。
Using s tandard:
*The load-bearing standard for 4pcs caster support is twice the load-bearing capacity of a single caster.
**Dynamic loading should be on a flat surface, walking speed ≤ 1km/h, short -distance walking.
