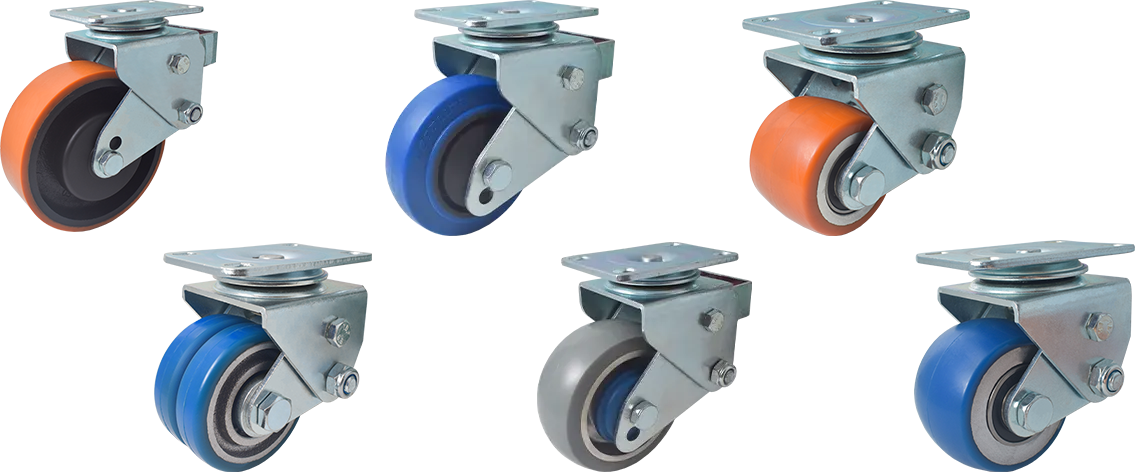

AMR/AGV-7 减震轮系列(中型)
AMR/AGV-7减震活动轮系列脚轮适用于机器人、无人车(AGV)、叉车、物流、医疗、及电动大门等行业的产品。
脚轮可搭配多种底板使用，让您灵活变换随心搭配，性价比高。
AMR/AGV-7减震活动轮荷重高，适用于单轮载重200kg以下的行业需求，或者小尺寸、高要求的行业需求。
如有需要，AMR/AGV-7可根据客户需求提供客製化服务，详情请洽工厂。
轮子选择
-
ZQPU轮
-
ZQPU轮(抗静电)
-
蓝色弹力全效轮
-
W 全效轮(平面)
-
铝芯AQPU
-
QPU轮
*有其它抗静电轮可供选择，如有需求请联络工厂
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 63 x 92 mm (2-1/2" x 3- 5/8") | 45 x 75 mm (1-3/4" x 3") | 8 mm (5/16") |
| 2 | 80 x 104mm (3-5/32" x 4-3/32") | 59 x80～82mm (2-3/8" x 3-5/32"～3-7/32") | 8 mm (5/16") |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 63 x 92 mm (2-1/2" x 3- 5/8") |
45 x 75 mm (1-3/4" x 3") |
8 mm (5/16") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 63 x 92 mm (2-1/2" x 3- 5/8") |
45 x 75 mm (1-3/4" x 3") |
8 mm (5/16") |
| 2 | 80 x 104mm (3-5/32" x 4-3/32") |
59 x80～82mm (2-3/8" x 3-5/32"～3-7/32") |
8 mm (5/16") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 煞车 | ||||||
| 50mm x 20mm(41.5) (2" x 3/4") |
70kgs (154lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
1165-02-101-1(7) | 1165-02-101-2(7) | — | 滚珠轴承 Ball Bearing |
78mm (3-1/8") |
48mm (1-7/8") |
| 70kgs (154lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-02-101-1(7) | 1165-02-101-2(7) | — | ||||
| 50mm x 45mm (2" x 1-13/16") |
70kgs (154lbs) |
QPU轮 QPU |
1165-02-87-1(7) | 1165-02-87-2(7) | — | |||
| 62.5mm x 20mm(41.5) (2-1/2" x 3/4") |
200kgs (440lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
1165-25-101-1(7) | 1165-25-101-2(7) | — | 滚珠轴承 Ball Bearing |
100mm (4") |
58mm (2-1/4") |
| 150kgs (330lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-25-101-1(7) | 1165-25-101-2(7) | — | ||||
| 62.5mm x 45mm (2-1/2" x 1-13/16") |
200kgs (440lbs) |
QPU轮 QPU |
1165-25-87-1(7) | 1165-25-87-2(7) | — | |||
| 75mm x 20mm(41.5) (3" x 3/4") |
200kgs (440lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
1165-03-101-1(7) | 1165-03-101-2(7) | — | 滚珠轴承 Ball Bearing |
105mm (4-1/8") |
65mm (2-1/2") |
| 150kgs (330lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-03-101-1(7) | 1165-03-101-2(7) | — | ||||
| 75mm x 31mm (3" x 1-1/4") |
90kgs (198lbs) |
W 全效轮 W Resolute |
1165-03-48-1(7) | 1165-03-48-2(7) | — | |||
| 75mm x 32mm (3" x 1-1/4") |
150kgs (330lbs) |
铝芯AQPU QPU on AL Core |
1165-03-87-1(7) | 1165-03-87-2(7) | — | |||
| 75mm x 45mm (3" x 1-13/16") |
200kgs (440lbs) |
QPU轮 QPU |
1165-03-80-1(7) | 1165-03-80-2(7) | — | |||
| 100mm x 20mm(41.5) (4" x 3/4") |
200kgs (440lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
1165-04-101-1(7) | 1165-04-101-2(7) | — | 滚珠轴承 Ball Bearing |
135mm (5-3/8") |
85mm (3-3/8") |
| 150kgs (330lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-04-101-1(7) | 1165-04-101-2(7) | — | ||||
| 100mm x 31mm (4" x 1-1/4") |
110kgs (242lbs) |
W 全效轮 W Resolute |
1165-04-48-1(7) | 1165-04-48-2(7) | — | |||
| 100mm x 32mm (4" x 1-1/4") |
180kgs (440lbs) |
铝芯AQPU QPU on AL Core |
1165-04-87-1(7) | 1165-04-87-2(7) | — | |||
| 200kgs (440lbs) |
QPU轮 QPU |
1165-04-80-1(7) | 1165-04-80-2(7) | — | ||||
| 100mm x 34mm (4" x 1-3/8") |
110kgs (242lbs) |
弹力全效轮(黑蓝) Resilient Resolute Wheel(Blue tread) |
1165-04-50-1(7) | 1165-04-50-2(7) | — | |||
| 100mm x 40 mm (4" x 1-9/16") |
200kgs (440lbs) |
铝芯AQPU QPU on AL Core |
1165-40-87-1(7) | 1165-40-87-2(7) | — | |||
| 125mm x 31mm (5" x 1-1/4") |
125kgs (275lbs) |
W 全效轮 W Resolute |
1165-05-48-1(7) | 1165-05-48-2(7) | — | 滚珠轴承 Ball Bearing |
160mm (6-1/4") |
103mm (4") |
| 125mm x 32mm (5" x 1-1/4") |
200kgs (440lbs) |
铝芯AQPU QPU on AL Core |
1165-05-87-1(7) | 1165-05-87-2(7) | — | |||
| 125mm x 36mm (5" x 1-1/2") |
150kgs (330lbs) |
弹力全效轮(黑蓝) Resilient Resolute Wheel(Blue tread) |
1165-05-50-1(7) | 1165-05-50-2(7) | — | |||
| 125mm x 40mm (5" x 1-9/16") |
200kgs (440lbs) |
铝芯AQPU QPU on AL Core |
1165-40-87-1(7) | 1165-40-87-2(7) | — | |||
| 200kgs (440lbs) |
QPU轮 QPU |
1165-05-80-1(7) | 1165-05-80-2(7) | — | ||||
