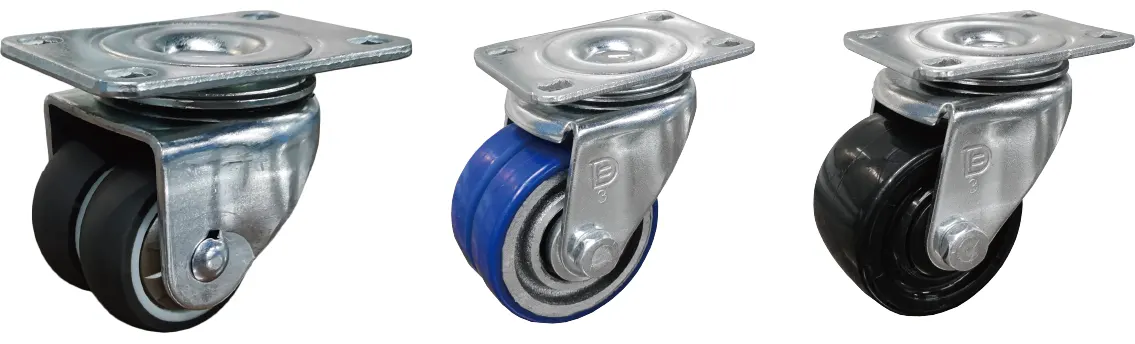

1165系列 — AMR/AGV-6 强化美国轮-双轮系列(中轻型)
脚架采用高钢性板材，配合热处理珠道及高精密滚珠来达到极高的荷重与长时间的使用寿命，脚架旋转灵活、同时确保低重心需求，轮面接触地面大或双轮结构，受力支撑更平稳使用更持久， 适用于AMR/AGV (无人车)使用 。
轮子选择
-
全效双轮
-
ZQPU轮
-
ZQPU轮(抗静电)
-
尼龙轮
-
金钢轮
-
铝芯AQPU
-
QPU轮
-
EQPU轮
*有其它抗静电轮可供选择，如有需求请联络工厂
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105 mm (3-5/16" x 4-1/8") |
60 x 80 mm(欧规底板) 2-3/8"x3-1/4"(European Plate) |
8 mm (5/16") |
| 2 | 95 x65 mm (3-3/4" x 2-1/2") |
75 x 45 mm (3" x 1-3/4") |
8 mm (5/16") |
| 3 | 100 x 115 mm (3-7/8" x 4-1/2") |
75 x 80 mm (3" x 3-1/4") |
10 mm (3/8") |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105 mm (3-5/16" x 4-1/8") |
60 x 80 mm(欧规底板) 2-3/8"x3-1/4"(European Plate) |
8 mm (5/16") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105 mm (3-5/16" x 4-1/8") |
60 x 80 mm(欧规底板) 2-3/8"x3-1/4"(European Plate) |
8 mm (5/16") |
| 2 | 95 x65 mm (3-3/4" x 2-1/2") |
75 x 45 mm (3" x 1-3/4") |
8 mm (5/16") |
| 3 | 100 x 115 mm (3-7/8" x 4-1/2") |
75 x 80 mm (3" x 3-1/4") |
10 mm (3/8") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 50mm x 45mm (2" x 1-3/4") |
200kgs (440lbs) |
尼龙轮 Nylon |
— | 1165-02-07-2(6) | — | 滚珠轴承 Ball Bearing |
74mm (2-7/8") |
48mm (1-7/8") |
| 250kgs (551lbs) |
金钢轮 King Kong Wheel |
— | 1165-02-100-2(6) | — | ||||
| 50mm x 20mm(41.5) (2" x 3/4") |
70kgs (154lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
— | 1165-02-101-2(6) | — | |||
| 70kgs (154lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-02-101-2(6) | — | ||||
| 50mm x 22.5mm (2" x 7/8") |
60kgs (132lbs) |
全效双轮 Resolute(Dual Wheels) |
— | 1165-02-68-2(6) | — | |||
| 50mm x 45mm (2" x 1-3/4") |
200kgs (440lbs) |
尼龙轮 Nylon |
— | 1165-02-07-2(6) | — | 滚珠轴承 Ball Bearing |
83.5mm (3-1/4") |
56mm (2-1/4") |
| 250kgs (551lbs) |
金钢轮 King Kong Wheel |
— | 1165-02-100-2(6) | — | ||||
| 50mm x 20mm(41.5) (2" x 3/4") |
70kgs (154lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
— | 1165-02-101-2(6) | — | |||
| 70kgs (154lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-02-101-2(6) | — | ||||
| 50mm x 22.5mm (2" x 7/8") |
60kgs (132lbs |
全效双轮 Resolute(Dual Wheels) |
— | 1165-02-68-2(6) | — | |||
| 62.5mm x 45mm (2.5" x 1-3/4") |
250kgs (551lbs) |
尼龙轮 Nylon |
— | 1165-25-07-2(6) | — | 滚珠轴承 Ball Bearing |
90mm (3-1/2") |
60mm (3-5/8") |
| 450kgs (992lbs) |
金钢轮 King Kong Whee |
— | 1165-25-100-2(6) | — | ||||
| 62.5mm x 20mm(41.5) (2.5" x 3/4") |
250kgs (551lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
— | 1165-25-101-2(6) | — | |||
| 200kgs (440lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-25-101-2(6) | — | ||||
| 62.5mm x 45mm (2.5" x 1-3/4") |
250kgs (551lbs) |
尼龙轮 Nylon |
— | 1165-25-07-2(6) | — | 滚珠轴承 Ball Bearing |
96mm (3-3/4") |
68.5mm (2-3/4") |
| 450kgs (992lbs) |
金钢轮 King Kong Wheel |
— | 1165-25-100-2(6) | — | ||||
| 62.5mm x 20mm(41.5) (2.5" x 3/4") |
250kgs (551lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
— | 1165-25-101-2(6) | — | |||
| 200kgs (440lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-25-101-2(6) | — | ||||
| 75mm x 45mm (3" x 1-3/4") |
300kgs (661lbs) |
尼龙轮 Nylon |
— | 1165-03-07-2(6) | — | 滚珠轴承 Ball Bearing |
102.5mm (4") |
75mm (3") |
| 500kgs (1102lbs) |
金钢轮 King Kong Wheel |
— | 1165-03-100-2(6) | — | ||||
| 75mm x 20mm(41.5) (3" x 3/4") |
300kgs (661lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
— | 1165-03-101-2(6) | — | |||
| 250kgs (551lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-03-101-2(6) | — | ||||
| 100mm x 34mm (4" x 1-3/8") |
300kgs (661lbs) |
铝芯AQPU QPU on AL Core |
— | 1165-04-87-2(6) | — | 滚珠轴承 Ball Bearing |
130mm (5-1/8") |
90mm (3-1/2") |
| 100mm x 40mm (4" x 1-5/8") |
350kgs (770lbs) |
铝芯AQPU QPU on AL Core |
— | 1165-04-87-2(6) | — | |||
| 100mm x 20mm(41.5) (4" x 3/4") |
300kgs (661lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
— | 1165-04-101-2(6) | — | |||
| 250kgs (551lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-04-101-2(6) | — | ||||
| 125mm x 40mm (5" x 1-5/8") |
350kgs (770lbs) |
铝芯AQPU QPU on AL Core |
— | 1165-05-87-2(6) | — | 滚珠轴承 Ball Bearing |
155mm (6-1/8") |
103mm (4") |
| 300kgs (661lbs) |
EQPU轮 EQPU |
— | 1165-05-81-2(6) | — | ||||
| 100mm x 20mm(41.5) (4" x 3/4") |
300kgs (661lbs) |
ZQPU双轮 ZQPU(Dual Wheels) |
— | 1165-05-101-2(6) | — | 滚珠轴承 Ball Bearing |
142.5mm (5-5/8") |
90mm (3-1/2") |
| 250kgs (551lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-05-101-2(6) | — | ||||
| 150mm x 42mm (6" x 1-5/8") |
400kgs (880lbs) |
铝芯AQPU QPU on AL Core |
— | 1165-06-87-2(6) | — | 滚珠轴承 Ball Bearing |
188mm (7-3/8") |
115mm (4-1/2" |
| 400kgs (880lbs) |
EQPU轮 EQPU |
— | 1165-06-81-2(6) | — | ||||
| 400kgs (880lbs) |
QPU轮 QPU |
— | 1165-06-80-2(6) | — | ||||
