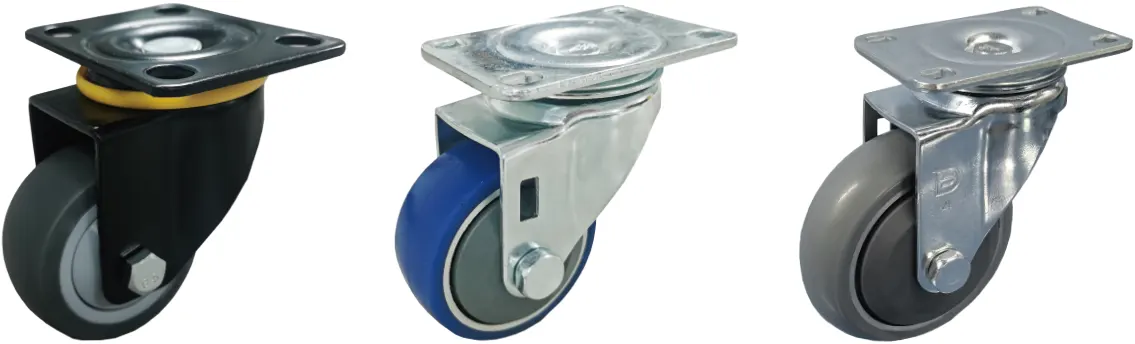

1165系列 — AMR/AGV-5 强化39活动轮-单轮系列(中轻型)
脚架採用高钢性板材，配合热处理珠道及高精密滚珠来达到极高的荷重与长时间的使用寿命，脚架旋转灵活、使用更持久， 适用于AMR/AGV (无人车)使用。
轮子选择
-
全效轮(小弧)
-
W 全效轮(平面)
-
导电轮(小弧)
-
铝芯AQPU
*有其它抗静电轮可供选择，如有需求请联络工厂
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2" | 75 x 52 mm (2-7/8" x 2") | 51 x 35 mm (2" x 1-3/8") | 8 mm (5/16") |
| 2.5", 3", 4",5" | 86 x 65 mm (3-3/4" x 2-1/2") | 75 x 45 mm (3" x 1-3/4") | 8 mm (5/16") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2" | 75 x 52 mm (2-7/8" x 2") | 51 x 35 mm (2" x 1-3/8") | 8 mm (5/16") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2" | 75 x 52 mm (2-7/8" x 2") | 51 x 35 mm (2" x 1-3/8") | 8 mm (5/16") |
| 2.5", 3", 4",5" | 86 x 65 mm (3-3/4" x 2-1/2") | 75 x 45 mm (3" x 1-3/4") | 8 mm (5/16") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 50mm x 22.5mm (2" x 7/8") |
40 kgs (88 lbs) |
全效轮 Resolute Rubber Wheel |
— | 1165-02-68-2(5) | — | 滚珠轴承 Ball Bearing |
73mm (2-7/8") |
50 mm (2") |
| 30 kgs (66 lbs) |
导电轮 E-Conductive TPR Wheel |
— | 1165-02-17-2(5) | — | ||||
| 62.5mm x 23.5mm (2-1/2" x 7/8") |
50 kgs (110 lbs) |
全效轮 Resolute Rubber Wheel |
— | 1165-25-68-2(5) | — | 滚珠轴承 Ball Bearing |
88mm (3-1/2") |
62 mm (2-1/2") |
| 40 kgs (88 lbs) |
导电轮 E-Conductive TPR Wheel |
— | 1165-25-17-2(5) | — | ||||
| 75mm x 31mm (3" x 1-1/4") |
90 kgs (198 lbs) |
全效轮 Resolute Rubber Wheel |
— | 1165-03-68-2(5) | — | 滚珠轴承 Ball Bearing |
105.5mm (4-1/8") |
76 mm (3") |
| 80 kgs (175 lbs) |
导电轮 E-Conductive TPR Wheel |
— | 1165-03-17-2(5) | — | ||||
| 160 kgs (352 lbs) |
铝芯AQPU轮 QPU on AL Core |
— | 1165-03-87-2(5) | — | ||||
| 110 kgs (250 lbs) |
W 全效轮 W Resolute Rubber Wheel |
— | 1165-03-48-2(5) | — | ||||
| 100mm x 31mm (4" x 1-1/4") |
125 kgs (275 lbs) |
全效轮 Resolute Rubber Wheel |
— | 1165-04-68-2(5) | — | 滚珠轴承 Ball Bearing |
130mm (5-1/8") |
88 mm (3-1/2") |
| 80 kgs (176 lbs) |
导电轮 E-Conductive TPR Wheel |
— | 1165-04-17-2(5) | — | ||||
| 200 kgs (440 lbs) |
铝芯AQPU轮 QPU on AL Core |
— | 1165-04-87-2(5) | — | ||||
| 135 kgs (285 lbs) |
W 全效轮 W Resolute Rubber Wheel |
— | 1165-04-48-2(5) | — | ||||
| 75mm x 20mm (41.5) (3" x 3/4") |
147 kgs (325 lbs) |
全效轮 Resolute Rubber Wheel |
— | 1165-05-68-2(5) | — | 滚珠轴承 Ball Bearing |
158mm (6-1/4") |
101 mm (4") |
| 90 kgs (198 lbs) |
导电轮 E-Conductive TPR Wheel |
— | 1165-05-17-2(5) | — | ||||
| 230 kgs (506 lbs) |
铝芯AQPU轮 QPU on AL Core |
— | 1165-05-87-2(5) | — | ||||
| 147 kgs (325 lbs) |
W 全效轮 W Resolute Rubber Wheel |
— | 1165-05-48-2(5) | — | ||||
