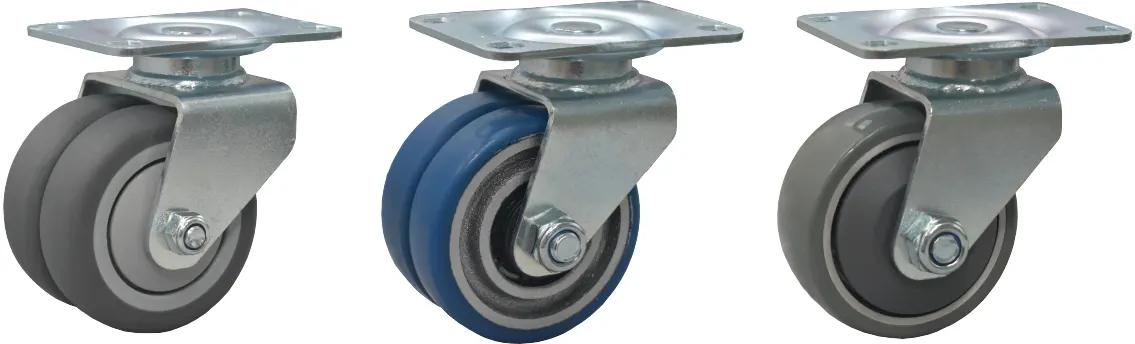

1165系列 — AMR/AGV-4 单精密轴承活动脚轮系列(中型)
採用精密轴承，来应对 AMR/AGV 需求的複杂环境：耐久，长距离运行，防尘等特点；适用于中等载荷 AMR/AGV 用。
轮子选择
-
全效双轮
-
ZQPU轮
-
ZQPU轮(抗静电)
-
全效轮(小弧)
-
蓝色弹力全效轮
-
W 全效轮(平面)
-
导电轮(小弧)
-
铝芯AQPU
-
铝芯AHPU
*有其它抗静电轮可供选择，如有需求请联络工厂
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2", 2.5", 3", 4", 5" | 66 x 92 mm (2-3/8" x 3-5/8") | 45 x 75 mm (1-3/4" x 3") | 6.35 mm (1/4") |
| 2", 2.5", 3", 4", 5" | 76 x 103 mm (3" x 4-1/16") | 60 x 80 mm (2-3/8" x 3-1/8") | 6.35 mm (1/4") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2", 2.5", 3", 4", 5" | 66 x 92 mm (2-3/8" x 3-5/8") | 45 x 75 mm (1-3/4" x 3") | 6.35 mm (1/4") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2", 2.5", 3", 4", 5" | 66 x 92 mm (2-3/8" x 3-5/8") | 45 x 75 mm (1-3/4" x 3") | 6.35 mm (1/4") |
| 2", 2.5", 3", 4", 5" | 76 x 103 mm (3" x 4-1/16") | 60 x 80 mm (2-3/8" x 3-1/8") | 6.35 mm (1/4") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 50mm x 22.5mm(48.5) (2" x 7/8") |
60 kgs (132 lbs) |
全效双轮 Resolute (Dual Wheels) |
1165-02-68D-1(4) | 1165-02-68D-2(4) | — | 滚珠轴承 Ball Bearing |
72mm (2-7/8") |
47mm (1-7/8") |
| 50mm x 20mm (2" x 3/4") |
70 kgs (154 lbs) |
ZQPU轮 ZQPU(Dual Wheels) |
1165-02-101-1(4) | 1165-02-101-2(4) | — | |||
| 70 kgs (154 lbs) |
ZQPU轮(抗静电) ZQPU(Dual Anti-Static Wheels) |
1165-02-101-1(4) | 1165-02-101-2(4) | — | ||||
| 62.5mm x 23.5mm(50.5) (2-1/2" x 15/16") |
80 kgs (176 lbs) |
全效双轮 Resolute (Dual Wheels) |
1165-25-68D-1(4) | 1165-25-68D-2(4) | — | 滚珠轴承 Ball Bearing |
85mm (3-1/4") |
56mm (2-1/4") |
| 62.5mm x 20mm (2-1/2" x 3/4") |
200 kgs (440 lbs) |
ZQPU轮 ZQPU(Dual Wheels) |
1165-25-101-1(4) | 1165-25-101-2(4) | — | |||
| 150 kgs (330 lbs) |
ZQPU轮(抗静电) ZQPU(Dual Anti-Static Wheels) |
1165-25-101-1(4) | 1165-25-101-2(4) | — | ||||
| 62.5mm x 30mm (2-1/2" x 1-1/8") |
120 kgs (264 lbs) |
铝芯AHPU HPU on AL Core |
1165-25-117-1(4) | 1165-25-117-2(4) | — | |||
| 62.5mm x 23.5mm (2-1/2" x 15/16") |
50 kgs (110 lbs) |
全效轮 Resolute Rubber Wheel |
1165-25-68-1(4) | 1165-25-68-2(4) | — | 52.5mm (2-1/8") |
||
| 35 kgs (77 lbs) |
导电轮 E-Conductive |
1165-25-17-1(4) | 1165-25-17-2(4) | — | ||||
| 75mm x 24mm(51) (3" x 15/16") |
90 kgs (198 lbs) |
全效双轮 Resolute (Dual Wheels) |
1165-03-68D-1(4) | 1165-03-68D-2(4) | — | 滚珠轴承 Ball Bearing |
98mm (3-7/8") |
63.5mm (2-1/2") |
| 75mm x 20mm (3" x 15/16") |
200 kgs (440 lbs) |
ZQPU轮 ZQPU(Dual Wheels) |
1165-03-101-1(4) | 1165-03-101-2(4) | — | |||
| 150 kgs (330 lbs) |
ZQPU轮(抗静电) ZQPU(Dual Anti-Static Wheels) |
1165-03-101-1(4) | 1165-03-101-2(4) | — | ||||
| 75mm x 31mm (3" x 1-1/4") |
90 kgs (198 lbs) |
全效轮 Resolute Rubber Wheel |
1165-03-68-1(4) | 1165-03-68-2(4) | — | 62mm (2-1/2") |
||
| 60 kgs (132 lbs) |
导电轮 E-Conductive |
1165-03-101-1(3) | 1165-03-101-2(3) | — | ||||
| 100 kgs (220 lbs) |
W 全效轮 W Resolute |
1165-03-48-1(4) | 1165-03-48-2(4) | — | ||||
| 75mm x 30mm (3" x 1-1/8") |
150 kgs (330 lbs) |
铝芯AQPU QPU on AL Core |
1165-03-87-1(4) | 1165-03-87-2(4) | — | |||
| 100mm x 24.5mm(51.5) (4" x 15/16") |
120 kgs (264 lbs) |
全效双轮 Resolute (Dual Wheels) |
1165-04-68D-1(4) | 1165-04-68D-2(4) | — | 滚珠轴承 Ball Bearing |
125mm (4-7/8") |
85mm (3-3/8") |
| 100mm x 34mm (4" x 1-3/8") |
110 kgs (242 lbs) |
蓝色弹力全效轮 Blue Resilient Resolute Rubber |
1165-04-50-1(4) | 1165-04-50-2(4) | — | |||
| 100mm x 31mm (4" x 1-1/4") |
80 kgs (196 lbs) |
W 全效轮 W Resolute |
1165-04-48-1(4) | 1165-04-48-2(4) | — | |||
| 200 kgs (440 lbs) |
铝芯AQPU QPU on AL Core |
1165-04-87-1(4) | 1165-04-87-2(4) | — | ||||
| 125mm x 24.5mm(51.5) (5" x 15/16") |
130 kgs (286 lbs) |
全效双轮 Resolute (Dual Wheels) |
1165-05-68D-1(4) | 1165-05-68D-2(4) | — | 滚珠轴承 Ball Bearing |
150mm (5-7/8") |
101.5mm (4") |
| 125mm x 36mm (5" x 1-3/8") |
130 kgs (286 lbs) |
蓝色弹力全效轮 Blue Resilient Resolute Rubber |
1165-05-50-1(4) | 1165-05-50-2(4) | — | |||
| 125mm x 31mm (5" x 1-1/4") |
100 kgs (220 lbs) |
W 全效轮 W Resolute |
1165-05-48-1(4) | 1165-05-48-2(4) | — | |||
| 200 kgs (440 lbs) |
铝芯AQPU QPU on AL Core |
1165-05-87-1(4) | 1165-05-87-2(4) | — | ||||
