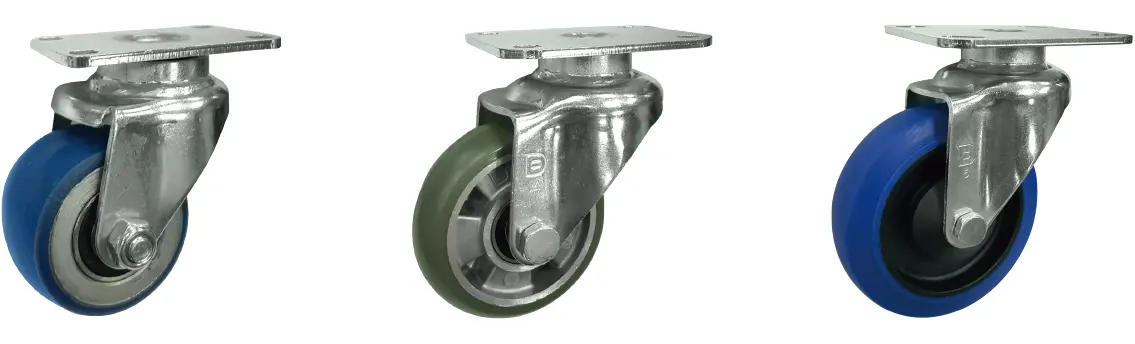

1165系列 — AMR/AGV-3双精密轴承活动脚轮系列(中型)
採用双精密轴承，来应对 AMR/AGV 需求的複杂环境：耐久，长距离运行，防尘等特点；适用于中等载荷 AMR/AGV 用。
轮子选择
-
ZQPU双轮
-
ZQPU轮(抗静电)
-
QPU轮
-
蓝色弹力全效轮
-
铝芯AQPU
-
W全效轮
*有其它抗静电轮可供选择，如有需求请联络工厂
底板规格
| 底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 60 x 92 mm (2-3/8" x 3-5/8") | 45 x 75 mm (1-3/4" x 3") | 8 mm (5/16") |
| 85 x 110 mm (3-11/32" x 4-11/23") | 60 x 80 ~ 86 mm (2-3/8" x 3-5/32 ~ 3-3/8") | 8 mm (5/16") |
| 100 x 115 mm (4" x 4-1/2") | 70 x 85 mm (2-5/8" ~ 3" x 3" ~ 3-5/8") | 9.5 mm (3/8") |
底板规格
| 底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 60 x 92 mm (2-3/8" x 3-5/8") | 45 x 75 mm (1-3/4" x 3") | 8 mm (5/16") |
| 底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 60 x 92 mm (2-3/8" x 3-5/8") | 45 x 75 mm (1-3/4" x 3") | 8 mm (5/16") |
| 85 x 110 mm (3-11/32" x 4-11/23") | 60 x 80 ~ 86 mm (2-3/8" x 3-5/32 ~ 3-3/8") | 8 mm (5/16") |
| 100 x 115 mm (4" x 4-1/2") | 70 x 85 mm (2-5/8" ~ 3" x 3" ~ 3-5/8") | 9.5 mm (3/8") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 50mm x 20mm (41.5) (2" x 3/4") |
70 kgs (154 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
— | 1165-02-101-2(3) | — | 滚珠轴承 Ball Bearing |
87mm (3-3/8") |
活动 65 mm Swivel 65 mm |
| 70 kgs (154 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-02-101-2(3) | — | ||||
| 50mm x 45mm (2" x 1-13/16") |
70 kgs (154 lbs) |
QPU轮 QPU |
— | 1165-02-53-2(3) | — | |||
| 62.5mm x 20mm (41.5) (2-1/2" x 3/4") |
200 kgs (440 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
— | 1165-25-101-2(3) | — | 滚珠轴承 Ball Bearing |
87mm (3-3/8") |
活动 65 mm Swivel 65 mm |
| 150 kgs (330 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-25-101-2(3) | — | ||||
| 62.5mm x 45mm (2-1/2" x 1-13/16") |
200 kgs (440 lbs) |
QPU轮 QPU |
— | 1165-25-53-2(3) | — | |||
| 62.5mm x 20mm (41.5) (2-1/2" x 3/4") |
200 kgs (440 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
— | 1165-25-101-2(3) | — | 滚珠轴承 Ball Bearing |
94mm (3-3/4") |
活动 62 mm Swivel 62 mm |
| 150 kgs (330 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-25-101-2(3) | — | ||||
| 62.5mm x 45mm (2-1/2" x 1-13/16") |
200 kgs (440 lbs) |
QPU轮 QPU |
— | 1165-25-53-2(3) | — | |||
| 75mm x 20mm (41.5) (3" x 3/4") |
200kgs (440 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
— | 1165-03-101-2(3) | — | 滚珠轴承 Ball Bearing |
102.5mm (4") |
活动 65 mm Swivel 65 mm |
| 150 kgs (330 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-03-101-2(3) | — | ||||
| 75mm x 45mm (3" x 1-13/16") |
200 kgs (440 lbs) |
QPU轮 QPU |
— | 1165-03-53-2(3) | — | |||
| 75mm x 32mm (3" x 1-1/4") |
150 kgs (330 lbs) |
铝芯AQPU QPU on AL Core |
— | 1165-03-87-2(3) | — | |||
| 75mm x 20mm (41.5) (3" x 3/4") |
200kgs (440 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
— | 1165-03-101-2(3) | — | 滚珠轴承 Ball Bearing |
105.5mm (4-1/8") |
活动 72.5 mm Swivel 72.5 mm |
| 250 kgs (551 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
— | 1165-03-101-2(3) | — | ||||
| 75mm x 45mm (3" x 1-13/16") |
200 kgs (440 lbs) |
QPU轮 QPU |
— | 1165-03-53-2(3) | — | |||
| 75mm x 32mm (3" x 1-1/4") |
150 kgs (330 lbs) |
铝芯AQPU QPU on AL Core |
— | 1165-03-87-2(3) | — | |||
| 100mm x 32mm (4" x 1-1/4") |
200kgs (440 lbs) |
铝芯AQPU QPU on AL Core |
— | 1165-04-87-2(3) | — | 滚珠轴承 Ball Bearing |
130mm (5-1/8") |
活动 86 mm Swivel 86 mm |
| 80 kgs (176 lbs) |
W全效轮 W Resolute |
— | 1165-04-48-2(3) | — | ||||
| 100mm x 34mm (4" x 1-1/2") |
110 kgs (242 lbs) |
蓝色弹力全效轮 Blue Resilient Resolute Rubber |
— | 1165-04-50-2(3) | — | |||
| 125mm x 32mm (5" x 1-1/4") |
200kgs (440 lbs) |
铝芯AQPU QPU on AL Core |
— | 1165-05-87-2(3) | — | 滚珠轴承 Ball Bearing |
158mm (6-1/4") |
活动 99 mm Swivel 99 mm |
| 100 kgs (220 lbs) |
W全效轮 W Resolute |
— | 1165-05-48-2(3) | — | ||||
| 125mm x 36mm (5" x 1-1/2") |
130 kgs (287 lbs) |
蓝色弹力全效轮 Blue Resilient Resolute Rubber |
— | 1165-05-50-2(3) | — | |||
