1165系列 — AMR/AGV-2活动脚轮系列
脚架採用高钢性板材，配合热处理珠道来达到极高的荷重与长时间的使用寿命，同时又能够确保低重心的要求，适用于 AMR/AGV (无人车)使用。
特色区

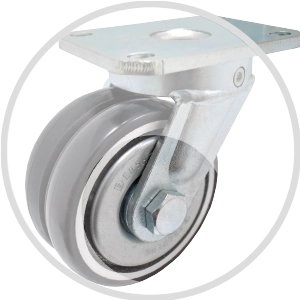

轮子可附金属防尘盖(供选择)
特色区
轮子可附金属防尘盖(供选择)

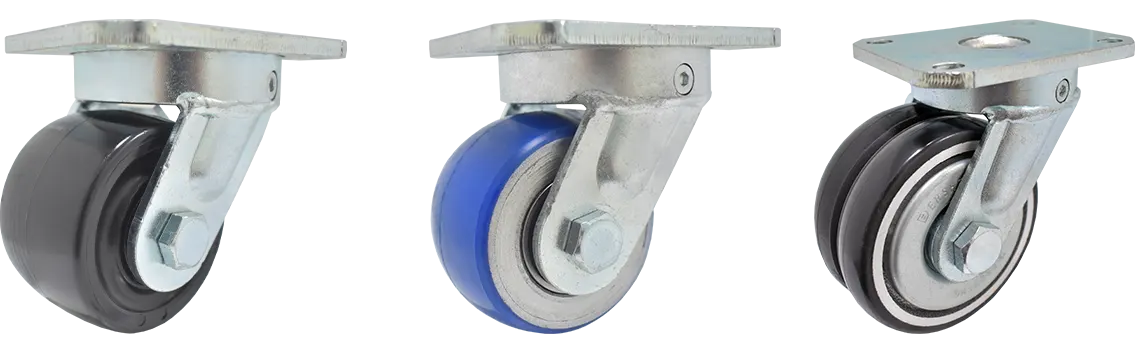

轮子选择
-
ZQPU双轮
-
ZQPU轮(抗静电)
-
QPU轮
-
金钢轮
*有其它抗静电轮可供选择，如有需求请联络工厂
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1.5", 2" | 51 x 65 mm (2" x 2-9/16") | 36 x 51.5 mm (1-13/32" x 2-1/32") | 6 mm (1/4") |
| 51 x 84 mm (2" x 3-5/16") | 37 x 70 mm (1-15/32" x 2-3/4") | 6 mm (1/4") | |
| 60 x 60 mm (2-3/8" x 2-3/8") | 42.5 x 42.5 mm (1-11/16" x 1-11/16") | 6 mm (1/4") | |
| 60 x 90 mm (2-3/8" x 3-17/32") | 44.5 x 73 mm (1-3/14" x 2-7/8") | 8 mm (5/16") | |
| 2.5", 3", 4" | 85 x 110 mm (3-11/32" x 4-11/23") | 60 x 80~86 mm (2-3/8" x 3-5/32"~3-3/8") | 8 mm (5/16") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1.5", 2" | 51 x 65 mm (2" x 2-9/16") | 36 x 51.5 mm (1-13/32" x 2-1/32") | 6 mm (1/4") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1.5", 2" | 51 x 65 mm (2" x 2-9/16") | 36 x 51.5 mm (1-13/32" x 2-1/32") | 6 mm (1/4") |
| 51 x 84 mm (2" x 3-5/16") | 37 x 70 mm (1-15/32" x 2-3/4") | 6 mm (1/4") | |
| 60 x 60 mm (2-3/8" x 2-3/8") | 42.5 x 42.5 mm (1-11/16" x 1-11/16") | 6 mm (1/4") | |
| 60 x 90 mm (2-3/8" x 3-17/32") | 44.5 x 73 mm (1-3/14" x 2-7/8") | 8 mm (5/16") | |
| 2.5", 3", 4" | 85 x 110 mm (3-11/32" x 4-11/23") | 60 x 80~86 mm (2-3/8" x 3-5/32"~3-3/8") | 8 mm (5/16") |
轮子详细资讯
| 轮径 × 轮宽 | * 载重 | ** 2000公里载重 Guarantee 2000 KM/ 1250 Miles |
材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 刹车 | |||||||
| 34mm x 15mm (33) (1-21/64" x 19/32") |
70 kgs (154 lbs) |
50 kgs (110 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
1165-15-101-1(2) | 1165-15-101-2(2) | — | 滚珠轴承 Ball Bearing |
52mm (2-3/64") |
活动 40 mm Swivel 40 mm |
| 70 kgs (154 lbs) |
50 kgs (110 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-15-101-1(2) | 1165-15-101-2(2) | — | ||||
| 50mm x 20mm (41.5) (2" x 3/4") |
70 kgs (154 lbs) |
50 kgs (110 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
1165-02-101-1(2) | 1165-02-101-2(2) | — | 滚珠轴承 Ball Bearing |
79mm (3-7/64") |
活动 46 mm Swivel 46 mm |
| 70 kgs (154 lbs) |
50 kgs (110 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-02-101-1(2) | 1165-02-101-2(2) | — | ||||
| 50mm x 40mm (2" x 1-9/16") |
70 kgs (154 lbs) |
50 kgs (110 lbs) |
QPU轮 QPU |
1165-02-53-1(2) | 1165-02-53-2(2) | — | |||
| 50mm x 45mm (2" x 1-13/16") |
70 kgs (154 lbs) |
— | 金钢轮 King Kong Wheel |
1165-02-100-1(2) | 1165-02-100-2(2) | — | |||
| 62.5mm x 20mm (41.5) (2-1/2" x 3/4") |
250 kgs (551 lbs) |
84 kgs (185 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
1165-25-101-1(2) | 1165-25-101-2(2) | — | 滚珠轴承 Ball Bearing |
87mm (3-27/64") |
活动 65 mm Swivel 65 mm |
| 200 kgs (440 lbs) |
67 kgs (147 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-25-101-1(2) | 1165-25-101-2(2) | — | ||||
| 62.5mm x 45mm (2-1/2" x 1-13/16") |
250 kgs (551 lbs) |
— | 金钢轮 King Kong Wheel |
1165-25-100-1(2) | 1165-25-100-2(2) | — | |||
| 200 kgs (440 lbs) |
67 kgs (147 lbs) |
QPU轮 QPU |
1165-25-80-1(2) | 1165-25-80-2(2) | — | ||||
| 62.5mm x 20mm (41.5) (2-1/2" x 3/4") |
250 kgs (551 lbs) |
84 kgs (185 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
1165-25-101-1(2) | 1165-25-101-2(2) | — | 滚珠轴承 Ball Bearing |
94mm (3-45/64") |
活动 62 mm Swivel 62 mm |
| 200 kgs (440 lbs) |
67 kgs (147 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-25-101-1(2) | 1165-25-101-2(2) | — | ||||
| 62.5mm x 45mm (2-1/2" x 1-13/16") |
250 kgs (551 lbs) |
— | 金钢轮 King Kong Wheel |
1165-25-100-1(2) | 1165-25-100-2(2) | — | |||
| 200 kgs (440 lbs) |
67 kgs (147 lbs) |
QPU轮 QPU |
1165-25-80-1(2) | 1165-25-80-2(2) | — | ||||
| 75mm x 20mm (41.5) (3" x 3/4") |
300 kgs (661 lbs) |
100 kgs (220 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
1165-03-101-1(2) | 1165-03-101-2(2) | — | 滚珠轴承 Ball Bearing |
105.5mm (4-5/32") |
活动 72.5 mm Swivel 72.5 mm |
| 250 kgs (551 lbs) |
84 kgs (185 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-03-101-1(2) | 1165-03-101-2(2) | — | ||||
| 75mm x 45mm (3" x 1-13/16") |
300 kgs (661 lbs) |
— | 金钢轮 King Kong Wheel |
1165-03-100-1(2) | 1165-03-100-2(2) | — | |||
| 250 kgs (551 lbs) |
84 kgs (185 lbs) |
QPU轮 QPU |
1165-03-80-1(2) | 1165-03-80-2(2) | — | ||||
| 75mm x 20mm (41.5) (3" x 3/4") |
300 kgs (661 lbs) |
100 kgs (220 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
1165-03-101-1(2) | 1165-03-101-2(2) | — | 滚珠轴承 Ball Bearing |
115.5mm (4-17/32") |
活动 72.5 mm Swivel 72.5 mm |
| 250 kgs (551 lbs) |
84 kgs (185 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-03-101-1(2) | 1165-03-101-2(2) | — | ||||
| 75mm x 45mm (3" x 1-13/16") |
300 kgs (661 lbs) |
— | 金钢轮 King Kong Wheel |
1165-03-100-1(2) | 1165-03-100-2(2) | — | |||
| 250 kgs (551 lbs) |
84 kgs (185 lbs) |
QPU轮 QPU |
1165-03-80-1(2) | 1165-03-80-2(2) | — | ||||
| 100mm x 22mm (41.5) (4" x 7/8") |
400 kgs (881 lbs) |
134kgs (295 lbs) |
ZQPU轮(双轮) ZQPU(Dual Wheels) |
1165-04-101-1(2) | 1165-04-101-2(2) | — | 滚珠轴承 Ball Bearing |
125mm (4-59/64") |
活动 90 mm Swivel 90 mm |
| 350 kgs (771 lbs) |
117 kgs (157 lbs) |
ZQPU轮(抗静电) QPU(Dual Anti-Static Wheels) |
1165-04-101-1(2) | 1165-04-101-2(2) | — | ||||
*荷重皆根据ISO测试标准制定
*The load is tested according to the ISO test standard
**正常使用状态下得貹可保证使用2000公里 ， 得貹保留对所有测试手法&保证2000公里的最终解释权
** Guarantee 2000 km life span on the selected AGV caster models under normal field application.
Dersheng reserves the right of the final interpretation on the caster test method and 2000 km guarantee.
*The load is tested according to the ISO test standard
**正常使用状态下得貹可保证使用2000公里 ， 得貹保留对所有测试手法&保证2000公里的最终解释权
** Guarantee 2000 km life span on the selected AGV caster models under normal field application.
Dersheng reserves the right of the final interpretation on the caster test method and 2000 km guarantee.
