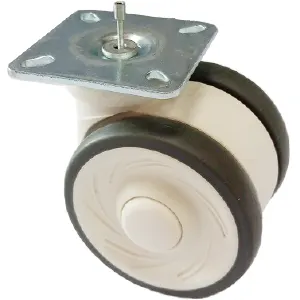

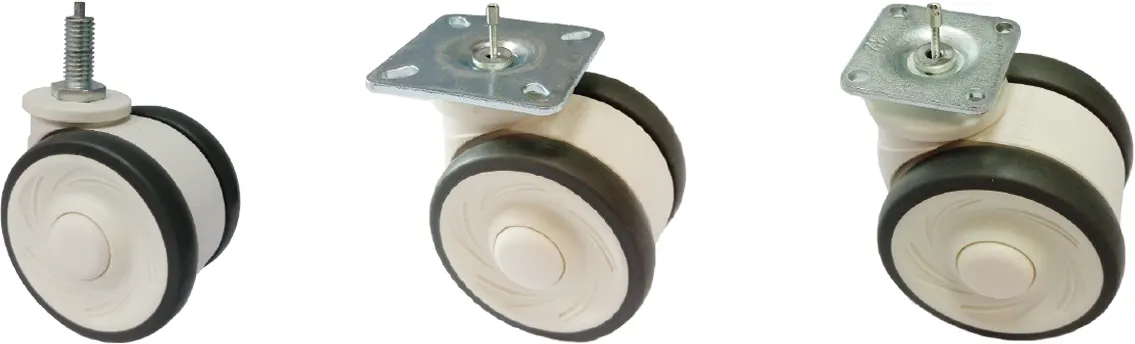

1161系列 — 线控刹车双球轮系列

脚轮结合线控刹车装置的设计概念，在与线控装置连结的控制把手未受力的情况下，脚轮刹会自动刹住，使台车在未使用情况下为静止不动状态；而要使用台车时，控制把手在受力后，脚轮刹车会解除刹车状态，使得脚轮可任意转动，这种与台车连动脚轮线控刹车设计理念能大幅增加及保护台车上的物品安全及操作人员的安全。

特色区

活剎(单剎)

活剎(单剎)

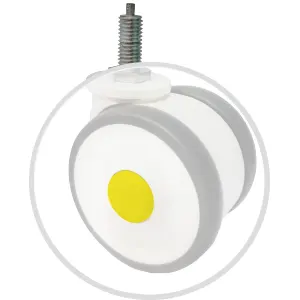

导电轮

导电轮

特色区

轮子选择

    全效轮
    全效轮
    超级人造胶
    超级人造胶
    导电轮
    导电轮

底板规格

规格
Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
3" 42 x 42 mm
(1-21/32" x 1-21/32")		 32 x 32 mm
(1-1/4" x 1-1/4")		 M4/M5
3" 60 x 60 mm
(2-3/8" x 2-3/8")		 42.5 x 42.5 mm
(1-11/16" x 1-11/16")		 M6
4" 5" 69 x 96 mm
(2-23/32" x 3-25/32")		 45 x 75 mm (高级底板)
(1-25/32" x 2-15/16")		 M8
4" 5" 69 x 96 mm
(2-23/32" x 3-25/32")		 49 x 74.5 mm (斜孔底板)
(1-15/16" x 2-15/16")		 M8

*有固定架可供选择 (Fixed Caster is available. Please consult the factory.)

丝扣规格

规格
Size		 丝扣牙径 x 长度
Threaded Size		 规格
Size		 丝扣牙径 x 长度
Threaded Size
3" 4" 5" M12 x 25 mm 4" 5" M16 x 30 mm

底板规格

规格
Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
3" 42 x 42 mm
(1-21/32" x 1-21/32")		 32 x 32 mm
(1-1/4" x 1-1/4")		 M4/M5
规格
Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
3" 42 x 42 mm
(1-21/32" x 1-21/32")		 32 x 32 mm
(1-1/4" x 1-1/4")		 M4/M5
3" 60 x 60 mm
(2-3/8" x 2-3/8")		 42.5 x 42.5 mm
(1-11/16" x 1-11/16")		 M6
4" 5" 69 x 96 mm
(2-23/32" x 3-25/32")		 45 x 75 mm (高级底板)
(1-25/32" x 2-15/16")		 M8
4" 5" 69 x 96 mm
(2-23/32" x 3-25/32")		 49 x 74.5 mm (斜孔底板)
(1-15/16" x 2-15/16")		 M8

*有固定架可供选择 (Fixed Caster is available. Please consult the factory.)

丝扣规格

规格
Size		 丝扣牙径 x 长度
Threaded Size		 规格
Size		 丝扣牙径 x 长度
Threaded Size
3" 4" 5" M12 x 25 mm 4" 5" M16 x 30 mm
脚轮尺寸(搭配高科技耐磨聚氨酯)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 32mm
(4" x 1-1/4")		 120 kgs
(265 lbs)		 1130-04-31-1 1130-04-31-2 1130-04-31-4 滚珠
Ball Bearing
中管
Plain Bearing		 底板类总高
Plate Version OAH
有铁防尘盖
with dust cover
130mm(5-1/8")

无铁防尘盖
without dust cover
129mm(5-1/16")

丝扣/插杆类总高
Stem Version OAH
有铁防尘盖
with dust cover
126mm(5")

无铁防尘盖
with out dust cover
125mm(4-15/16")

两孔角铁底板总高
Two holes angle
bar plate OAH:
129mm(5-1/16")

三孔角铁底板总高
Three holes angle
bar plate OAH:
148mm(5-53/64")		 活动 85 mm
侧剎 85 mm
剎车(短踏板)
111 mm
剎车(长踏板)
121 mm
剎车(超大踏板)
140 mm
波西剎 115 mm

Swivel 85 mm
Swivel W/Side
Brake 85 mm
Swivel W/Brake
(Shorter pedal)
111 mm
Swivel W/Brake
(Long pedal)
121 mm
Swivel W/Brake
(Extra Big Pedal)
140 mm
Posi Lock Brake
115 mm
125mm x 32mm
(5" x 1-1/4")		 130 kgs
(285 lbs)		 1130-05-31-1 1130-05-31-2 1130-05-31-4 滚珠
Ball Bearing
中管
Plain Bearing		 底板类总高
Plate Version OAH:
有铁防尘盖
with dust cover
158mm(6-1/4")

无铁防尘盖
without dust cover
157mm(6-3/16")

丝扣/插杆类总高
Stem Version OAH:
有铁防尘盖
with dust cover
154mm(6-1/16")

无铁防尘盖
without dust cover
153mm(6")

两孔角铁底板总高
Two holes angle
bar plate OAH:
157mm(6-3/16")

三孔角铁底板总高
Three holes angle
bar plate OAH:
176mm(6-59/64")		 活动 97 mm
侧剎 97 mm
剎车(短踏板)
111 mm
剎车(长踏板)
121 mm
剎车(超大踏板)
140 mm
波西剎 112 mm

Swivel 97 mm
Swivel W/Side
Brake 97 mm
Swivel W/Brake
(Shorter pedal)
111 mm
Swivel W/Brake
(Long pedal)
121 mm
Swivel W/Brake
(Extra Big Pedal)
140 mm
Posi Lock Brake
112 mm
脚轮尺寸(搭配超级人造胶(514))
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 36mm
(4"x1-7/16")		 200kgs
(440 lbs)		 1102-04-03-1 1102-04-03-2 1102-04-03-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")		 220kgs
(485 lbs)		 1102-05-03-1 1102-05-03-2 1102-05-03-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 45.5mm
(6"x1-13/16")		 260kgs
(570 lbs)		 1102-06-03-1 1102-06-03-2 1102-06-03-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
193mm x 46mm
(7-3/5"x1-13/16")		 300kgs
(600 lbs)		 1102-07-03-1 1102-07-03-2 — 滚珠轴承 244.5mm
(9-5/8")		 活动 159mm
脚轮尺寸(搭配尼龙轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 38mm
(4"x1-1/2")		 200kgs
(440 lbs)		 1102-04-04-1 1102-04-04-2 1102-04-04-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")		 250kgs
(550 lbs)		 1102-05-04-1 1102-05-04-2 1102-05-04-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 42mm
(6"x1-5/8")		 350kgs
(770 lbs)		 1102-06-04-1 1102-06-04-2 1102-06-04-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
200mm x 50mm
(8" x 2")		 350kgs
(770 lbs)		 1102-08-04-1 1102-08-04-2 1102-08-04-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
250mm x 50mm
(10" x 2")		 400kgs
(880 lbs)		 1102-10-04-1 1102-10-04-2 1102-10-04-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
250mm x 62mm
(10"x2-7/16")		 400kgs
(880 lbs)		 1102-10(62)-04-1 1102-10(62)-04-2 1102-10(62)-04-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
300mm x 76mm
(12" x 3")		 650kgs
(1430 lbs)		 1102-12-04-1 1102-12-04-2 — 滚珠轴承 352mm
(13-27/32")		 活动 222mm
脚轮尺寸(搭配WMRC轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 32mm
(4"x1-1/4")		 250kgs
(550 lbs)		 1102-04-07-1 1102-04-07-2 1102-04-07-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")		 300kgs
(660 lbs)		 1102-05-07-1 1102-05-07-2 1102-05-07-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 40mm
(6"x1-9/16")		 400kgs
(800 lbs)		 1102-06-07-1 1102-06-07-2 1102-06-07-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
200mm x 50mm
(8" x 2")		 450kgs
(990 lbs)		 1102-08-07-1 1102-08-07-2 1102-08-07-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
250mm x 50mm
(10" x 2")		 800kgs
(1760 lbs)		 1102-10-07-1 1102-10-07-2 1102-10-07-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
脚轮尺寸(搭配WPP轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
150mm x 40mm
(6"x1-9/16")		 400kgs
(800 lbs)		 1102-06-45-1 1102-06-45-2 1102-06-45-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
200mm x 50mm
(8" x 2")		 450kgs
(990 lbs)		 1102-08-45-1 1102-08-45-2 1102-08-45-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配W超级人造胶)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 34mm
(4"x1-3/8")
(圆弧)		 335kgs
(735 lbs)		 1102-04-80-1 1102-04-80-2 1102-04-80-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
100mm x 34mm
(4"x1-3/8")
(平面)		 385kgs
(845 lbs)		 1102-04-80-1 1102-04-80-2 1102-04-80-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")
(圆弧)		 450kgs
(990 lbs)		 1102-05-80-1 1102-05-80-2 1102-05-80-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 40mm
(5"x1-9/16")
(平面)		 500kgs
(1100 lbs)		 1102-05-80-1 1102-05-80-2 1102-05-80-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 50mm
(5" x 2")
(平面)		 420kgs
(900 lbs)		 1102-06-80-1 1102-06-80-2 1102-06-80-4 滚珠轴承 170mm
(6-11/16")		 活动 107mm
AK剎 158mm
150mm x 42mm
(6"x1-5/8")
(圆弧)		 550kgs
(1200 lbs)		 1102-06-80-1 1102-06-80-2 1102-06-80-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 42mm
(6"x1-5/8")
(平面)		 600kgs
(1320 lbs)		 1102-06-80-1 1102-06-80-2 1102-06-80-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 50mm
(6" x 2")
(平面)		 525kgs
(1155 lbs)		 1102-06(50)-80-1 1102-06(50)-80-2 1102-06(50)-80-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
180mm x 50mm
(7" x 2")
(圆弧)		 600kgs
(1320 lbs)		 1102-07-80-1 1102-07-80-2 1102-07-80-4 滚珠轴承 238mm
(9-3/8")		 活动 154mm
AK剎 179mm
200mm x 50mm
(8" x 2")
(圆弧)		 670kgs
(1475 lbs)		 1102-08-80-1 1102-08-80-2 1102-08-80-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
200mm x 50mm
(8" x 2")
(平面)		 720kgs
(1580 lbs)		 1102-08-80-1 1102-08-80-2 1102-08-80-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
250mm x 62mm
(10"x2-7/16")
(圆弧)		 900kgs
(1980 lbs)		 1102-10-80-1 1102-10-80-2 1102-10-80-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
250mm x 62mm
(10"x2-7/16")
(平面)		 900kgs
(1980 lbs)		 1102-10-80-1 1102-10-80-2 1102-10-80-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
305mm x 70mm
(12"x2-3/4")
(平面)		 1250kgs
(2750 lbs)		 1102-12-80-1 1102-12-80-2 — 滚珠轴承 354.5mm
(13-31/32")		 活动 224mm
脚轮尺寸(搭配NPPR轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 36mm
(4"x1-7/16")
(圆弧)		 250kgs
(550 lbs)		 1102-04-108-1 1102-04-108-2 1102-04-108-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
100mm x 40mm
(4"x1-9/16")
(圆弧)		 250kgs
(550 lbs)		 1102-04-108-1 1102-04-108-2 1102-04-108-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")
(圆弧)		 300kgs
(660 lbs)		 1102-05-108-1 1102-05-108-2 1102-05-108-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 50mm
(5" x 2")
(平面)		 400kgs
(880 lbs)		 1102-05-108-1 1102-05-108-2 1102-05-108-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 42mm
(6"x1-5/8")
(圆弧)		 400kgs
(880 lbs)		 1102-06-108-1 1102-06-108-2 1102-06-108-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 50mm
(6" x 2")
(平面)		 450kgs
(990 lbs)		 1102-06(50)-108-1 1102-06(50)-108-2 1102-06(50)-108-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
180mm x 44mm
(7" x 1-3/4")
(圆弧)		 450kgs
(990 lbs)		 1102-07-108-1 1102-07-108-2 1102-07-108-4 滚珠轴承 238mm
(9-3/8")		 活动 154mm
AK剎 179mm
200mm x 50mm
(8" x 2")
(圆弧)		 550kgs
(1100 lbs)		 1102-08-108-1 1102-08-108-2 1102-08-108-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
200mm x 50mm
(8" x 2")
(平面)		 550kgs
(1100 lbs)		 1102-08-108-1 1102-08-108-2 1102-08-108-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配铝芯橡胶轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 32mm
(4"x1-1/4")		 200kgs
(440 lbs)		 1102-04-49-1 1102-04-49-2 1102-04-49-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")		 250kgs
(550 lbs)		 1102-05-49-1 1102-05-49-2 1102-05-49-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 40mm
(6"x1-9/16")		 350kgs
(770 lbs)		 1102-06-49-1 1102-06-49-2 1102-06-49-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
200mm x 50mm
(8" x 2")		 400kgs
(800 lbs)		 1102-08-49-1 1102-08-49-2 1102-08-49-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配超级人造胶(515))
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
93mm x 28mm
(3-21/32"x1-3/32")		 400kgs
(880 lbs)		 1102-03-14-1 1102-03-14-2 1102-03-14-4 滚珠轴承 143.5mm
(5-21/32")		 活动 87mm
122mm x 36.5mm
(4-13/16"x1-7/16")		 600kgs
(1320 lbs)		 1102-04-14-1 1102-04-14-2 1102-04-14-4 滚珠轴承 170mm
(6-11/16")		 活动 103 mm
138mm x 36.5mm
(5-7/16"x1-7/16")		 700kgs
(1540 lbs)		 1102-07-14-1 1102-07-14-2 — 滚珠轴承 191mm
(7-17/32")		 活动 111mm
200mm x 45.5mm
(8"x1-13/16")		 550kgs
(1200 lbs)		 1102-08-14-1 1102-08-14-2 1102-08-14-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配铝芯AQPU)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 38mm
(4"x1-1/2")		 200kgs
(440 lbs)		 1102-04-11-1 1102-04-11-2 1102-04-11-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")		 250kgs
(550 lbs)		 1102-05-11-1 1102-05-11-2 1102-05-11-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 40mm
(6"x1-9/16")		 300kgs
(660 lbs)		 1102-06-11-1 1102-06-11-2 1102-06-11-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
200mm x 44mm
(8"x1-3/4")		 350kgs
(770 lbs)		 1102-08-11-1 1102-08-11-2 1102-08-11-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
250mm x 50mm
(10" x 2")		 400kgs
(800 lbs)		 1102-10-11-1 1102-10-11-2 1102-10-11-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
250mm x 62mm
(10"x2-7/16")		 400kgs
(880 lbs)		 1102-10(62)-11-1 1102-10(62)-11-2 1102-10(62)-11-4 滚珠轴承 305mm
(12")		 活动 175.5 mm
AK剎 187 mm
脚轮尺寸(搭配橡胶轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
125mm x 40mm
(5"x1-9/16")
(圆弧)		 450kgs
(990 lbs)		 1102-05-81-1 1102-05-81-2 1102-05-81-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 40mm
(5"x1-9/16")
(平面)		 500kgs
(1100 lbs)		 1102-05-81-1 1102-05-81-2 1102-05-81-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 50mm
(5" x 2")
(圆弧)		 500kgs
(1100 lbs)		 1102-05-81-1 1102-05-81-2 1102-05-81-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 42mm
(6"x1-5/8")
(圆弧)		 550kgs
(1200 lbs)		 1102-06-81-1 1102-06-81-2 1102-06-81-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 42mm
(6"x1-5/8")
(平面)		 600kgs
(1320 lbs)		 1102-06-81-1 1102-06-81-2 1102-06-81-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 50mm
(6" x 2")
(圆弧)		 600kgs
(1320 lbs)		 1102-06(50)-81-1 1102-06(50)-81-2 1102-06(50)-81-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
200mm x 50mm
(8" x 2")
(圆弧)		 750kgs
(1650 lbs)		 1102-08-81-1 1102-08-81-2 1102-08-81-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
200mm x 50mm
(8" x 2")
(平面)		 800kgs
(1760 lbs)		 1102-08-81-1 1102-08-81-2 1102-08-81-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配塑料轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
200mm x 50mm
(8" x 2")		 750kgs
(1650 lbs)		 1102-08-62-1 1102-08-62-2 1102-08-62-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配导电轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 46.5mm
(4"x1-13/16")		 335kgs
(735 lbs)		 1102-04-101-1 1102-04-101-2 1102-04-101-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 51mm
(5" x 2")		 450kgs
(990 lbs)		 1102-05-101-1 1102-05-101-2 1102-05-101-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 51mm
(6" x 2")		 550kgs
(1200 lbs)		 1102-06-101-1 1102-06-101-2 1102-06-101-4 滚珠轴承 238mm
(9-3/8")		 活动 154mm
AK剎 179mm
200mm x 51mm
(8" x 2")		 650kgs
(1430 lbs)		 1102-08-101-1 1102-08-101-2 1102-08-101-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配耐高温轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
150mm x 42mm
(6"x1-5/8")
(圆弧)		 500kgs
(1100 lbs)		 1102-06-82-1 1102-06-82-2 1102-06-82-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
180mm x 50mm
(7" x 2")
(圆弧)		 650kgs
(1430 lbs)		 1102-07-82-1 1102-07-82-2 1102-07-82-4 滚珠轴承 238mm
(9-3/8")		 活动 154mm
AK剎 179mm
200mm x 50mm
(8" x 2")
(圆弧)		 670kgs
(1475 lbs)		 1102-08-82-1 1102-08-82-2 1102-08-82-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
250mm x 62mm
(10"x2-7/16")
(圆弧)		 1000kgs
(2200 lbs)		 1102-10-82-1 1102-10-82-2 1102-10-82-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
300mm x 90mm
(12"x3-17/32")
(圆弧)		 1250kgs
(2750 lbs)		 1102-12-82-1 1102-12-82-2 — 滚珠轴承 352mm
(13-27/32")		 活动 222mm
300mm x 90mm
(12"x3-17/32")
(平面)		 1500kgs
(3300 lbs)		 1102-12-82-1 1102-12-82-2 — 滚珠轴承 352mm
(13-27/32")		 活动 222mm
脚轮尺寸(搭配W 全效轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
125mm x 40mm
(5"x1-9/16")
(圆弧)		 340kgs
(700 lbs)		 1102-05-78-1 1102-05-78-2 1102-05-78-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 40mm
(5"x1-9/16")
(平面)		 390kgs
(860 lbs)		 1102-05-78-1 1102-05-78-2 1102-05-78-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 50mm
(5" x 2")
(圆弧)		 500kgs
(1100 lbs)		 1102-05-78-1 1102-05-78-2 1102-05-78-4 滚珠轴承 170mm
(6-11/16")		 活动 107mm
AK剎 158mm
150mm x 42mm
(6"x1-5/8")
(圆弧)		 410kgs
(900 lbs)		 1102-06-78-1 1102-06-78-2 1102-06-78-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 42mm
(6"x1-5/8")
(平面)		 460kgs
(1010 lbs)		 1102-06-78-1 1102-06-78-2 1102-06-78-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 50mm
(6" x 2")
(圆弧)		 600kgs
(1320 lbs)		 1102-06(50)-78-1 1102-06(50)-78-2 1102-06(50)-78-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
200mm x 50mm
(8" x 2")
(圆弧)		 650kgs
(1430 lbs)		 1102-08-78-1 1102-08-78-2 1102-08-78-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
200mm x 50mm
(8" x 2")
(平面)		 700kgs
(1540 lbs)		 1102-08-78-1 1102-08-78-2 1102-08-78-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配全效轮(514))
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
150mm x 42mm
(6"x1-5/8")
(圆弧)		 670kgs
(1475 lbs)		 1102-06-83-1 1102-06-83-2 1102-06-83-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
180mm x 50mm
(7" x 2")
(圆弧)		 650kgs
(1430 lbs)		 1102-07-83-1 1102-07-83-2 1102-07-83-4 滚珠轴承 238mm
(9-3/8")		 活动 154mm
AK剎 179mm
200mm x 50mm
(8" x 2")
(圆弧)		 800kgs
(1760 lbs)		 1102-08-83-1 1102-08-83-2 1102-08-83-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
250mm x 62mm
(10"x2-7/16")
(圆弧)		 1200kgs
(2640 lbs)		 1102-10-83-1 1102-10-83-2 1102-10-83-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
300mm x 90mm
(12"x3-17/32")
(圆弧)		 1500kgs
(3300 lbs)		 1102-12-83-1 1102-12-83-2 — 滚珠轴承 352mm
(13-27/32")		 活动 222mm
300mm x 90mm
(12"x3-17/32")
(平面)		 1800kgs
(3960 lbs)		 1102-12-83-1 1102-12-83-2 — 滚珠轴承 352mm
(13-27/32")		 活动 222mm
脚轮尺寸(搭配WHDR轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
150mm x 42mm
(6"x1-5/8")
(圆弧)		 800kgs
(1760 lbs)		 1102-06-91-1 1102-06-91-2 1102-06-91-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
180mm x 50mm
(7" x 2")
(圆弧)		 650kgs
(1430 lbs)		 1102-07-91-1 1102-07-91-2 1102-07-91-4 滚珠轴承 238mm
(9-3/8")		 活动 154mm
AK剎 179mm
200mm x 50mm
(8" x 2")
(圆弧)		 1100kgs
(2420 lbs)		 1102-08-91-1 1102-08-91-2 1102-08-91-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
250mm x 62mm
(10"x2-7/16")
(圆弧)		 1500kgs
(3300 lbs)		 1102-10-91-1 1102-10-91-2 1102-10-91-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
300mm x 90mm
(12"x3-17/32")
(圆弧)		 2000kgs
(4400 lbs)		 1102-12-91-1 1102-12-91-2 — 滚珠轴承 352mm
(13-27/32")		 活动 222mm
300mm x 90mm
(12"x3-17/32")
(平面)		 2500kgs
(5500 lbs)		 1102-12-91-1 1102-12-91-2 — 滚珠轴承 352mm
(13-27/32")		 活动 222mm
脚轮尺寸(搭配CPD轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 40mm
(4"x1-9/16")		 200kgs
(440 lbs)		 1102-04-89-1 1102-04-89-2 1102-04-89-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")		 300kgs
(660 lbs)		 1102-05-89-1 1102-05-89-2 1102-05-89-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 40mm
(6"x1-9/16")		 350kgs
(770 lbs)		 1102-06-89-1 1102-06-89-2 1102-06-89-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
200mm x 44mm
(8"x1-3/4")		 400kgs
(800 lbs)		 1102-08-89-1 1102-08-89-2 1102-08-89-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配蓝色弹力轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 38mm
(4"x1-1/2")		 200kgs
(440 lbs)		 1102-04-90-1 1102-04-90-2 1102-04-90-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")		 250kgs
(550 lbs)		 1102-05-90-1 1102-05-90-2 1102-05-90-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
150mm x 40mm
(6"x1-9/16")		 300kgs
(660 lbs)		 1102-06-90-1 1102-06-90-2 1102-06-90-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
200mm x 44mm
(8"x1-3/4")		 350kgs
(770 lbs)		 1102-08-90-1 1102-08-90-2 1102-08-90-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
250mm x 62mm
(10"x2-7/16")		 400kgs
(880 lbs)		 1102-10-90-1 1102-10-90-2 1102-10-90-4 滚珠轴承 305mm
(12")		 活动 175.5mm
AK剎 187mm
300mm x 76mm
(12" x 3")		 550kgs
(1200 lbs)		 1102-12-90-1 1102-12-90-2 — 滚珠轴承 352mm
(13-27/32")		 活动 222mm
脚轮尺寸(搭配三星轮)
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 36mm
(4"x1-7/16")
(圆弧)		 300kgs
(660 lbs)		 1102-04-87-1 1102-04-87-2 1102-04-87-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
100mm x 40mm
(4"x1-9/16")
(圆弧)		 300kgs
(660 lbs)		 1102-04-87-1 1102-04-87-2 1102-04-87-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")
(圆弧)		 350kgs
(770 lbs)		 1102-05-87-1 1102-05-87-2 1102-05-87-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 50mm
(5" x 2")
(平面)		 450kgs
(990 lbs)		 1102-05-87-1 1102-05-87-2 1102-05-87-4 滚珠轴承 170mm
(6-11/16")		 活动 107mm
AK剎 158mm
150mm x 42mm
(6"x1-5/8")
(圆弧)		 450kgs
(990 lbs)		 1102-06-87-1 1102-06-87-2 1102-06-87-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 50mm
(6" x 2")
(圆弧)		 500kgs
(1100 lbs)		 1102-06-87-1 1102-06-87-2 1102-06-87-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
180mm x 44mm
(7" x 1-3/4")
(圆弧)		 600kgs
(1320 lbs)		 1102-07-87-1 1102-07-87-2 1102-07-87-4 滚珠轴承 238mm
(9-3/8")		 活动 154mm
AK剎 179mm
200mm x 50mm
(8" x 2")
(圆弧)		 650kgs
(1430 lbs)		 1102-08-87-1 1102-08-87-2 1102-08-87-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
200mm x 50mm
(8" x 2")
(平面)		 700kgs
(1540 lbs)		 1102-08-87-1 1102-08-87-2 1102-08-87-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配超级人造胶(大圆弧))
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 36mm
(4"x1-7/16")
(圆弧)		 300kgs
(660 lbs)		 1102-04-87-1 1102-04-87-2 1102-04-87-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
100mm x 40mm
(4"x1-9/16")
(圆弧)		 300kgs
(660 lbs)		 1102-04-87-1 1102-04-87-2 1102-04-87-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")
(圆弧)		 350kgs
(770 lbs)		 1102-05-87-1 1102-05-87-2 1102-05-87-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 50mm
(5" x 2")
(平面)		 450kgs
(990 lbs)		 1102-05-87-1 1102-05-87-2 1102-05-87-4 滚珠轴承 170mm
(6-11/16")		 活动 107mm
AK剎 158mm
150mm x 42mm
(6"x1-5/8")
(圆弧)		 450kgs
(990 lbs)		 1102-06-87-1 1102-06-87-2 1102-06-87-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 50mm
(6" x 2")
(圆弧)		 500kgs
(1100 lbs)		 1102-06-87-1 1102-06-87-2 1102-06-87-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
180mm x 44mm
(7" x 1-3/4")
(圆弧)		 600kgs
(1320 lbs)		 1102-07-87-1 1102-07-87-2 1102-07-87-4 滚珠轴承 238mm
(9-3/8")		 活动 154mm
AK剎 179mm
200mm x 50mm
(8" x 2")
(圆弧)		 650kgs
(1430 lbs)		 1102-08-87-1 1102-08-87-2 1102-08-87-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
200mm x 50mm
(8" x 2")
(平面)		 700kgs
(1540 lbs)		 1102-08-87-1 1102-08-87-2 1102-08-87-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
脚轮尺寸(搭配全效轮(大圆弧))
轮径 × 轮宽 载重 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 36mm
(4"x1-7/16")
(圆弧)		 300kgs
(660 lbs)		 1102-04-87-1 1102-04-87-2 1102-04-87-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
100mm x 40mm
(4"x1-9/16")
(圆弧)		 300kgs
(660 lbs)		 1102-04-87-1 1102-04-87-2 1102-04-87-4 滚珠轴承 147mm
(5-25/32")		 活动 92mm
AK剎 148mm
125mm x 40mm
(5"x1-9/16")
(圆弧)		 350kgs
(770 lbs)		 1102-05-87-1 1102-05-87-2 1102-05-87-4 滚珠轴承 170mm
(6-11/16")		 活动 107 mm
AK剎 158 mm
125mm x 50mm
(5" x 2")
(平面)		 450kgs
(990 lbs)		 1102-05-87-1 1102-05-87-2 1102-05-87-4 滚珠轴承 170mm
(6-11/16")		 活动 107mm
AK剎 158mm
150mm x 42mm
(6"x1-5/8")
(圆弧)		 450kgs
(990 lbs)		 1102-06-87-1 1102-06-87-2 1102-06-87-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
150mm x 50mm
(6" x 2")
(圆弧)		 500kgs
(1100 lbs)		 1102-06-87-1 1102-06-87-2 1102-06-87-4 滚珠轴承 197mm
(7-3/4")		 活动 119mm
AK剎 160mm
180mm x 44mm
(7" x 1-3/4")
(圆弧)		 600kgs
(1320 lbs)		 1102-07-87-1 1102-07-87-2 1102-07-87-4 滚珠轴承 238mm
(9-3/8")		 活动 154mm
AK剎 179mm
200mm x 50mm
(8" x 2")
(圆弧)		 650kgs
(1430 lbs)		 1102-08-87-1 1102-08-87-2 1102-08-87-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm
200mm x 50mm
(8" x 2")
(平面)		 700kgs
(1540 lbs)		 1102-08-87-1 1102-08-87-2 1102-08-87-4 滚珠轴承 248mm
(9-3/4")		 活动 164mm
AK剎 184mm

轮子详细资讯

轮径 × 轮宽 规格 载重 材质 型号 轴承 总高 偏心距 迴旋半径
固定 活动 剎车
轮面宽度
Width of Tread
75mm x 14mm
(3" x 0.55")
_________

脚轮宽度
Caster width
75mm x 59mm
(3" x 2.3")		 四角底板
Plate		 90kgs (198lbs) 全效轮
Resolute		 1161-03-84-1 1161-03-84-2 1161-03-84-4 滚珠轴承
Ball Bearing		 90mm
(3-17/32")		 23mm

活动 67mm

活剎 67mm


Swivel 67mm

Swivel W/Automatic
locking 67mm
90kgs (198lbs) 导电轮
E-conductive		 1161-03-85-1 1161-03-85-2 1161-03-85-4
90kgs (198lbs) 超级人造胶
TPR on PP Core		 1161-03-86-1 1161-03-86-2 1161-03-86-4
丝扣
Threaded
Stem		 90kgs (198lbs) 全效轮
Resolute		 ─ 1161-03-84-2 1161-03-84-4 82mm
(3-7/32")
90kgs (198lbs) 导电轮
E-conductive		 ─ 1161-03-85-2 1161-03-85-4
90kgs (198lbs) 超级人造胶
TPR on PP Core		 ─ 1161-03-86-2 1161-03-86-4
轮面宽度
Width of Tread
100mm x 18mm
(4" x 0.7")
_________

脚轮宽度
Caster width
100mm x 82mm
(4" x 3.2")		 四角底板
Plate		 100kgs (220lbs) 全效轮
Resolute		 1161-04-84-1 1161-04-84-2 1161-04-84-4 滚珠轴承
Ball Bearing		 123mm
(4-27/32")		 32mm

活动 91mm

活剎 91mm


Swivel 91mm

Swivel W/Automatic
locking 91mm
100kgs (220lbs) 导电轮
E-conductive		 1161-04-85-1 1161-04-85-2 1161-04-85-4
100kgs (220lbs) 超级人造胶
TPR on PP Core		 1161-04-86-1 1161-04-86-2 1161-04-86-4
丝扣
Threaded
Stem		 100kgs (220lbs) 全效轮
Resolute		 ─ 1161-04-84-2 1161-04-84-4 121mm
(4-3/4")
100kgs (220lbs) 导电轮
E-conductive		 ─ 1161-04-85-2 1161-04-85-4
100kgs (220lbs) 超级人造胶
TPR on PP Core		 ─ 1161-04-86-2 1161-04-86-4
轮面宽度
Width of Tread
125mm x 18mm
(5" x 0.7")
_________

脚轮宽度
Caster width
125mm x 84.5mm
(5" x 3.3")		 四角底板
Plate		 110kgs
(242 lbs)		 全效轮
Resolute		 1161-05-84-1 1161-05-84-2 1161-05-84-4 滚珠轴承
Ball Bearing		 147mm
(5-25/32")		 40mm

活动 110mm

活剎 110mm


Swivel 110mm

Swivel W/Automatic
locking 110mm
110kgs
(242 lbs)		 导电轮
E-conductive		 1161-05-85-1 1161-04-85-2 1161-05-85-4
110kgs
(242 lbs)		 超级人造胶
TPR on PP Core		 1161-05-86-1 1161-05-86-2 1161-05-86-4
丝扣
Threaded
Stem		 110kgs
(242 lbs)		 全效轮
Resolute		 ─ 1161-05-84-2 1161-05-84-4 145mm
(5-23/32")
110kgs
(242 lbs)		 导电轮
E-conductive		 ─ 1161-05-85-2 1161-05-85-4
110kgs
(242 lbs)		 超级人造胶
TPR on PP Core		 ─ 1161-05-86-2 1161-05-86-4

长按关注微信公众号
可向得貹客服提问
